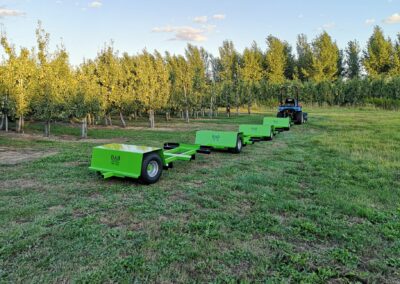

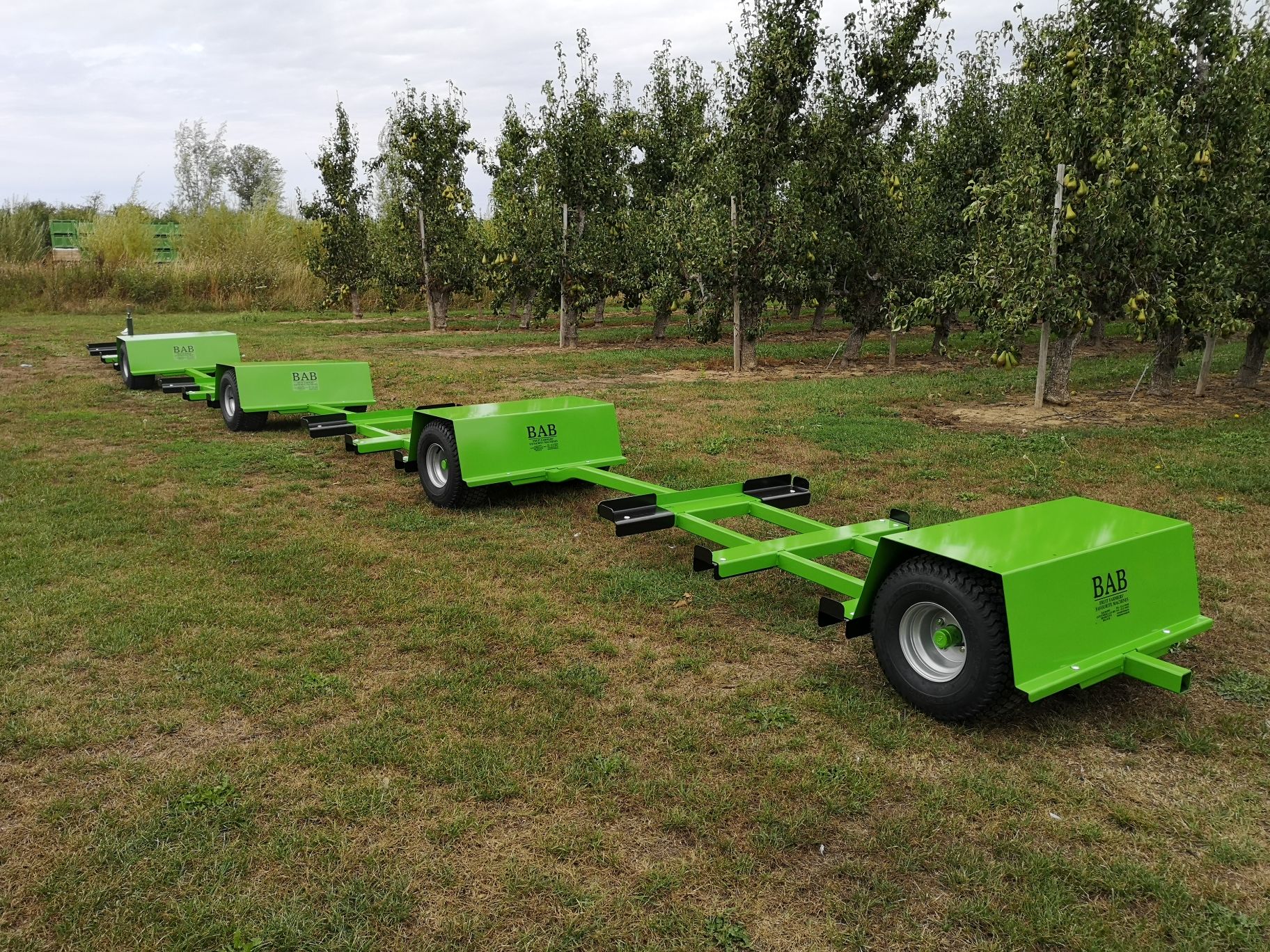

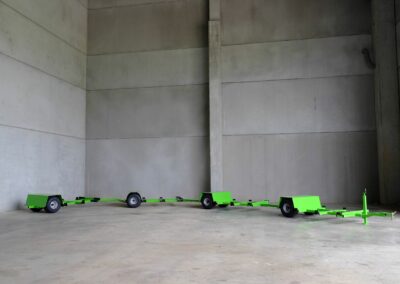

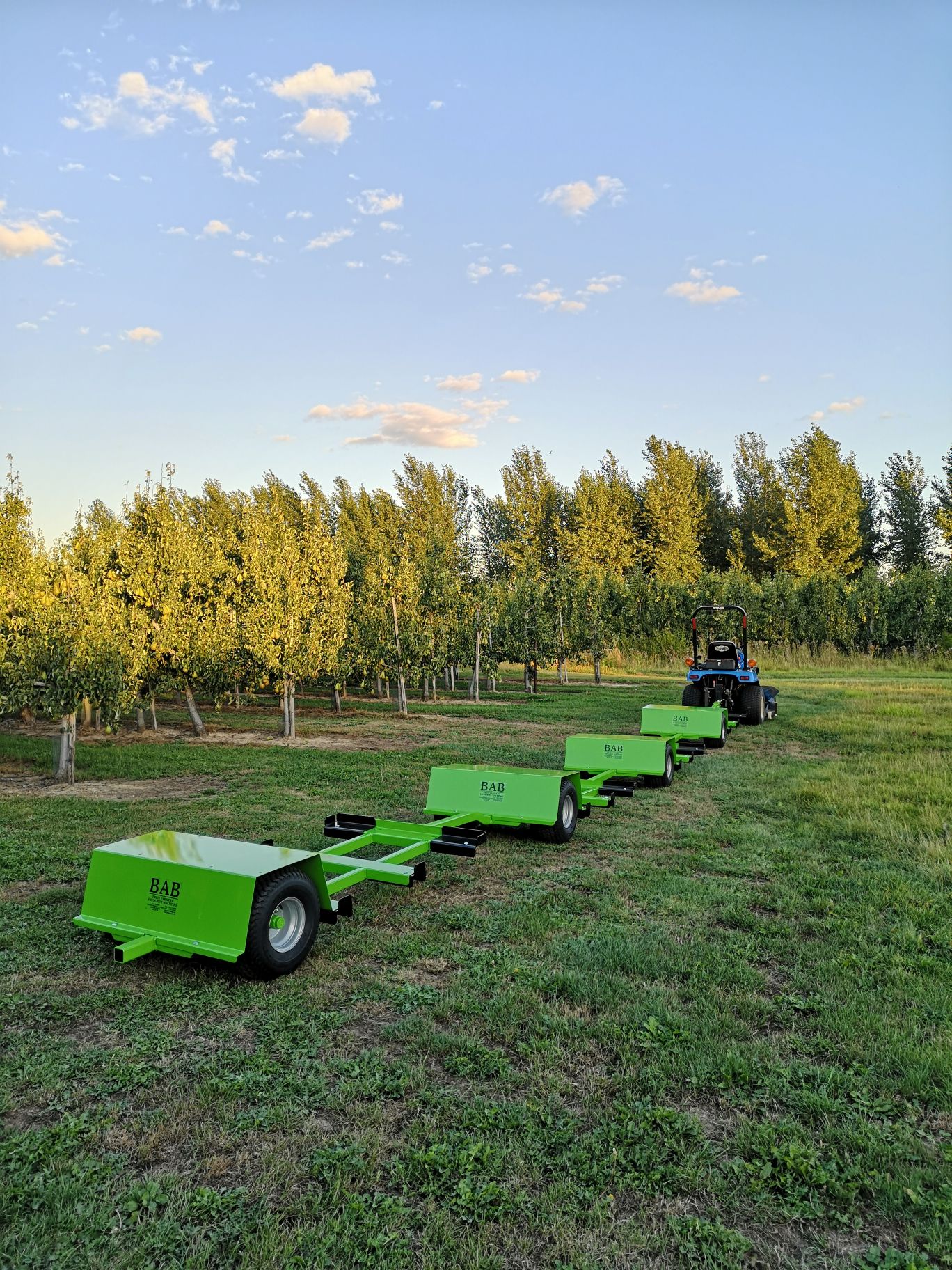

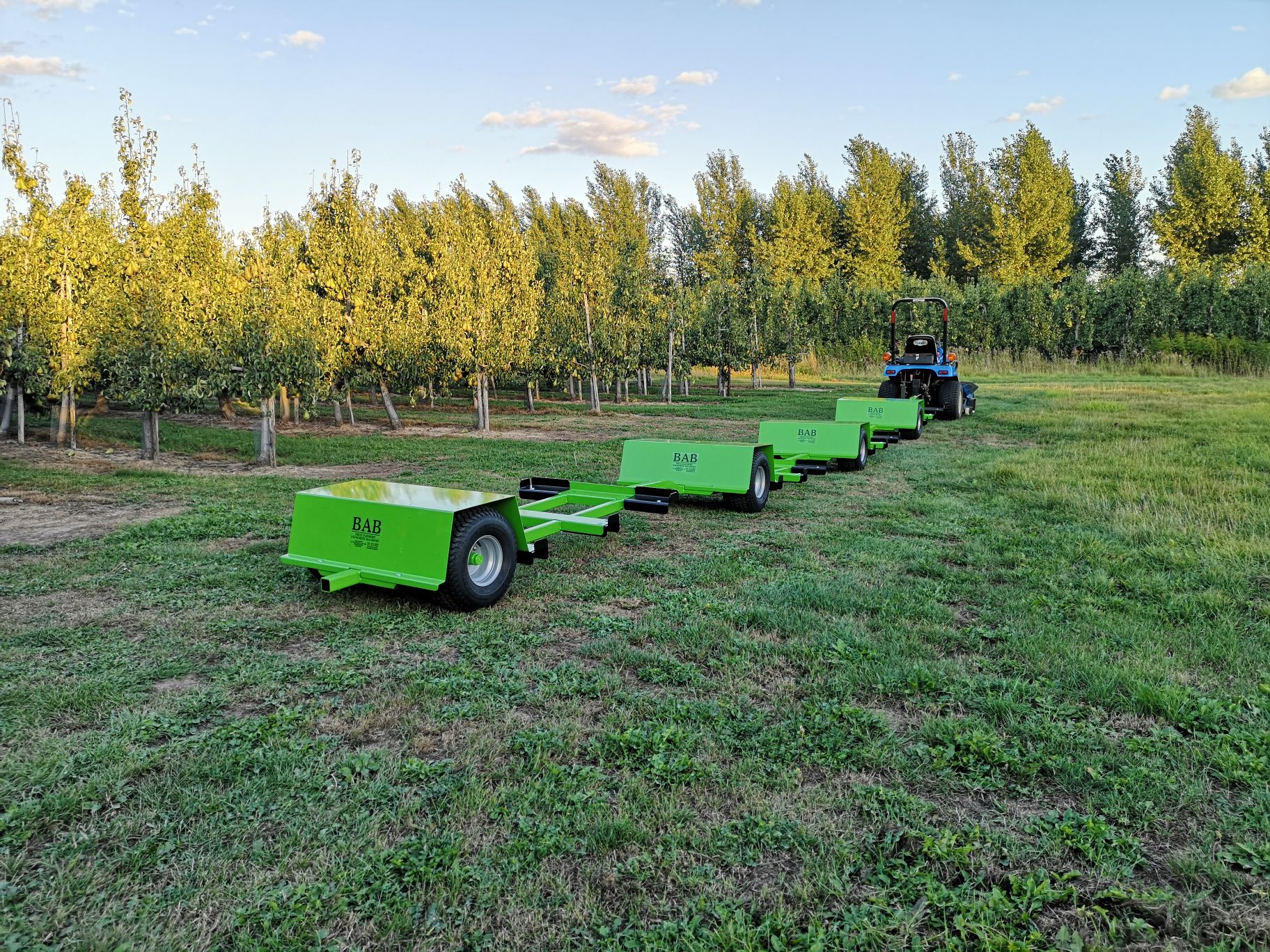

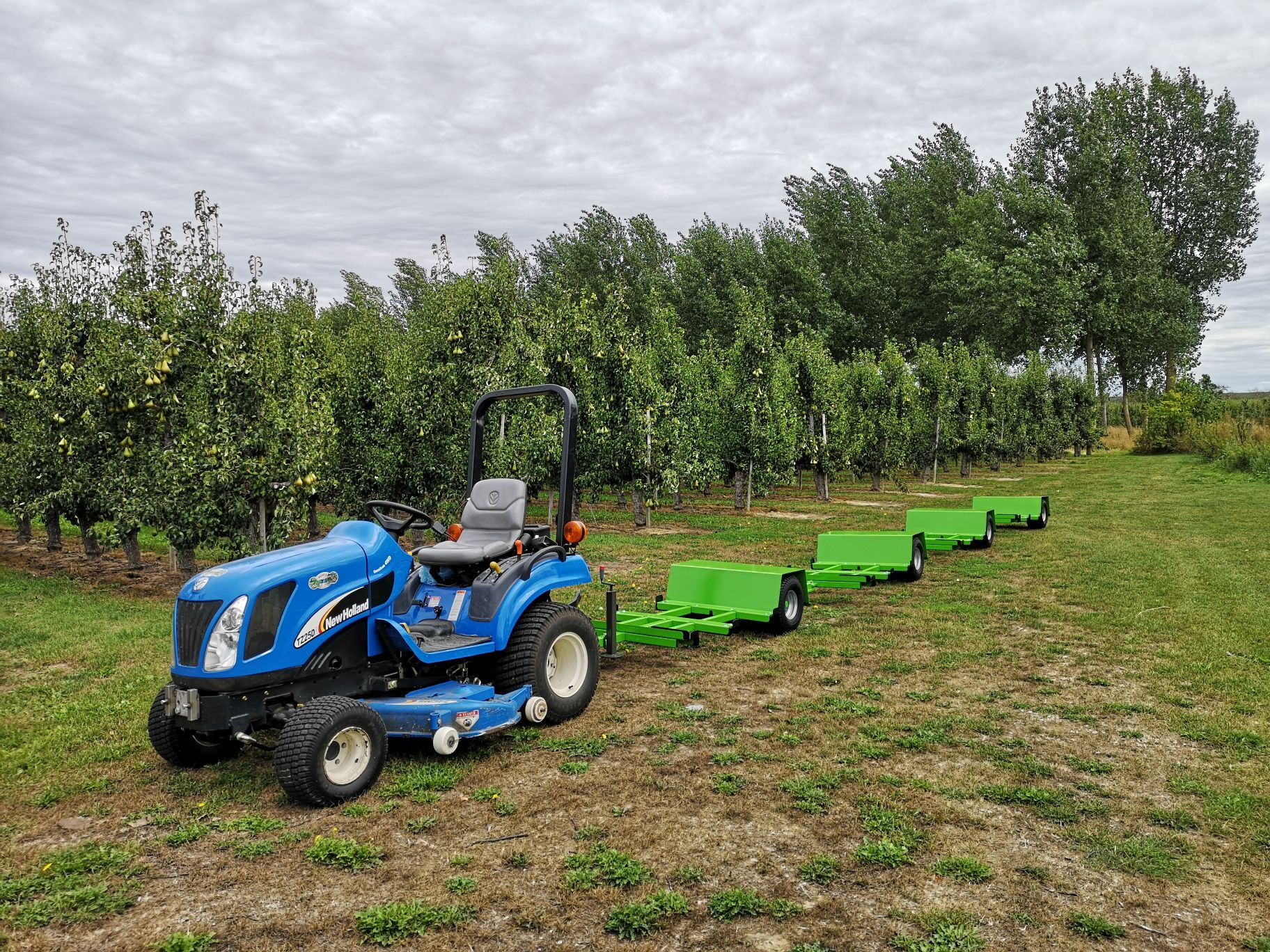

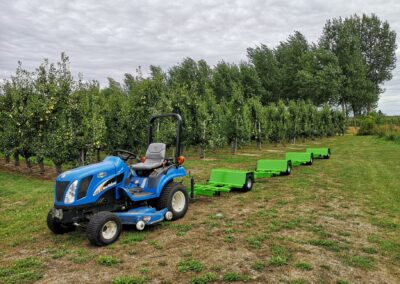

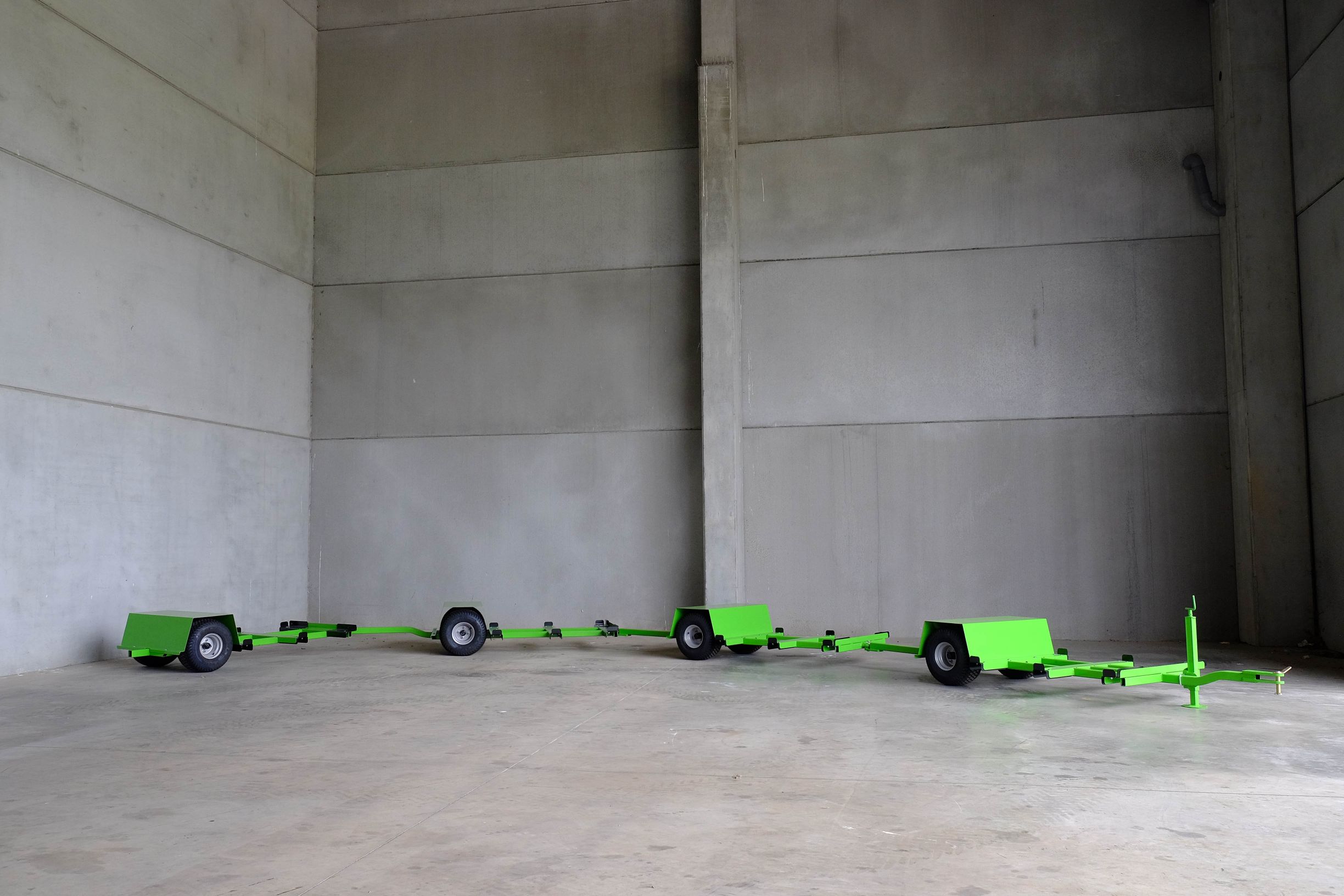

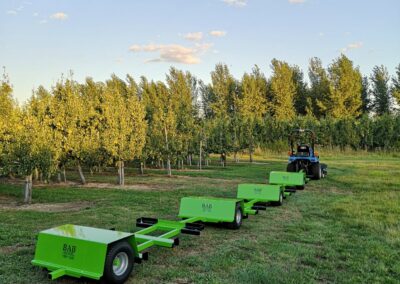

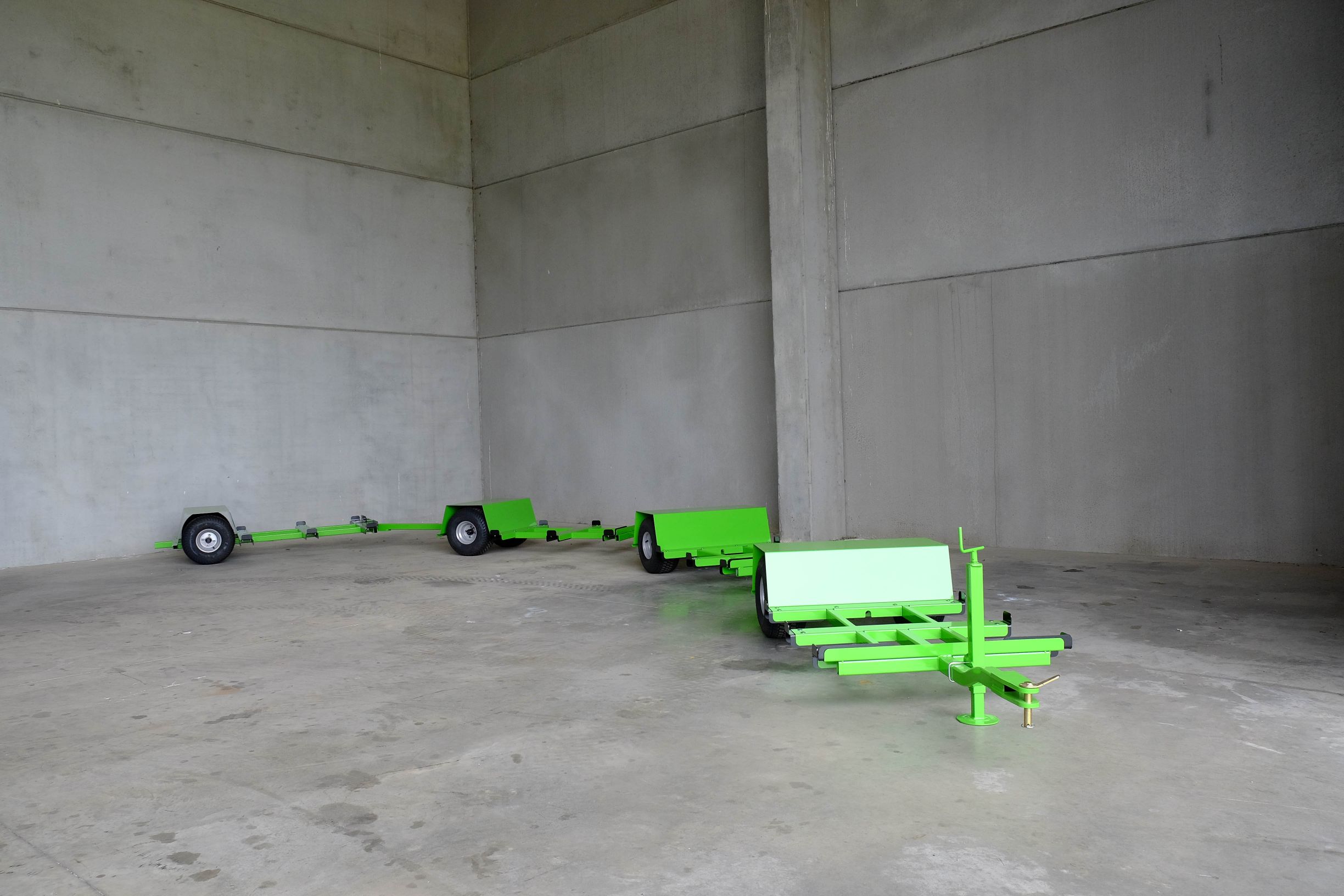

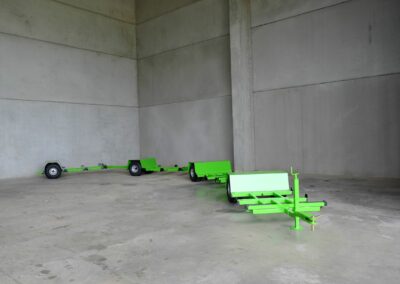

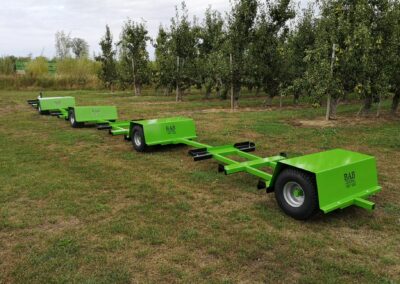

The first wagon has an adjustable support leg. Usually a BAB picking train consists out of 4 wagons, but longer is also possible. All 4 are different and adapted to their position in the train. A picking train of 4 wagons is about 12 meters long and suitable for 8 pickers.
- platform height 21 cm
- wheels behind bin
- mudguard from left to right
- wheels 18×9,50-8 6 ply
- bins 1,0 x 1,2 meter and 1,2 x 1,2 meter
- rim mounted on axle with 4 bolts
- total width 1 meter
- color green RAL 6018
- width adjustable sides

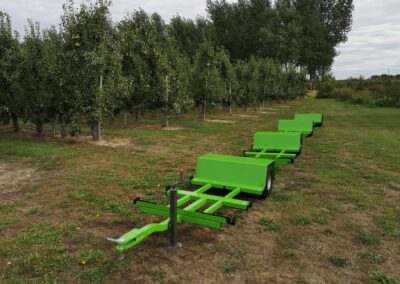

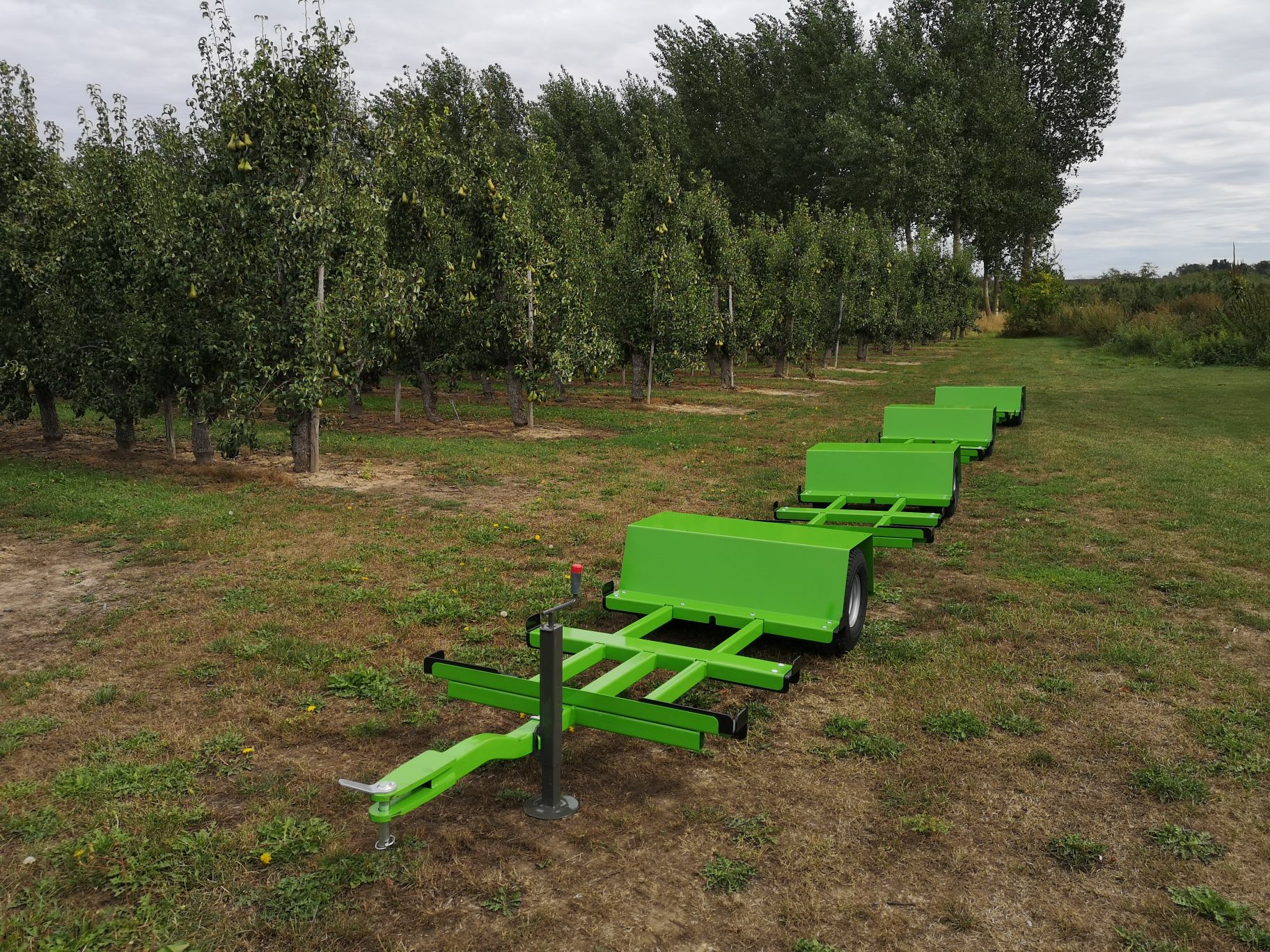

The first cart has a connection for a drawbar and has a jack.
Most of the time a picking train is made out of 4 carts , but you can make it shorter or even longer.
A train made of 4 trailers has a total leght of approximately 12 meters and is for 8 pickers.
grass ejection middle
roller at the back ø 220 mm

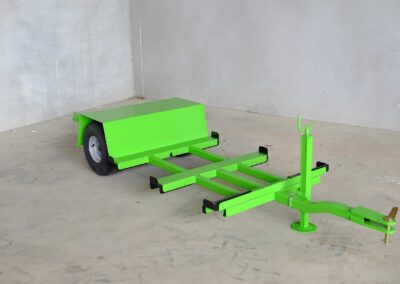

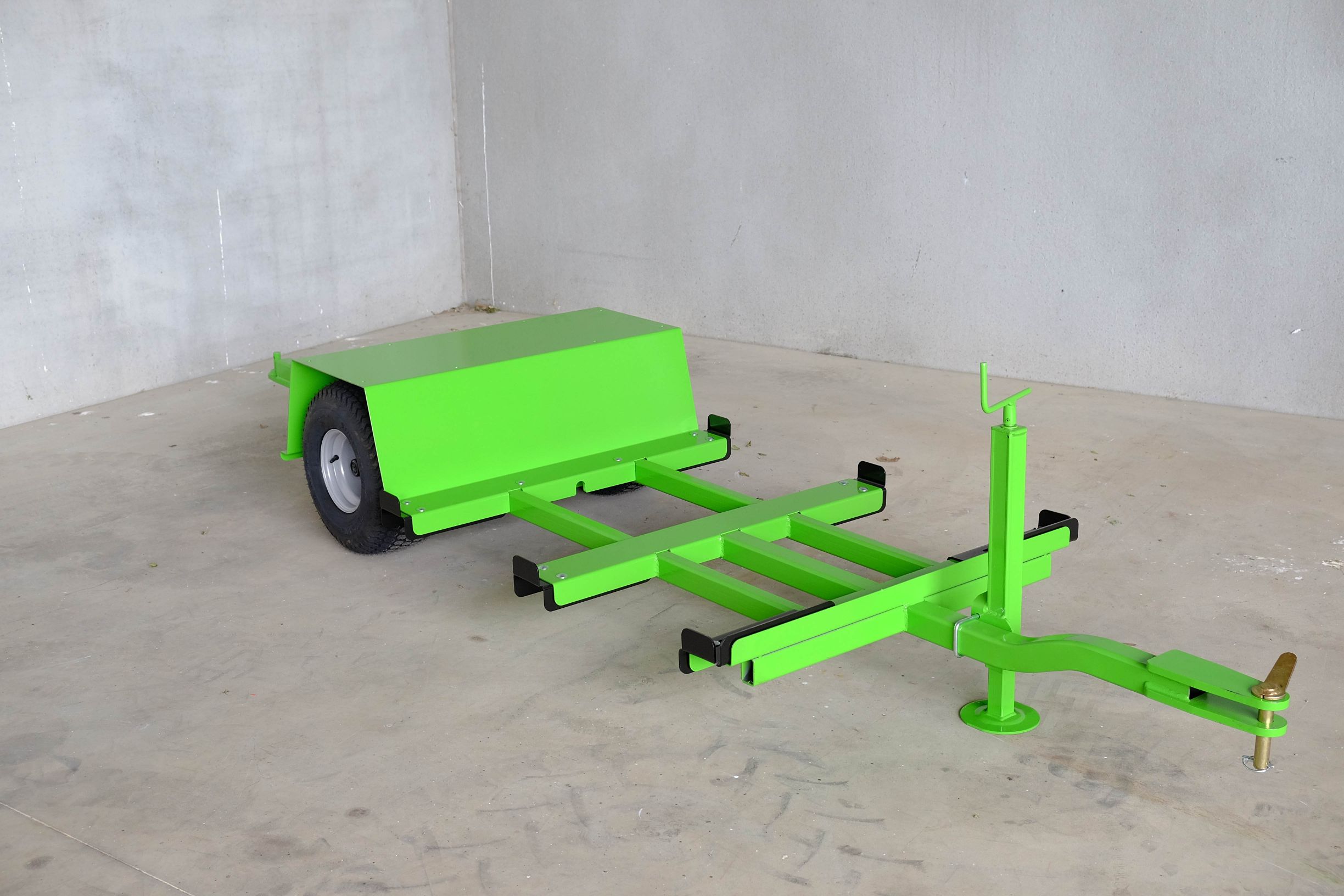

|1||110-001-001||Front cart with drawbar with fork and jack.|
|2||110-001-002||Standard cart, if the number of carts changes, it will happen with this one.|
|3||110-001-003||This one must always be placed as the penultimate one and has a raised drawbar at the rear.|
|4||110-001-004||It can only be placed at the rear, since it has no drawbar at the rear,|
