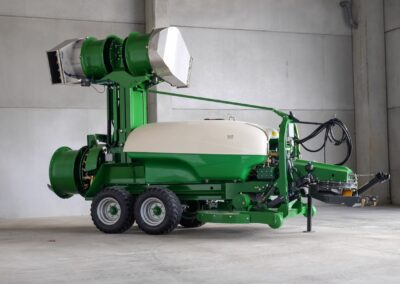

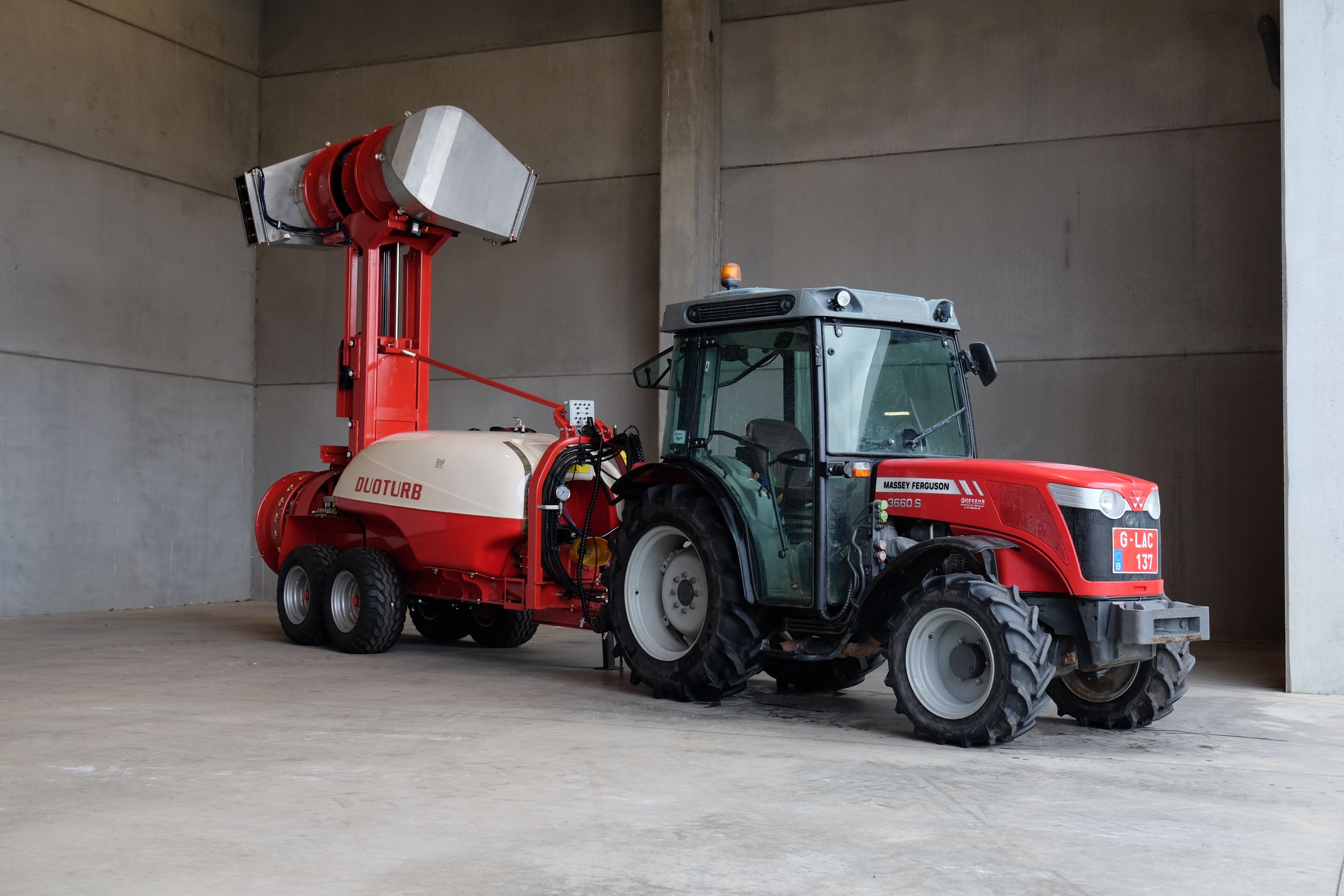

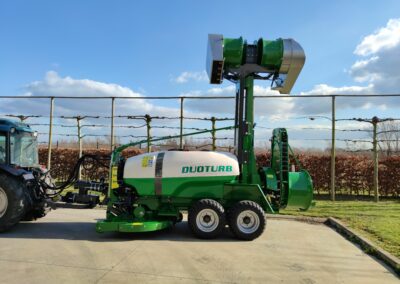

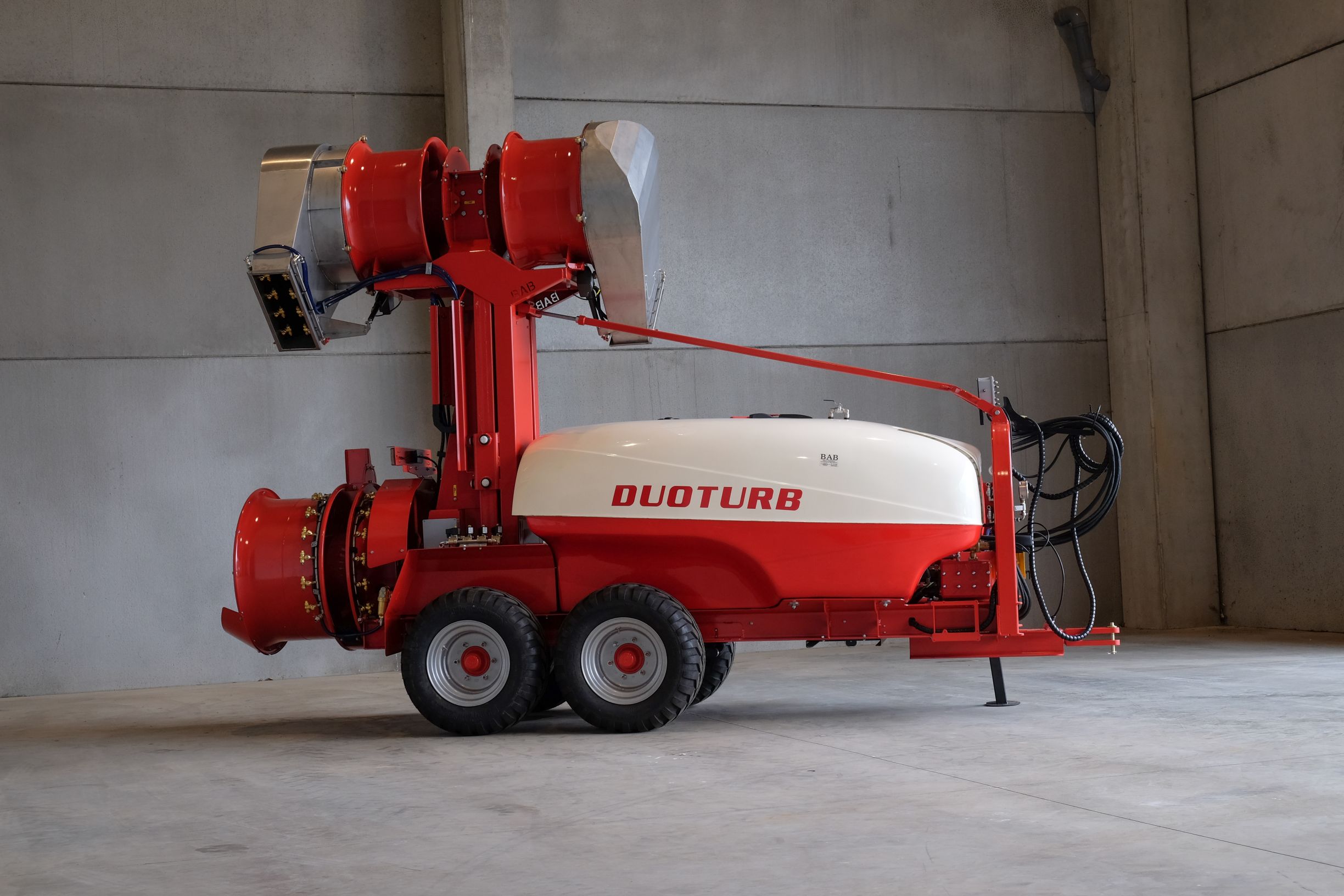

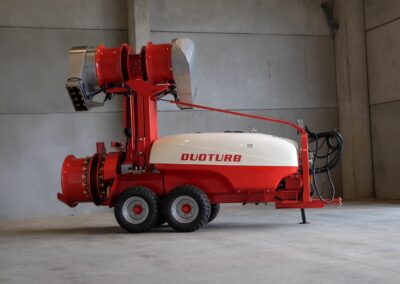

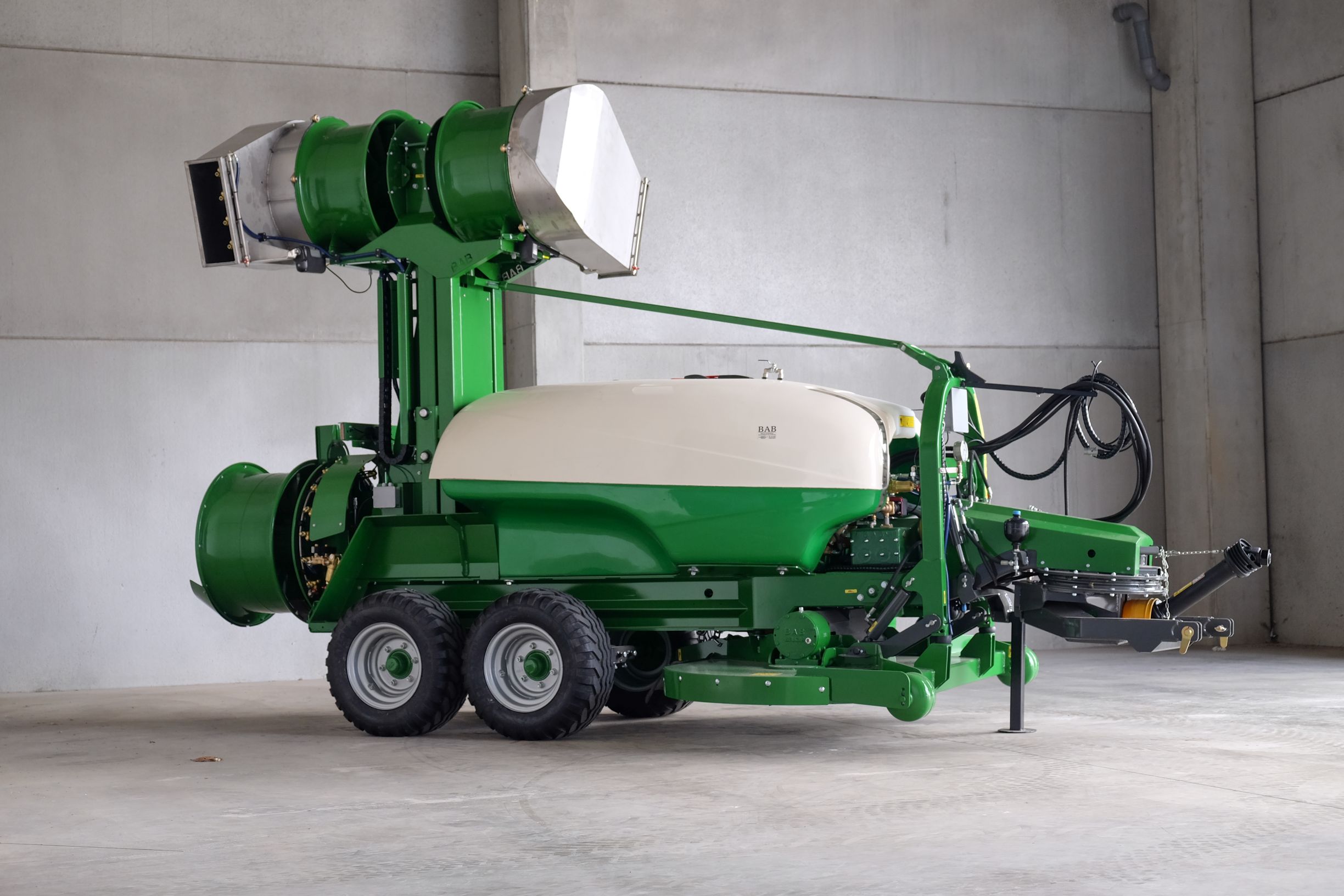

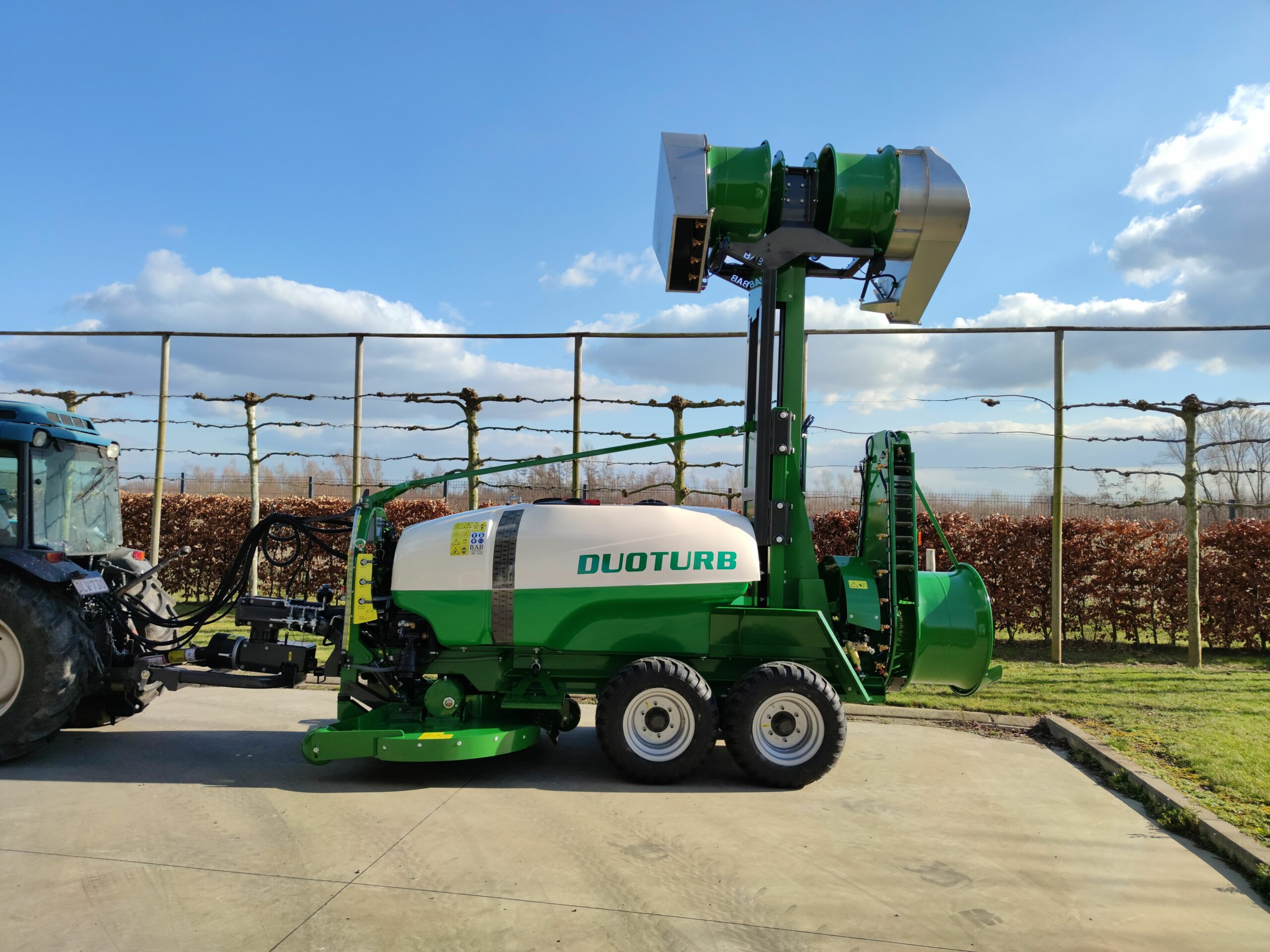

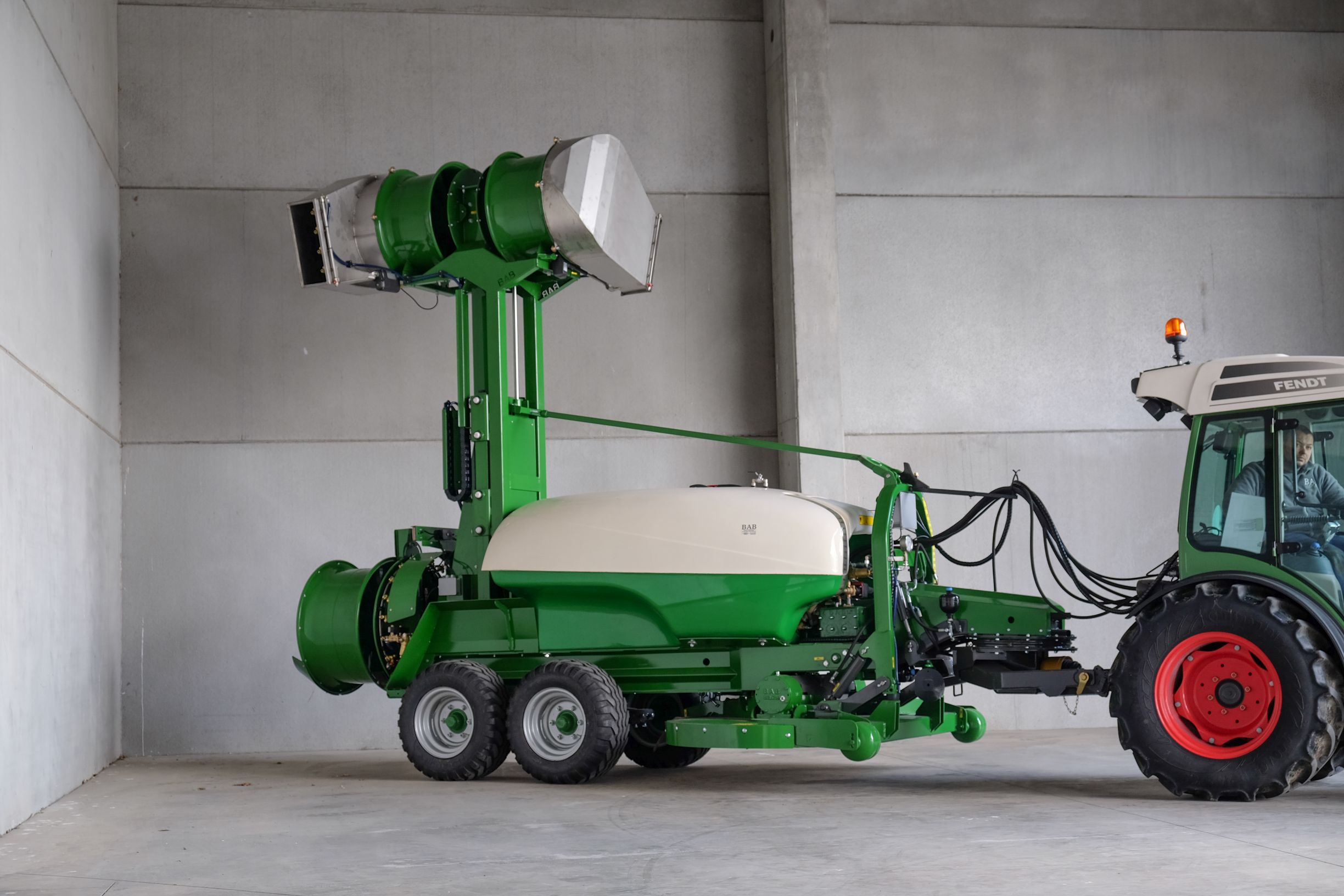

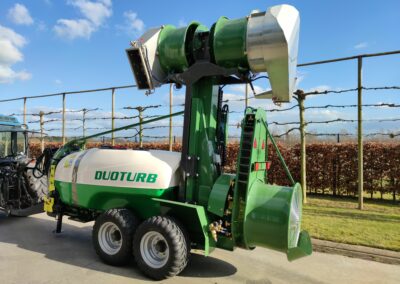

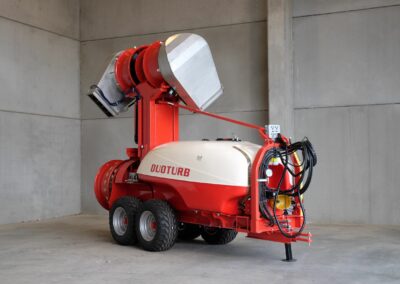

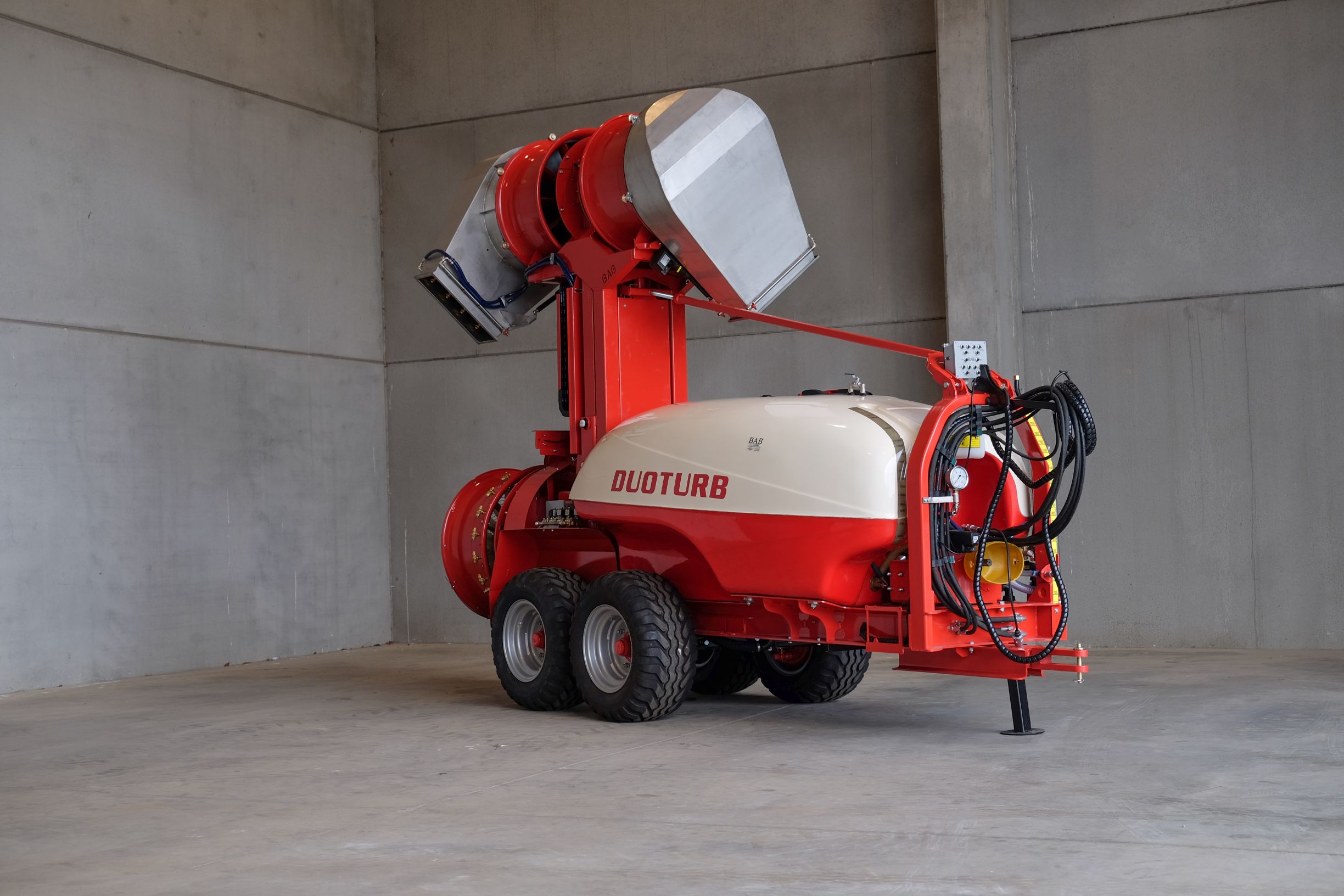

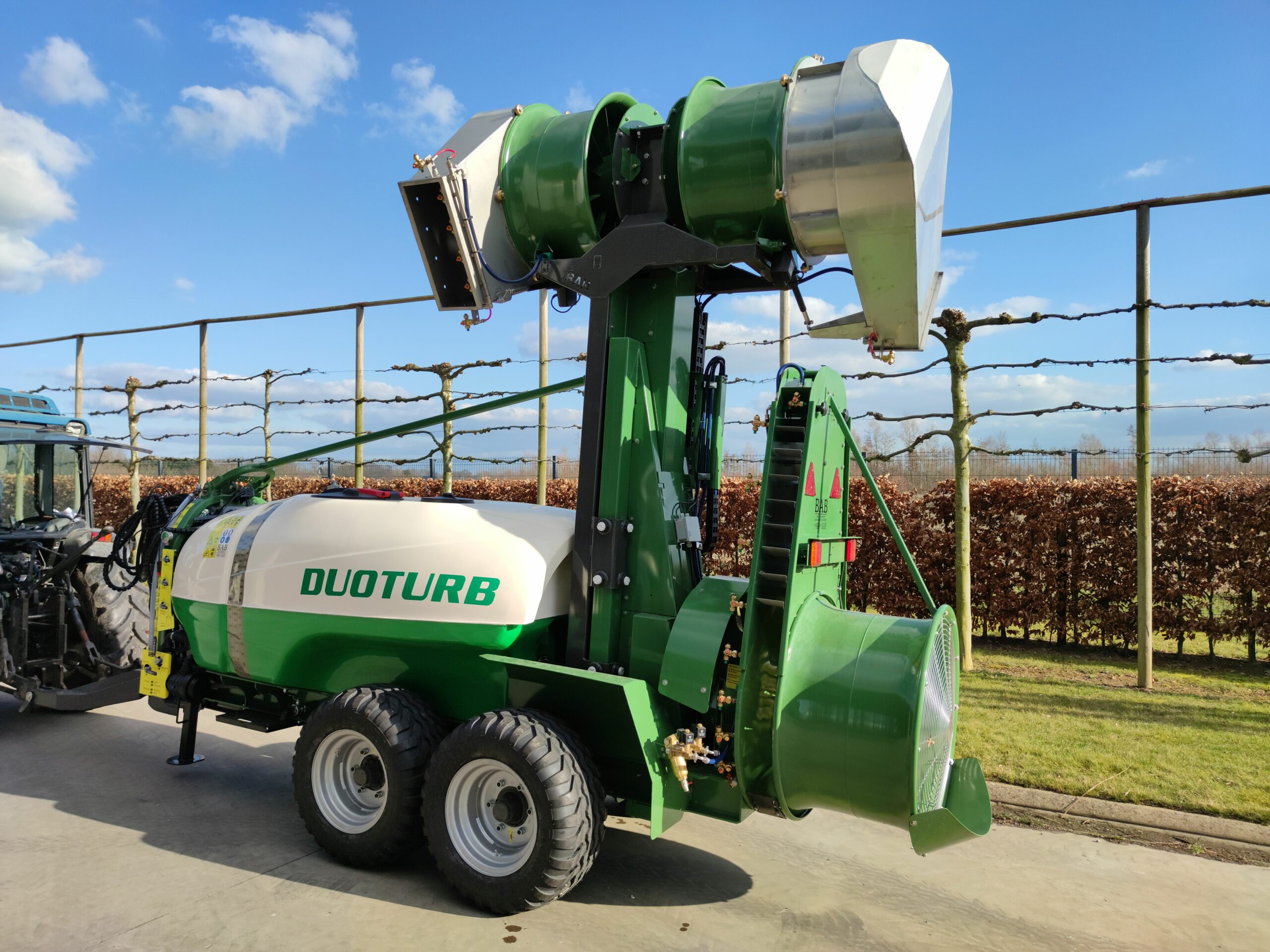

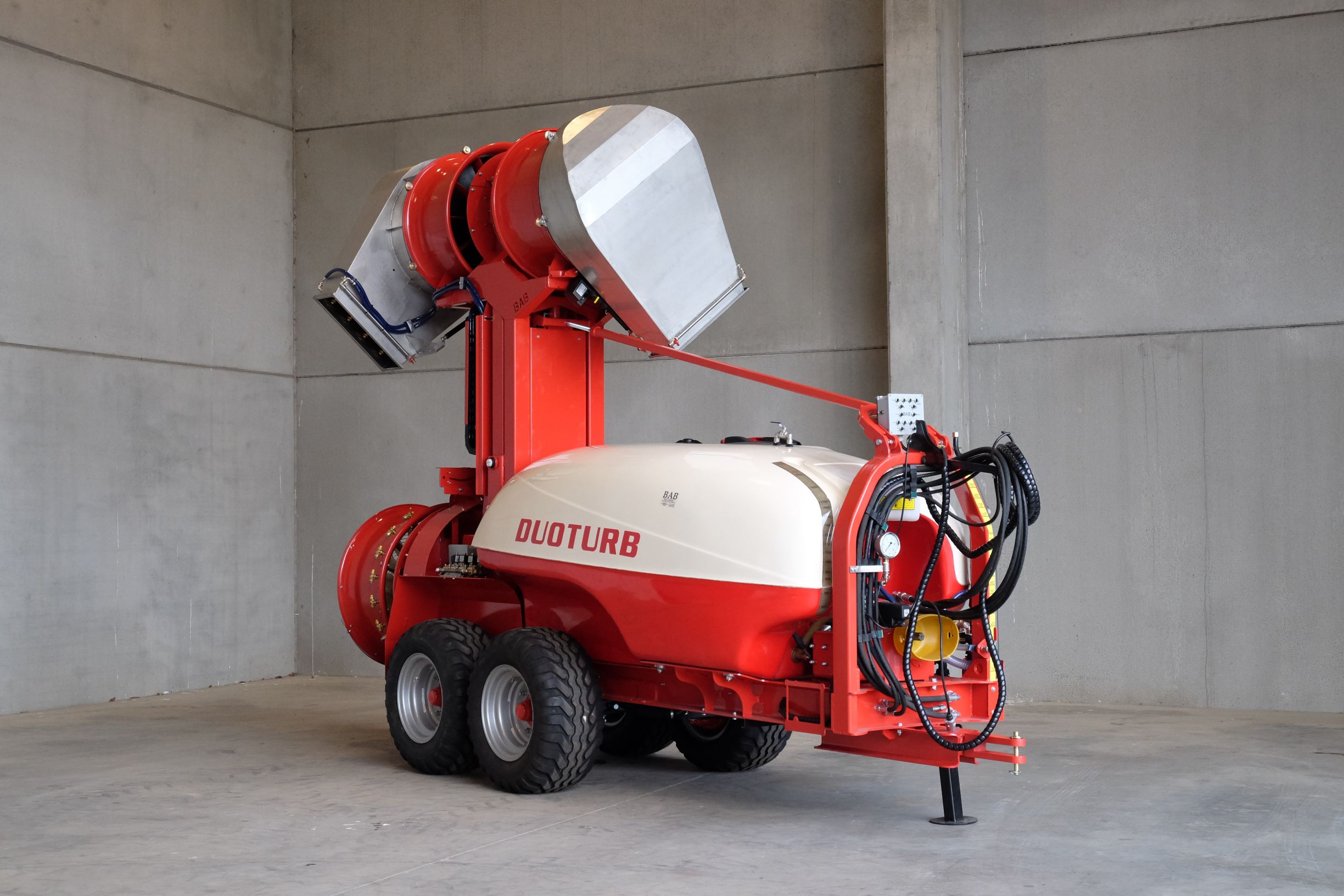

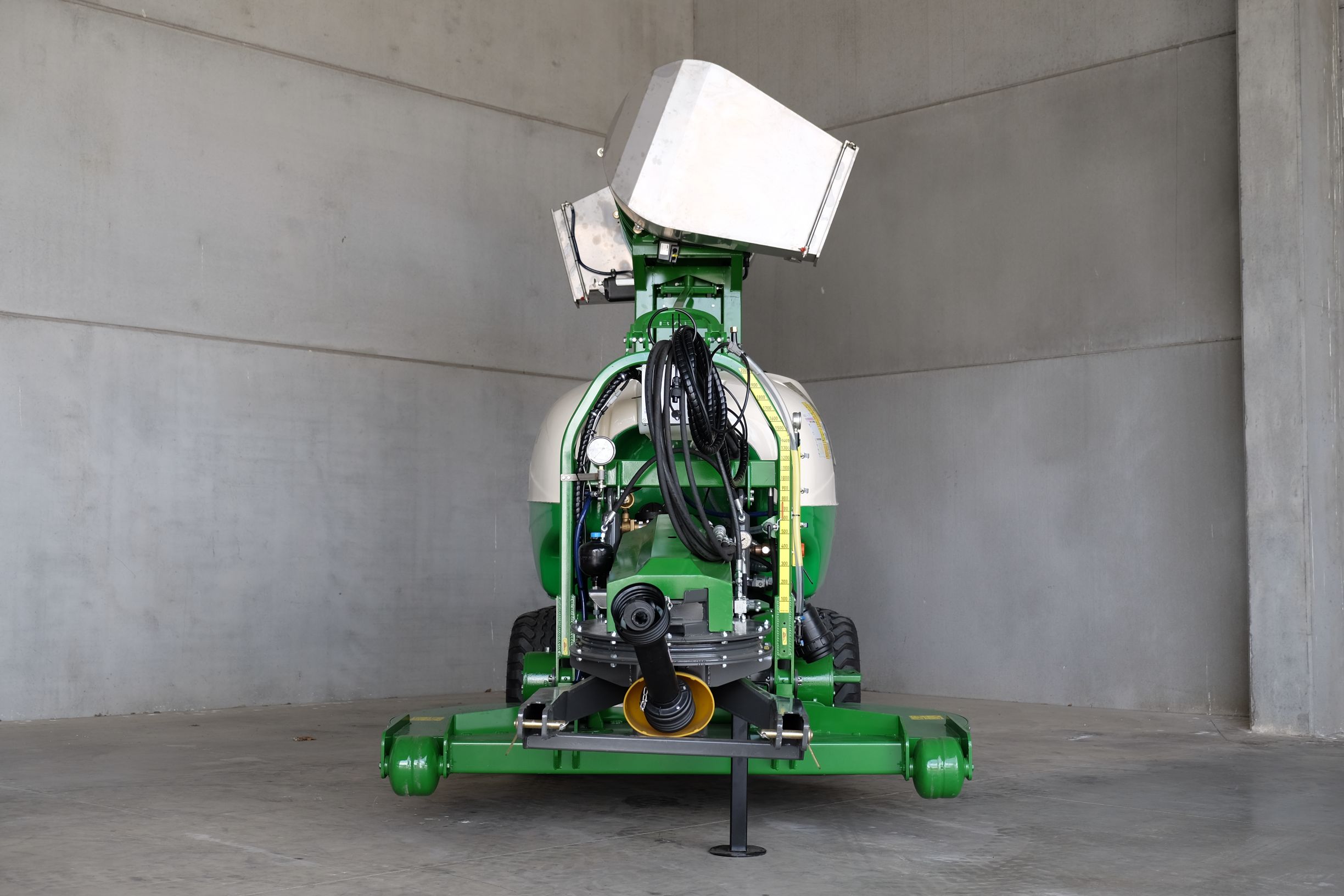

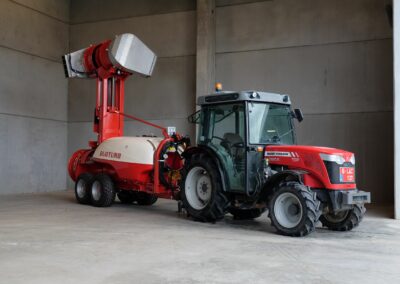

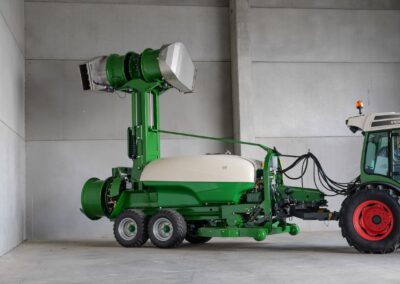

Duoturb sprayer
Standard machine
- Pump:
diaphragmpump 140 liter COMET - Mixing:
dust hydraulic mixer in basket
injector with venturi - Wheel axle:
double axle , fix under frame
axle 60 mm with adjustable track - Wheels:
tires 300/80-15,3 10 ply on rim 6 bolts - Fans:

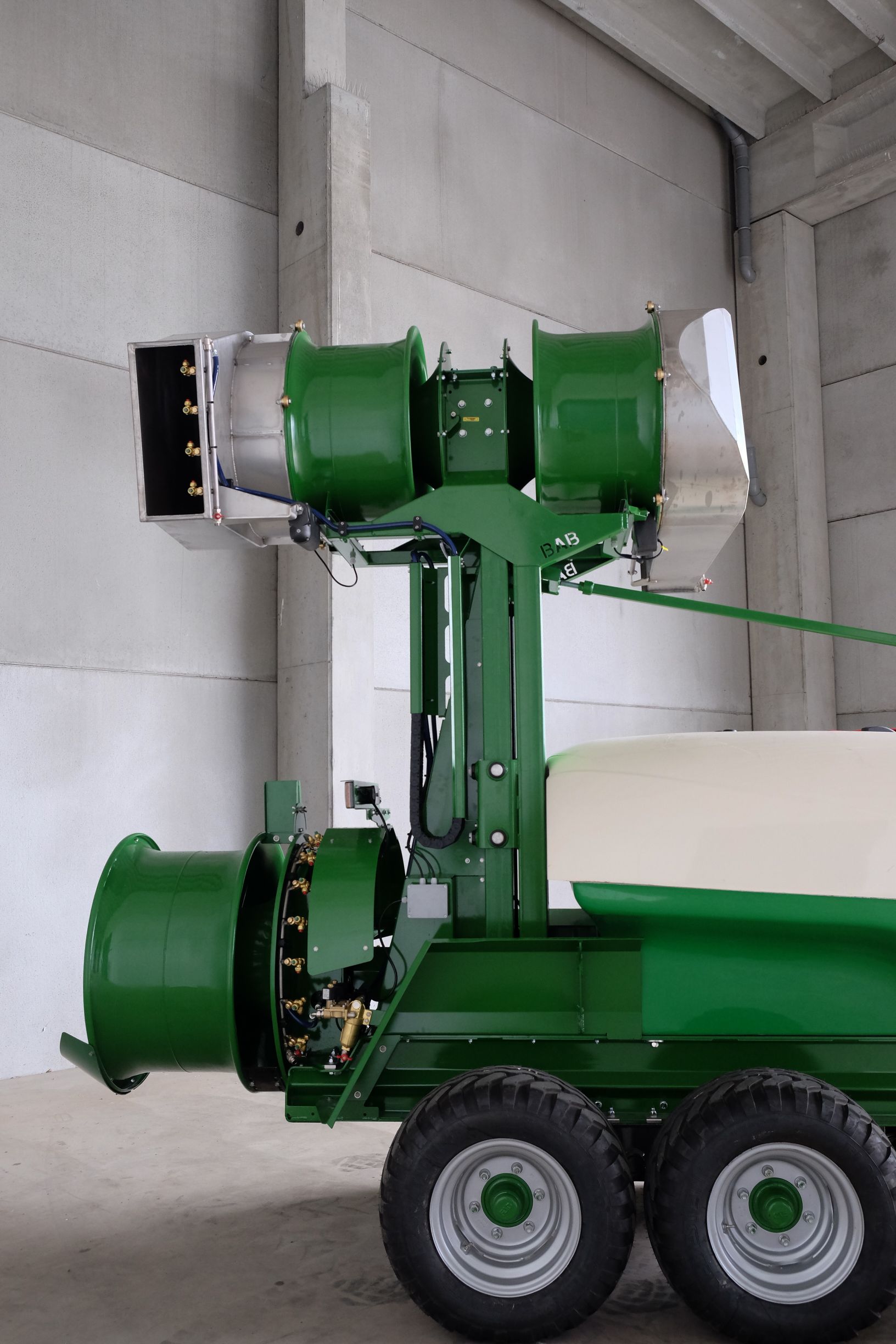

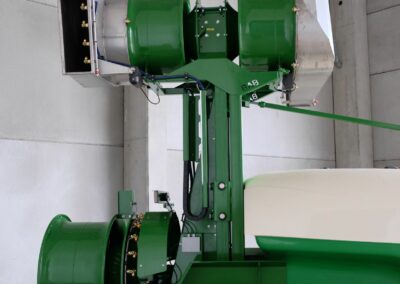

lower: 1x propellor ø 800 mm , with 16 blades , adjustable pitch
2 speed gearbox and idle overdrive.
upper 2x propellor ø 700 mm , angle adjustable (electrical) air outlets.
gearbox with fix speed - Nozzles:
lower part: 2x 6 brass double nozzle bodies with Albuz ATR nozzles
top: left and right 2x 4 brass double nozzle bodies in airstream of air outlets - Filters:
1 suction filter , 50 mesh , easy to reach – adjusted to pump flow
2 high pressure filters, 50 of 80 mesh, in backside
- Control:
4 sections with 4 electrovalves, 27 watt
and general switch - Pres control:
manual - Pres gauge:
gauge 25 bar ø 100 mm class 1.0 - Tank:
fibreglass tank with content of 1500 or 2000 liter
clean watertank to flush pump
clean watertank for handwashing - PTO-shaft:
depending on drawbar:
– Weasler 2x double joint
– Bondioli single double joint - Drawbar:
straight drawbar with fork - General:
metallized frame
lights for road traffic
Options:
- Pump:
high-pressure, slow turning piston pump BAB 80 liter
brass diaphragmpump AR 135 litres - Pre. control:
2nd pump (centifugal) for mixing in tank, hydr. Driven by tractor - Wheel axle:
braked axle
swivel axles:
– double 2000 liter
– single 1500 liters - Drawbar:
swivel hitch, heavy duty
- Nozzle:
brass triple nozzle bodies
drift reducing Albuz TVI nozzles - Pres. control:
elektrical pressure regulation valve - Booms:
double spraying booms bottom and top
