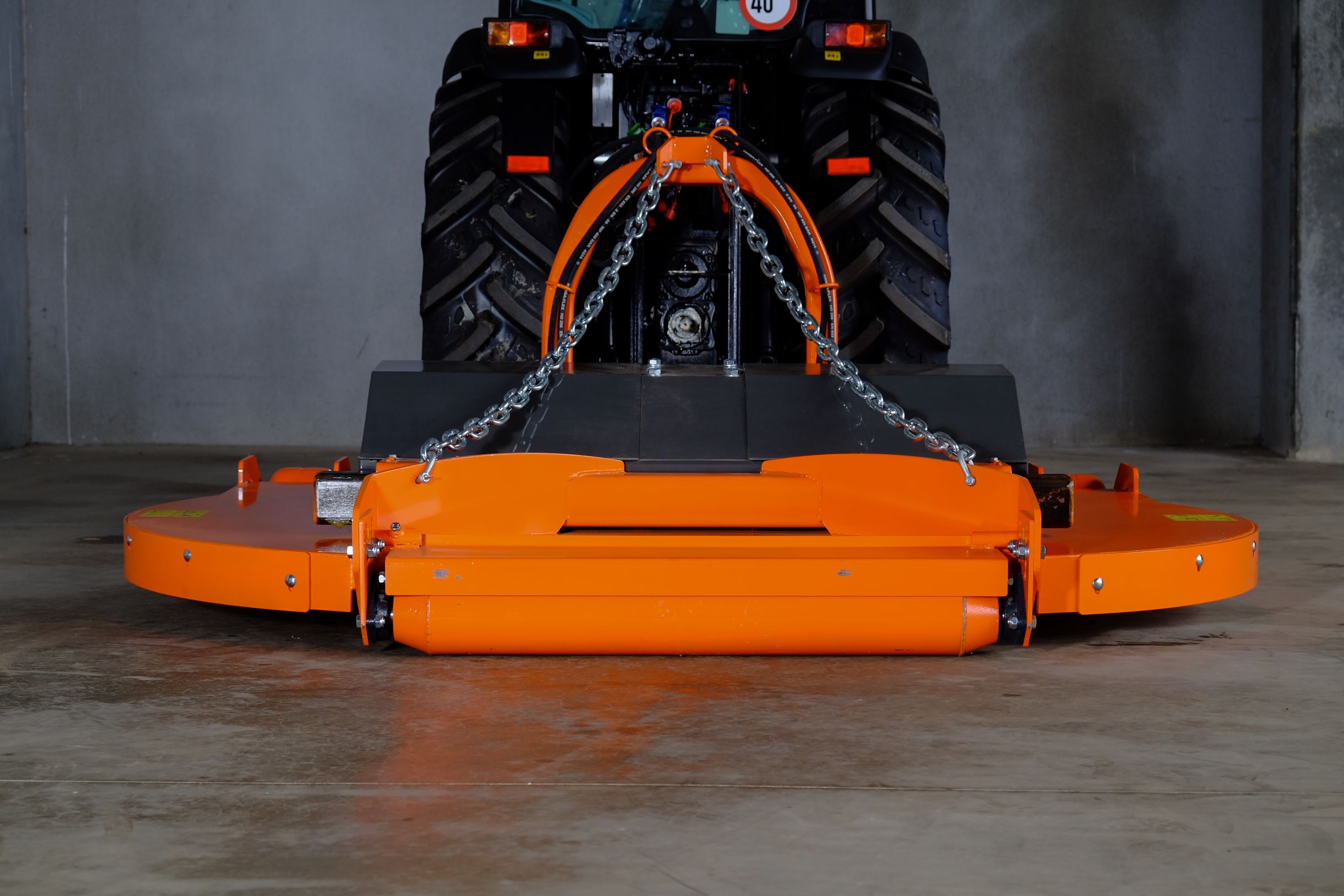

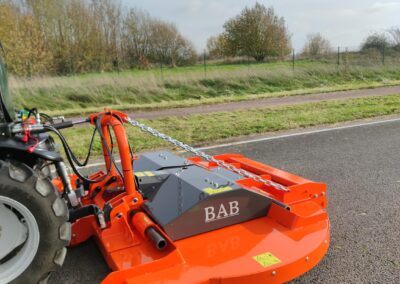

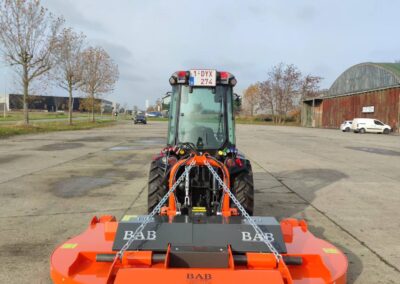

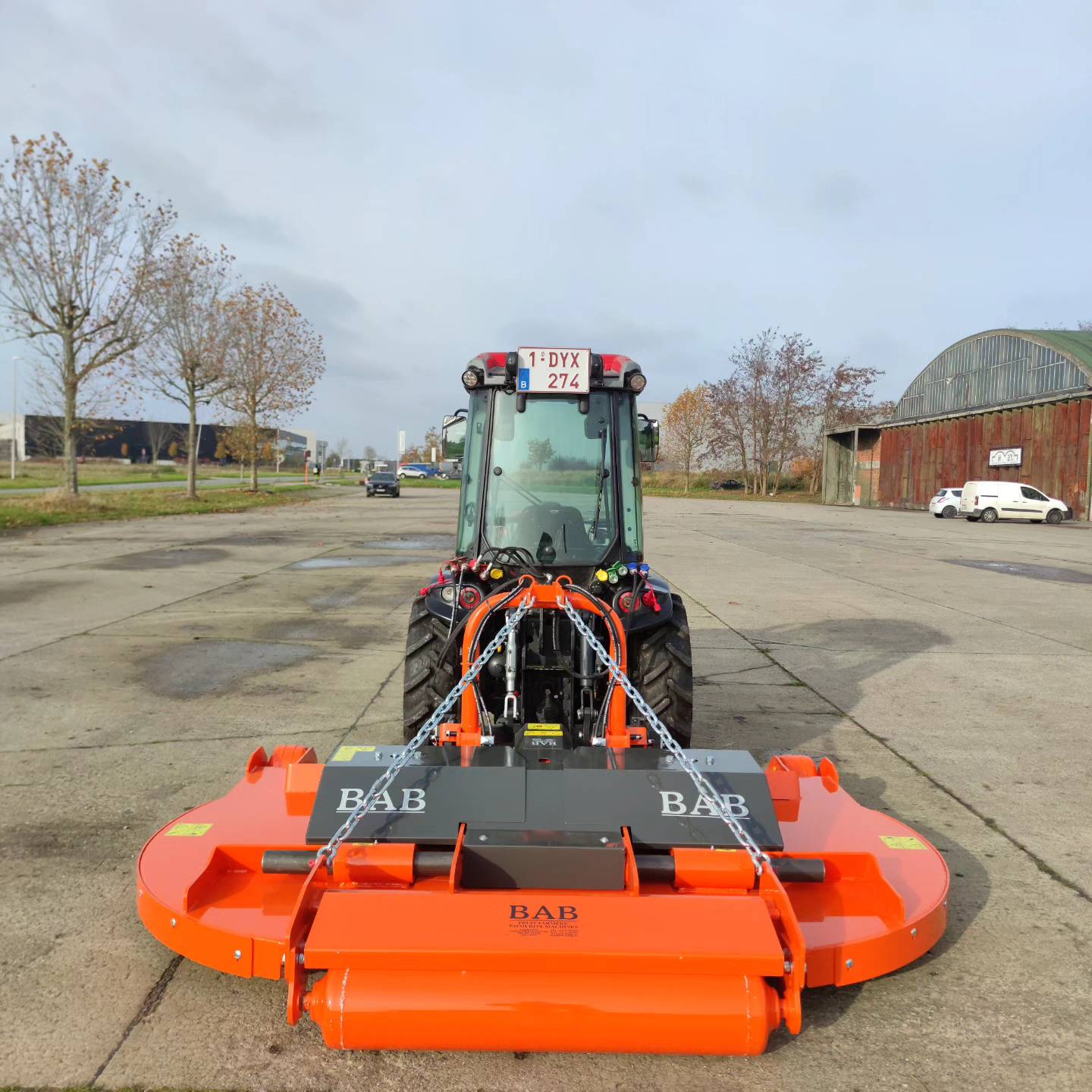

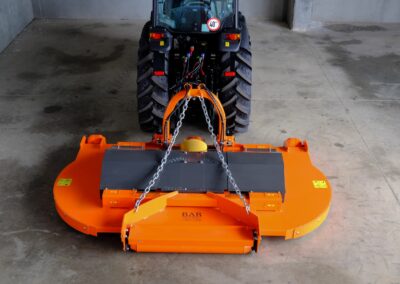

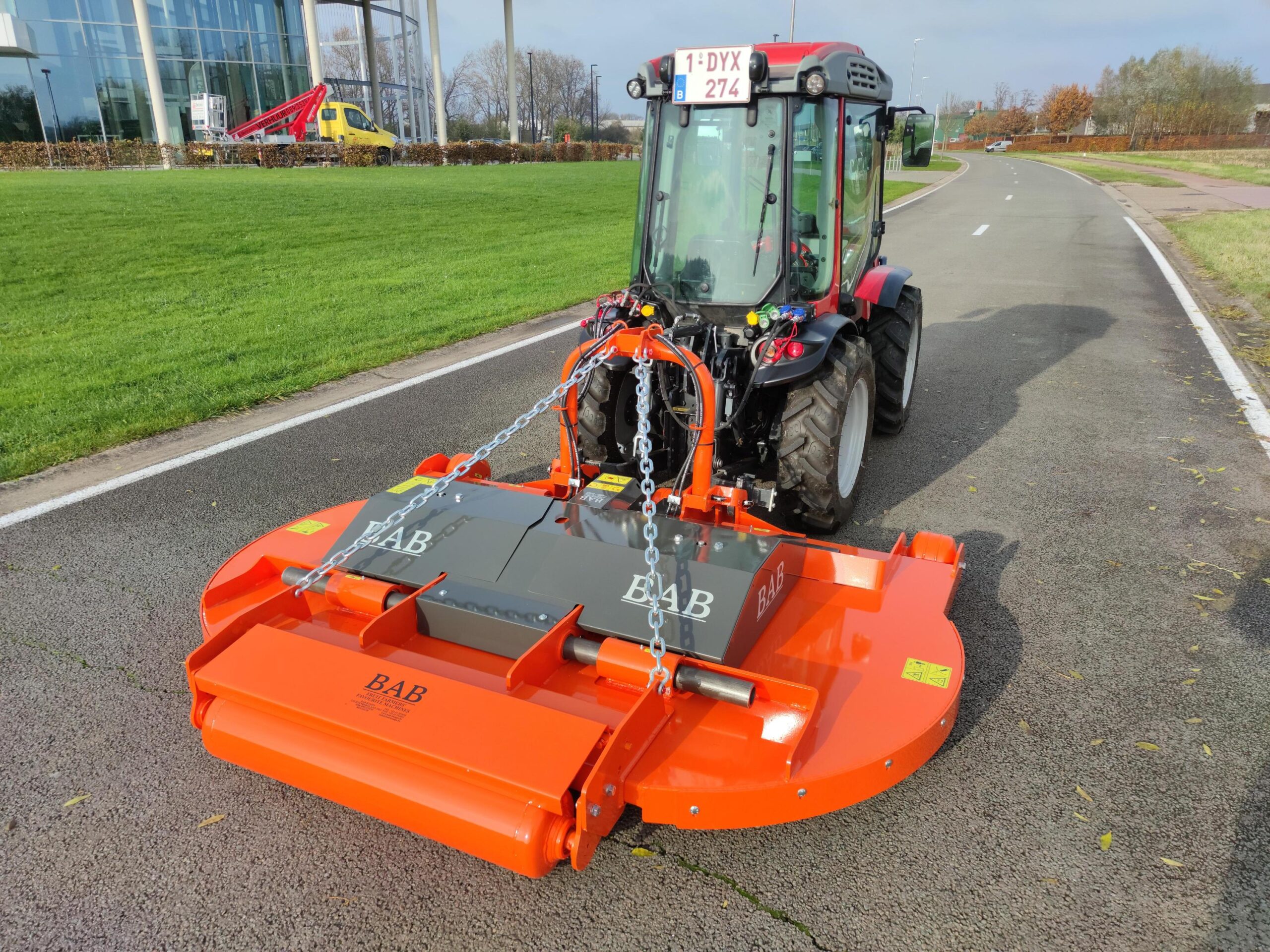

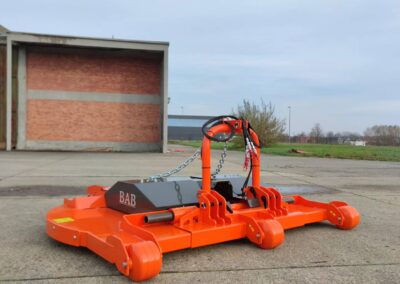

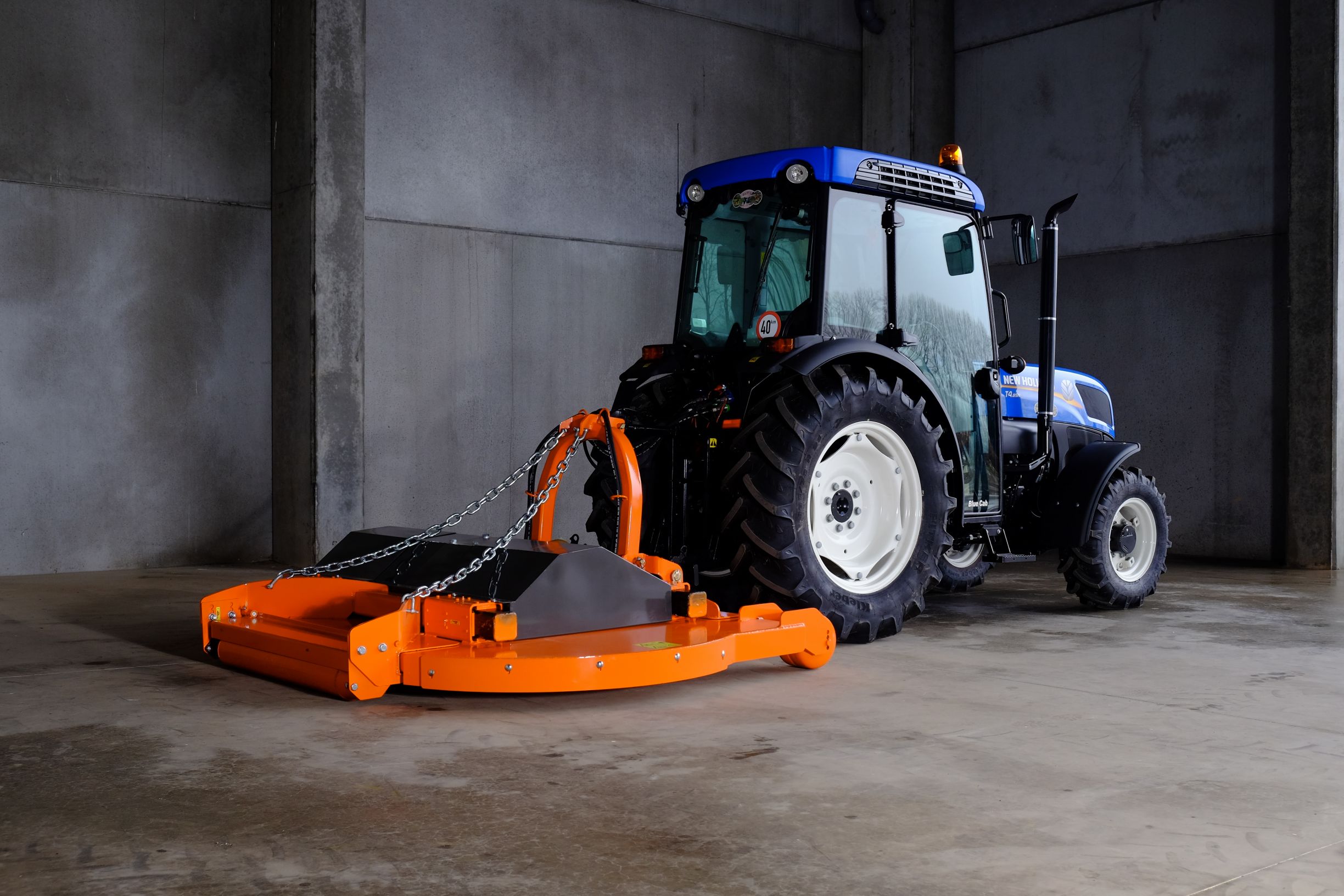

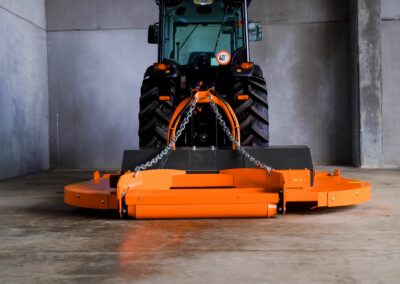

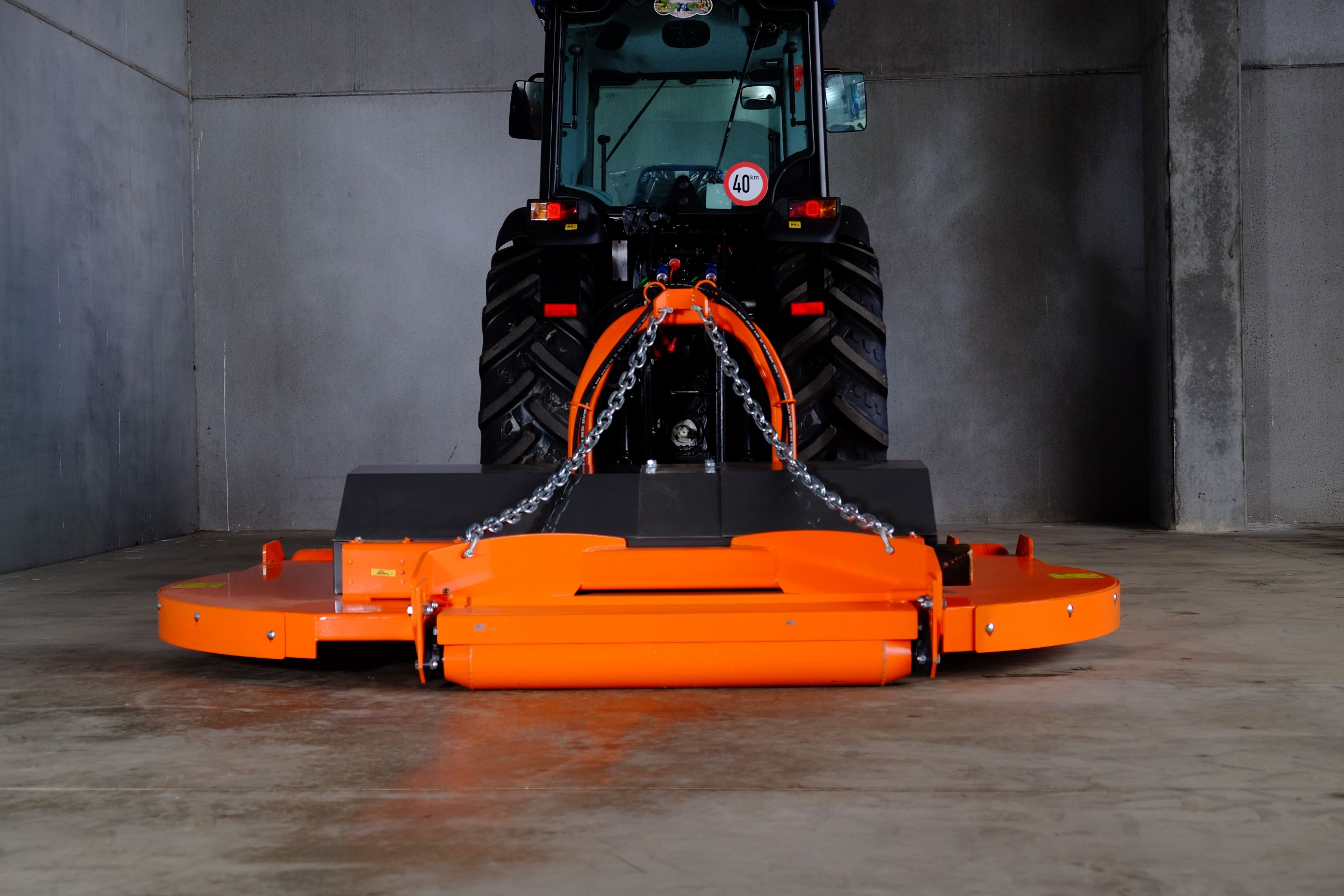

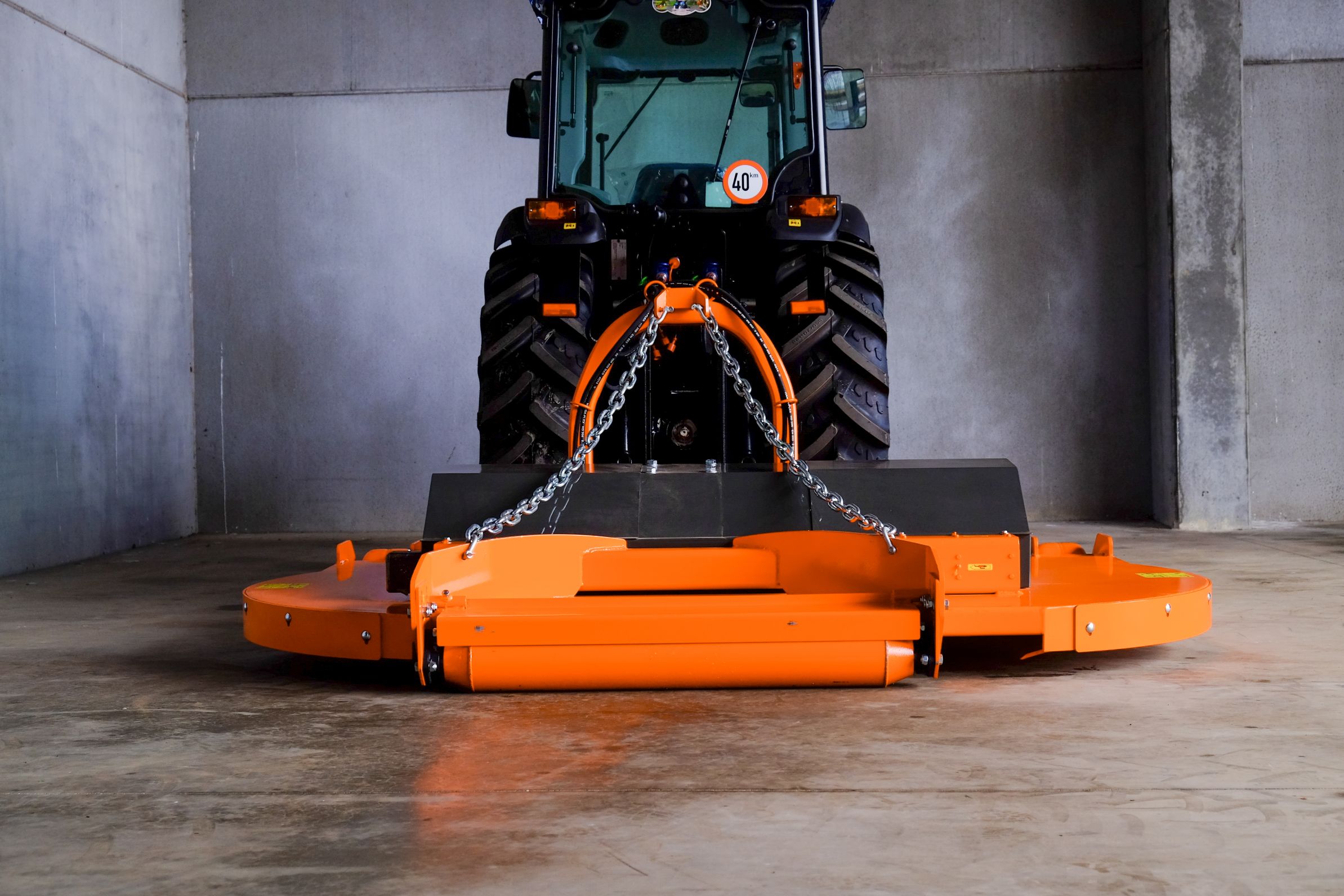

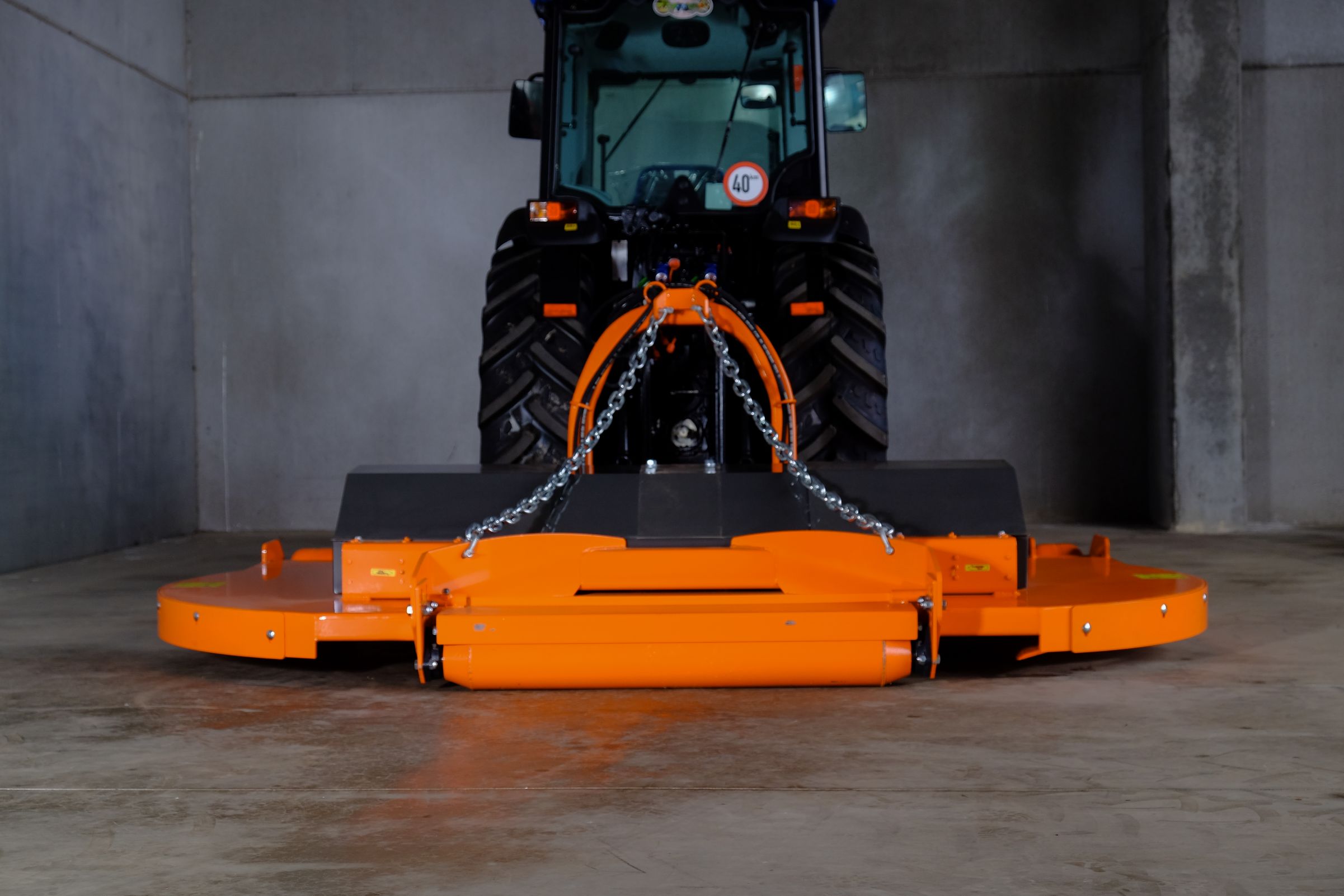

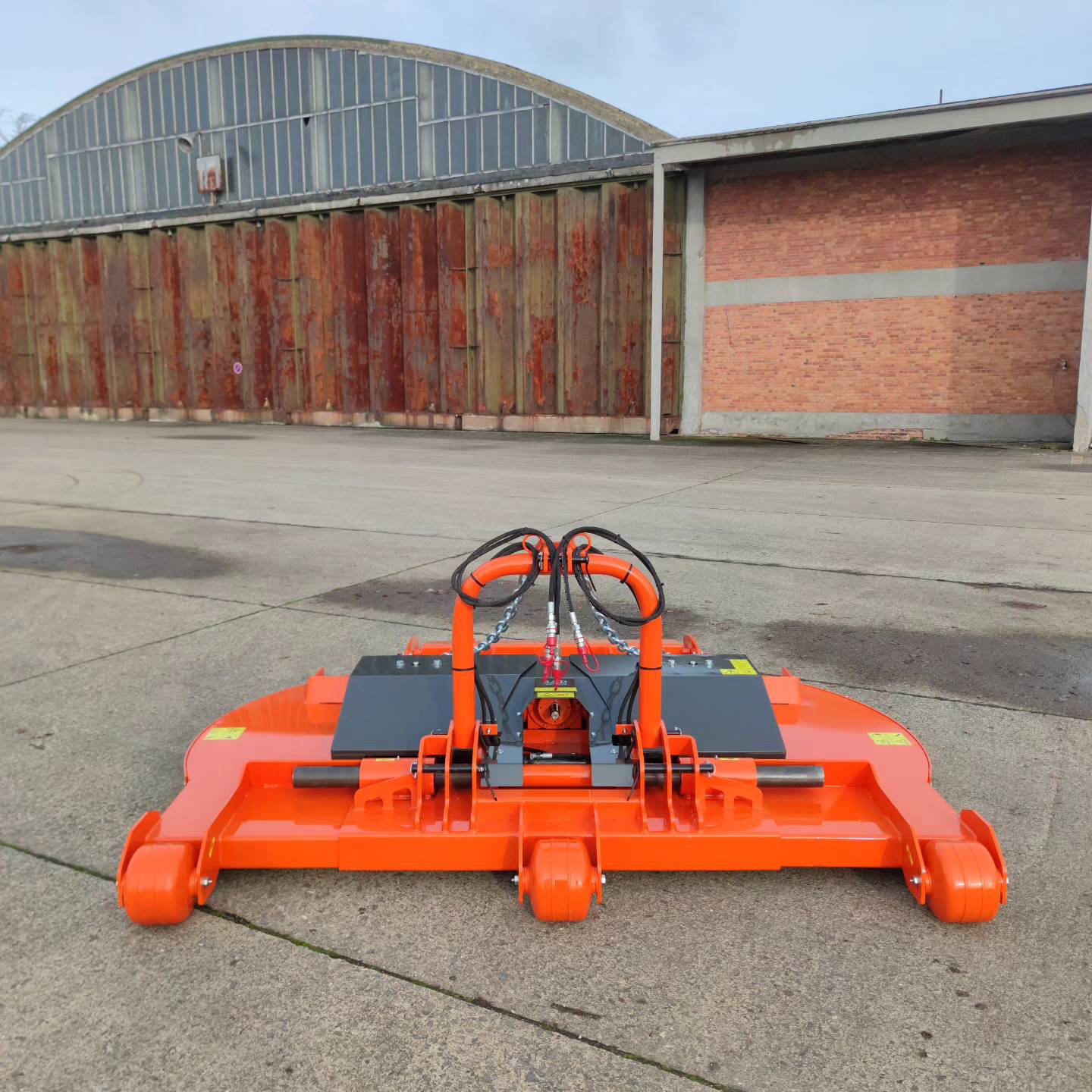

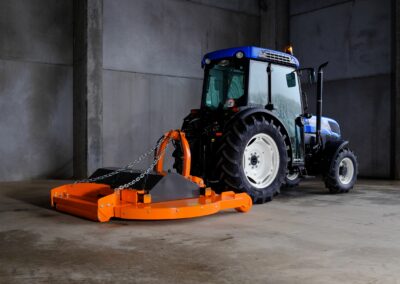

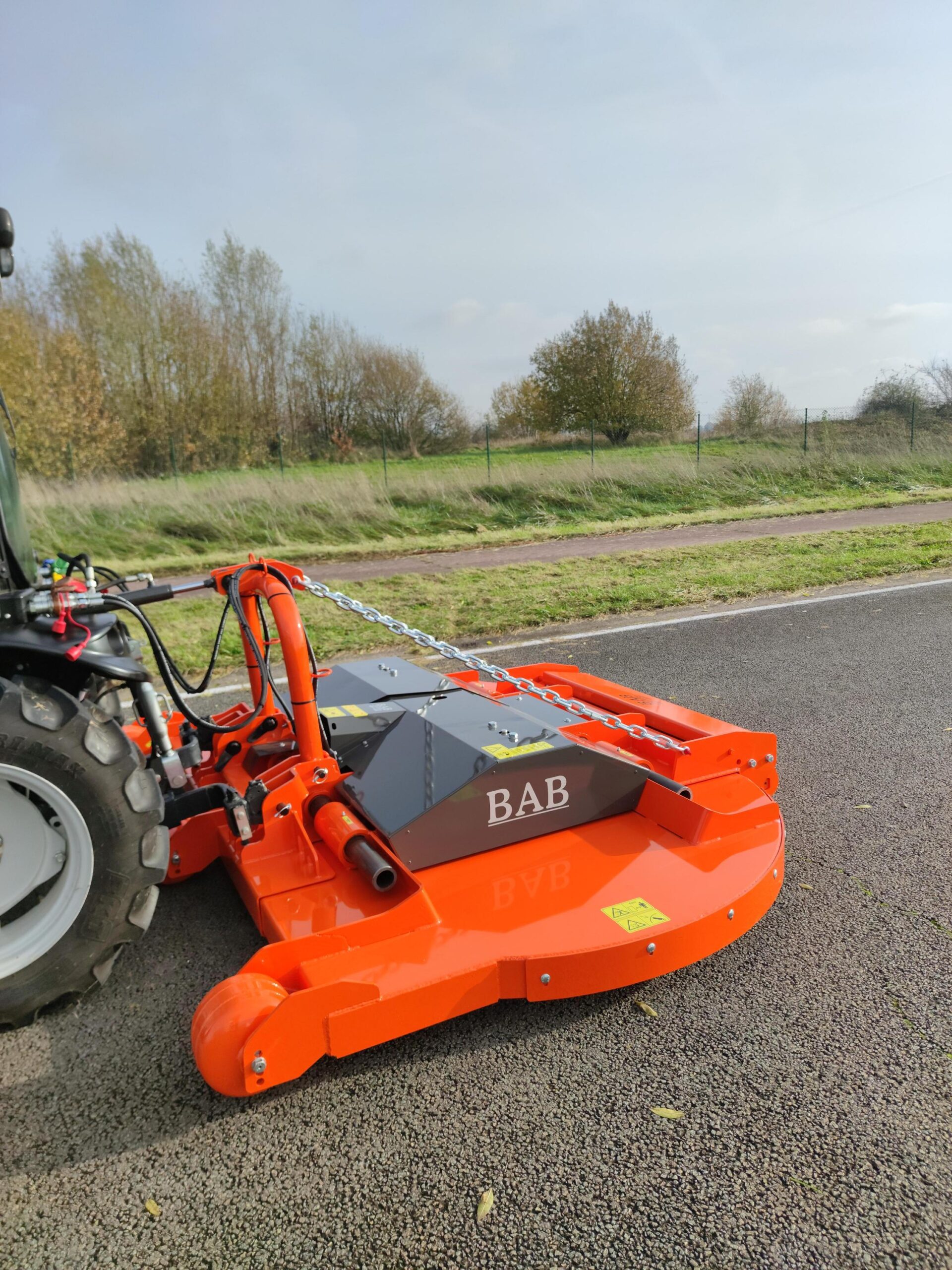

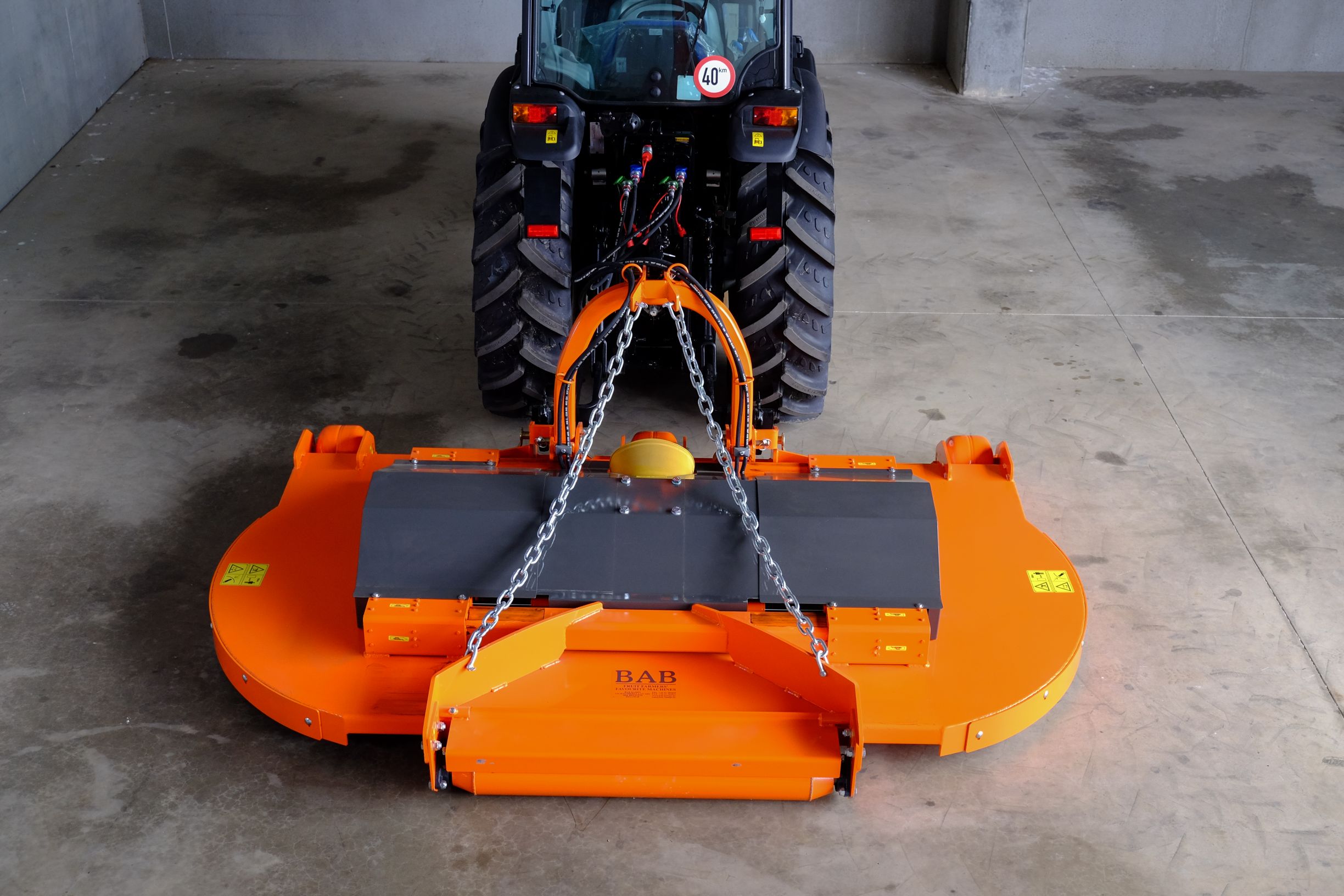

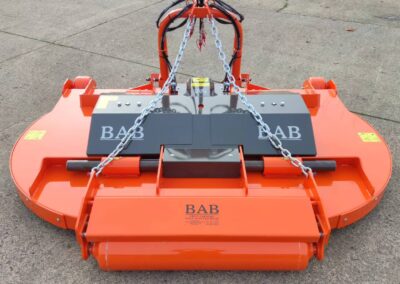

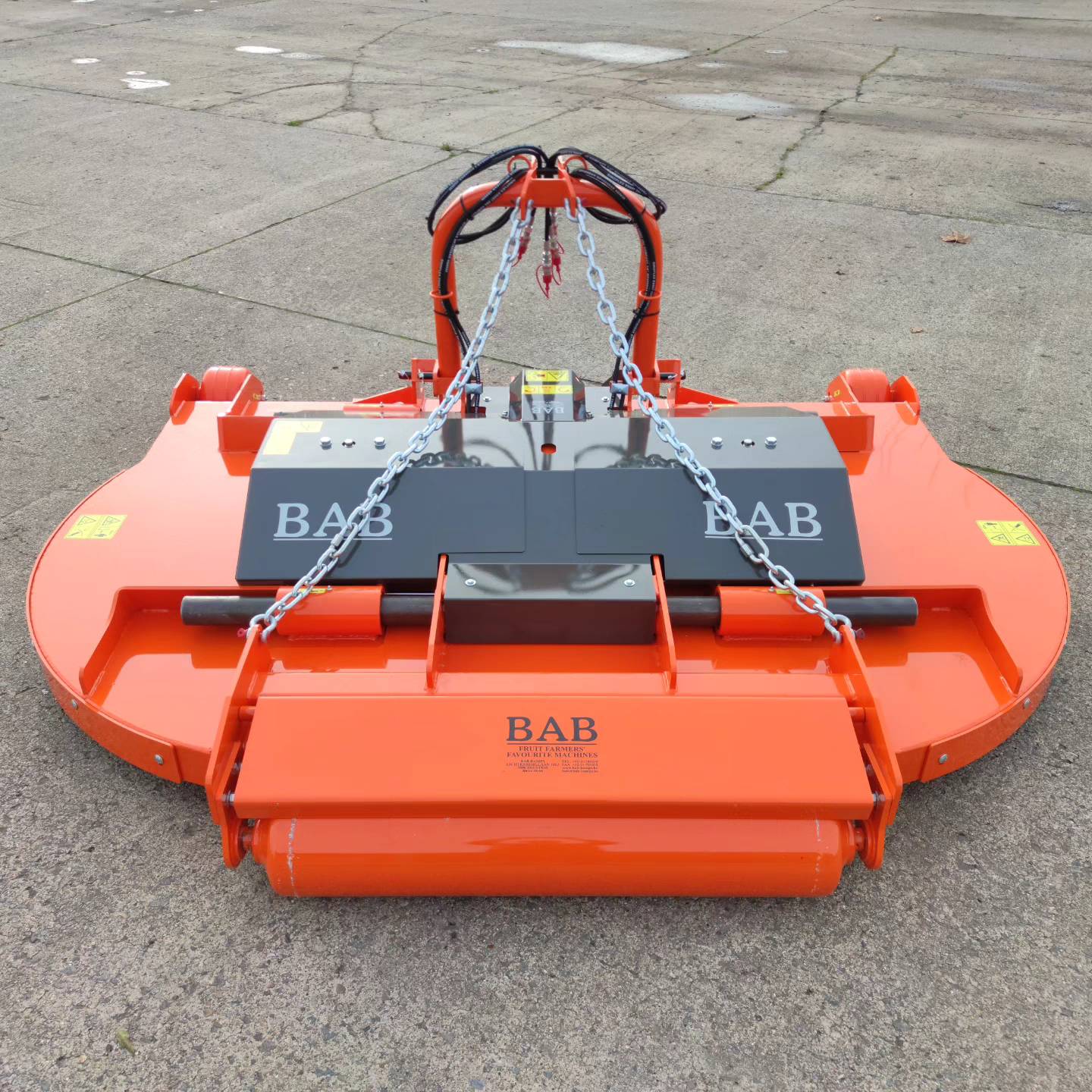

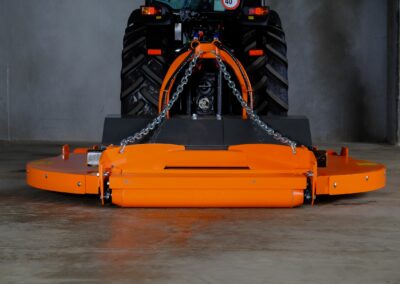

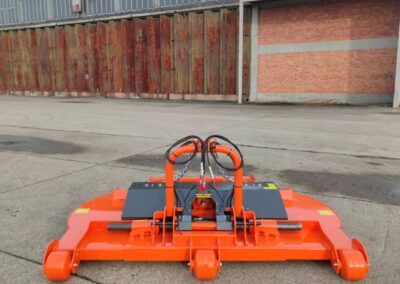

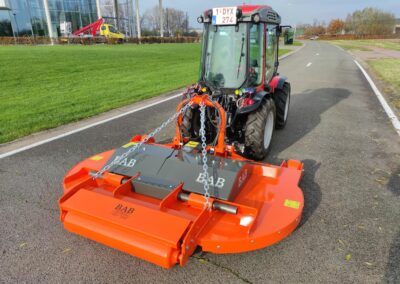

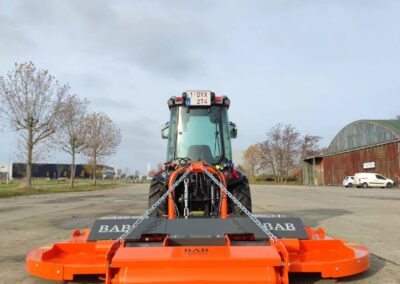

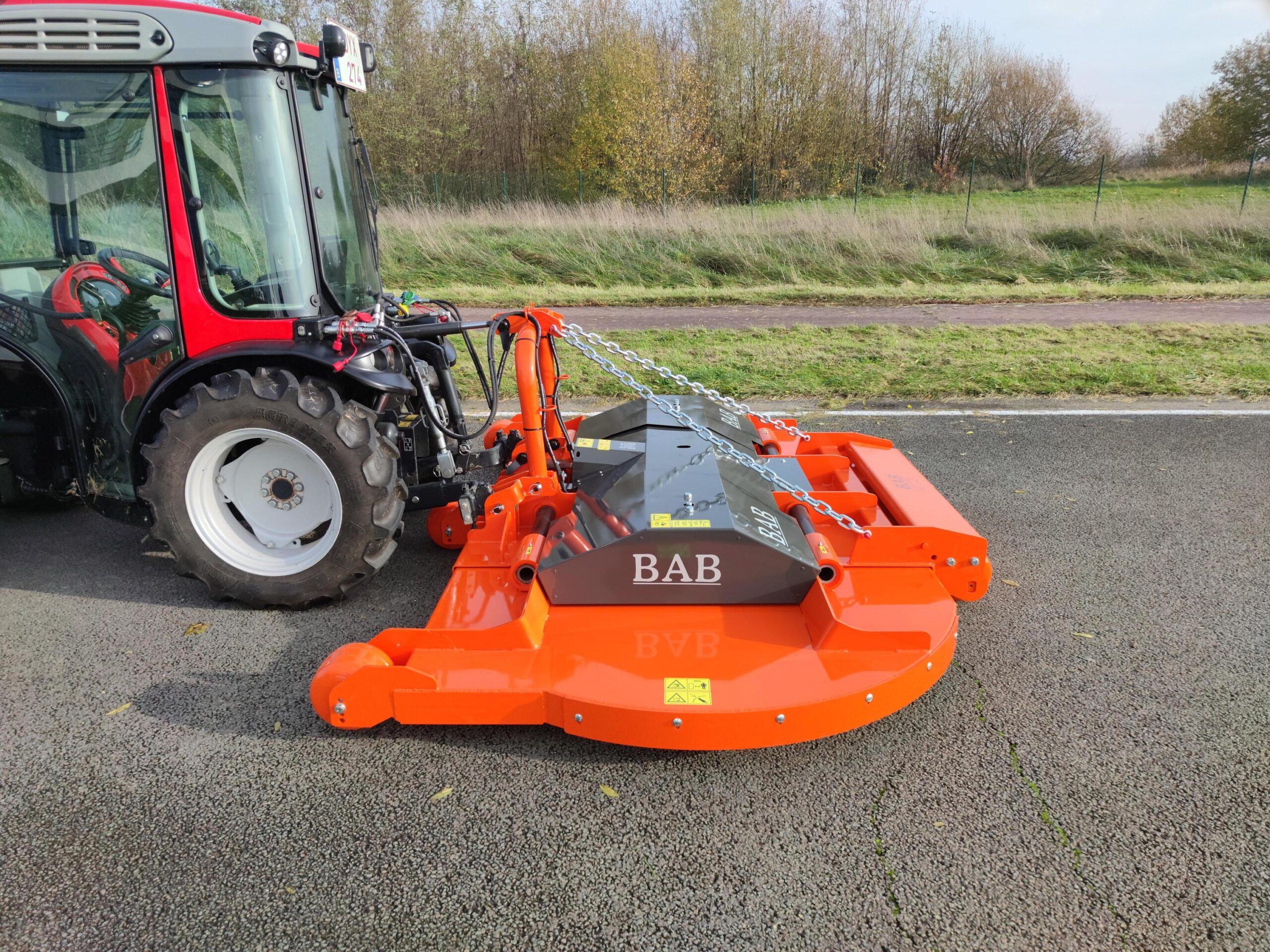

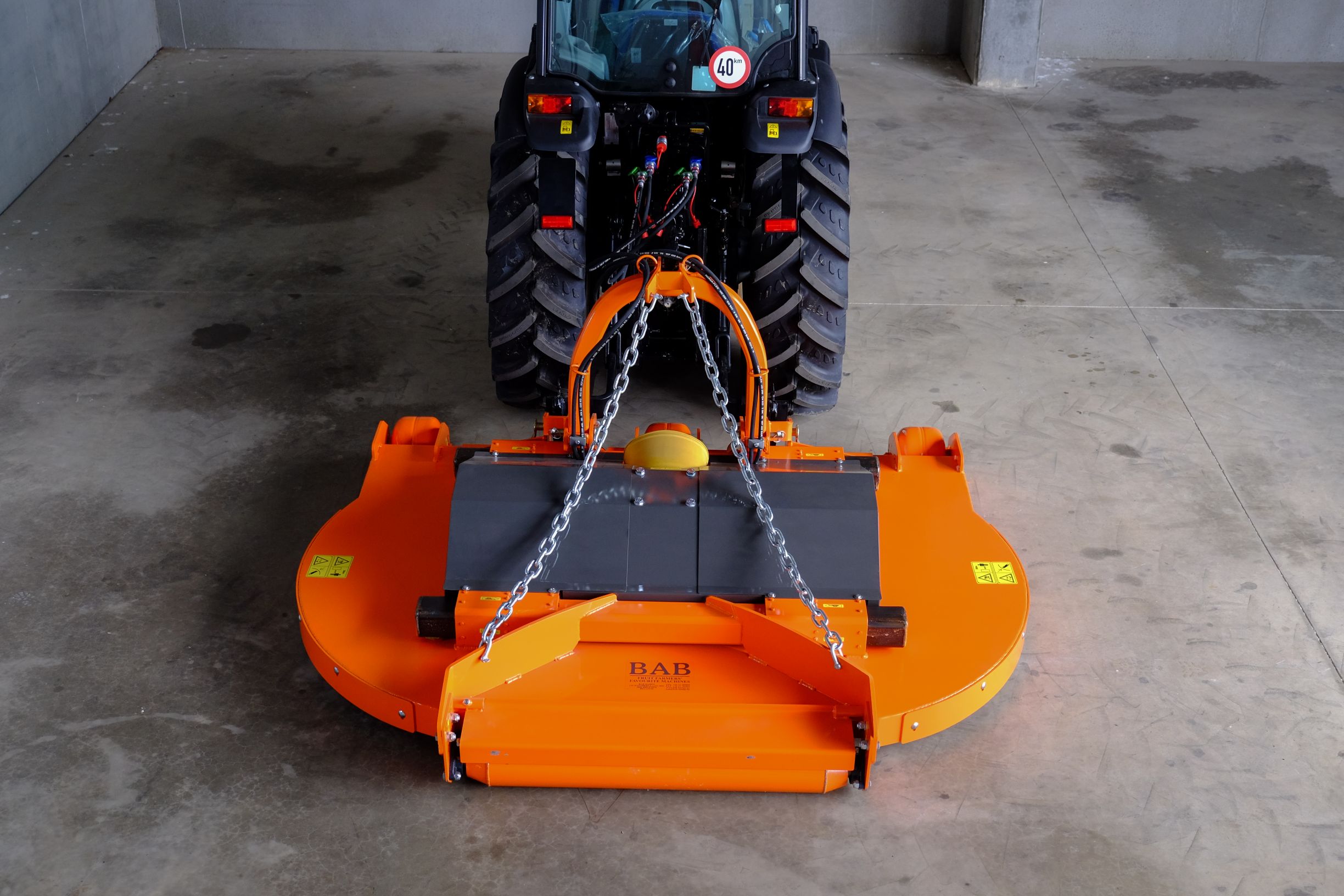

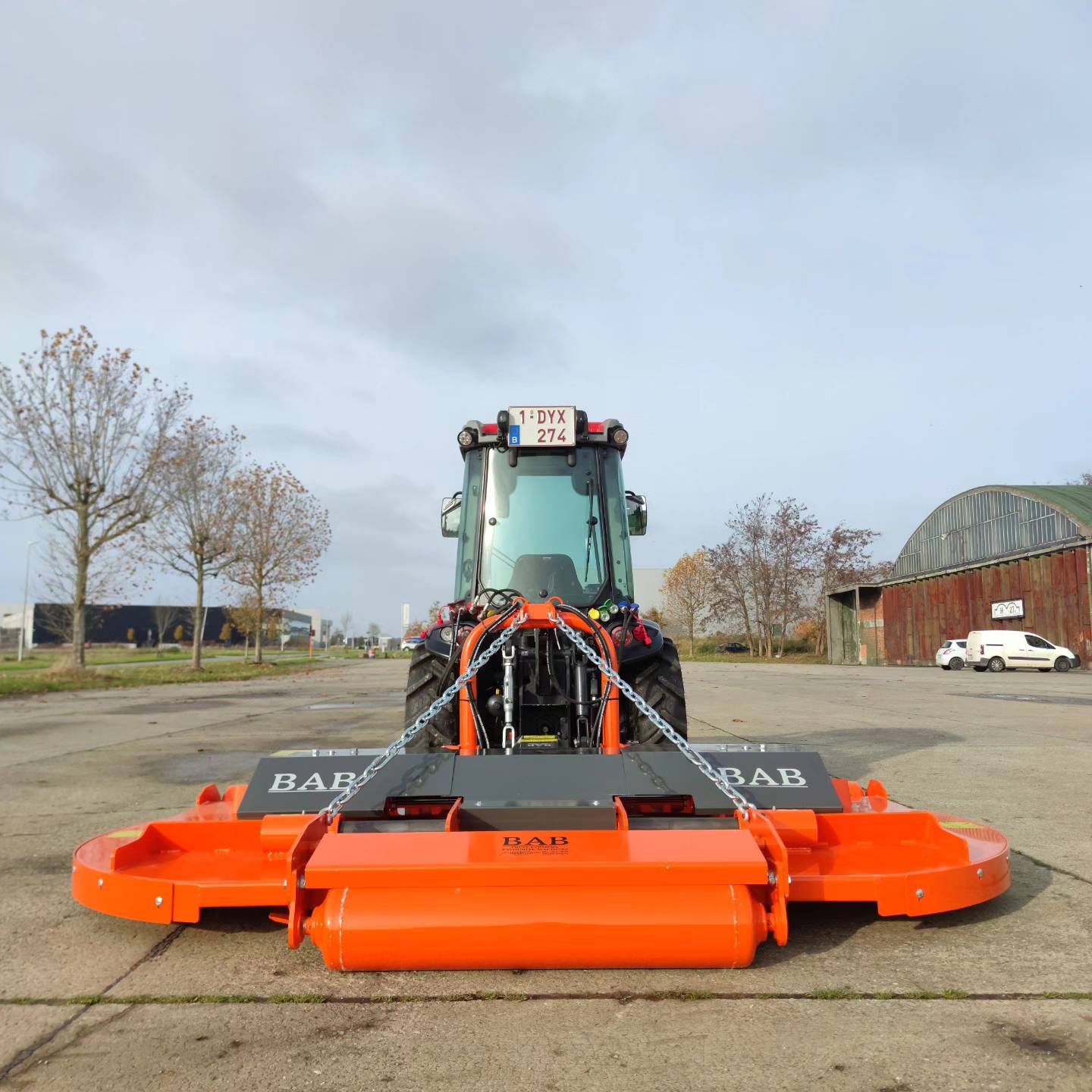

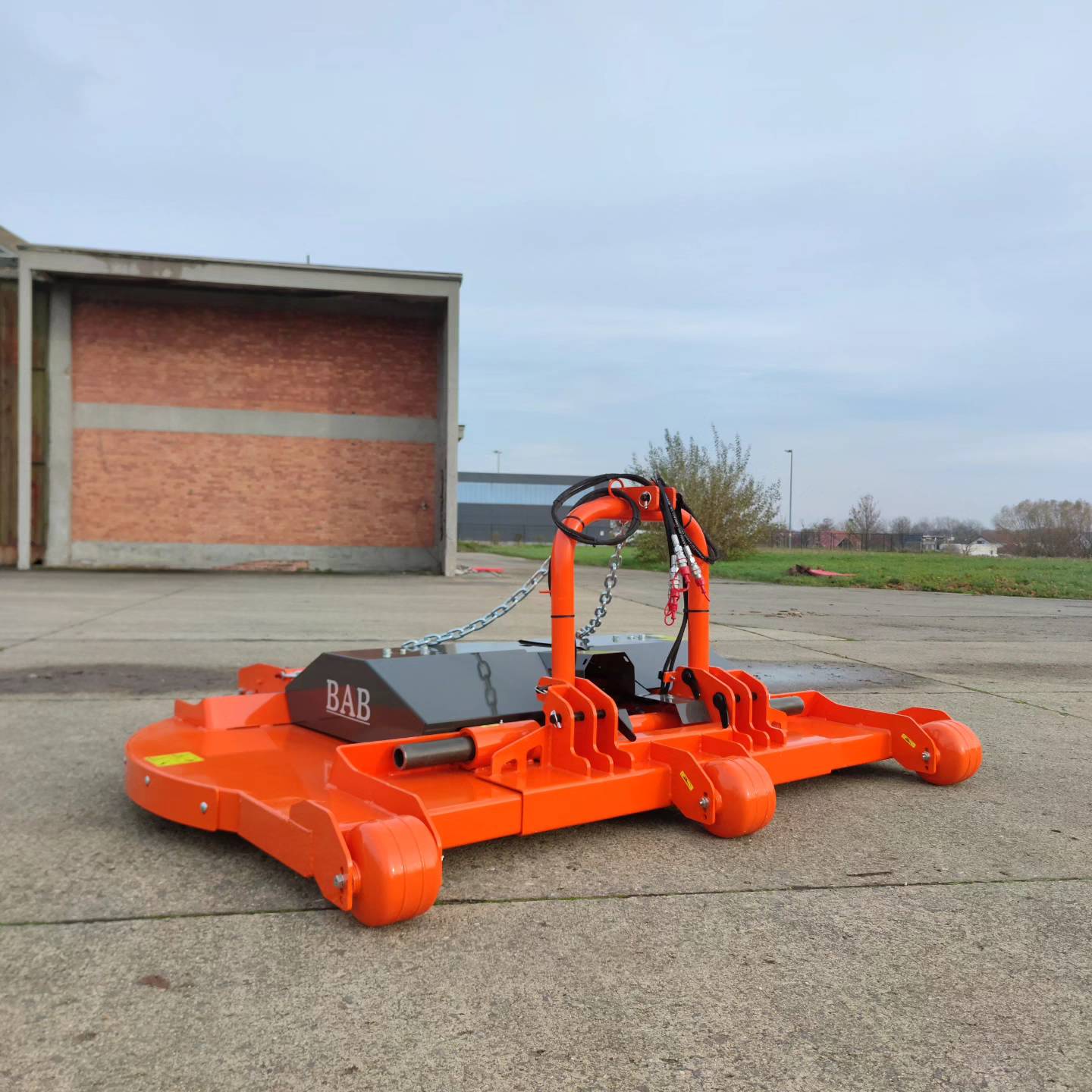

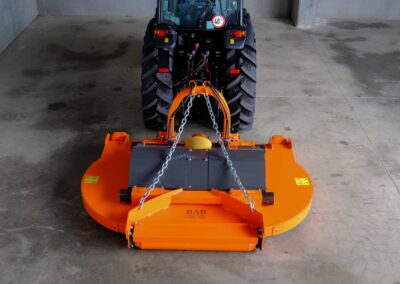

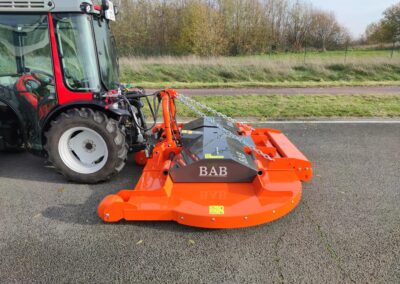

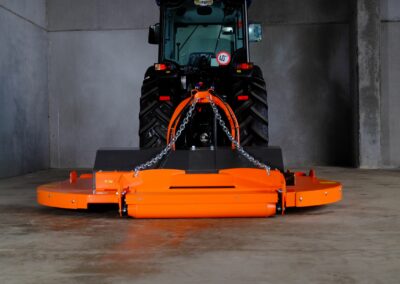

Mower S-A adjustable cutting width
Standard machine
- built low – removable side plates

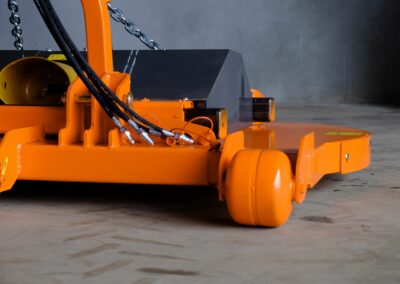

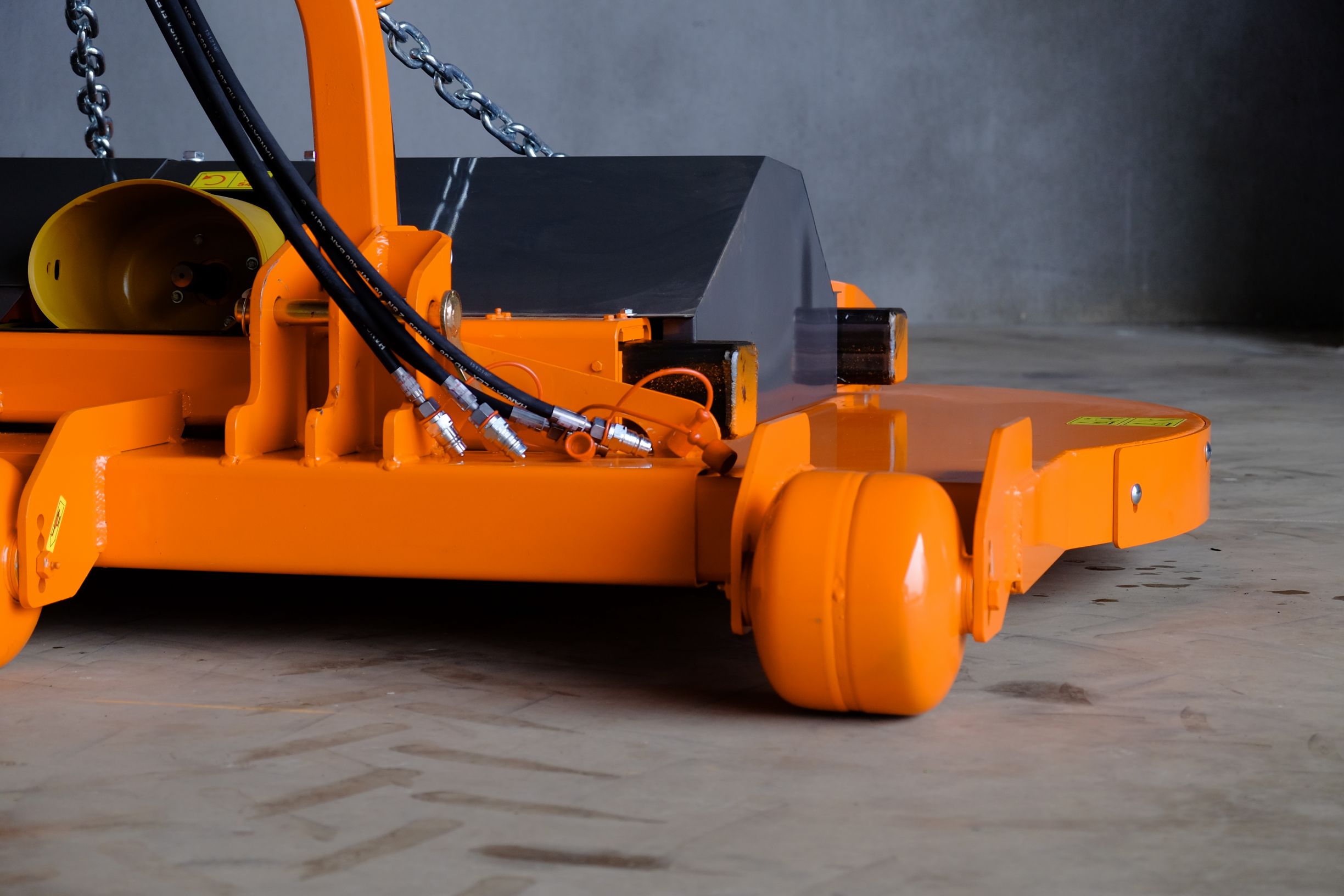

- height adjustable heavy duty metal front rollers ø 220 mm
- height adjustable roller ø 140 mm in back
- three point linkage cat II ø 25 – 28 mm
- 2 rotors with swinging blades
- discharges grass left and right
- 540 rpm
- pto drive shaft with clutch

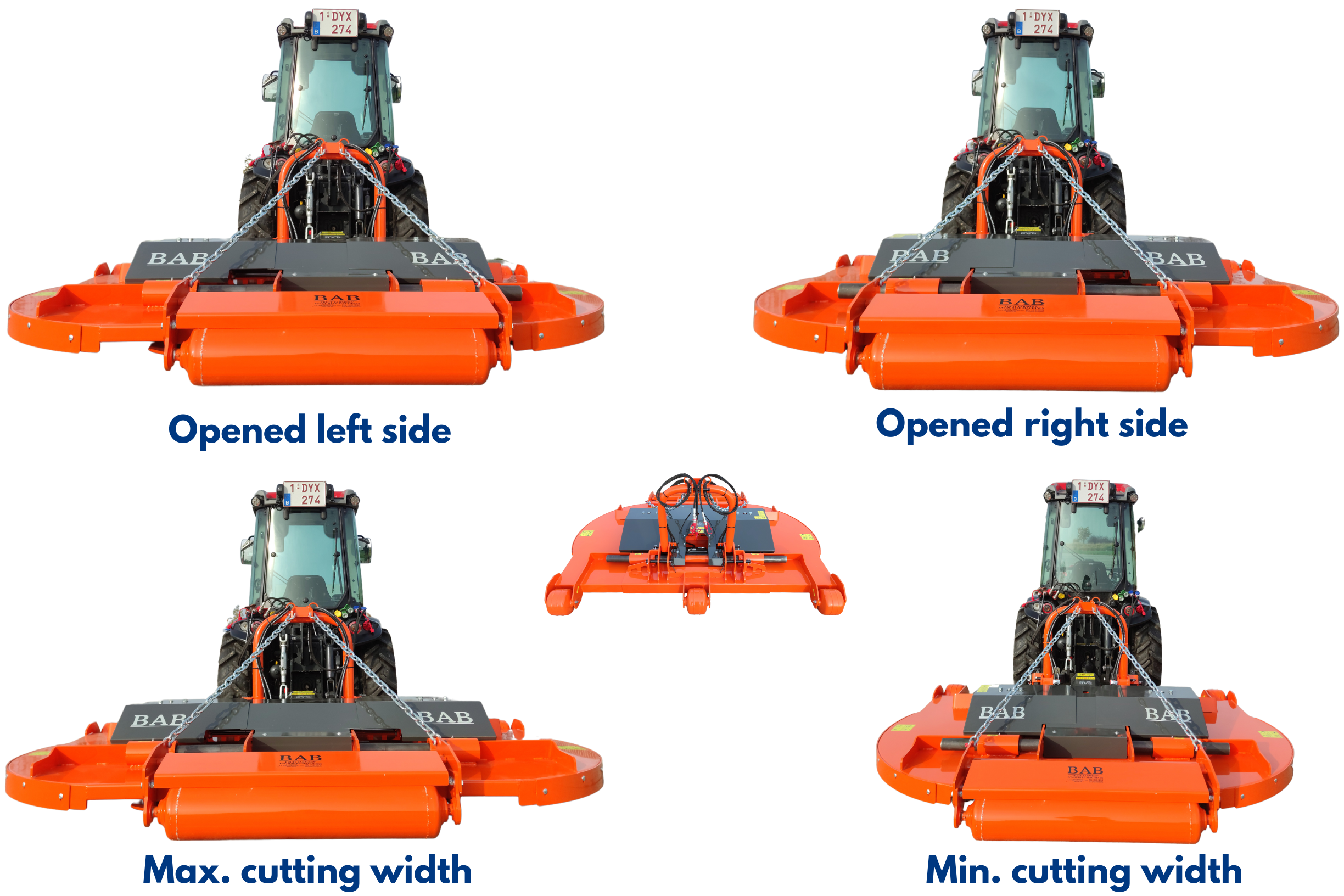

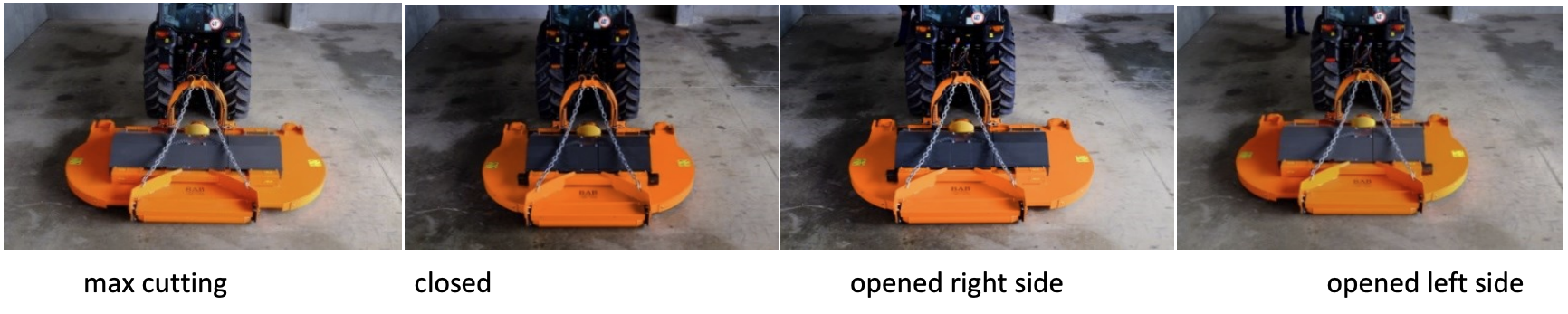

- adjustable cutting width left and right independent
Options
- trailed mow-spray with adjustable cutting size
- height adjustable ø 220 roller in back
| Articlenumber | Type | Cutting | Total width closed | Frame | Rotor | Blades | Weight | |
| cm | cm | mm | # | # | kg | |||
| 880-500-182 | S182A | 180 - 230 | 190 | 5 | 2 | 4 | 650 | |
| 880-500-202 | S202A | 200 - 250 | 210 | 5 | 2 | 4 | 700 | |
| 880-500-222 | S222A | 220 - 270 | 230 | 5 | 2 | 4 | 750 | |
| 880-500-242 | S242A | 240 - 290 | 250 | 5 | 2 | 4 | 830 | |
| 880-500-262 | S262A | 255 - 305 | 265 | 6 | 2 | 4 | 940 |
