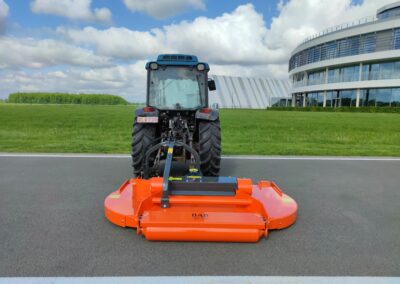

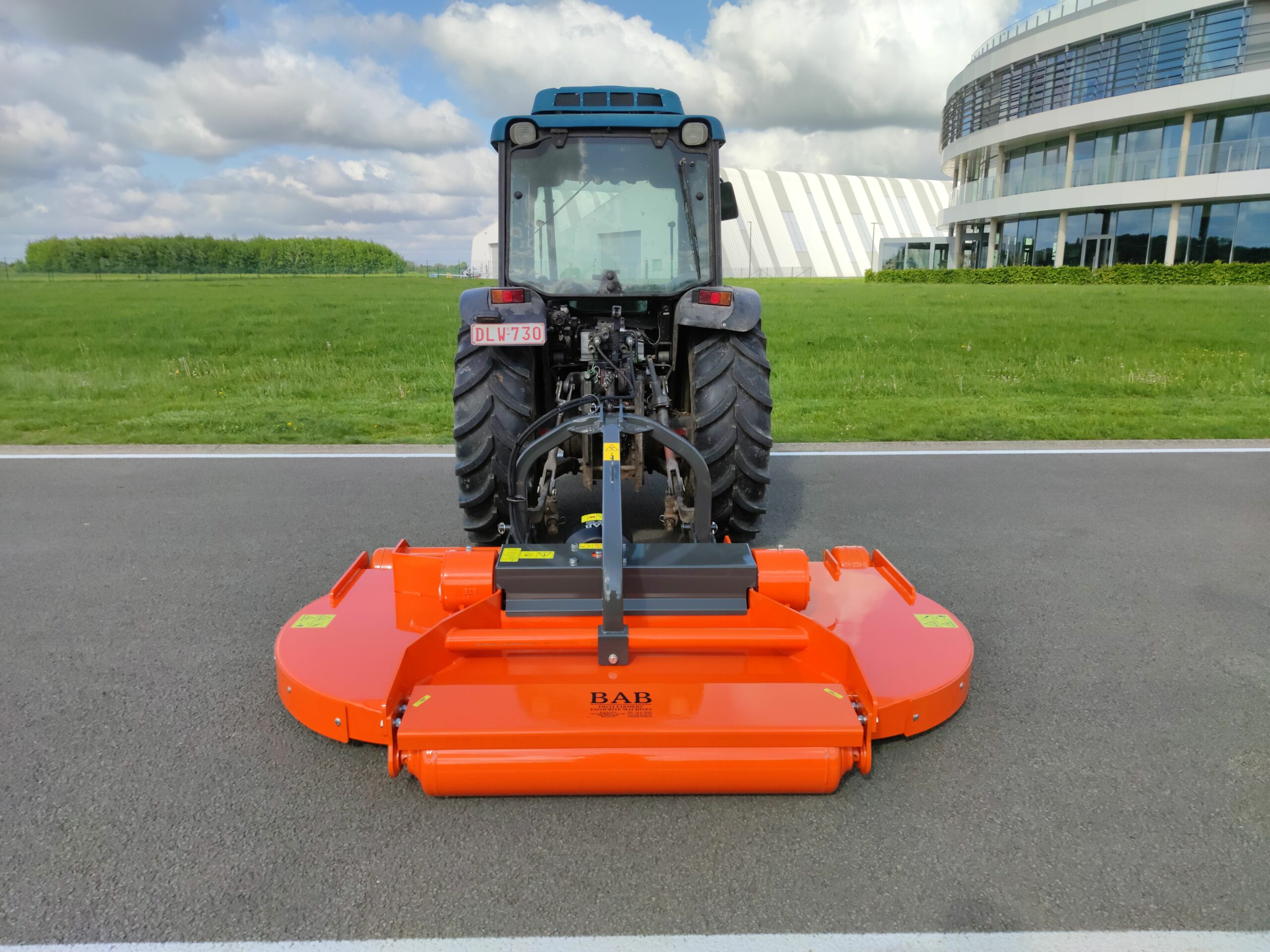

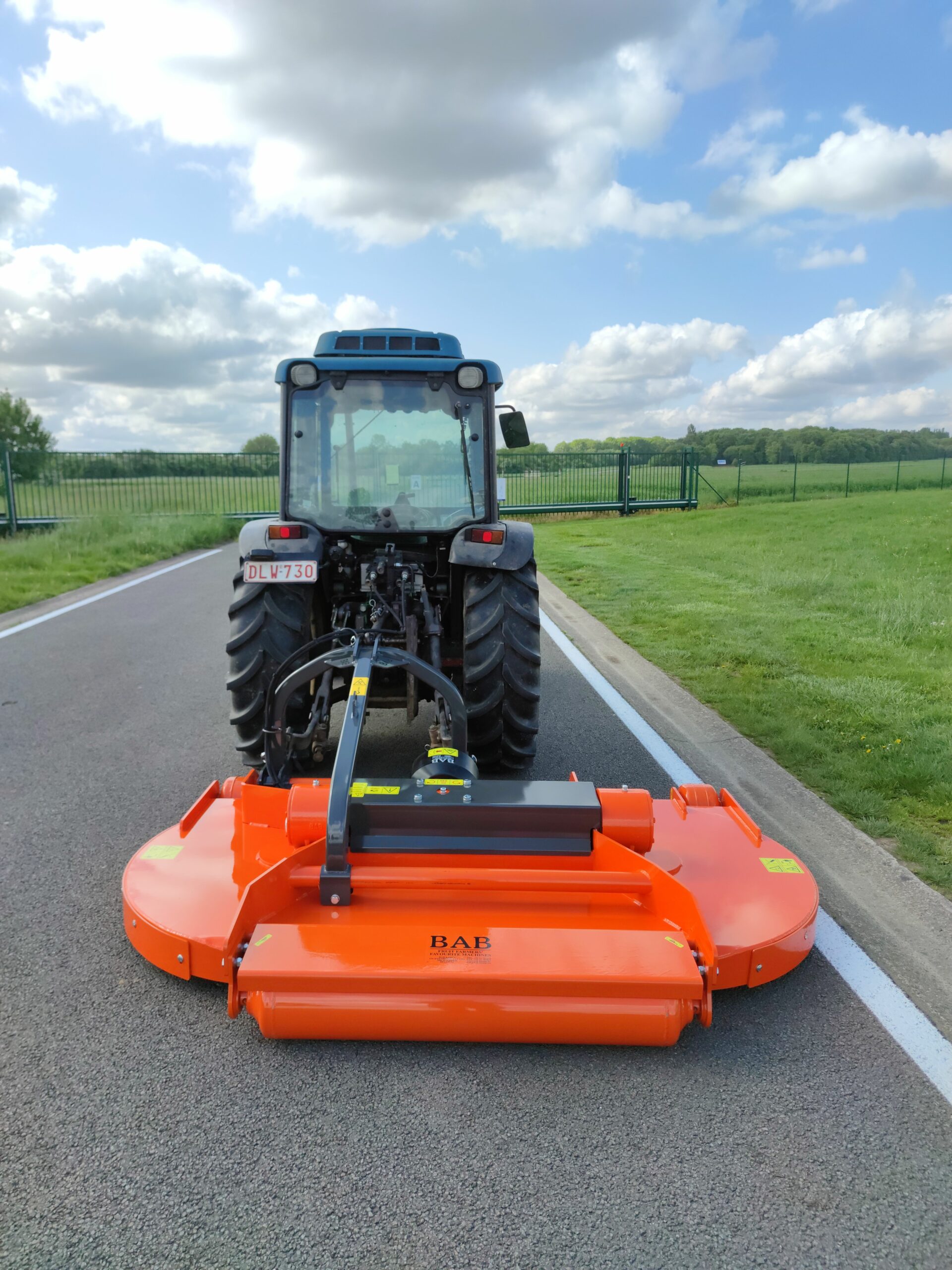

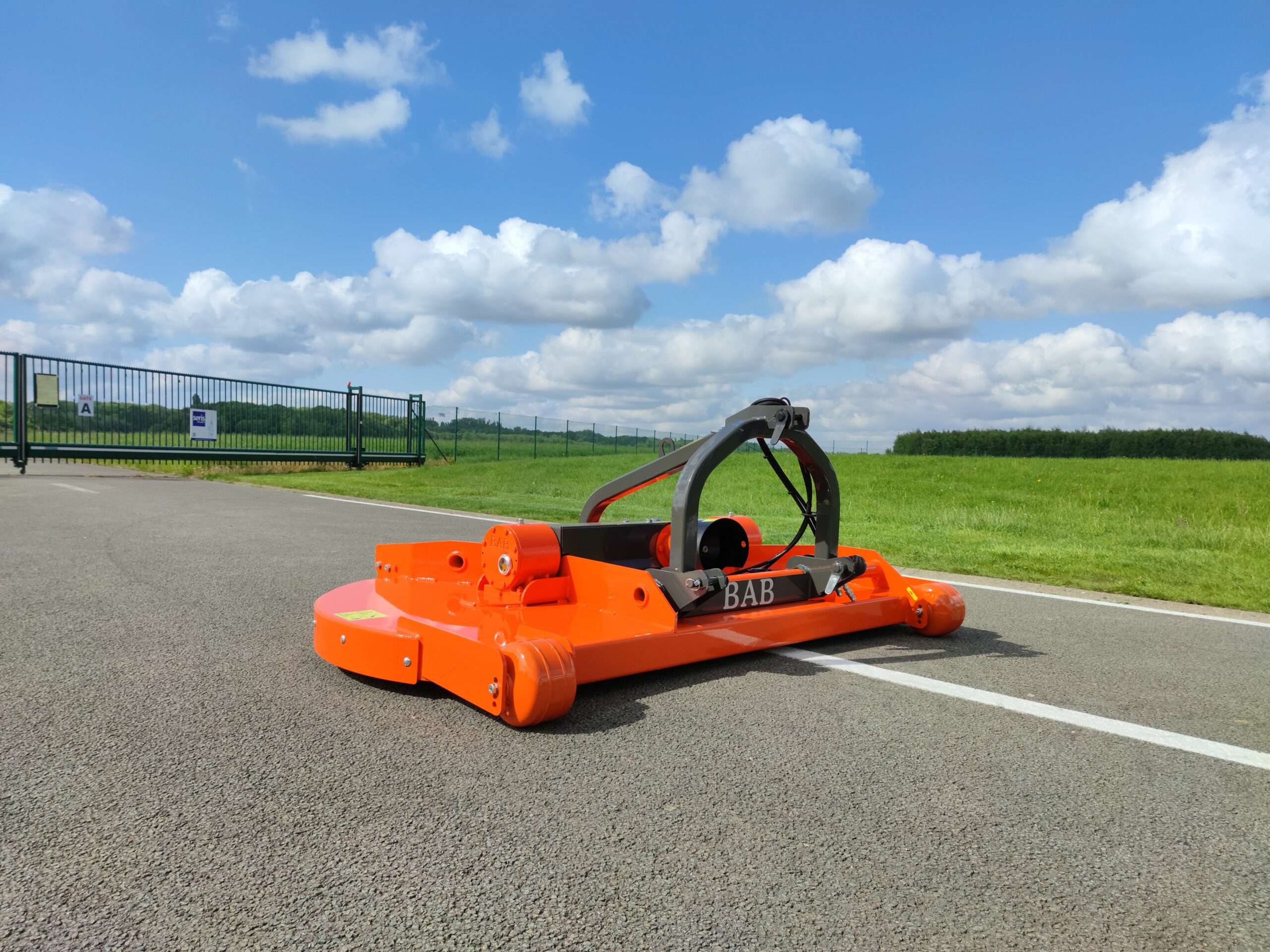

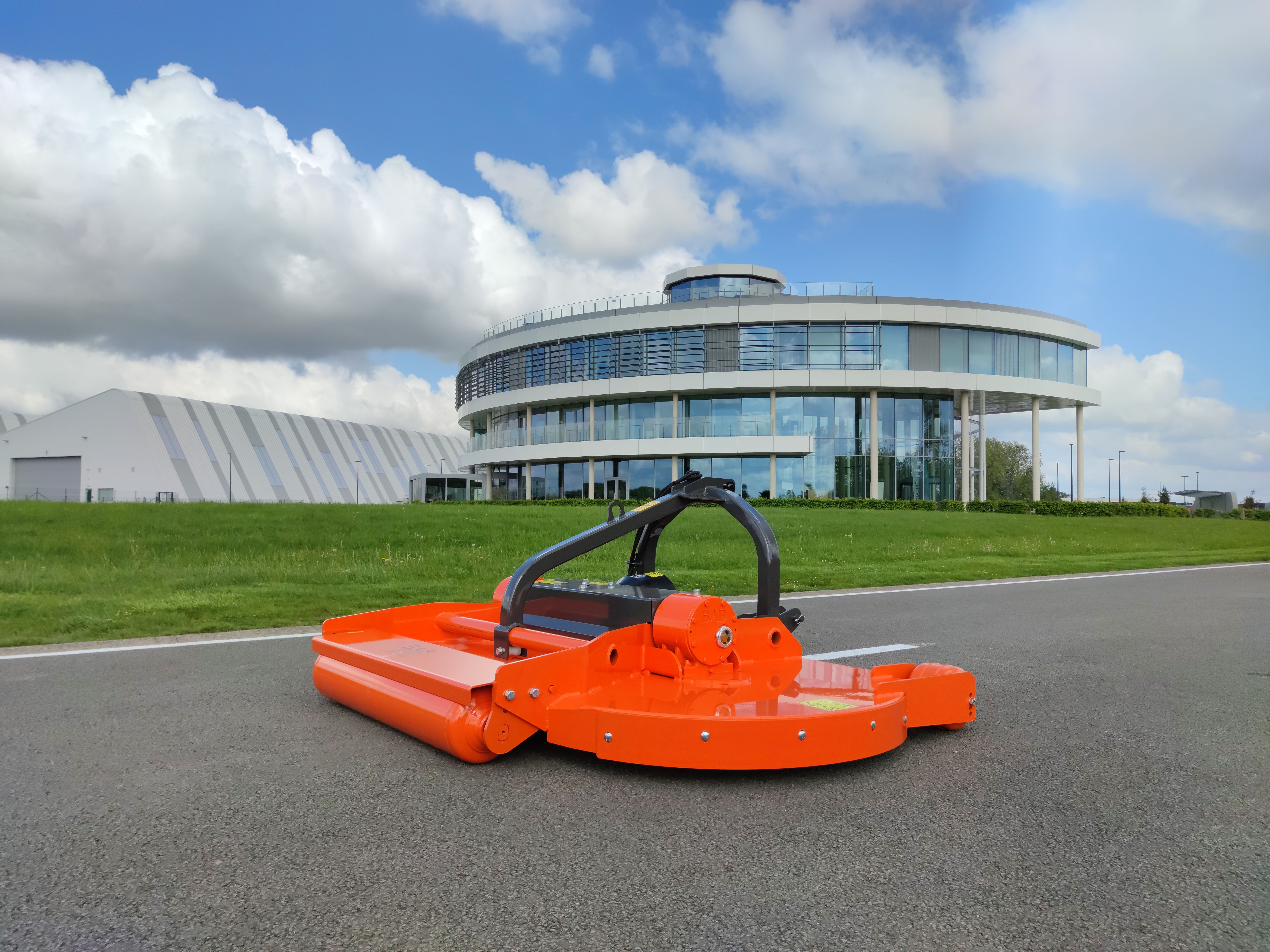

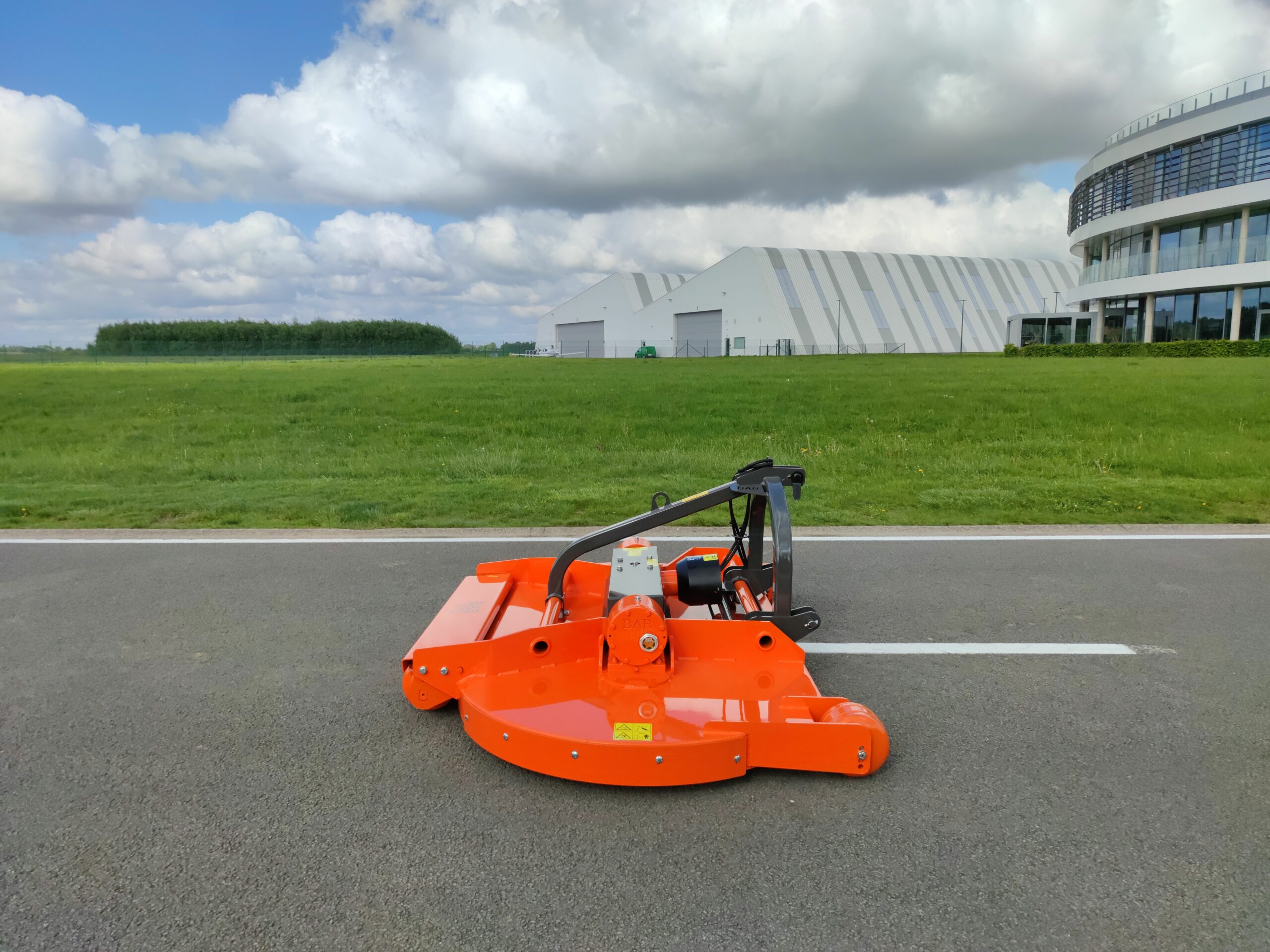

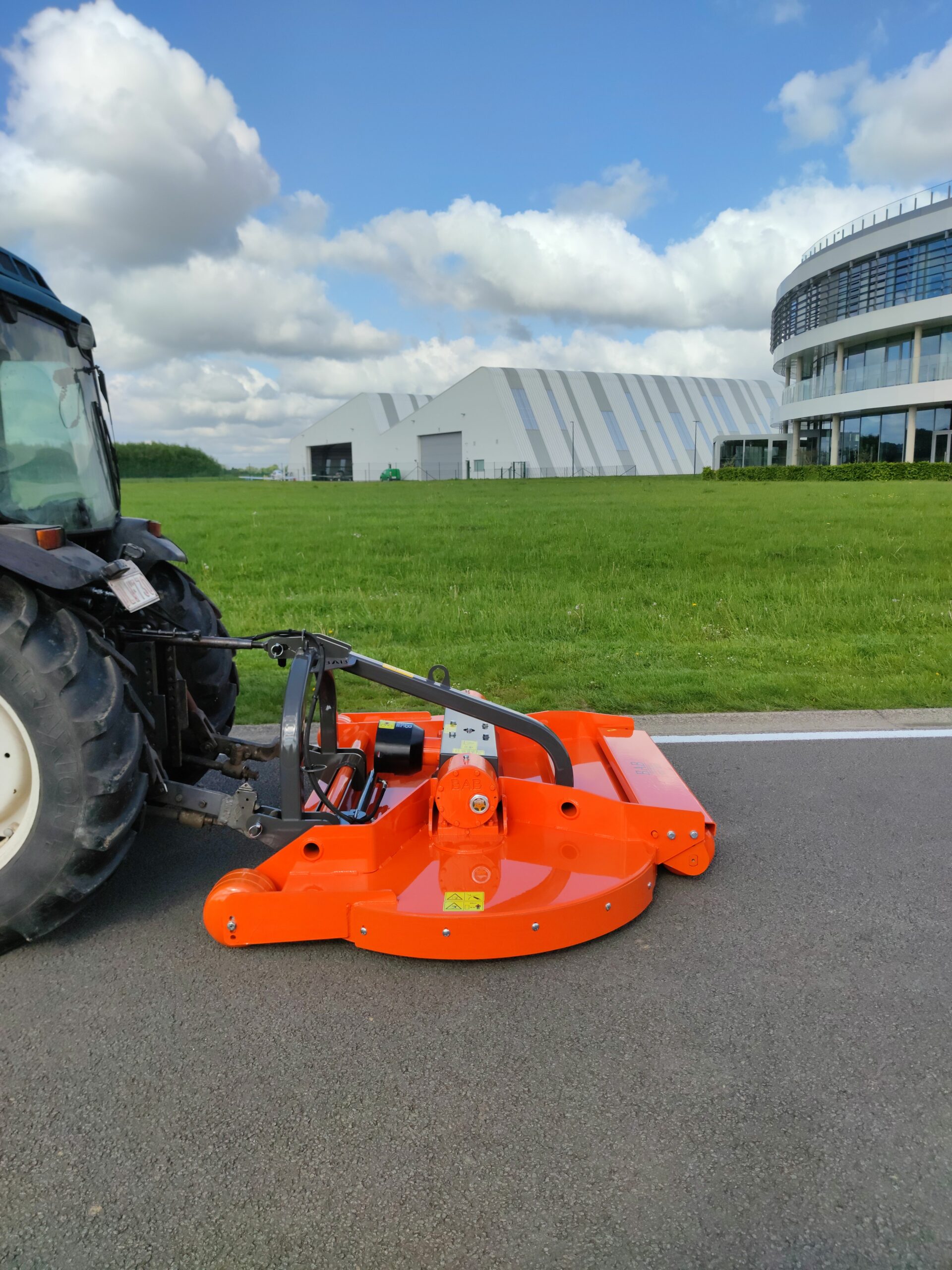

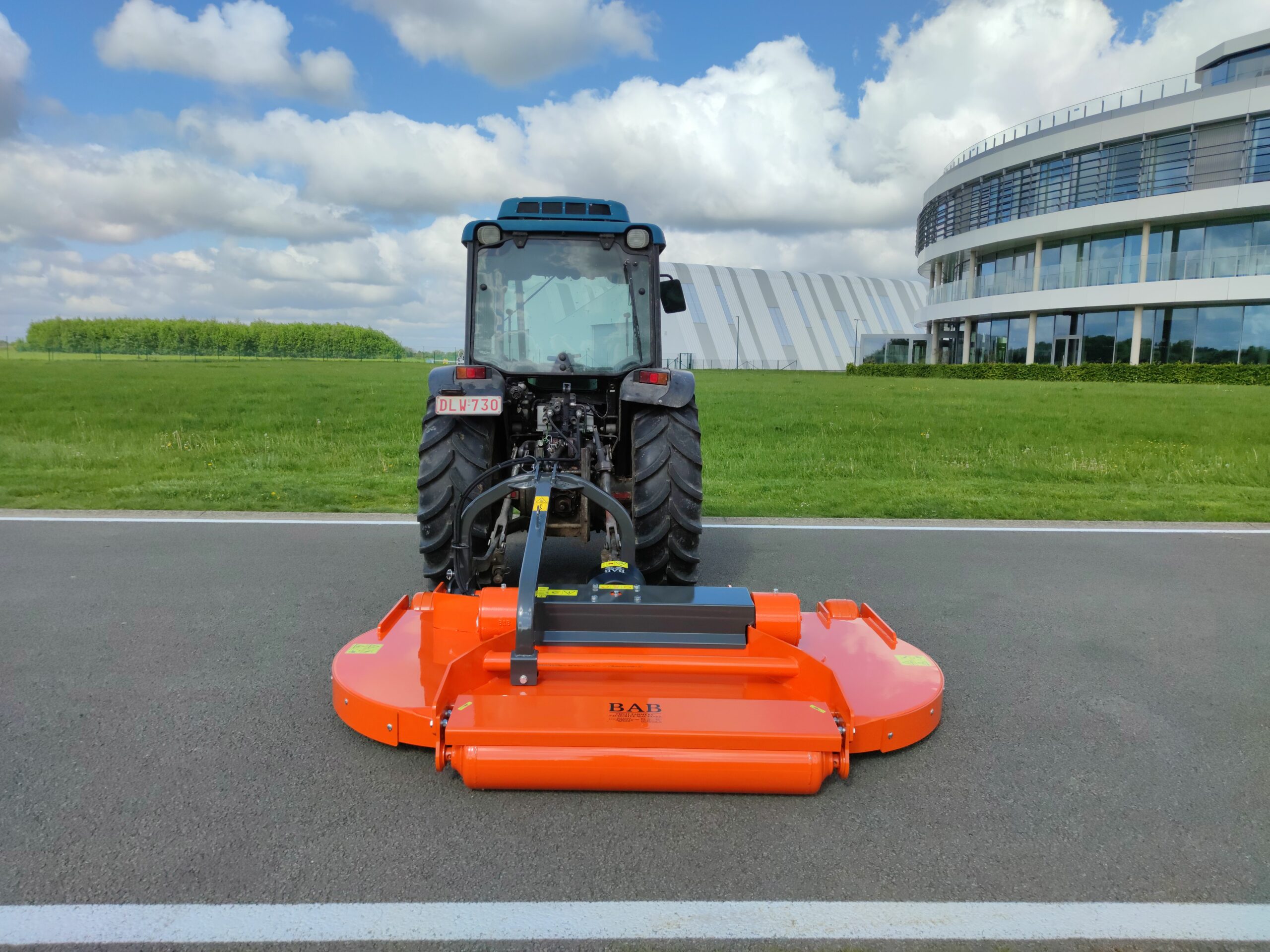

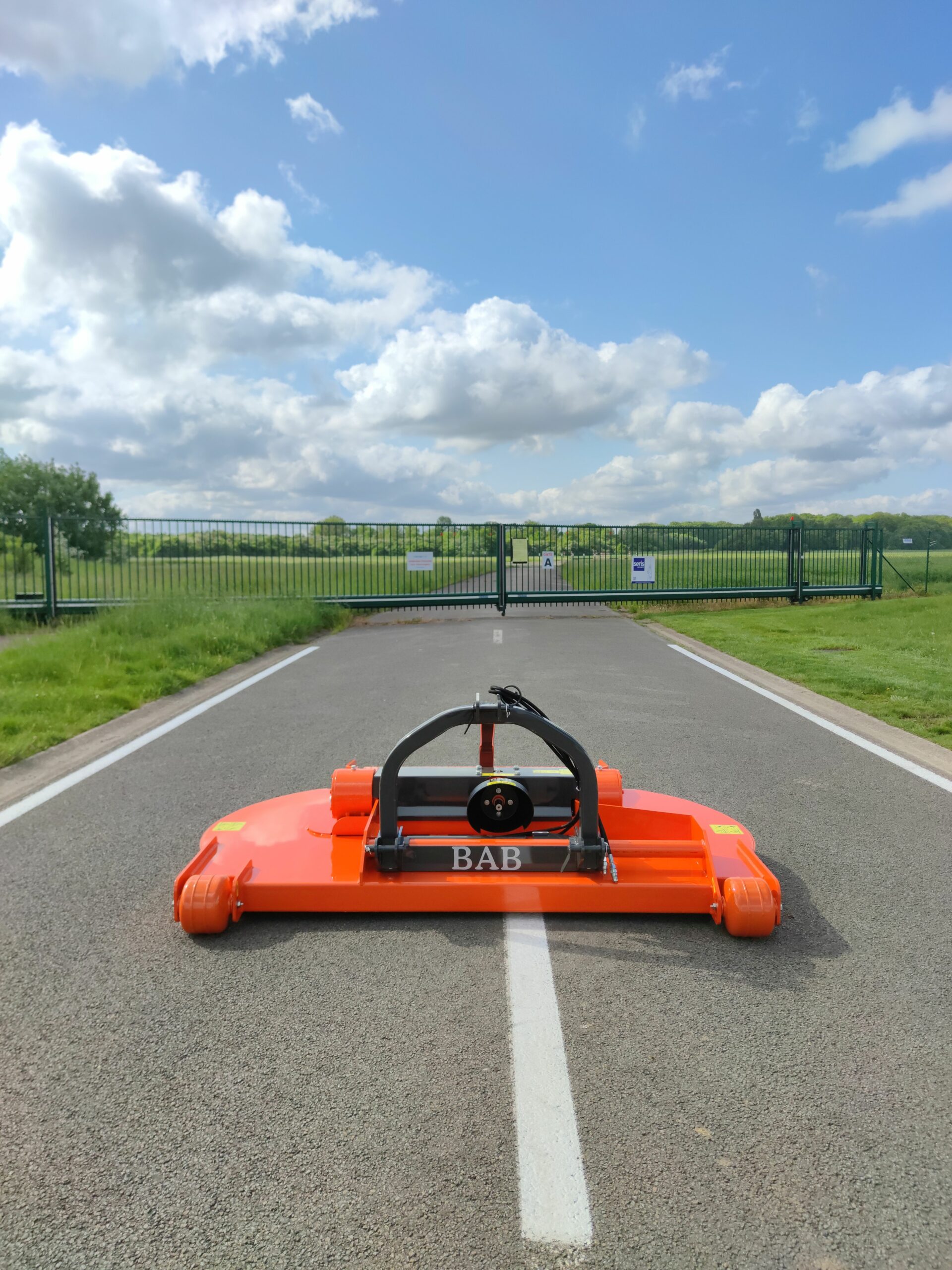

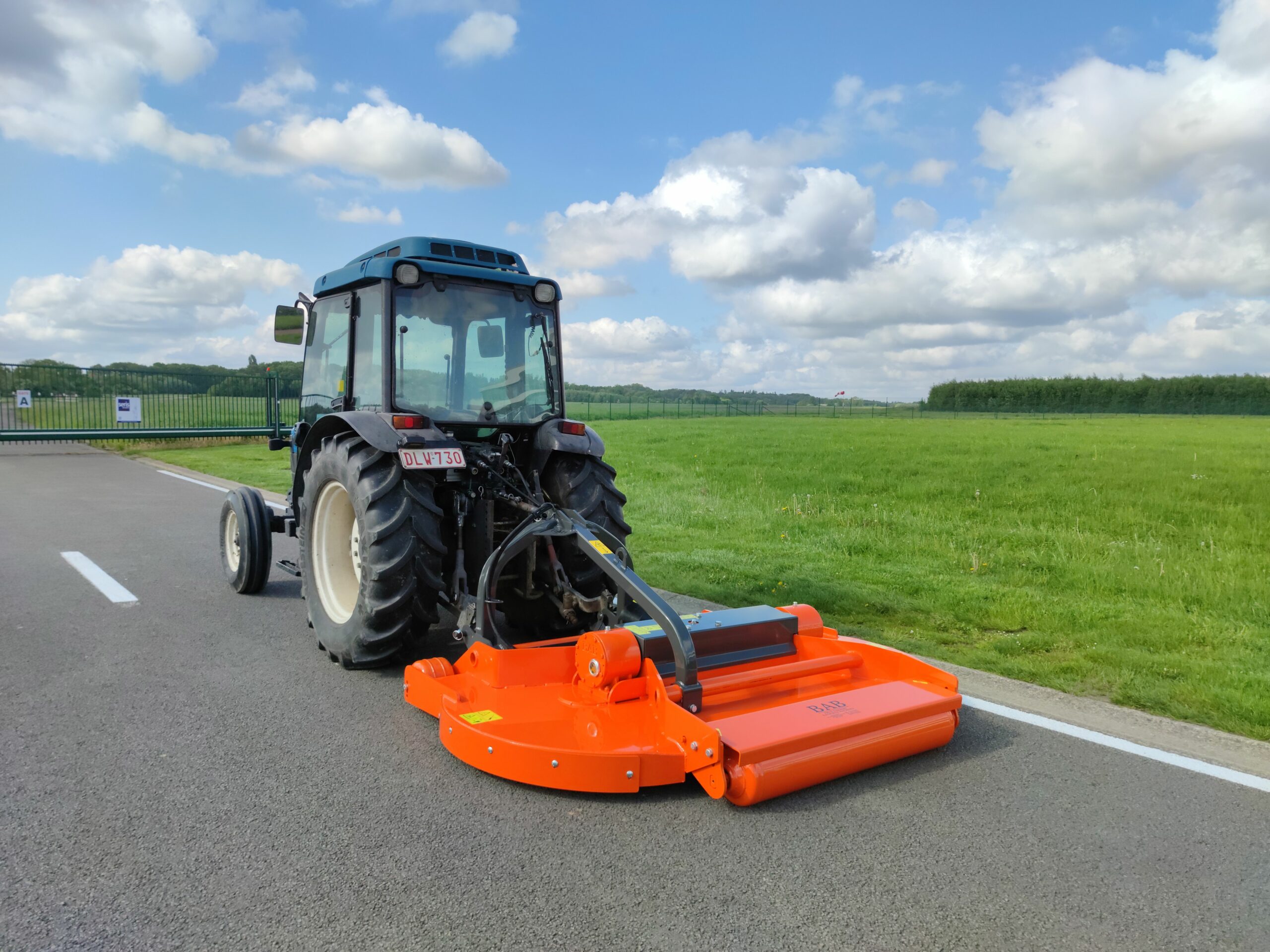

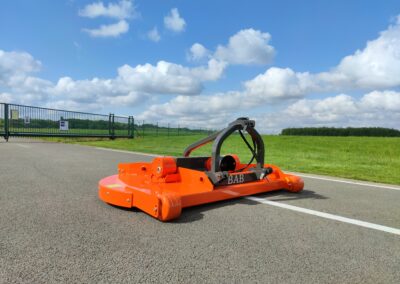

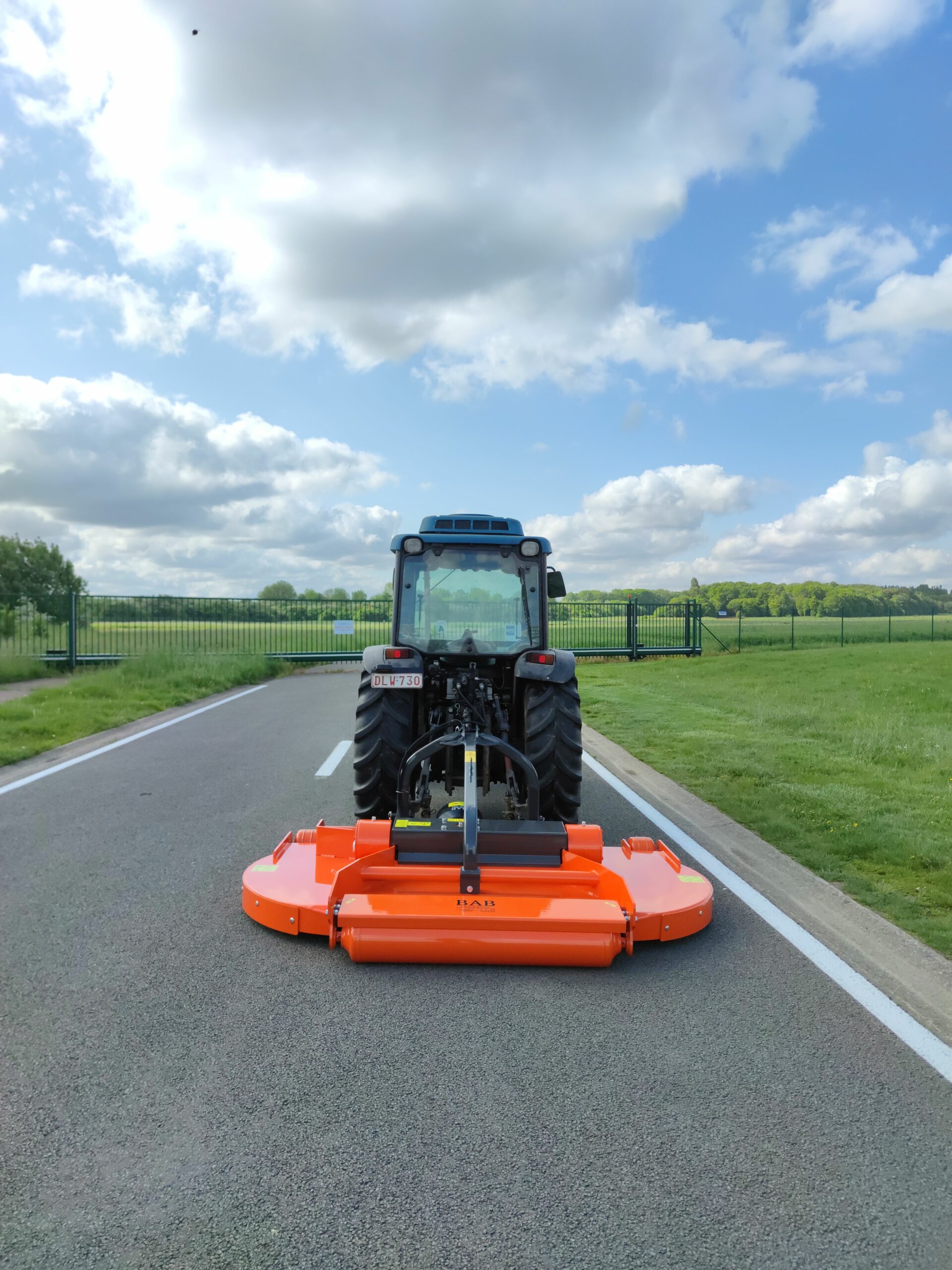

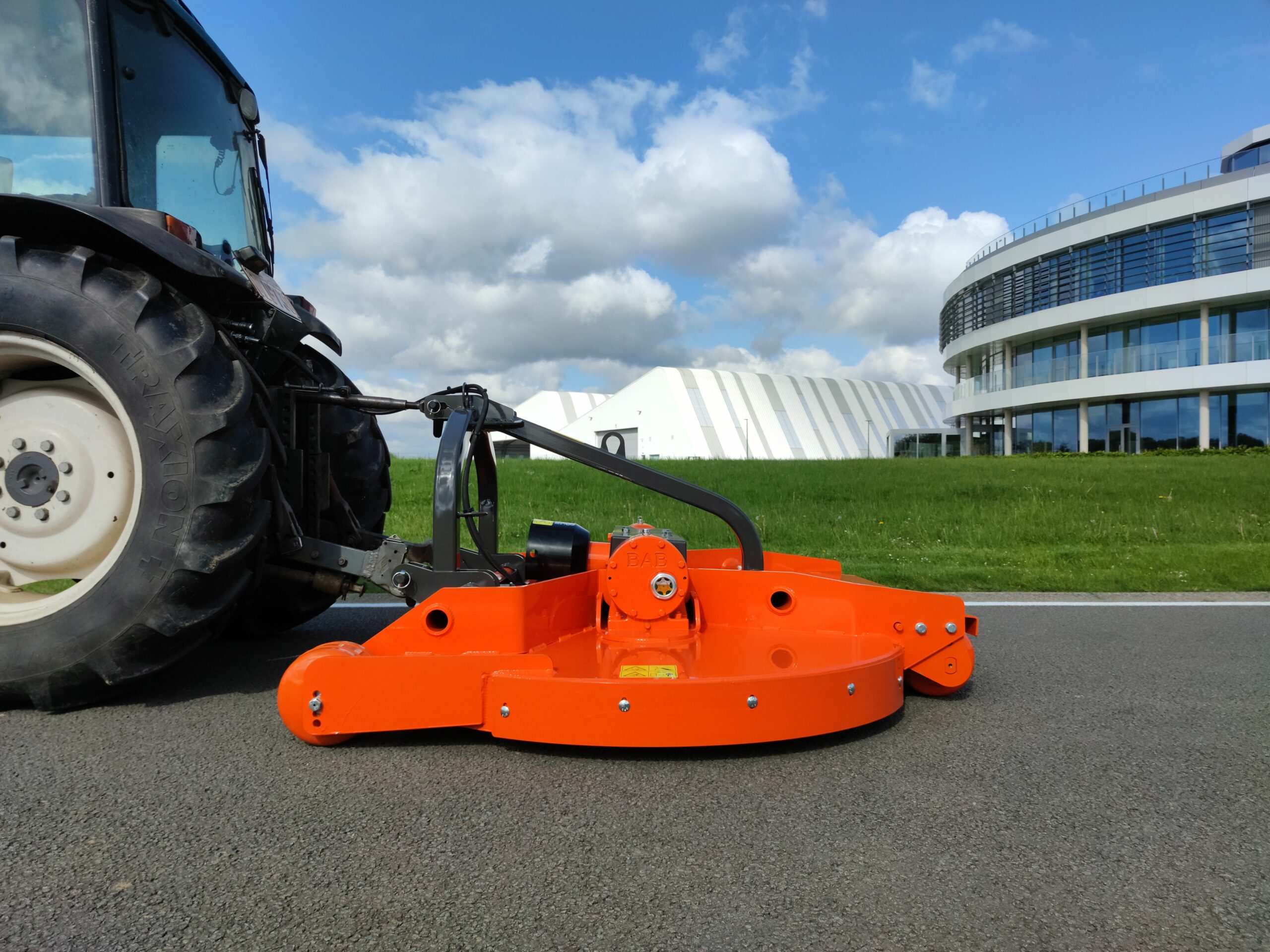

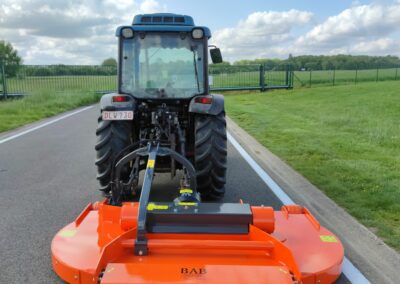

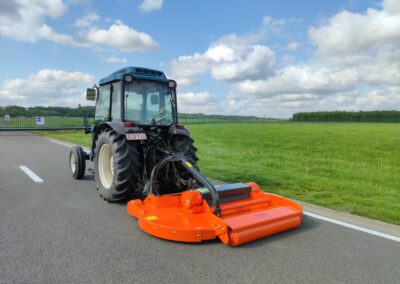

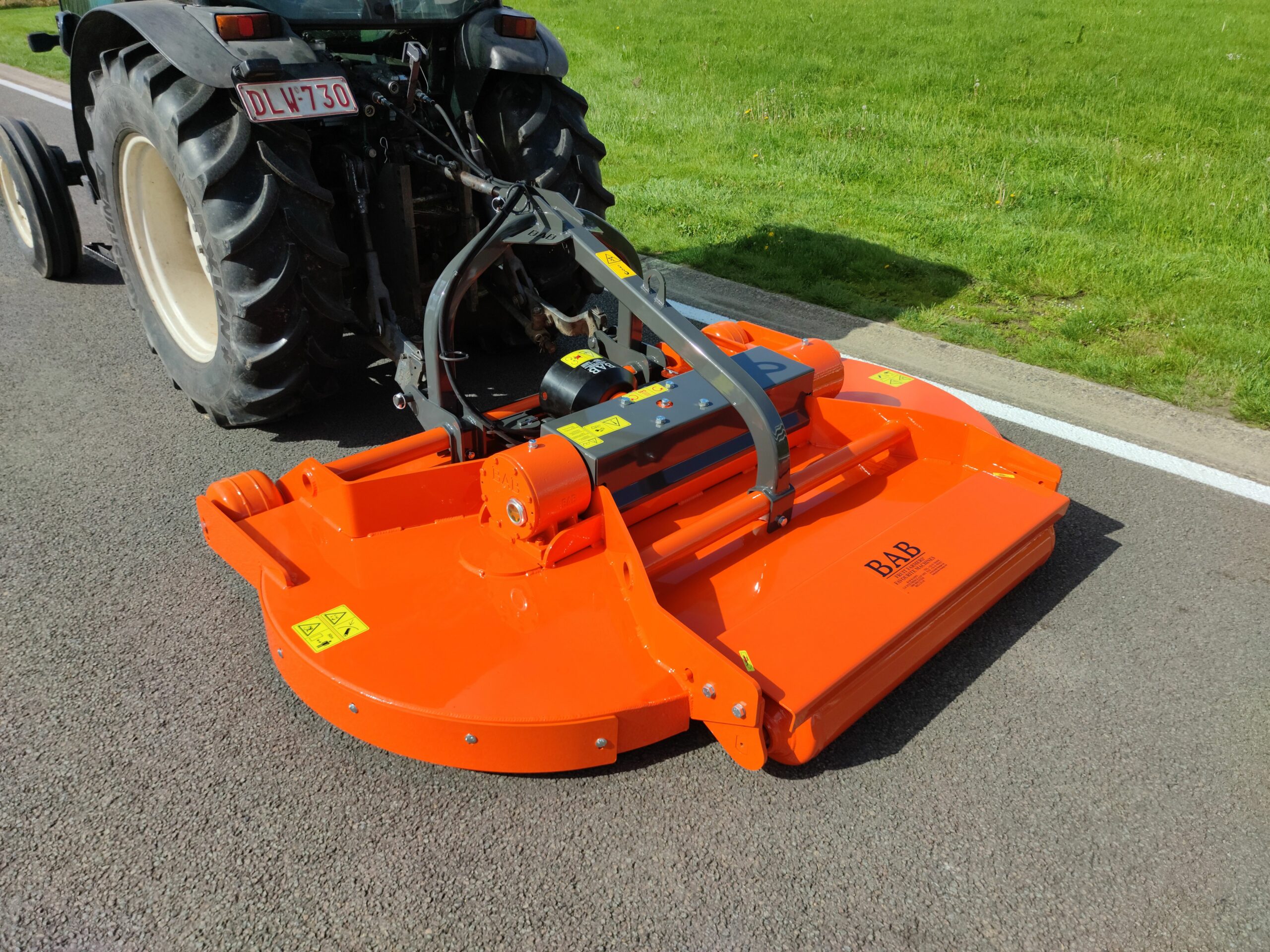

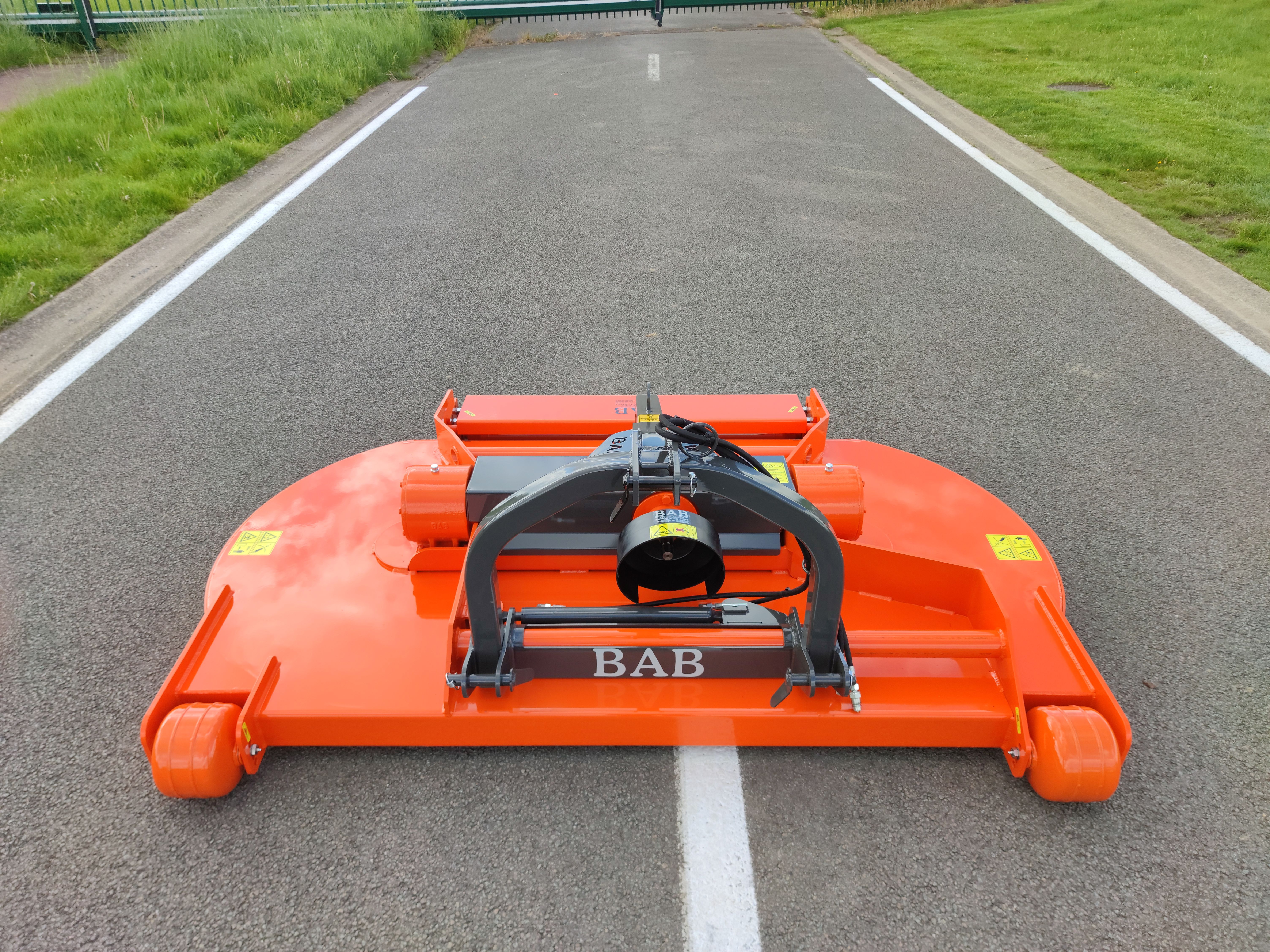

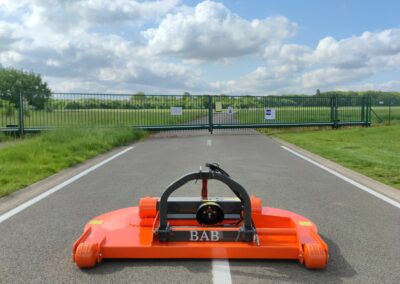

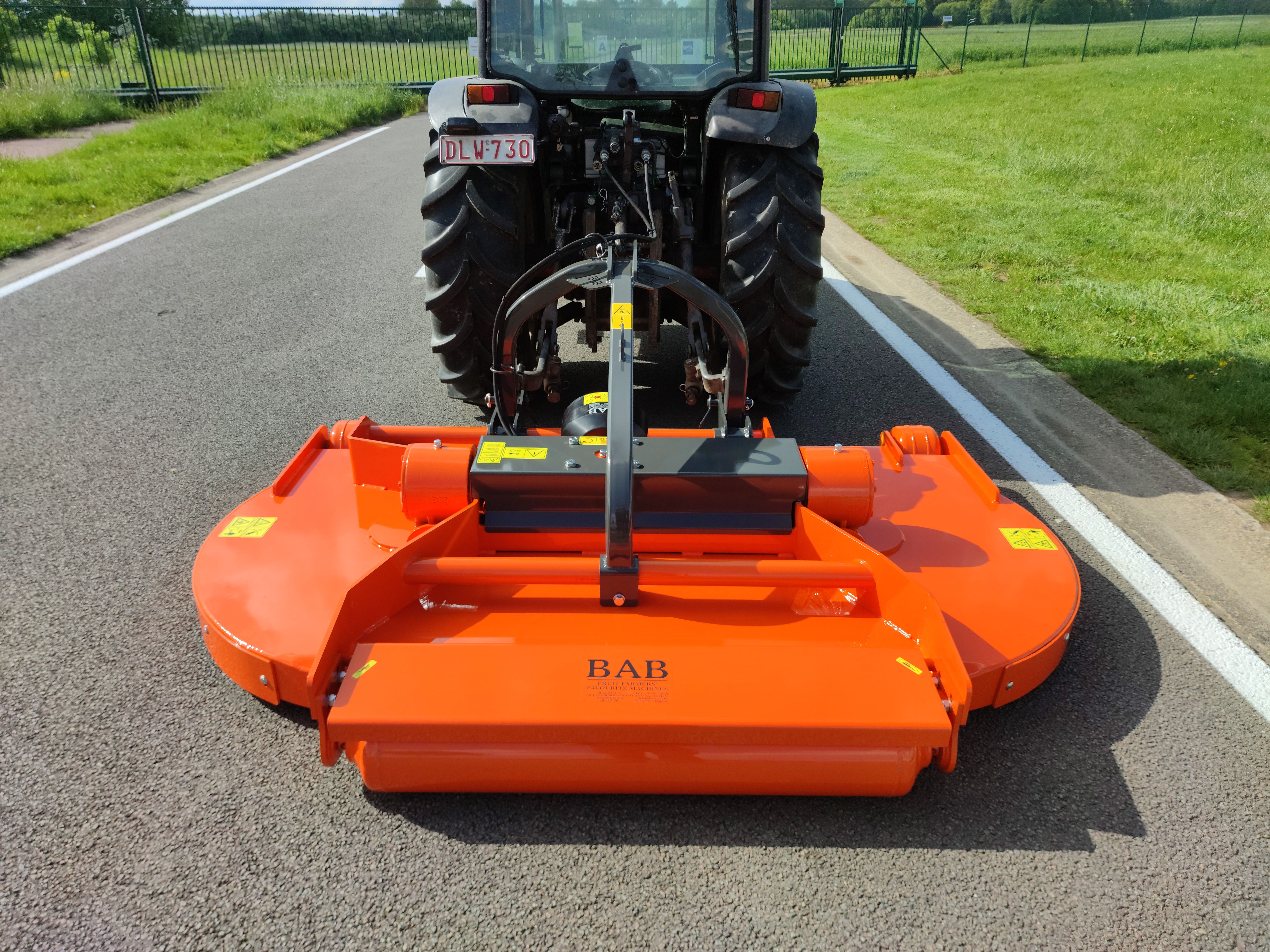

Mower S offset
Standard machine
- offset with hydraulic cylinder
- built low
- heavy duty metal front rollers (pair)
- height adjustable skids in front
- height adjustable roller ø 140 mm in back
- three point linkage cat II ø 25- 28 mm
- 2 rotors with swinging blades
- discharges grass left and right
- 540 rpm
- pto drive shaft with clutch
Options
- grass discharge in the middle
- removable side plates for side discharge
- rear roller ø 220 mm
| Articlenumber | Type | Cutting | Total | Frame | Rotor | Blades | Weight | |
| cm | cm | mm | # | # | kg | |||
| 880-510-222 | S222V | 220 | 230 | 5 | 2 | 4 | 550 | |
| 880-510-242 | S242V | 240 | 250 | 5 | 2 | 4 | 580 | |
| 880-510-262 | S262V | 260 | 270 | 6 | 2 | 4 | ||
| 880-510-282 | S282V | 280 | 290 | 6 | 2 | 4 | 710 |
