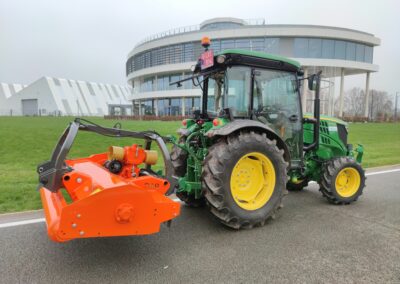

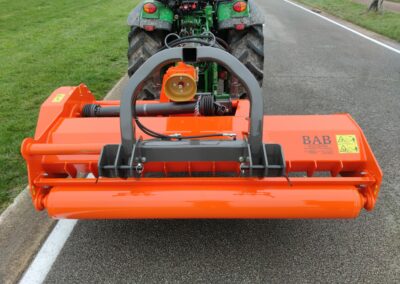

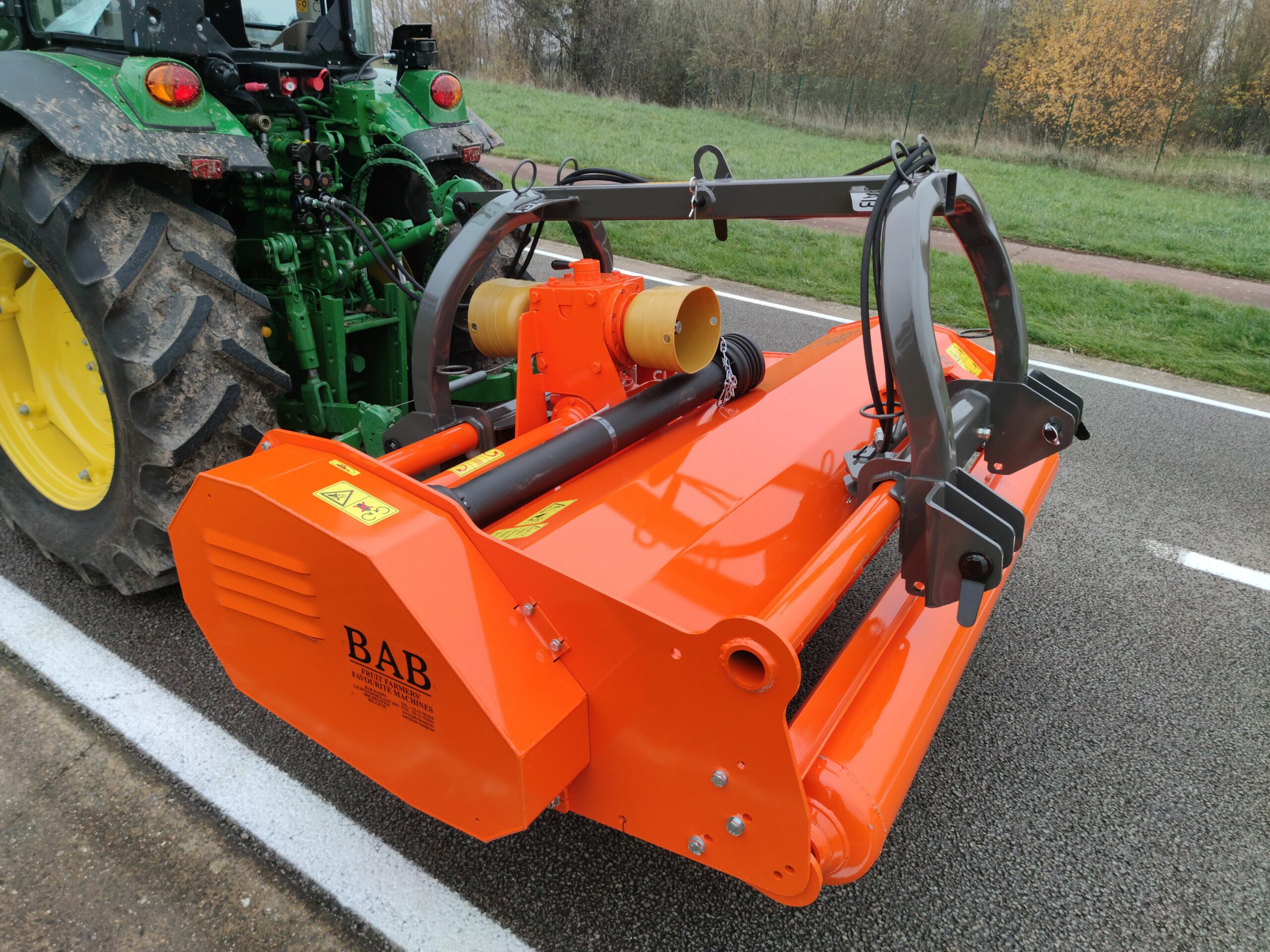

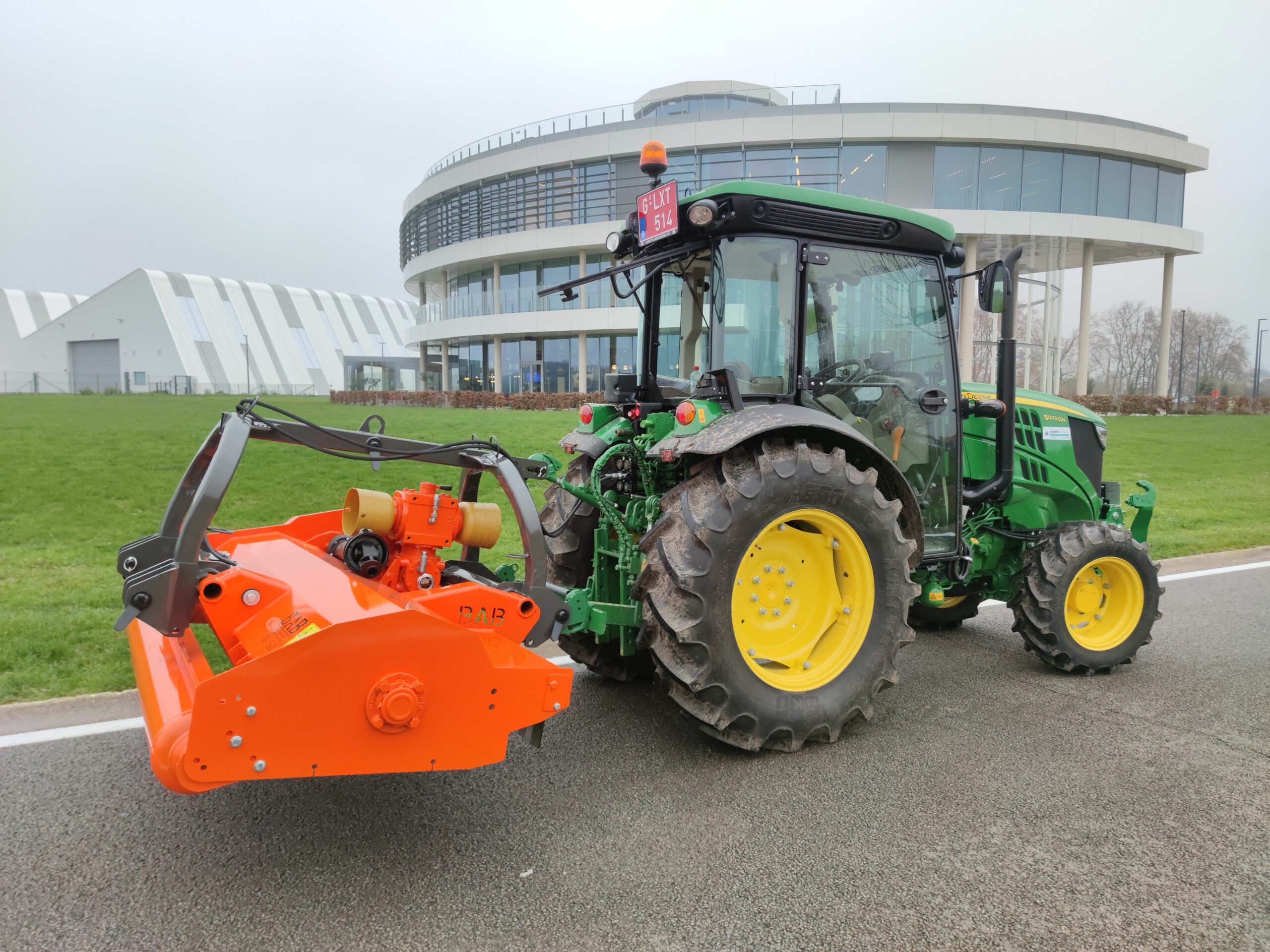

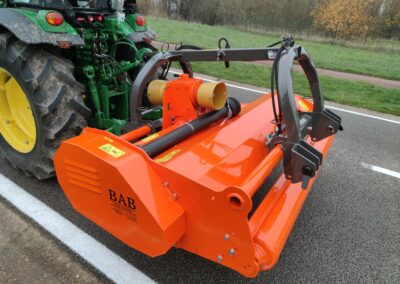

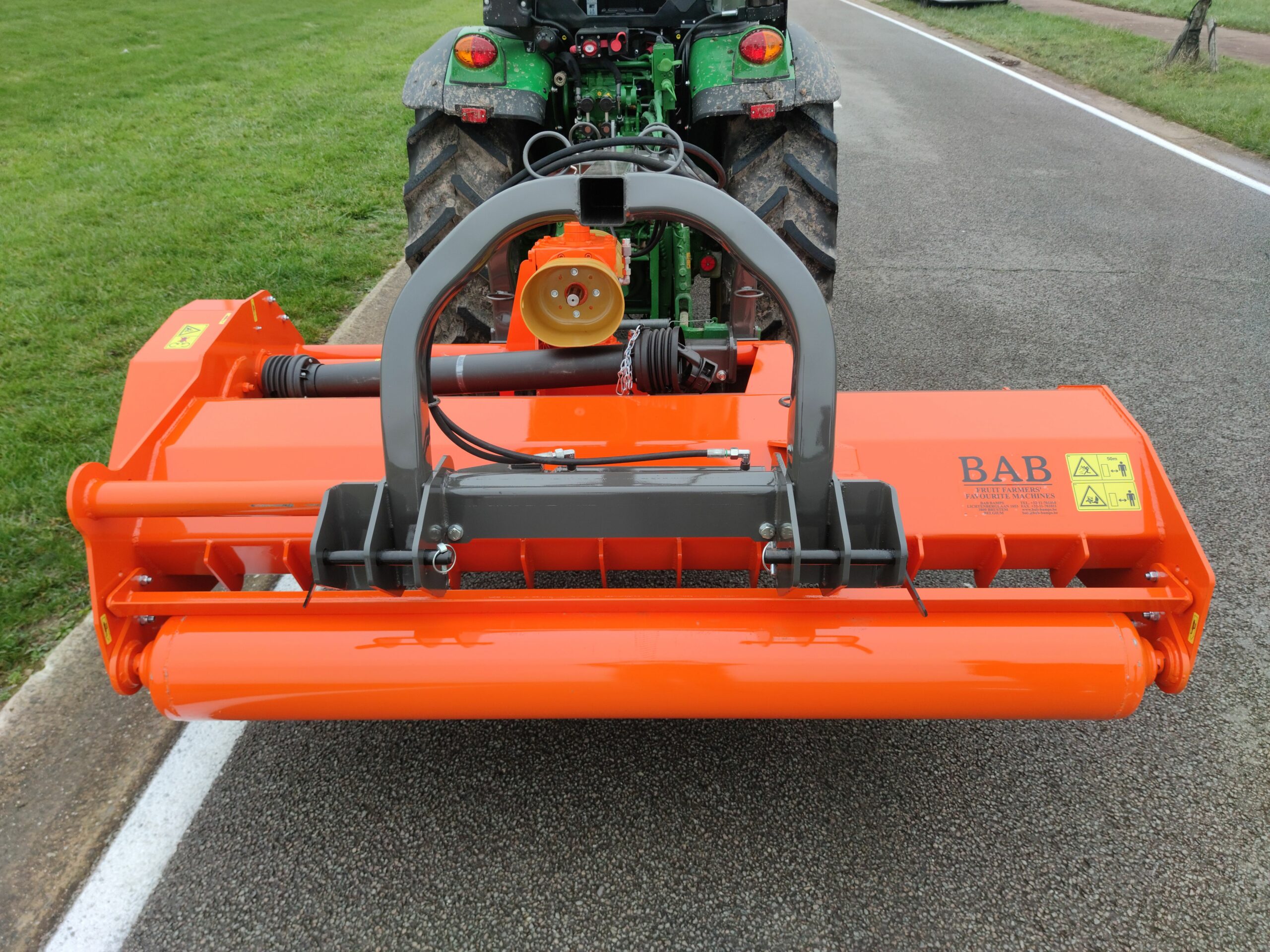

Pulveriser Front KL 150
Standard machine
- low profile design front or rear mounted
- ø 180 mm rotor tube with shaft ends ø 50 mm
- outside diameter flails 440 mm
- high speed rotor
- chassis 6/10 mm with internal counter hooks
- automatic belt tensioner
- 4 or 5 V-belts SPB section depending on cutting size
- hydraulic offset with linear guidance standard
- 3-point linkage cat II , ø 28/25 mm
- gearbox 540 rpm with double PTO entrance
- heavy duty flail 2,2 kg with fixing bolt M20
- included drive-shaft
- rear roller ø 140 mm
Options
- skids
- 1000 rpm instead of 540 rpm
- single brush to built on right side of frame
- rear roller ø 220

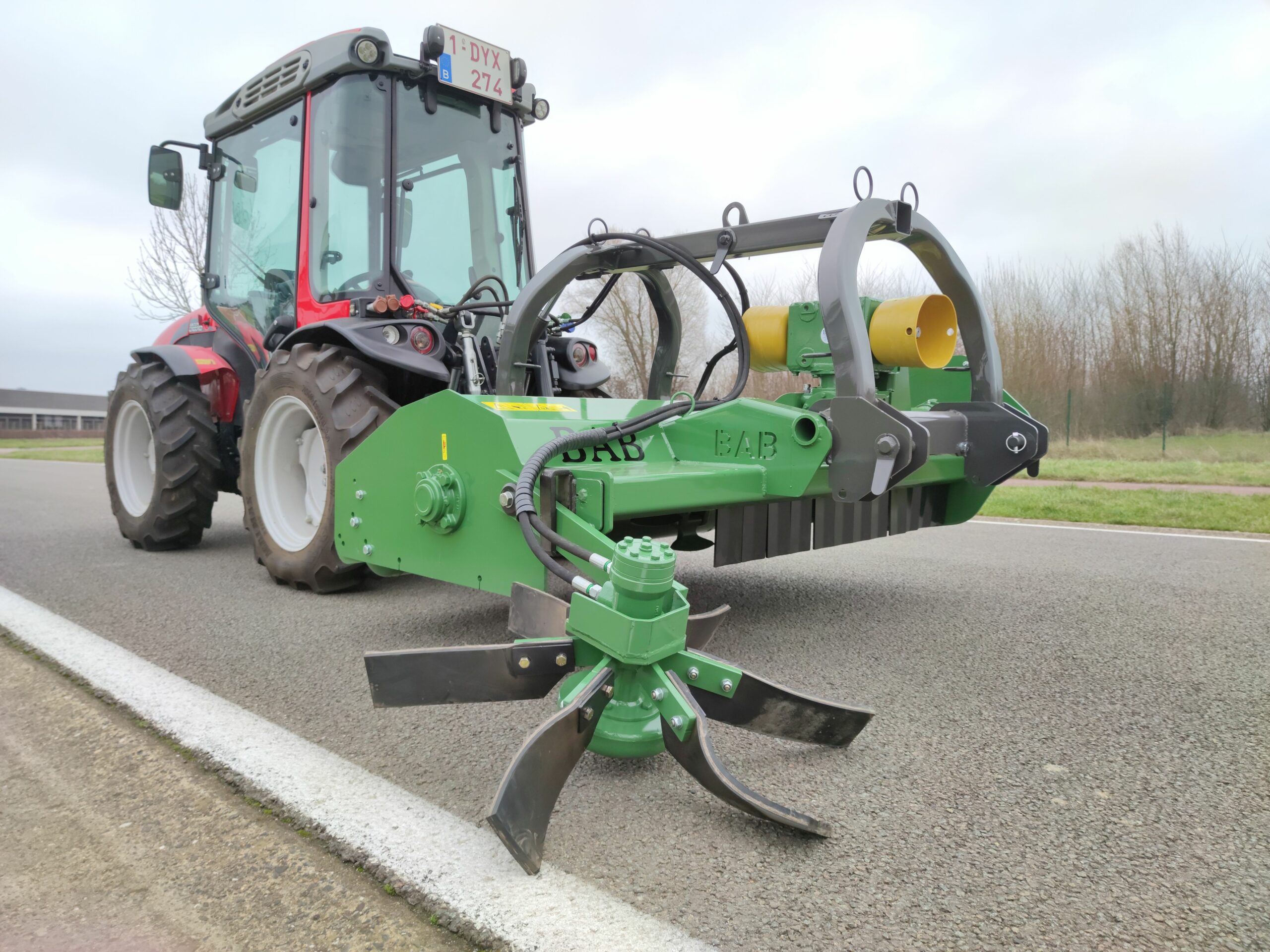

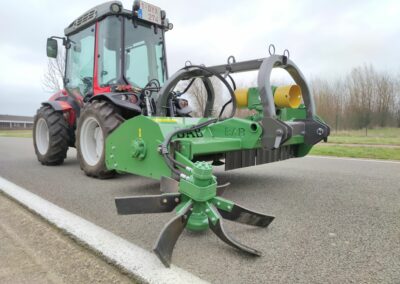

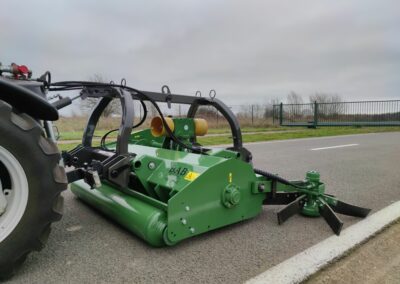

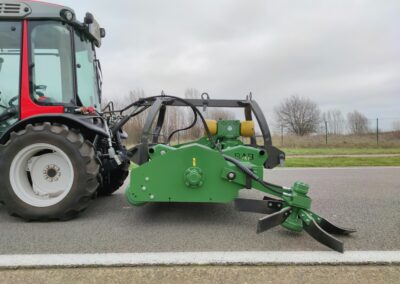

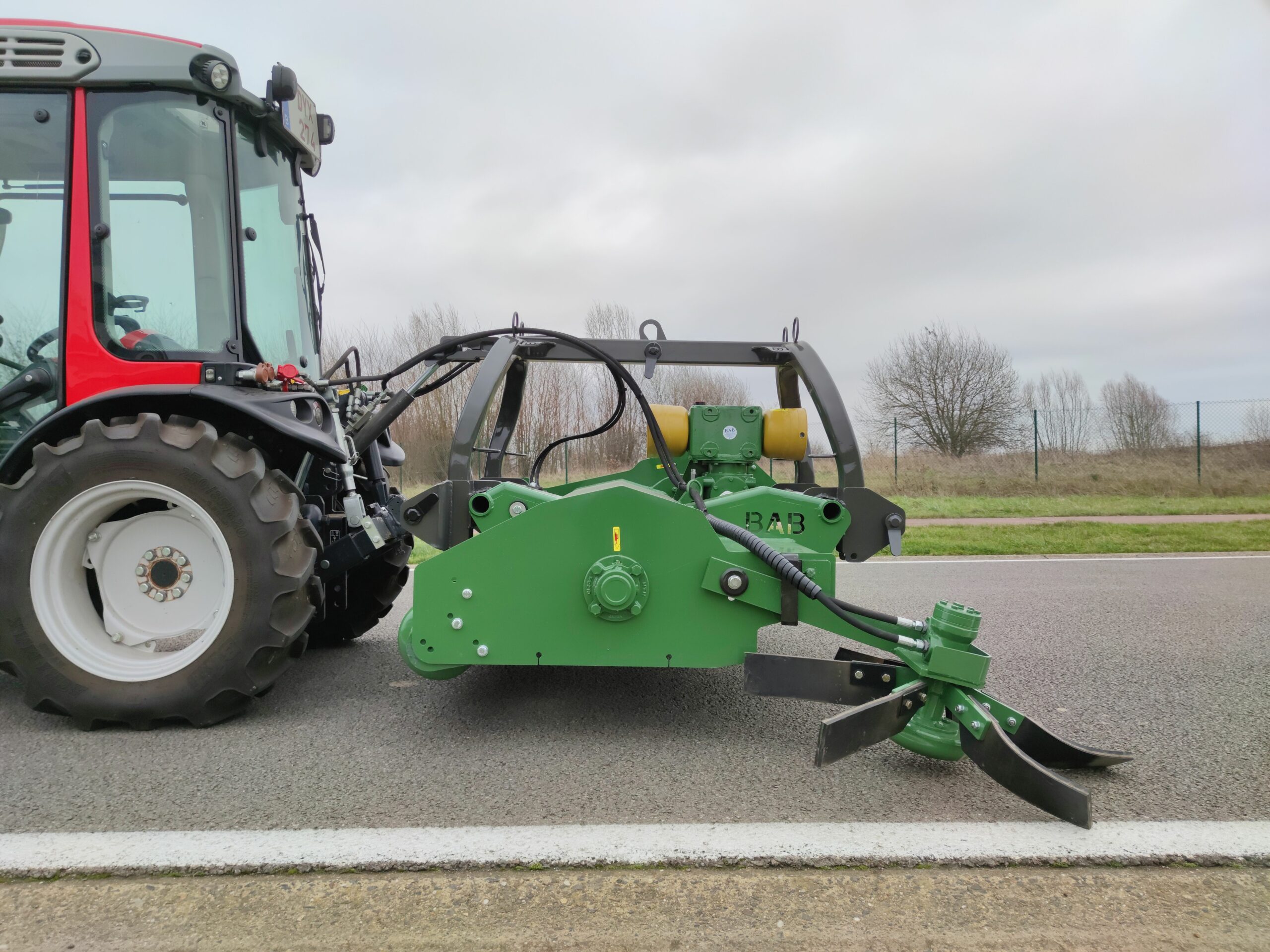

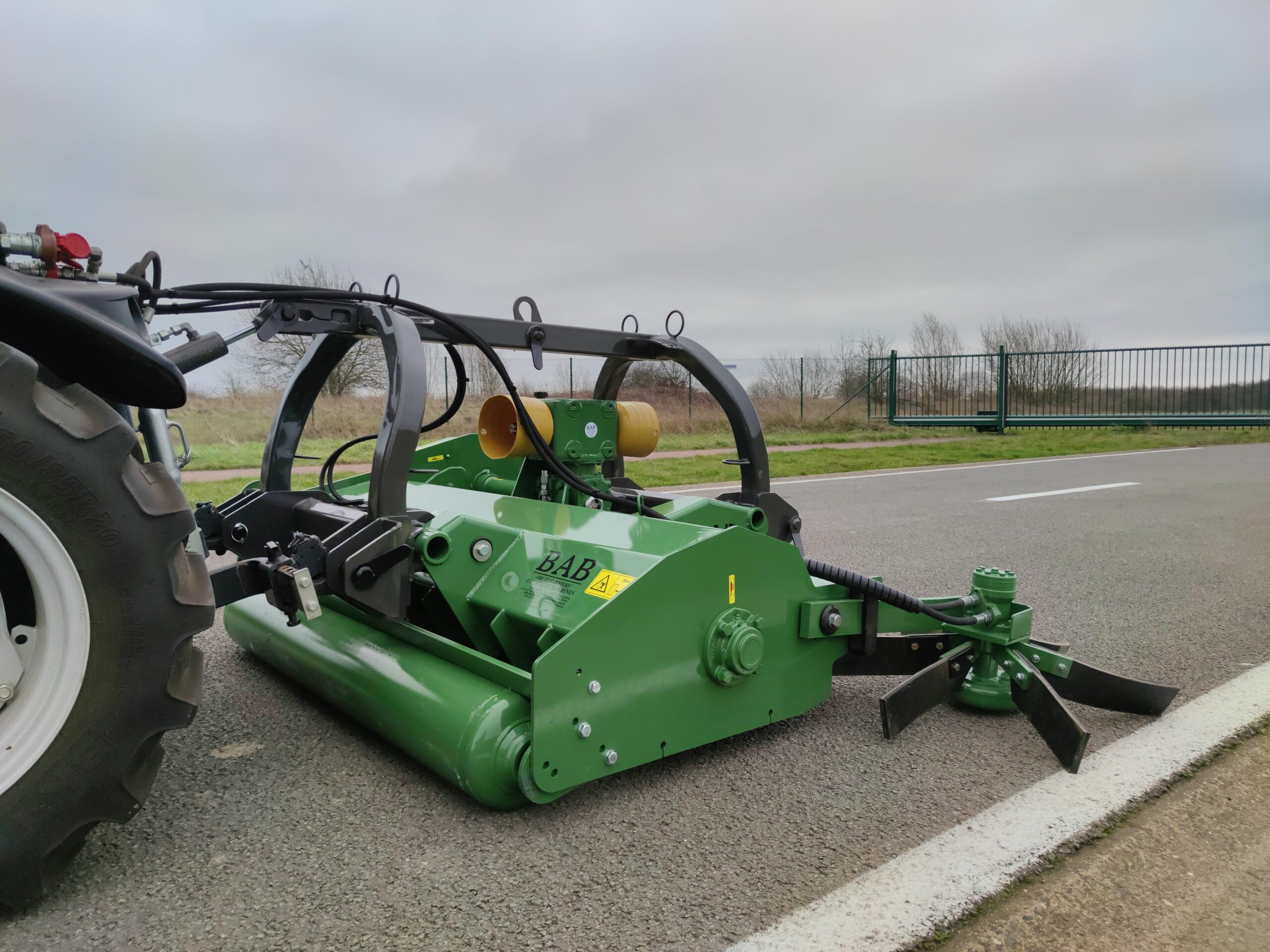

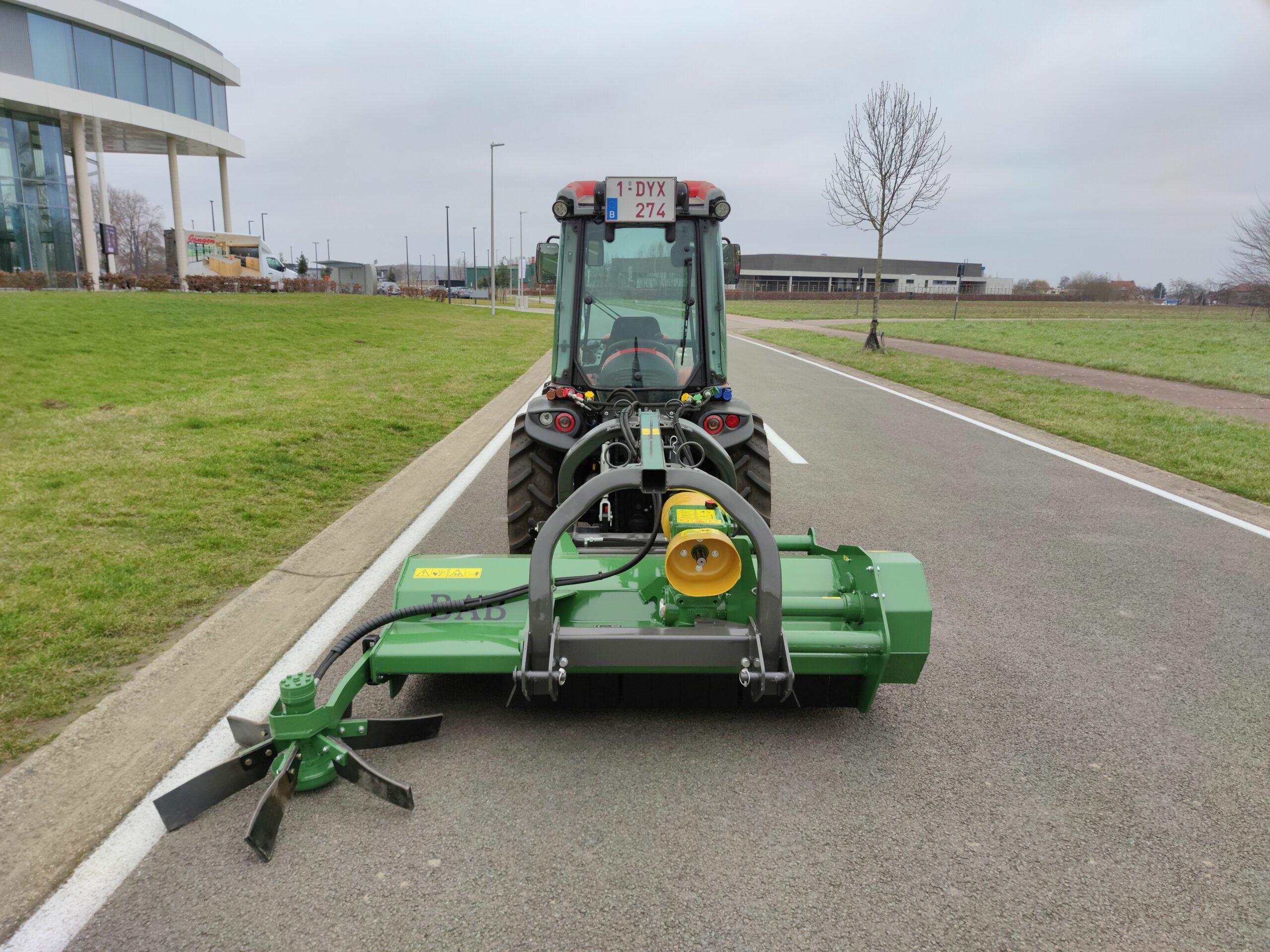

- single brush to built on right side of frame (=model 152)
- mirror version
| Articlenumber | Modeltype | Cutting | Total width | Flails | V-belts | Weight | ||
| cm | cm | # | # | kg | ||||
| 160-050-140 | KL140-150 | 145 | 165 | 10 | 3 | |||
| 160-050-160 | KL160-150 | 165 | 185 | 10 | 4 | |||
| 160-050-180 | KL180-150 | 185 | 205 | 15 | 4 | 630 | ||
| 160-050-200 | KL200-150 | 205 | 230 | 15 | 5 | 690 |
