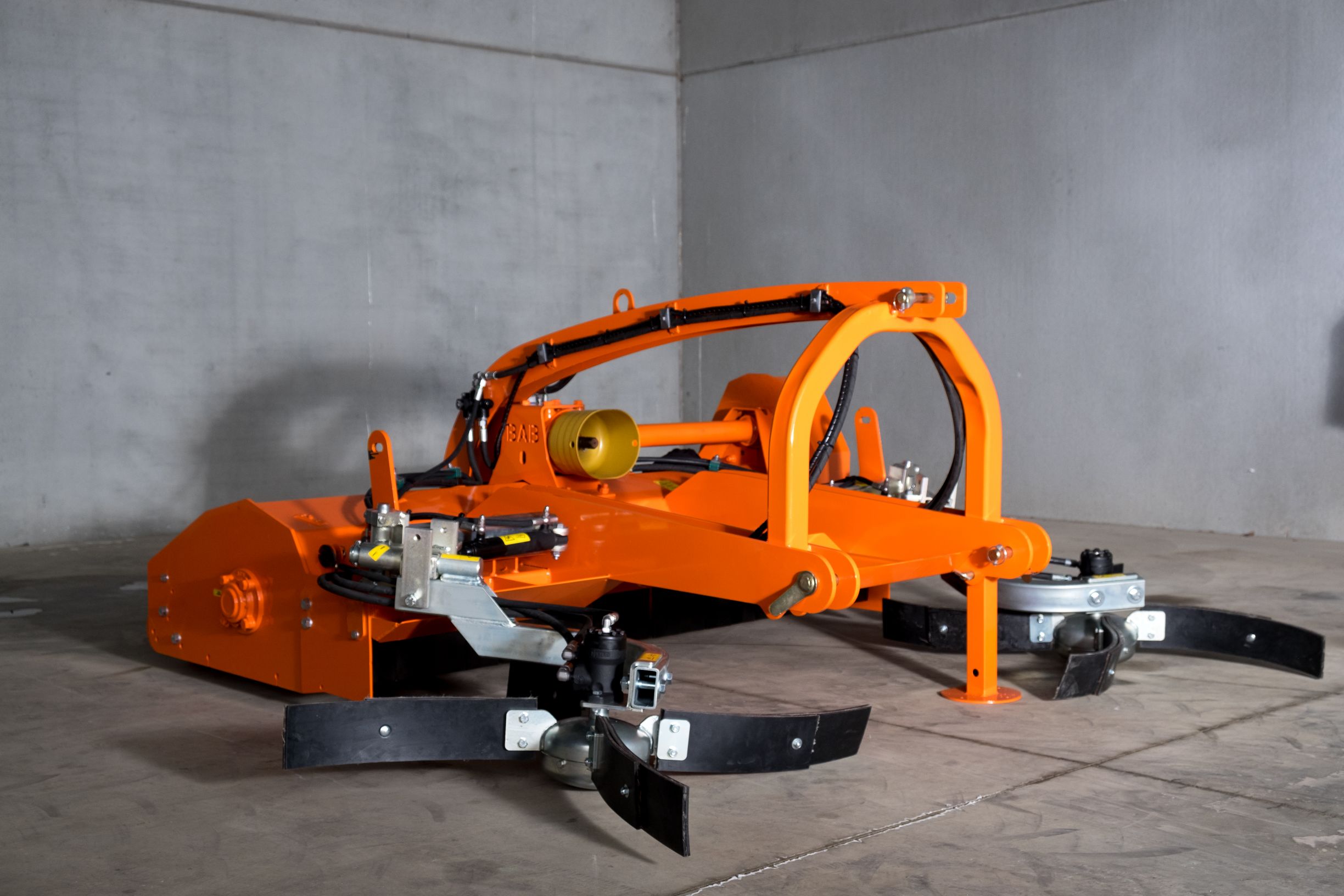

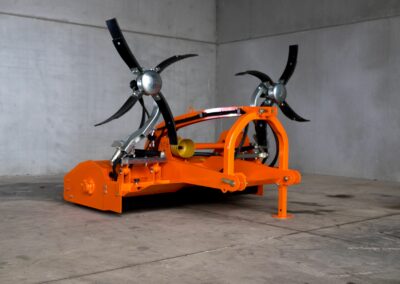

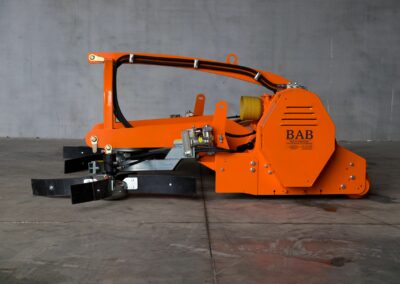

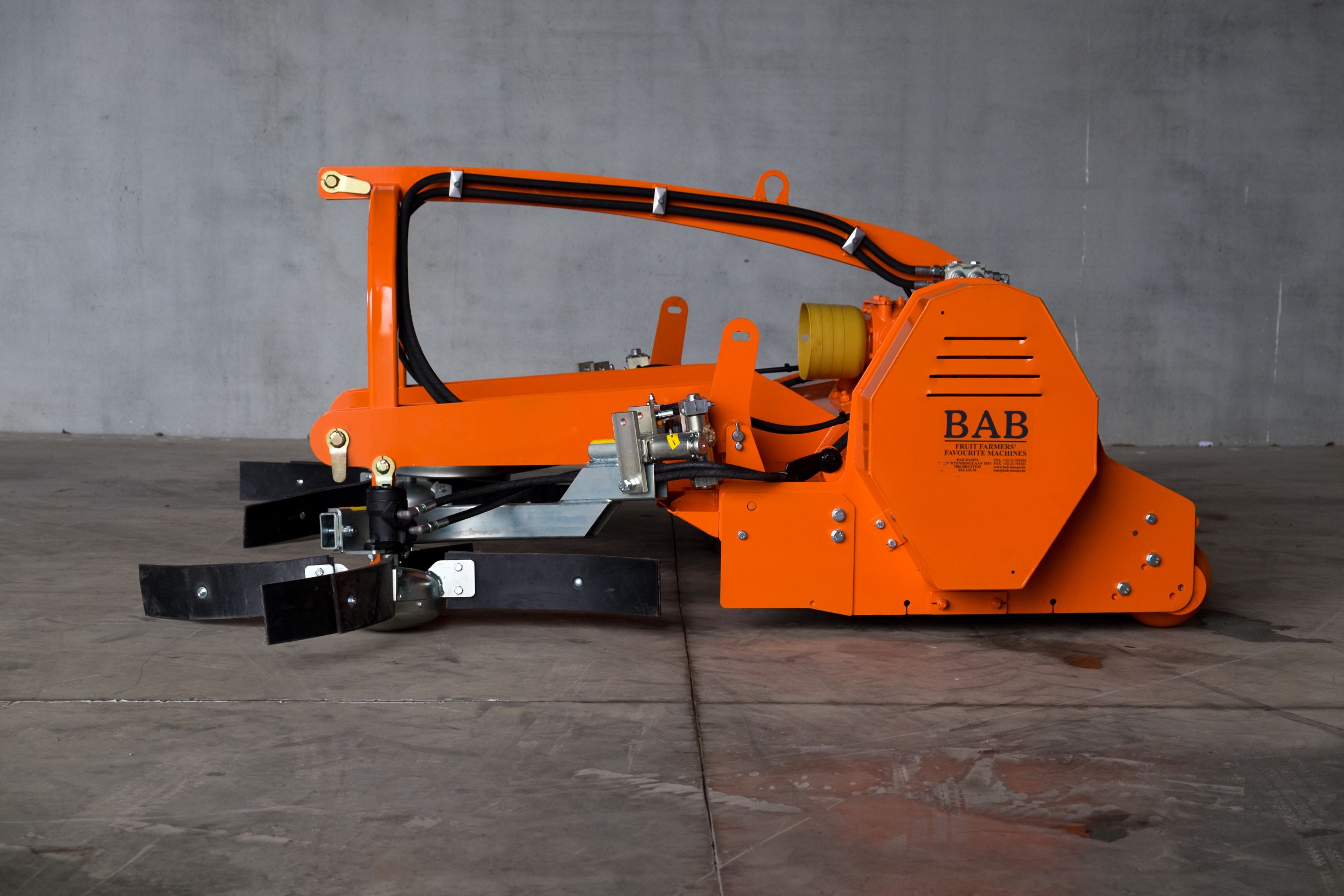

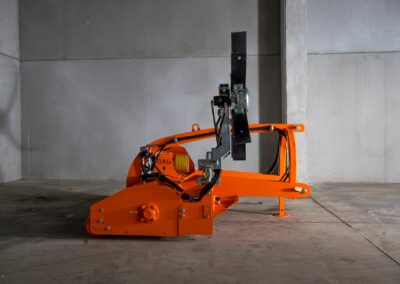

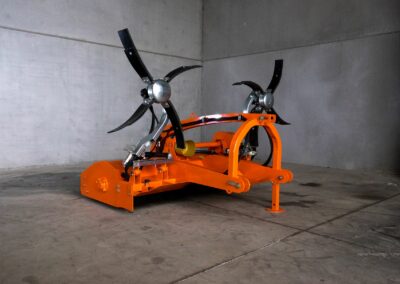

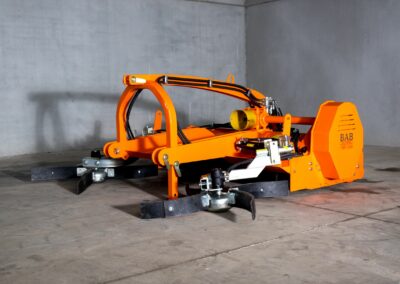

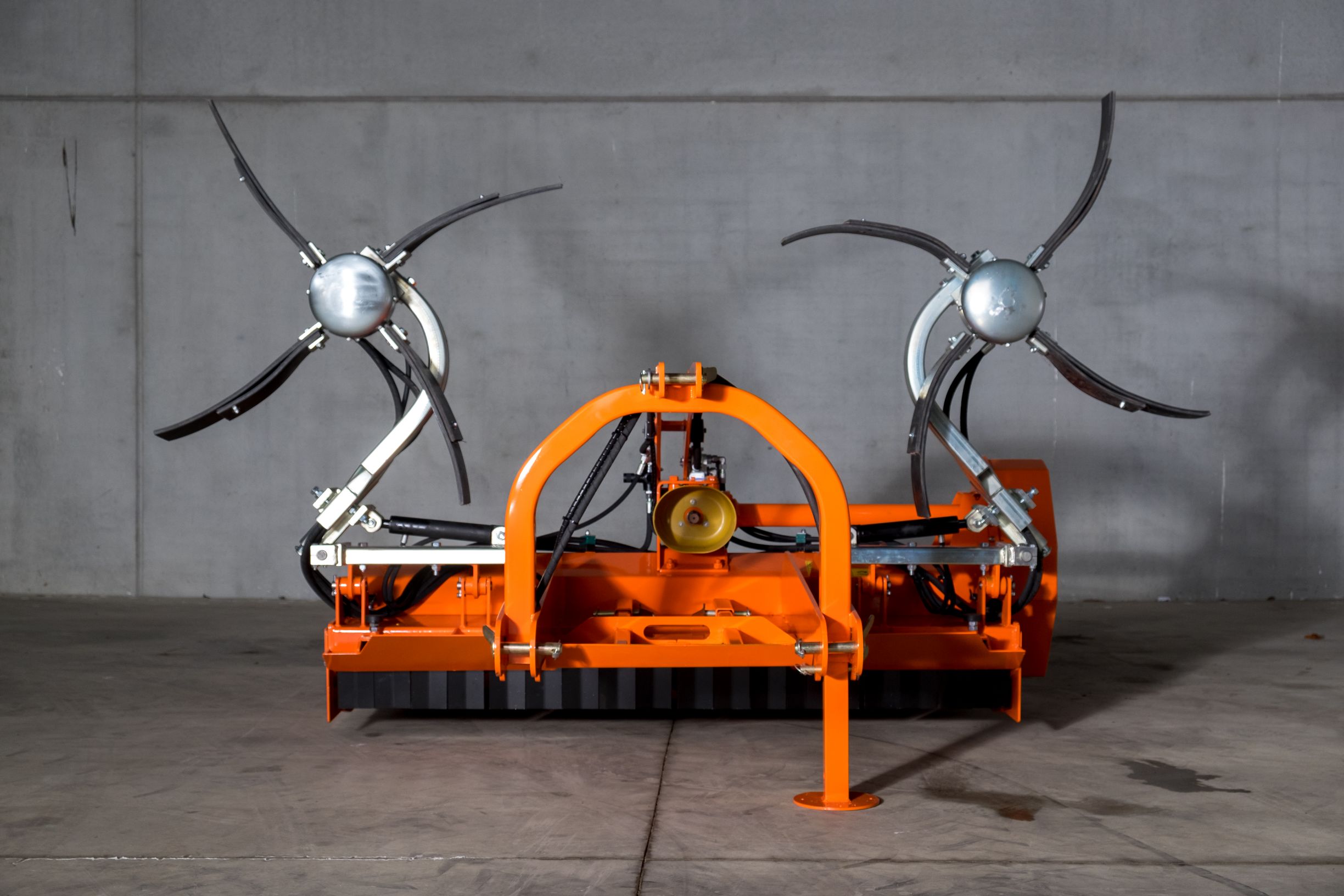

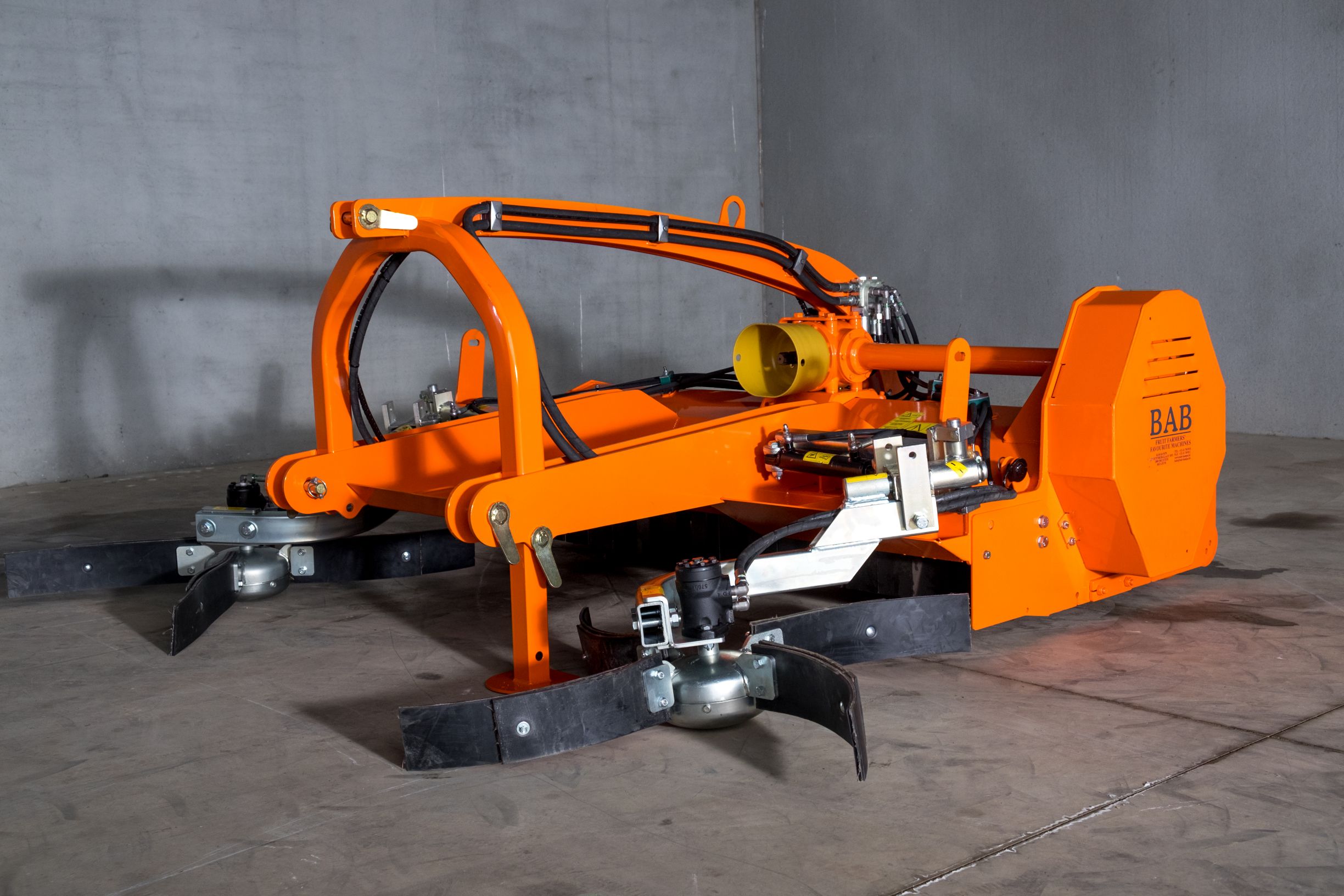

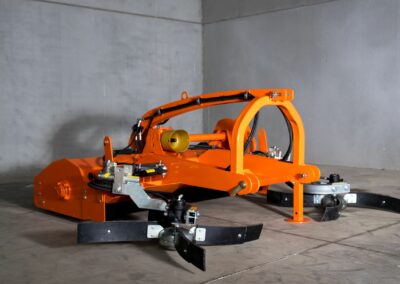

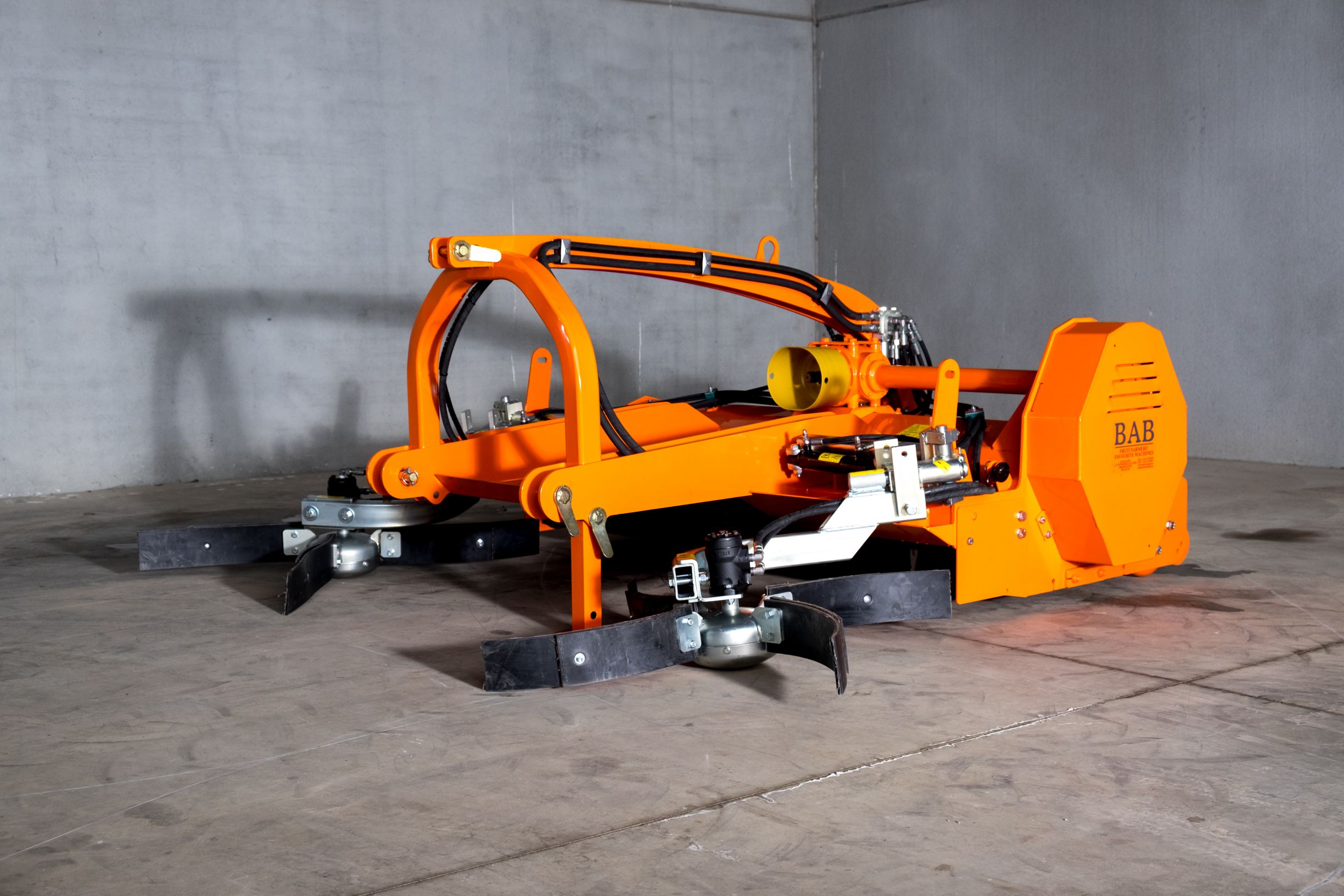

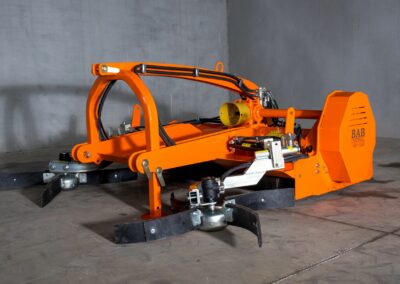

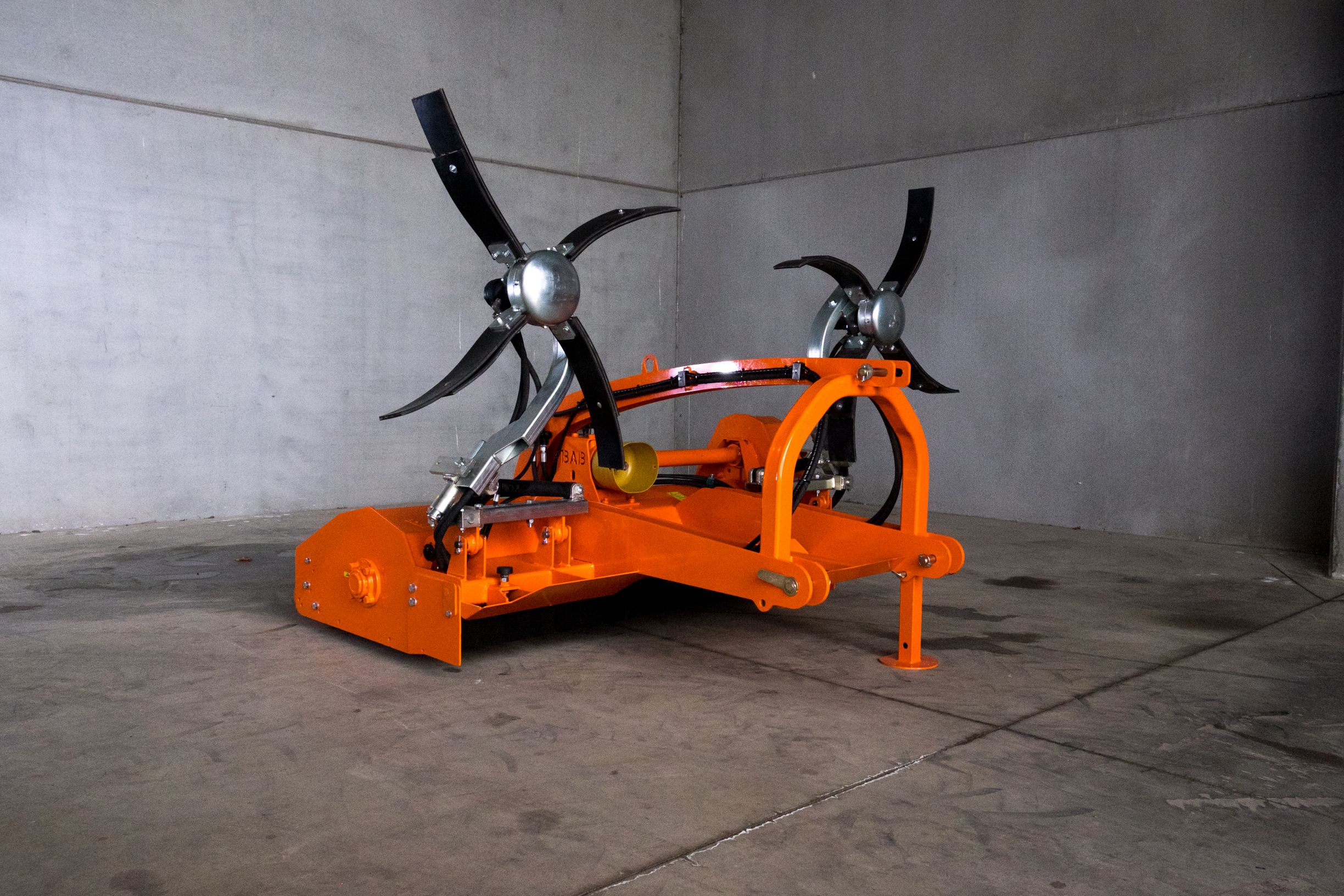

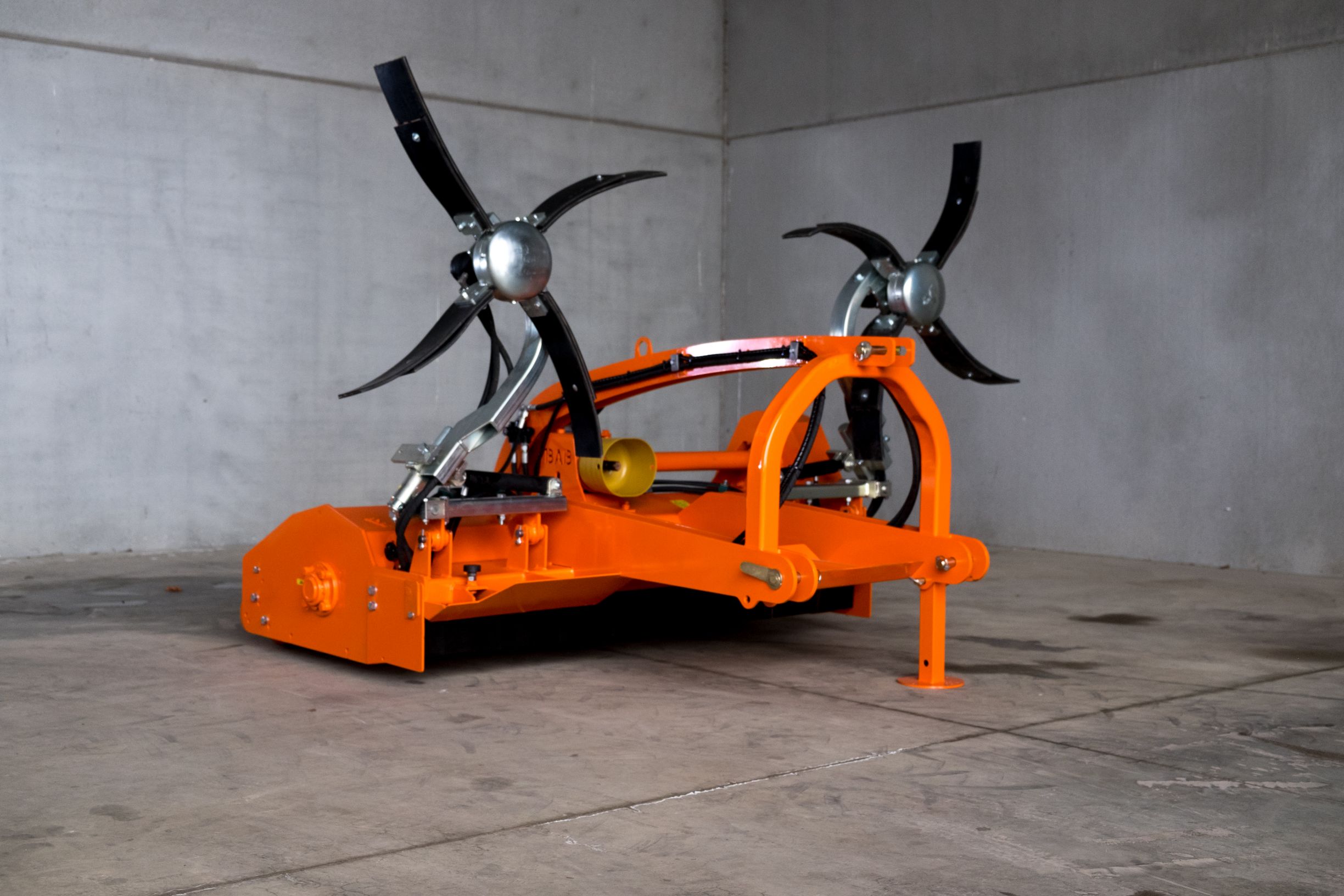

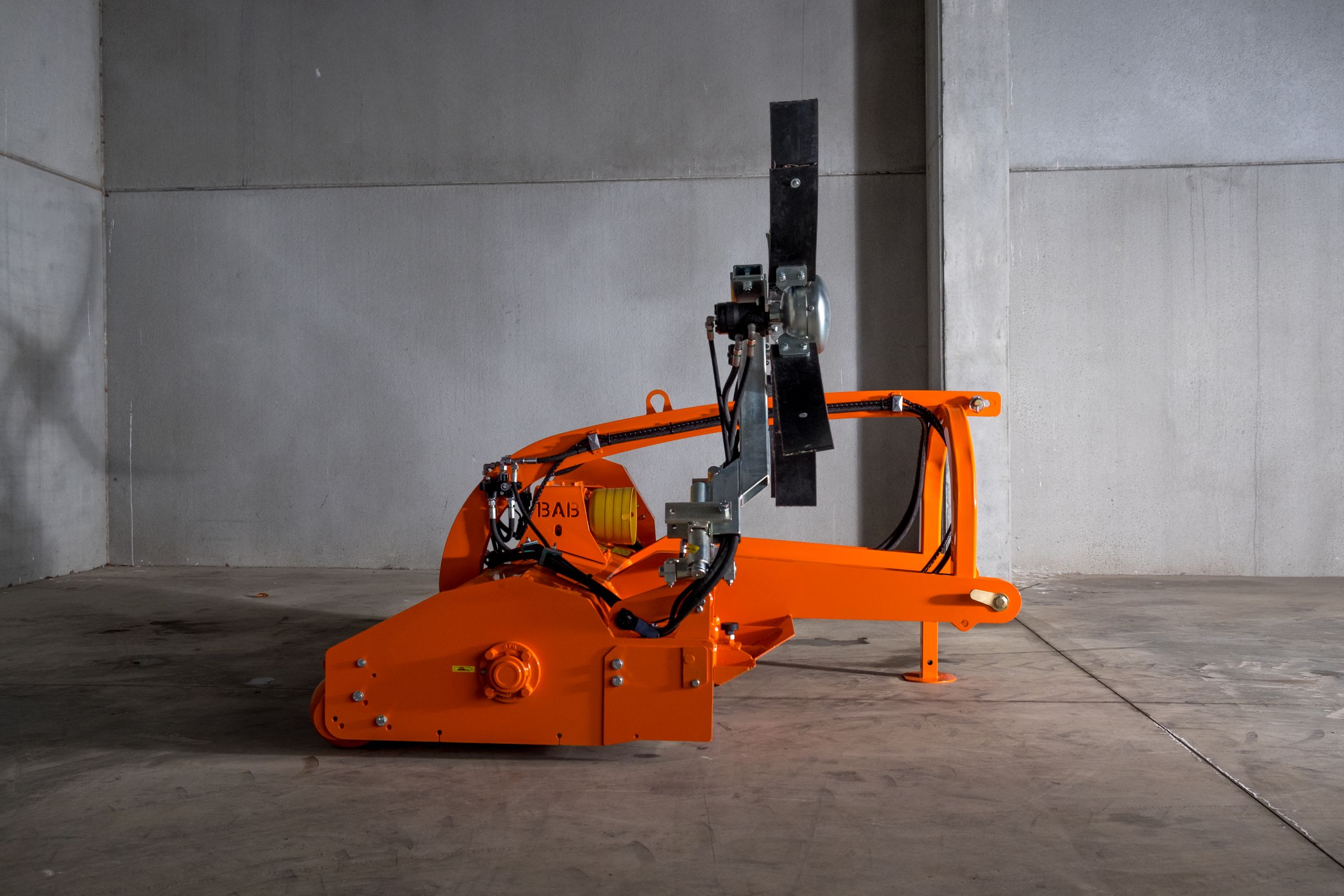

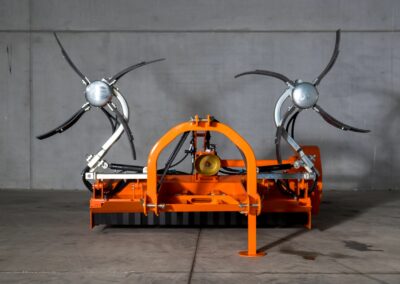

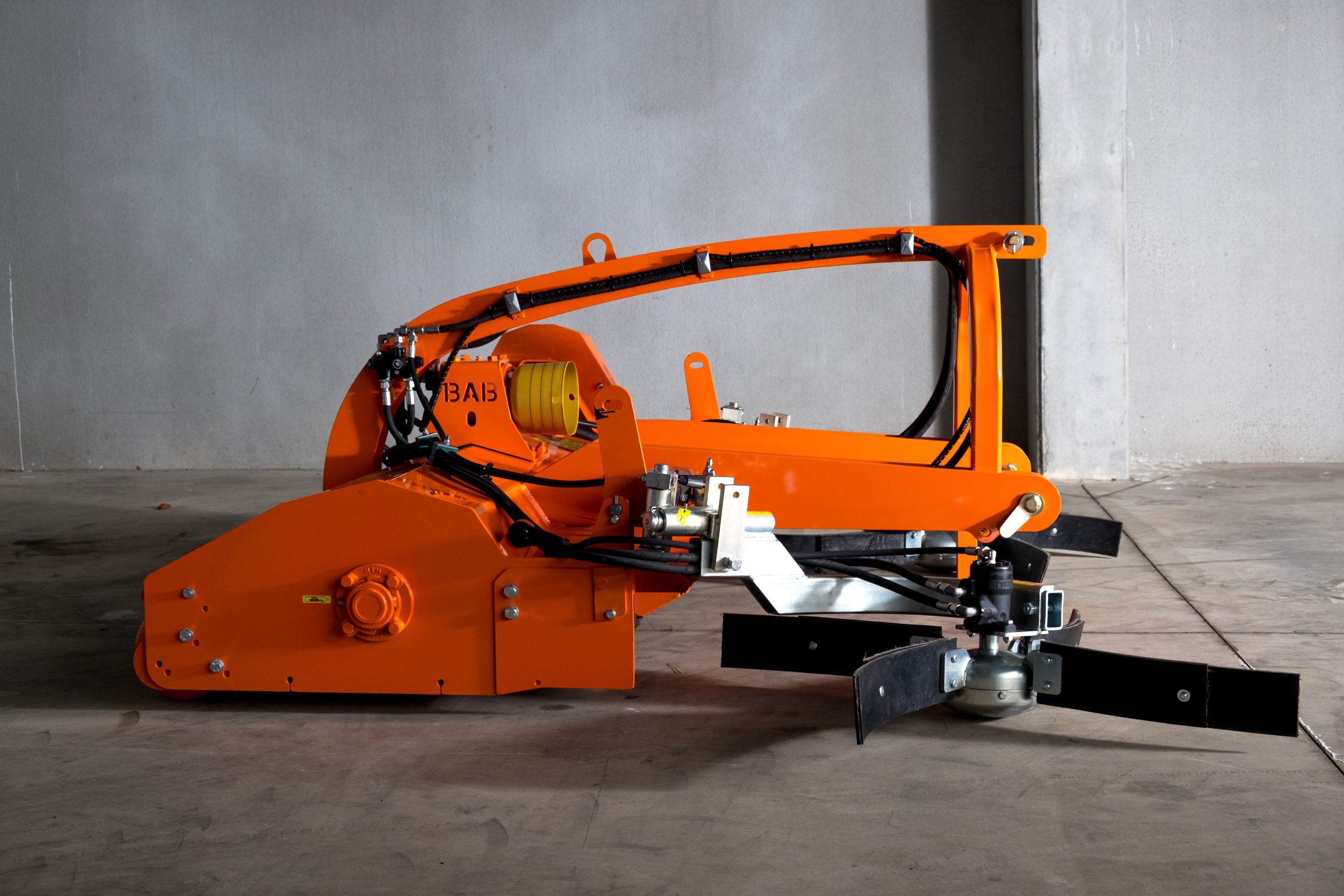

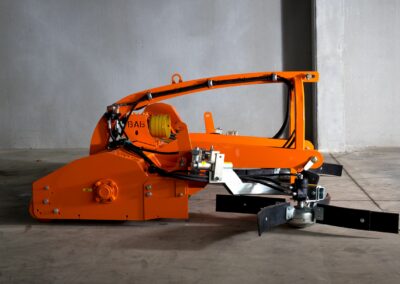

Pulveriser KL 115
pulveriser is equipped with double sweeper , hydraulic driven.
rotors of sweeper ø 120 cm , each with 4 double rubberflaps , hydraulic width adjustable.
tractor needs to be equipped with the following hydraulic:
– 2x double acting valves for width adjustment of rotors (links and right independent)
– 1x single acting valve for running rotors
– 1x free return
Standard machine
- chassis 6/10 mm steel with internal counter hooks
- rotor ø 180 mm tube with shaft ends ø 50 mm
- outside diameter flails ø 440 mm
- high rotor speed
- automatic belt tensioner
- heavy duty flail 2,2 kg with fixing bolt M20
- gearbox 540 rpm
- fix 3-point linkage cat II , ø 28/25 mm
- rear roller ø 220 mm with double internal bearing
- included drive shaft
Options
hydraulic – electric valve bloc with control box
in this case tractor needs :
1x single acting valve
1x free return
1x 12 volt plug
Article number | Type | Cutting Pulveriser | Total width | Flails | V-belts | Weight | |
cm | cm | # | # | kg | |||
160-015-160 | KL160-115 | 165 | 360 | 10 | 4 | ||
160-015-180 | KL180-115 | 185 | 400 | 12 | 4 |
