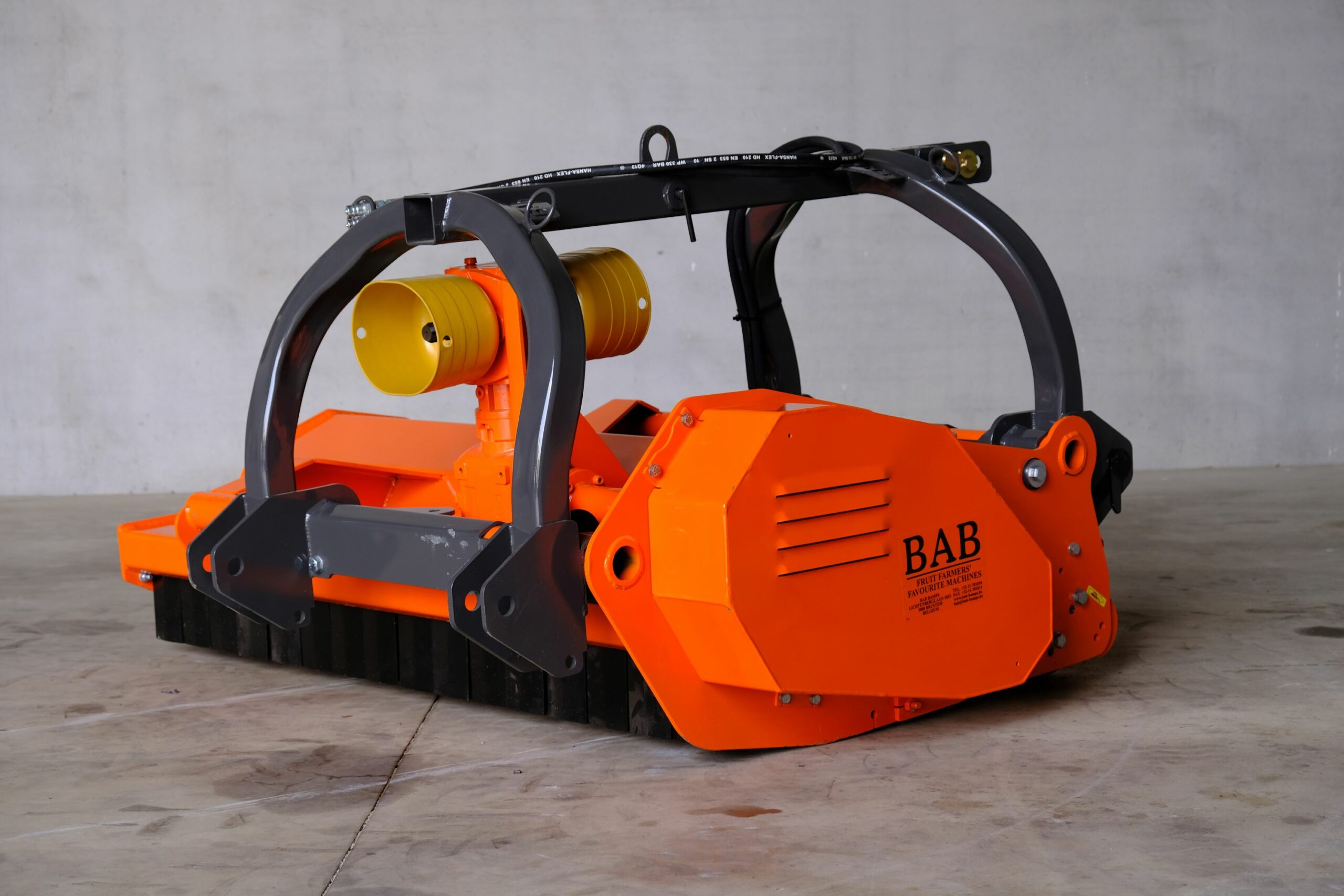

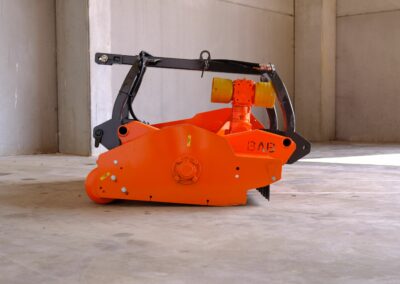

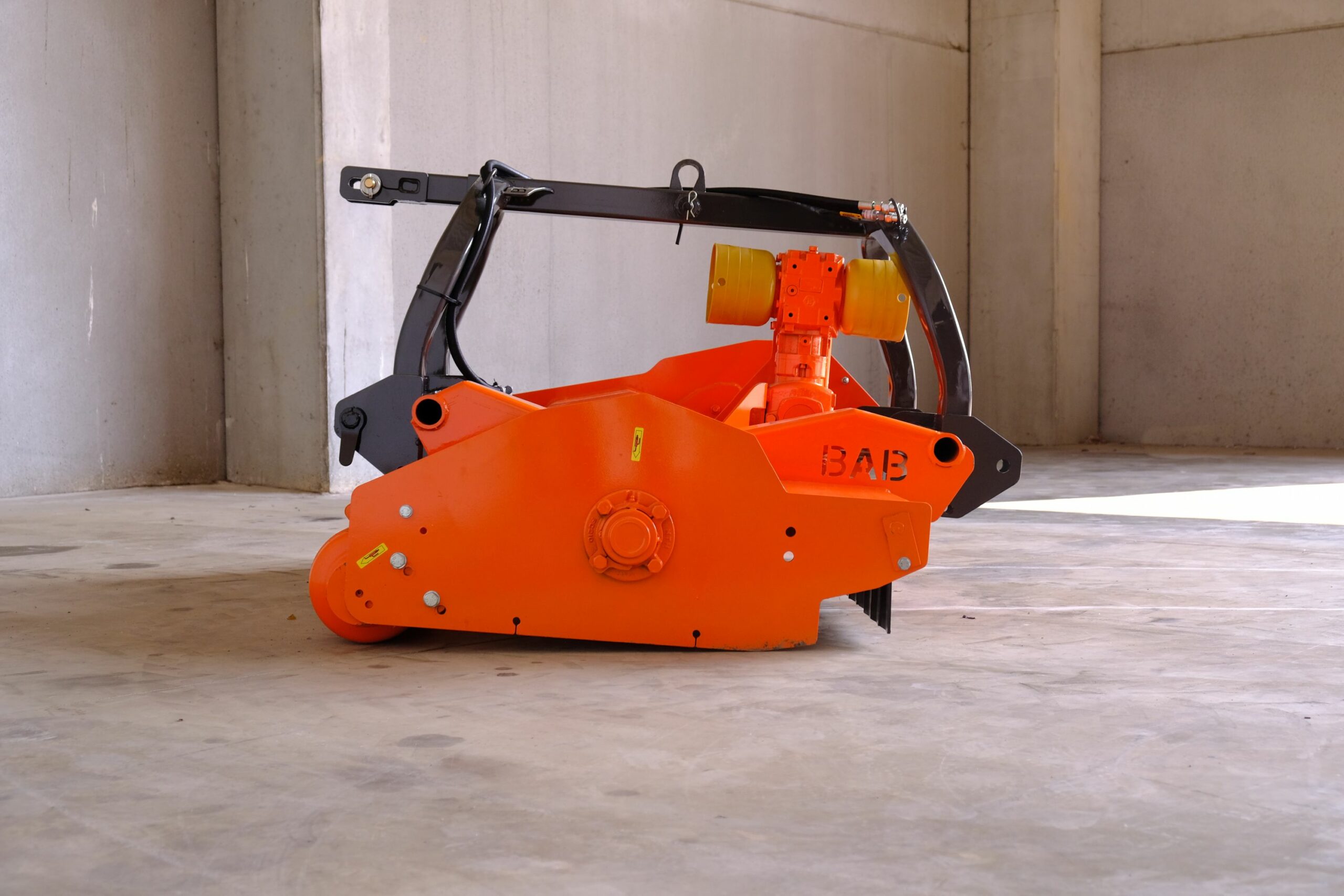

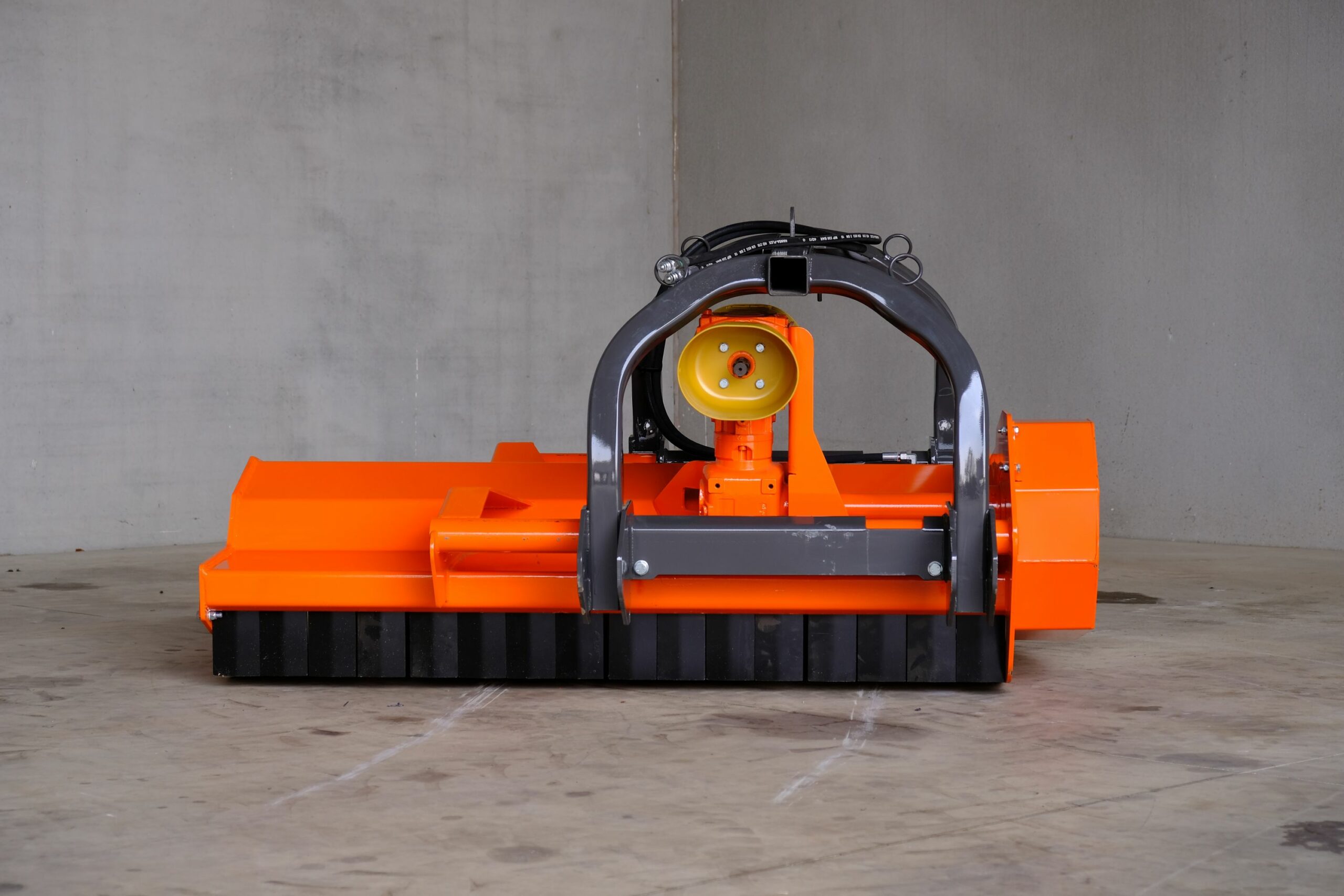

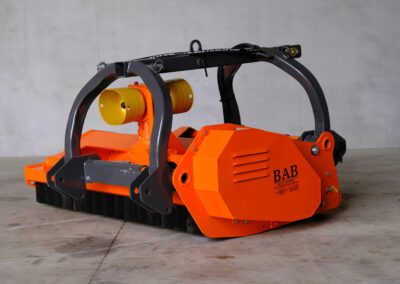

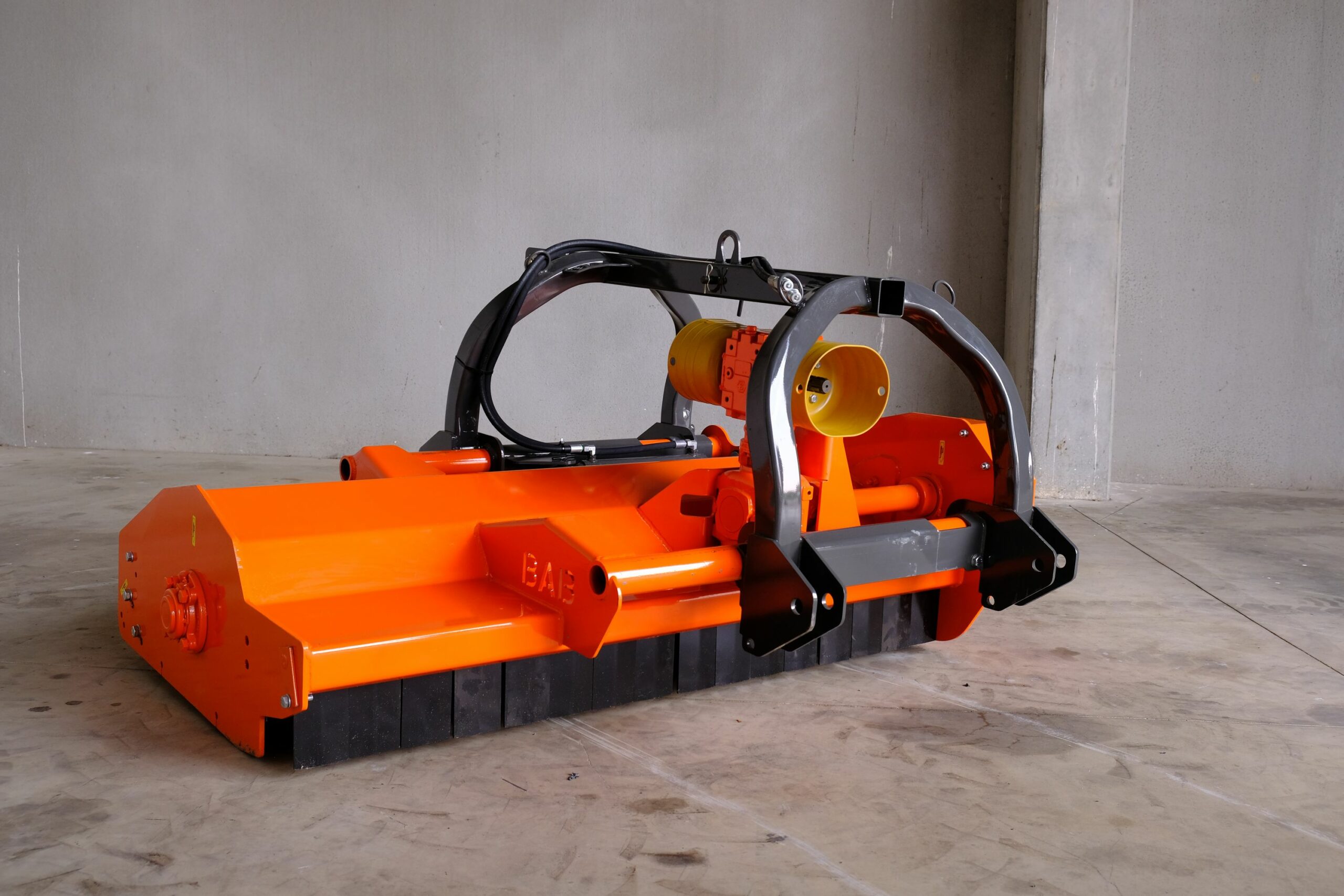

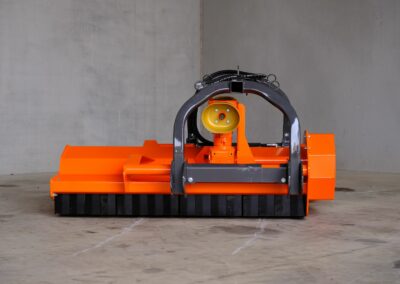

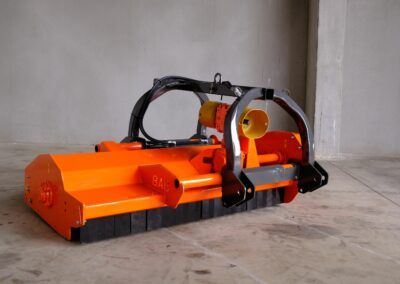

Pulveriser KL 121

Standard machine

  • gearbox with fix rotation
  • low profile design front or rear mounted
  • ø180mmrotortubewithshaftends ø50mm
  • outside diameter flails 440mm
  • high speed rotor
  • chassis 6/10 mm with internal counter hooks
  • automatic belt tensioner
  • 4 or 5 V-belts SPB section depending on cutting size

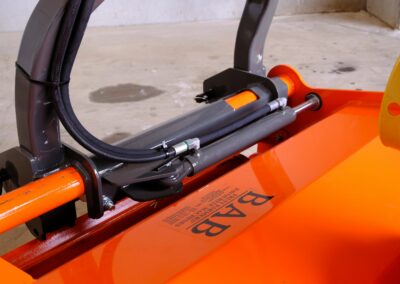

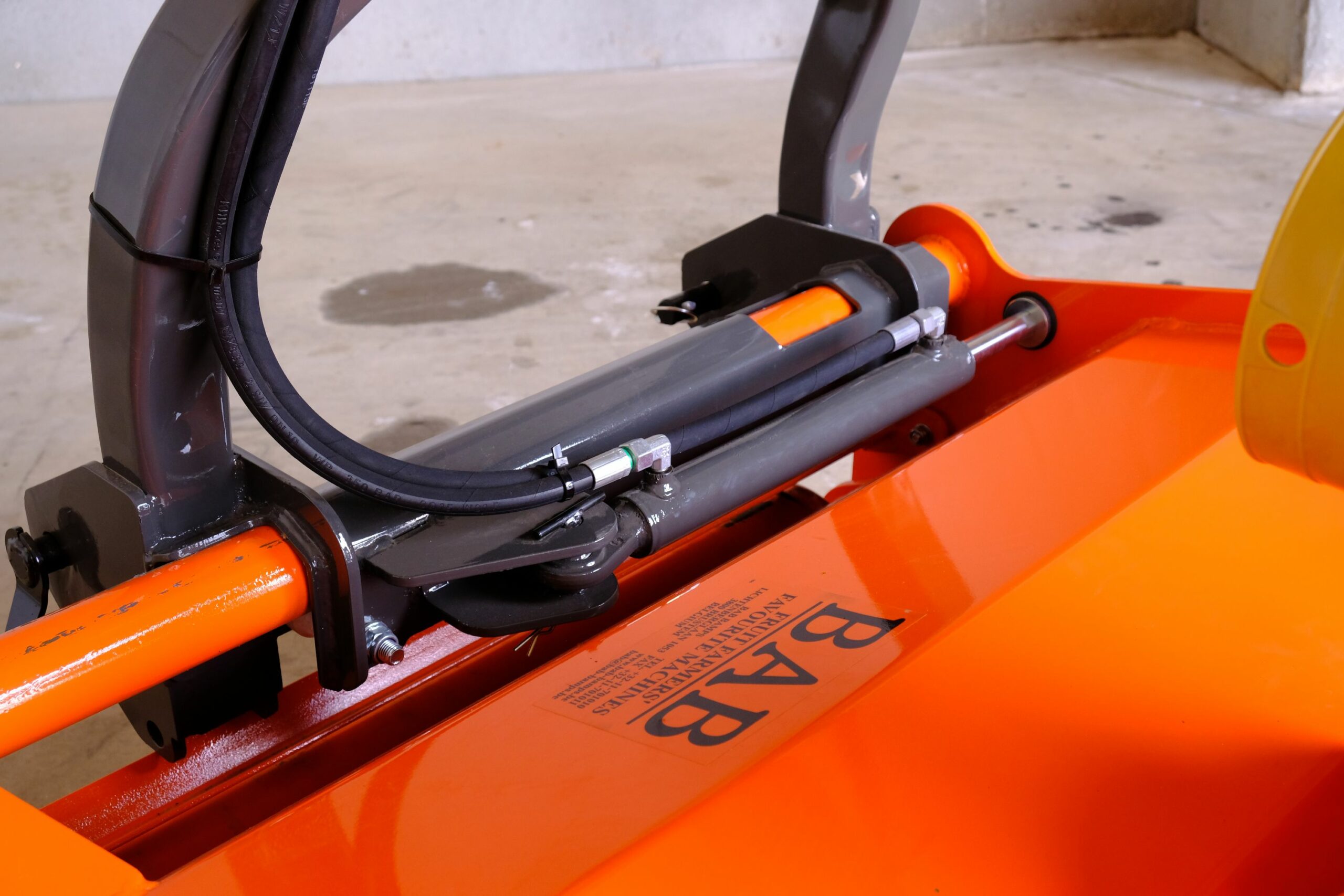

  • hydraulic offset with linear guidance standard
  • 3-point linkage cat II , ø 28/25 mm

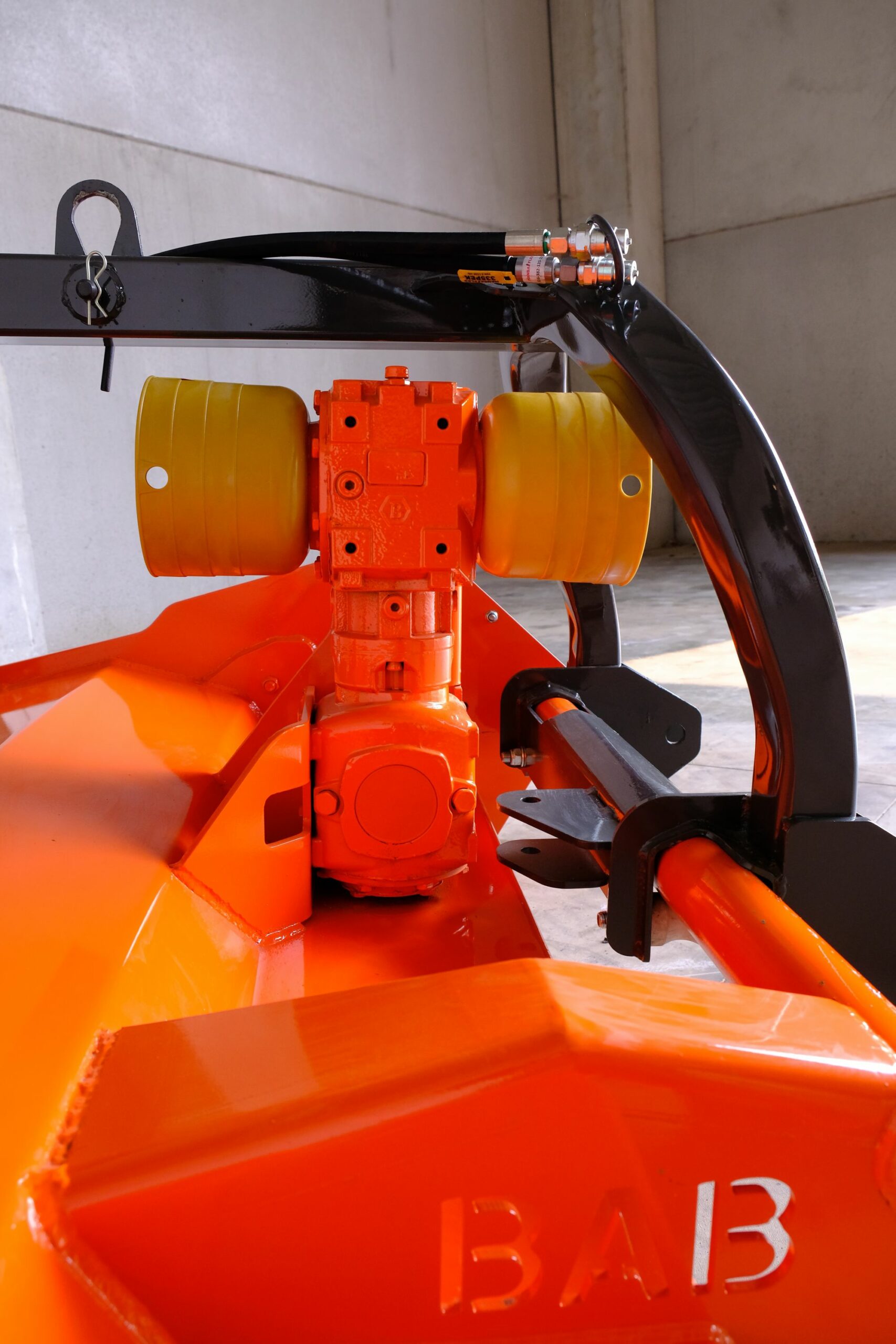

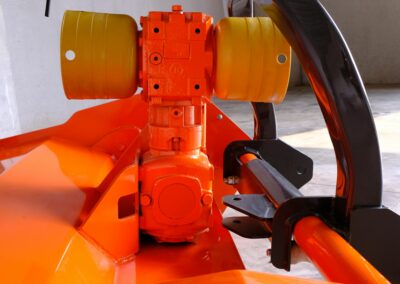

  • gearbox 540 rpm with double PTO entrance
  • heavy duty flail 2,2 kg with fixing bolt M20
  • included drive-shaft
  • rear roller ø 140 mm

Options

hydraulic – electric valve bloc with control box
in this case tractor needs :
1x single acting valve
1x free return
1x 12 volt plug

Article number Type Cutting Pulveriser Total width Flails V-belts Weight
cm cm # # kg
160-021-140 KL140-121 145 165 10 3
160-021-160 KL160-121 165 185 10 4
160-021-180 KL180-121 185 205 12 4 630
160-021-200 KL200-121 205 230 12 5 690
