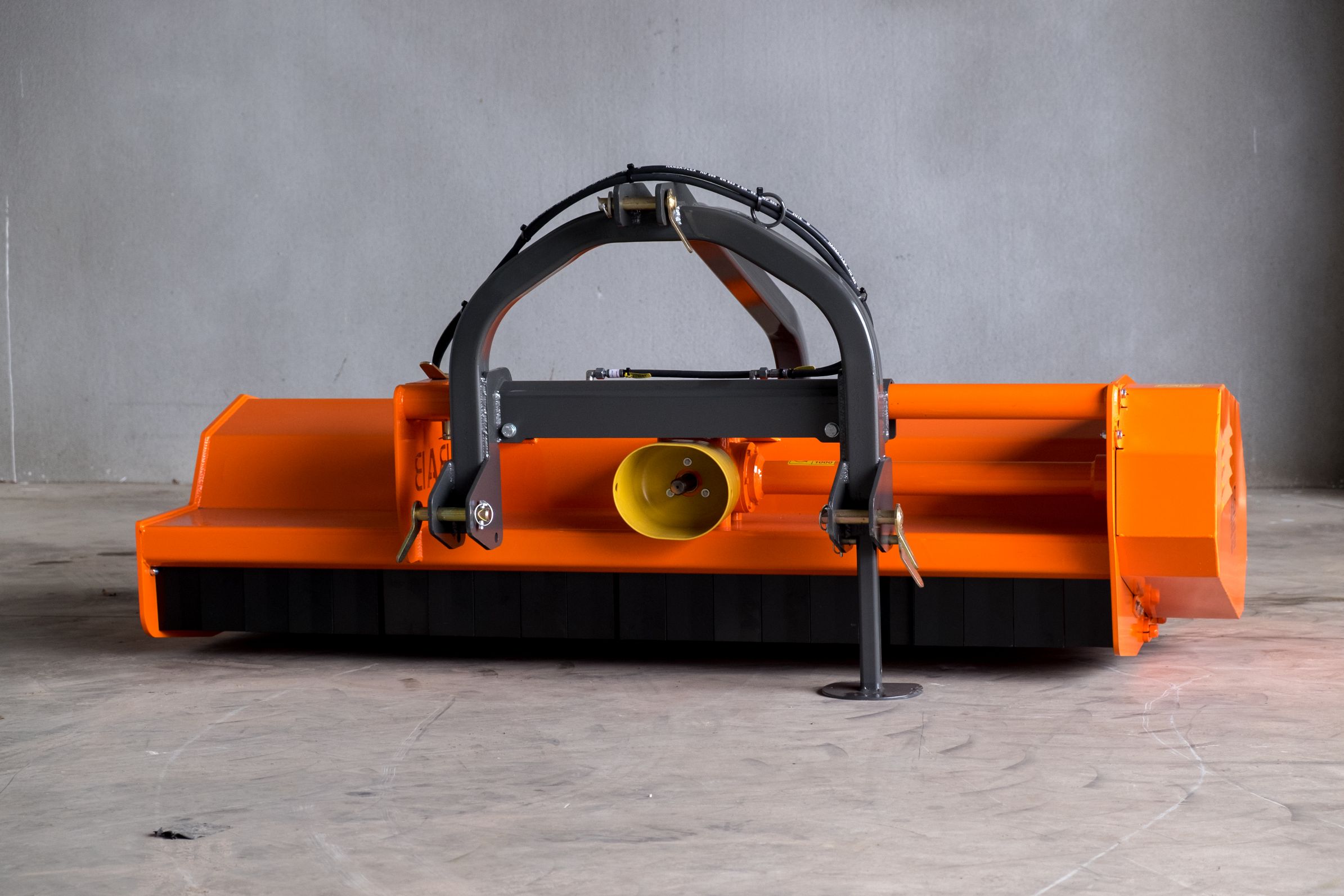

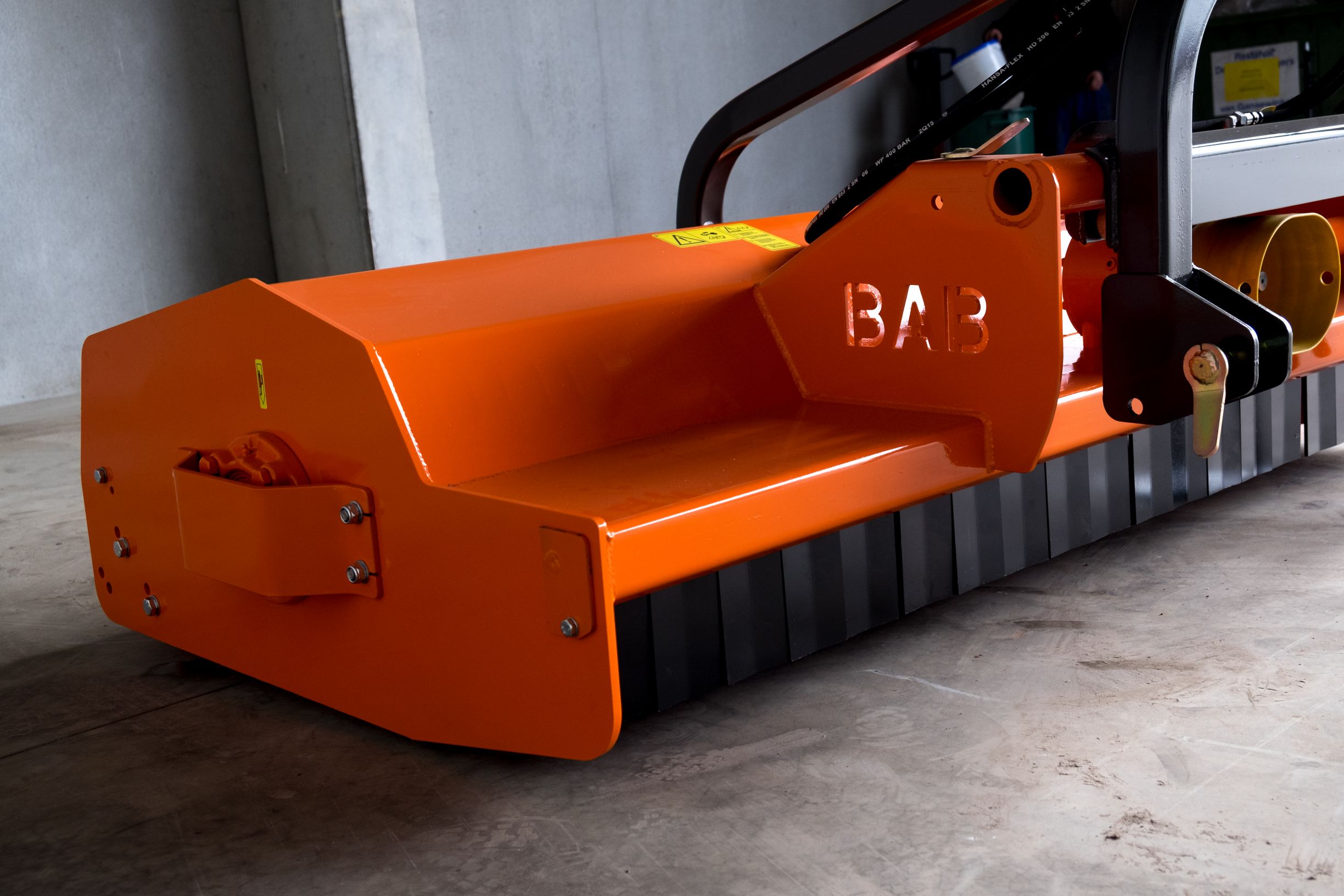

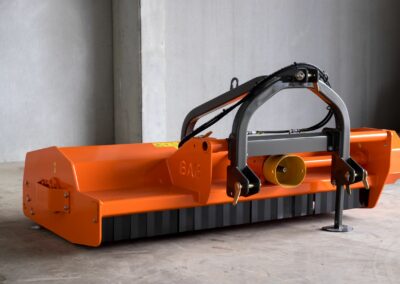

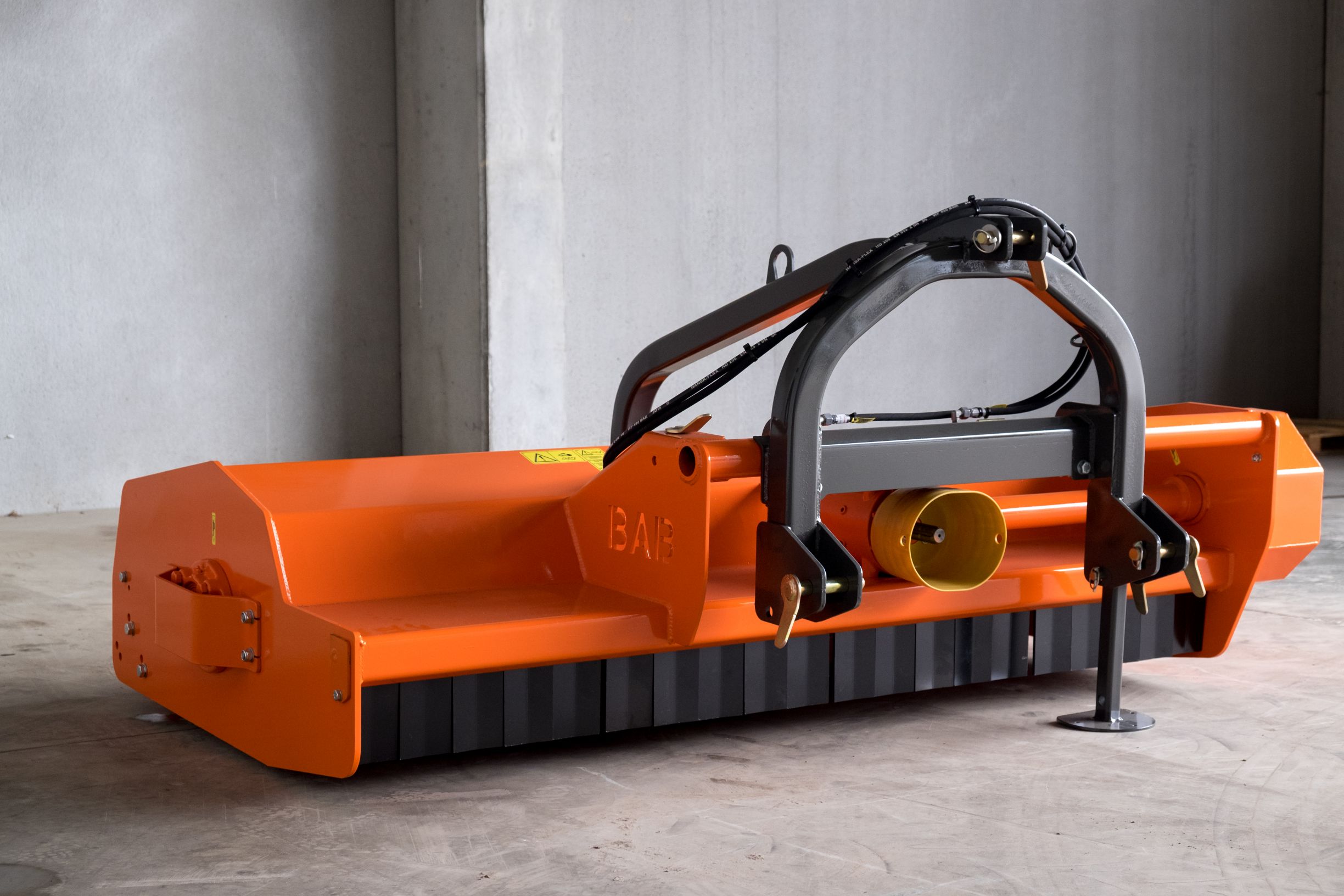

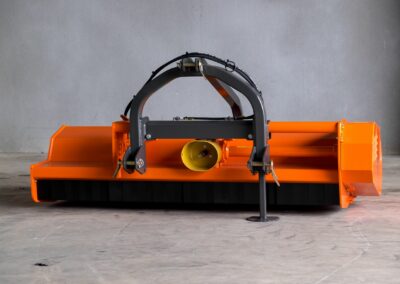

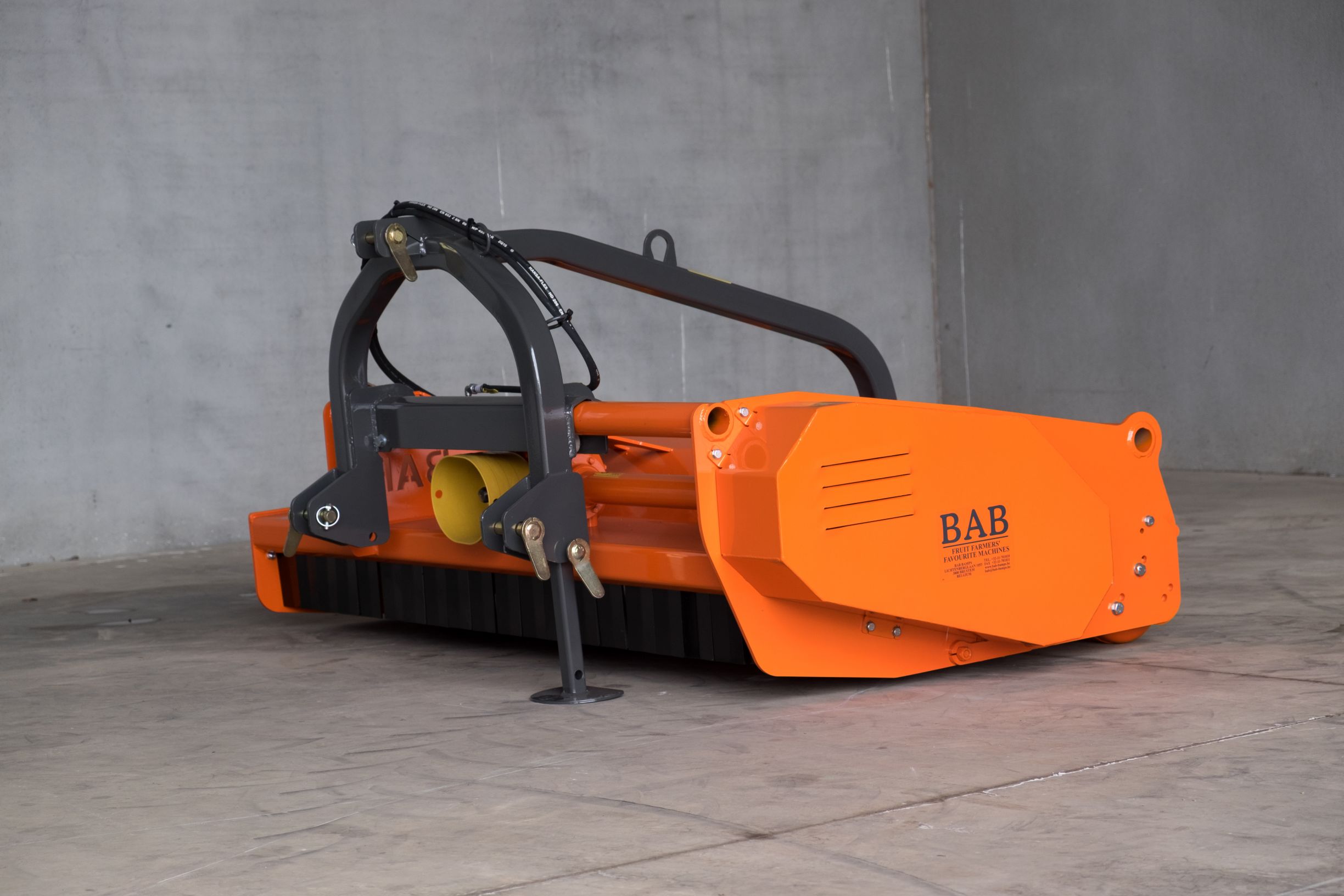

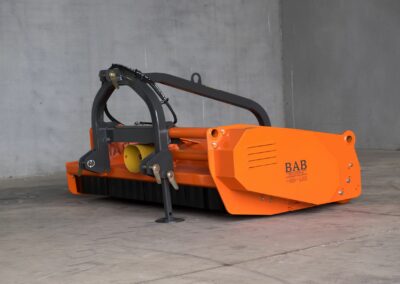

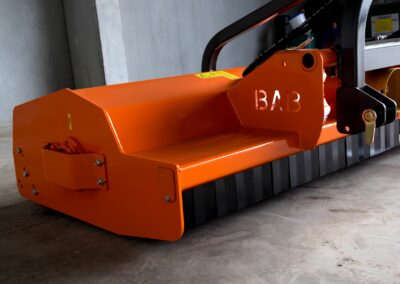

Pulveriser KZ 202
This machine has been specially designed for heavy wood such as cherry wood which can not easily be shredded.
This is achieved by the high speed and large diameter of the rotor which ensures a high circumferential speed of 54 m/s (1000 rpm)
Standard machine
- low profile design rear mounted
- ø 245 mm rotor tube with shaft ends ø 70 mm
- outside diameter flails ø 510 mm
- high rotor speed
- chassis 6/12 mm steel with internal counter hooks
- pulley with large diameter
- automatic belt tensioner
- 5 V-belts SPB section

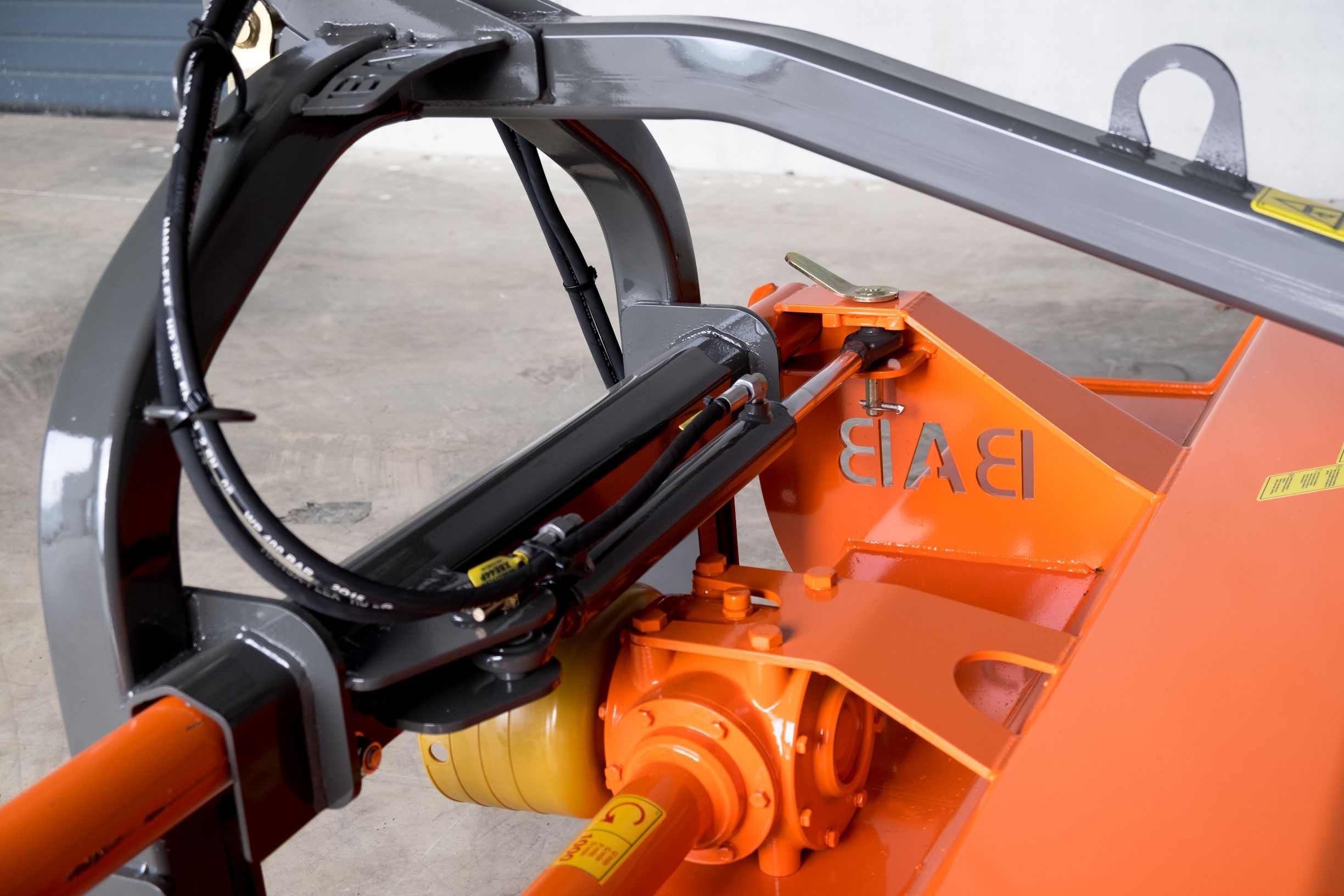

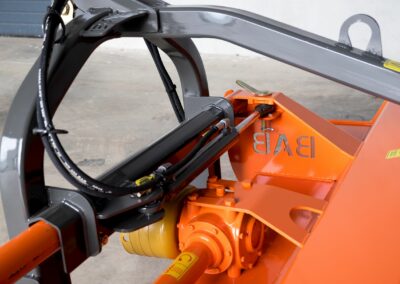

- hydraulic offset with linear guidance
- 3 point linkage cat II , 25/28 mm
- gearbox 1000 rpm
- heavy flail 2,2 kg with fixing bolt M20
- included drive-shaft
- rear roller ø 220 mm with double bearings
Options
- skids
| Articlenumber | Modeltype | Cutting | Total width | Flails | V-belts | Weight | ||
| cm | cm | # | # | kg | ||||
| 161-002-160 | KZ160-202 | 165 | 185 | 12 | 5 | |||
| 161-002-180 | KZ180-202 | 185 | 205 | 12 | 5 | |||
| 161-002-200 | KZ200-202 | 205 | 230 | 16 | 5 | 950 | ||
| 161-002-220 | KZ220-202 | 225 | 250 | 16 | 5 |
