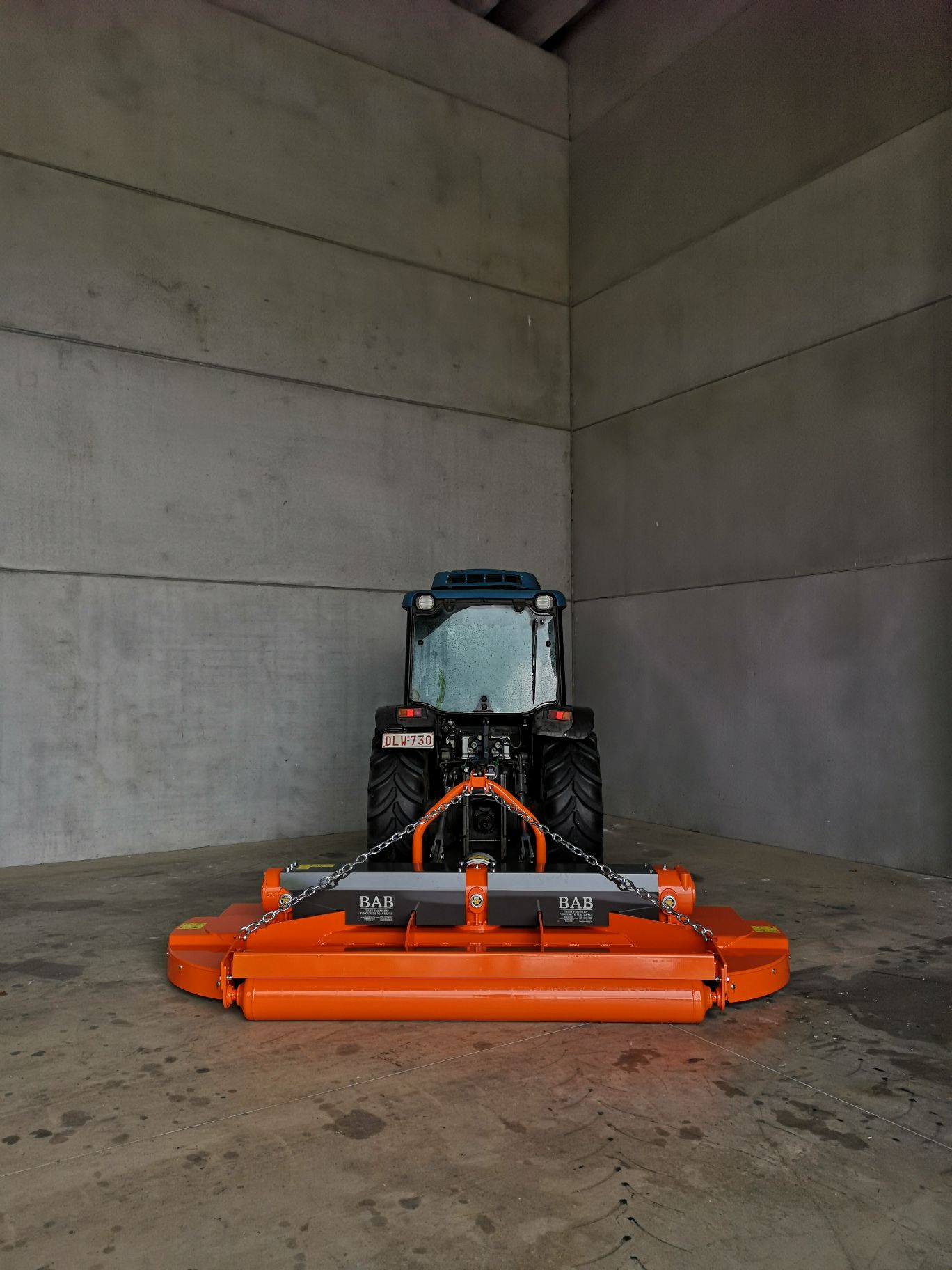

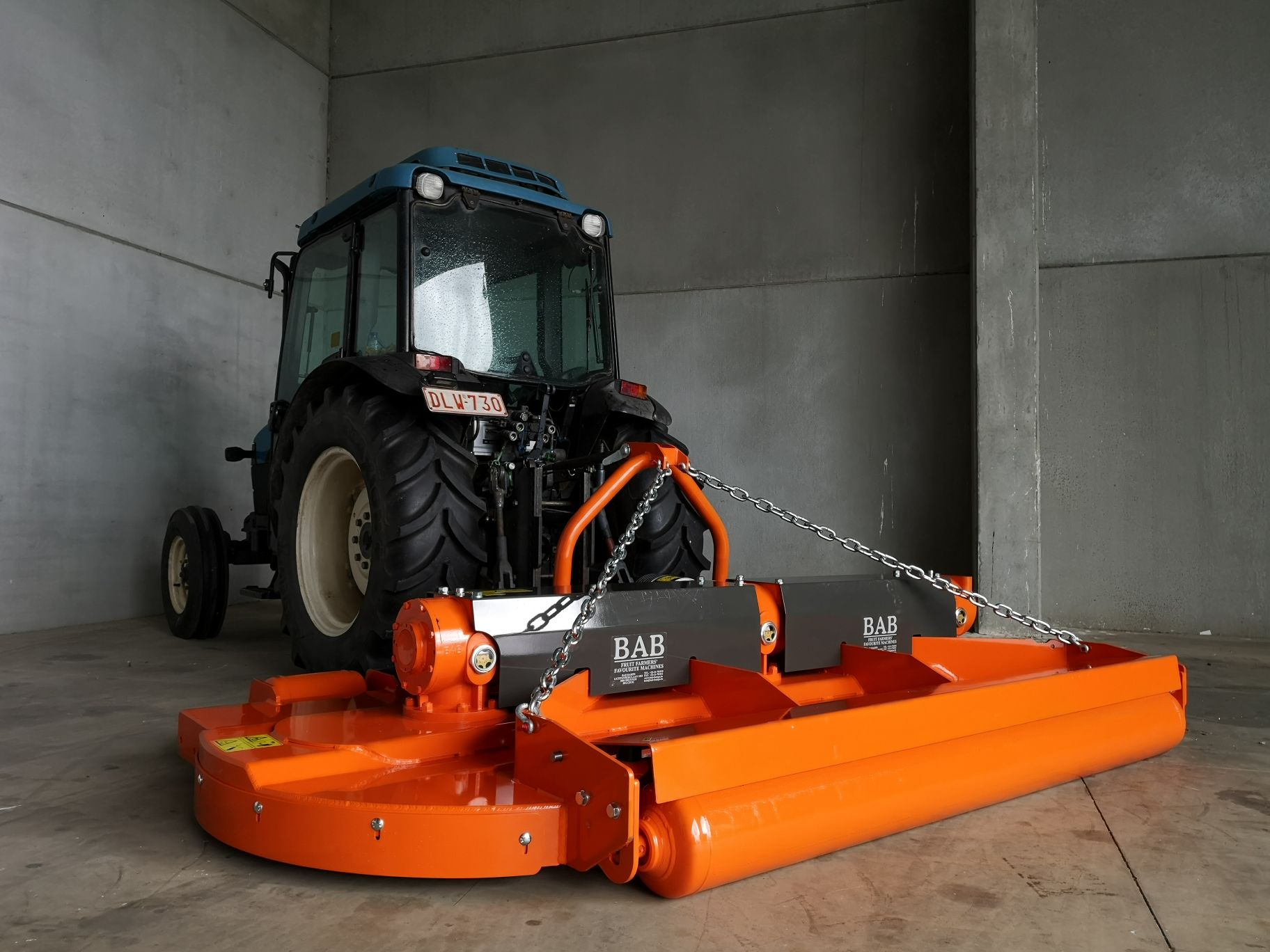

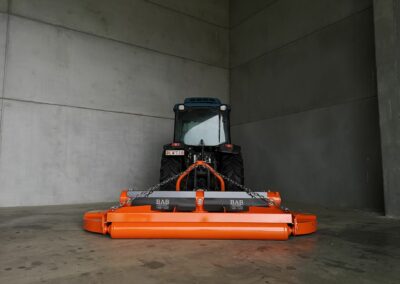

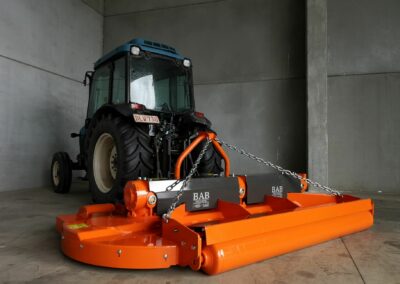

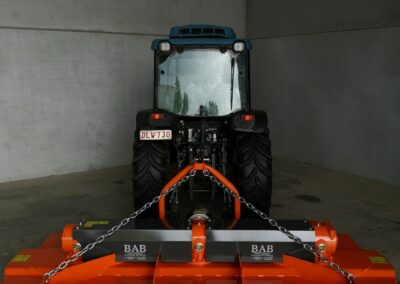

R3 Cutter

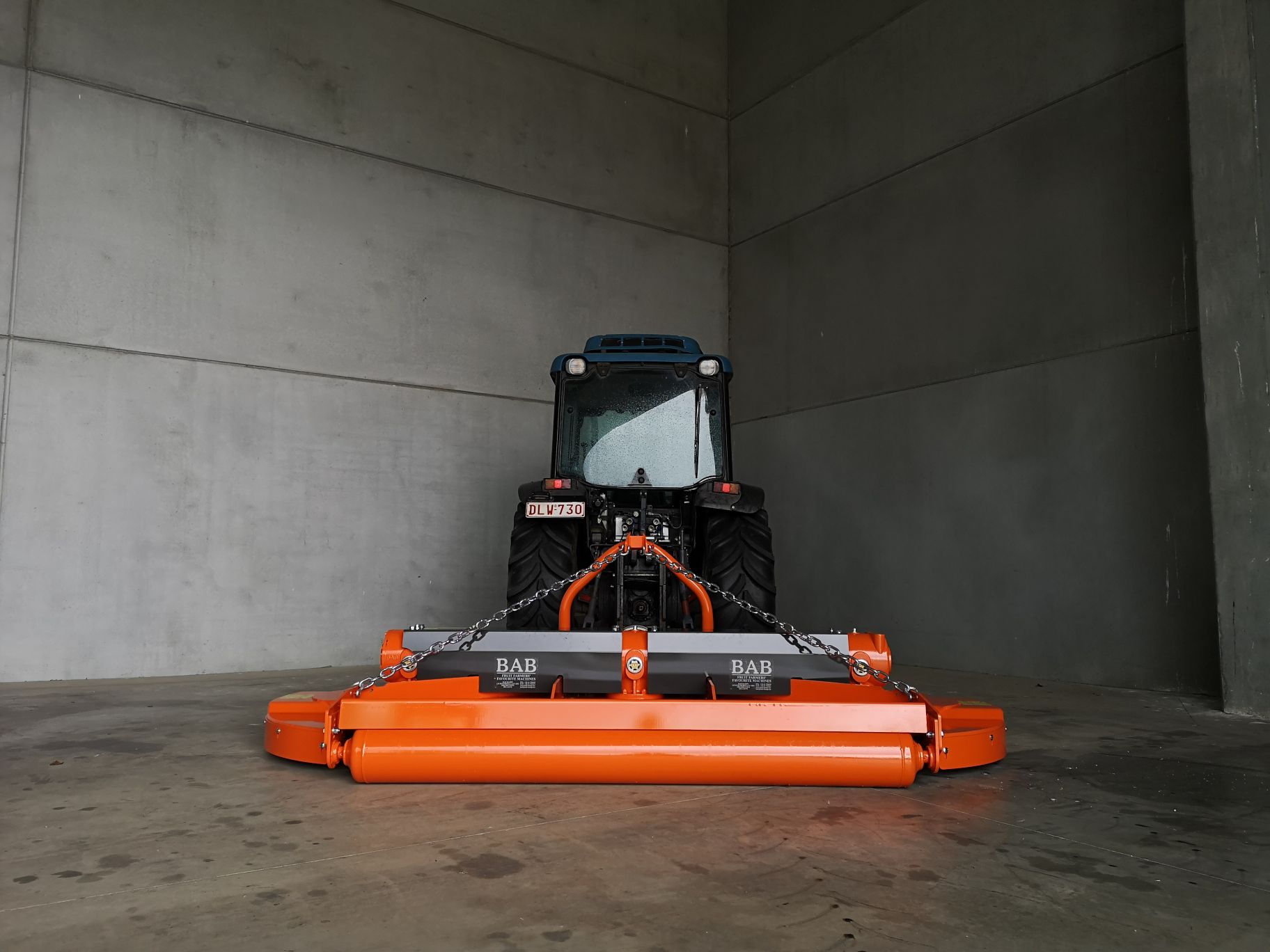

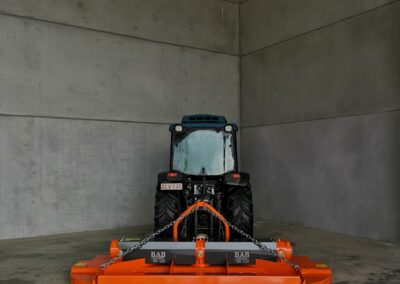

The grass cutter type R3 is a new design by BAB
This new serie of cutters is mainly focused on the wider working widths
The dimensions of the working width range from 260 cm up to and including 350 cm. A compact design is created by using 3 rotors instead of 2.
The gearboxes are on 1 line and have a fixed driveline. Each gearbox has his own rotor. There is chosen for a large overlap of 2x 5 cm. The design and production of the gearboxes is all done by BAB. These gearboxes are designed for 100 hp.

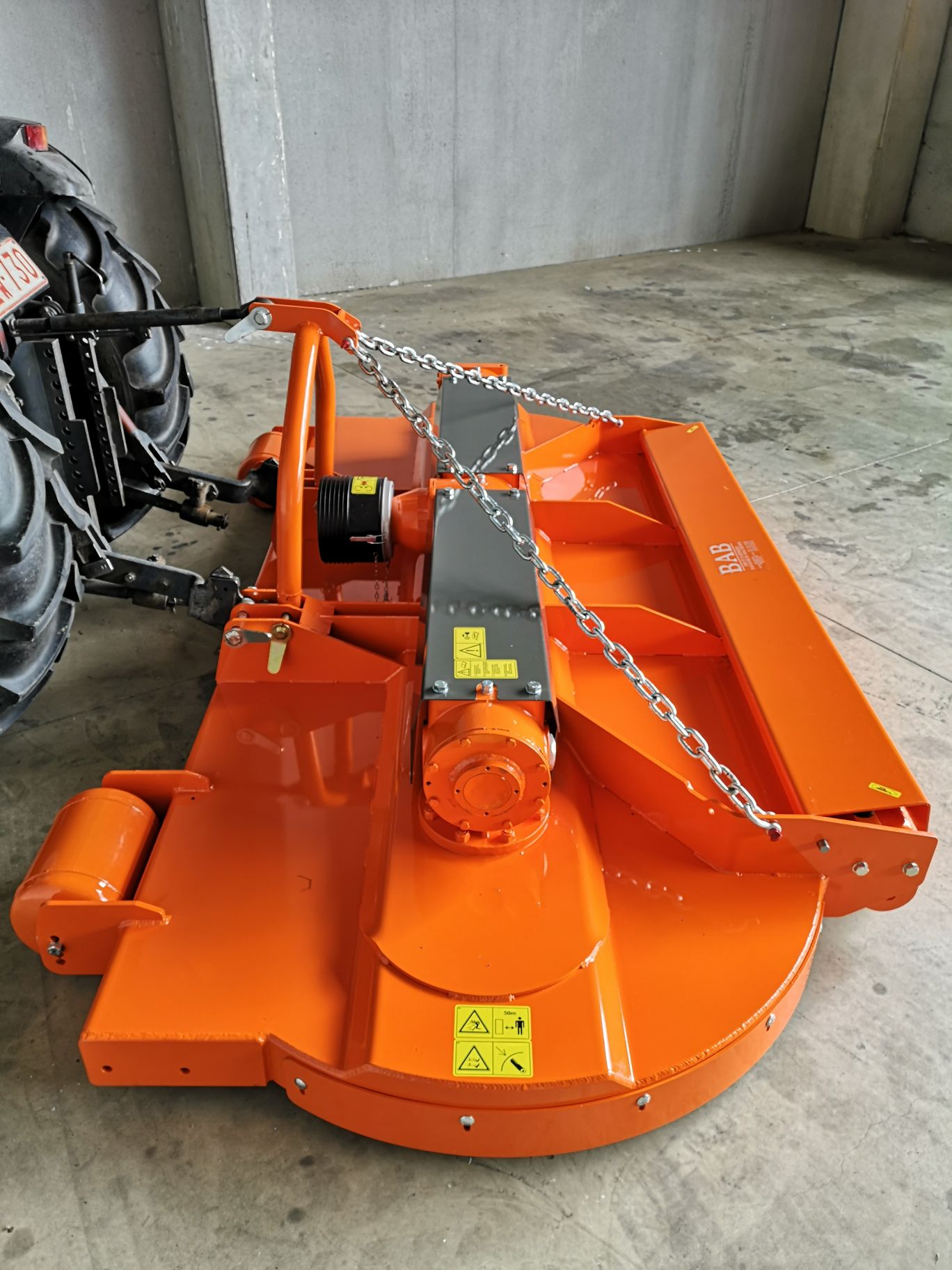

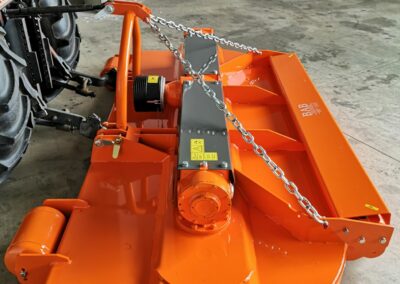

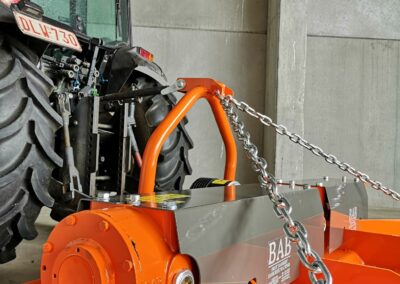

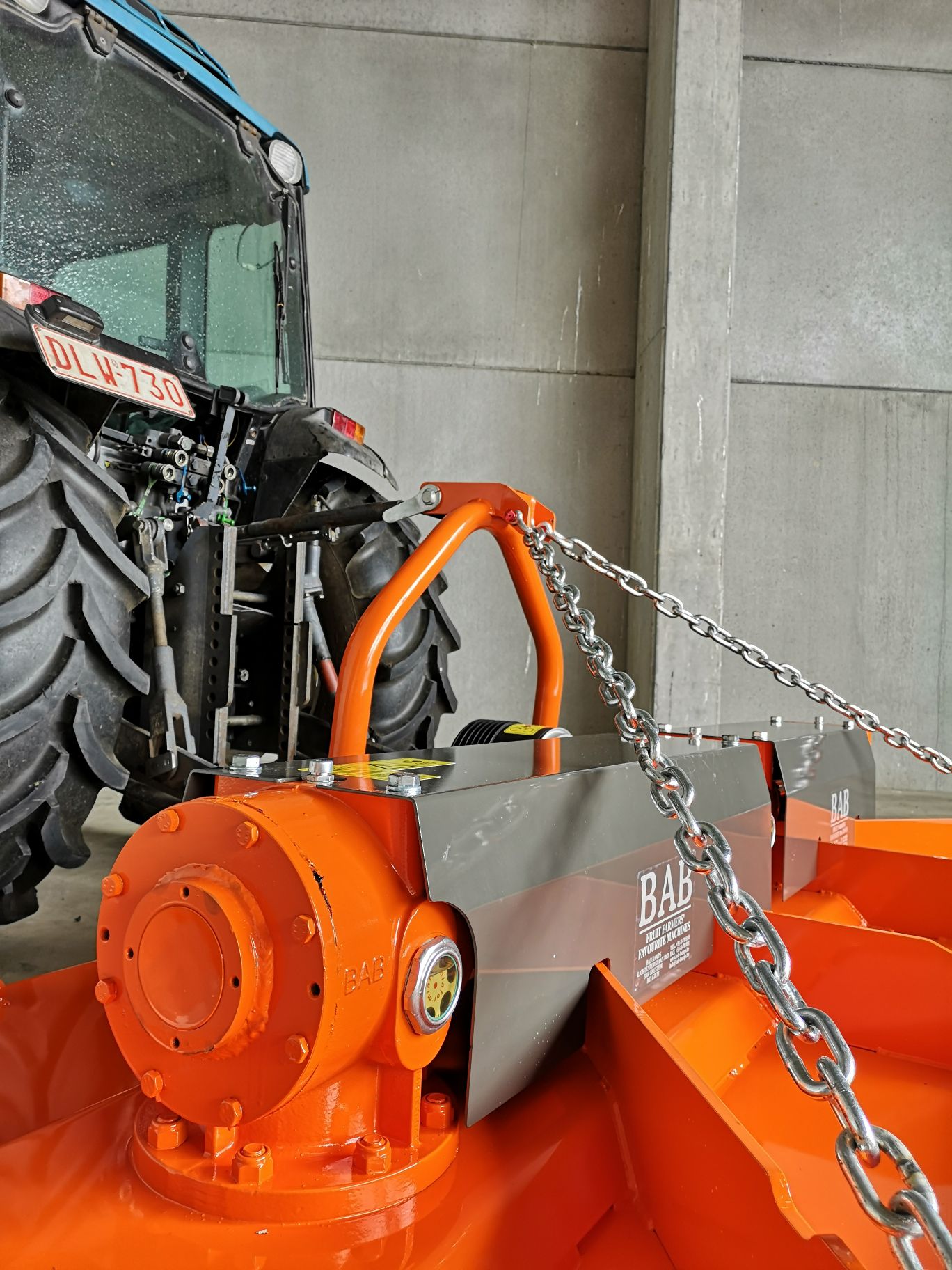

On the backside of the gearbox is a big showglass to verify quick and easy
the oil level. The frame is made out of steel , with 6 , 8 and 12 mm of thickness.

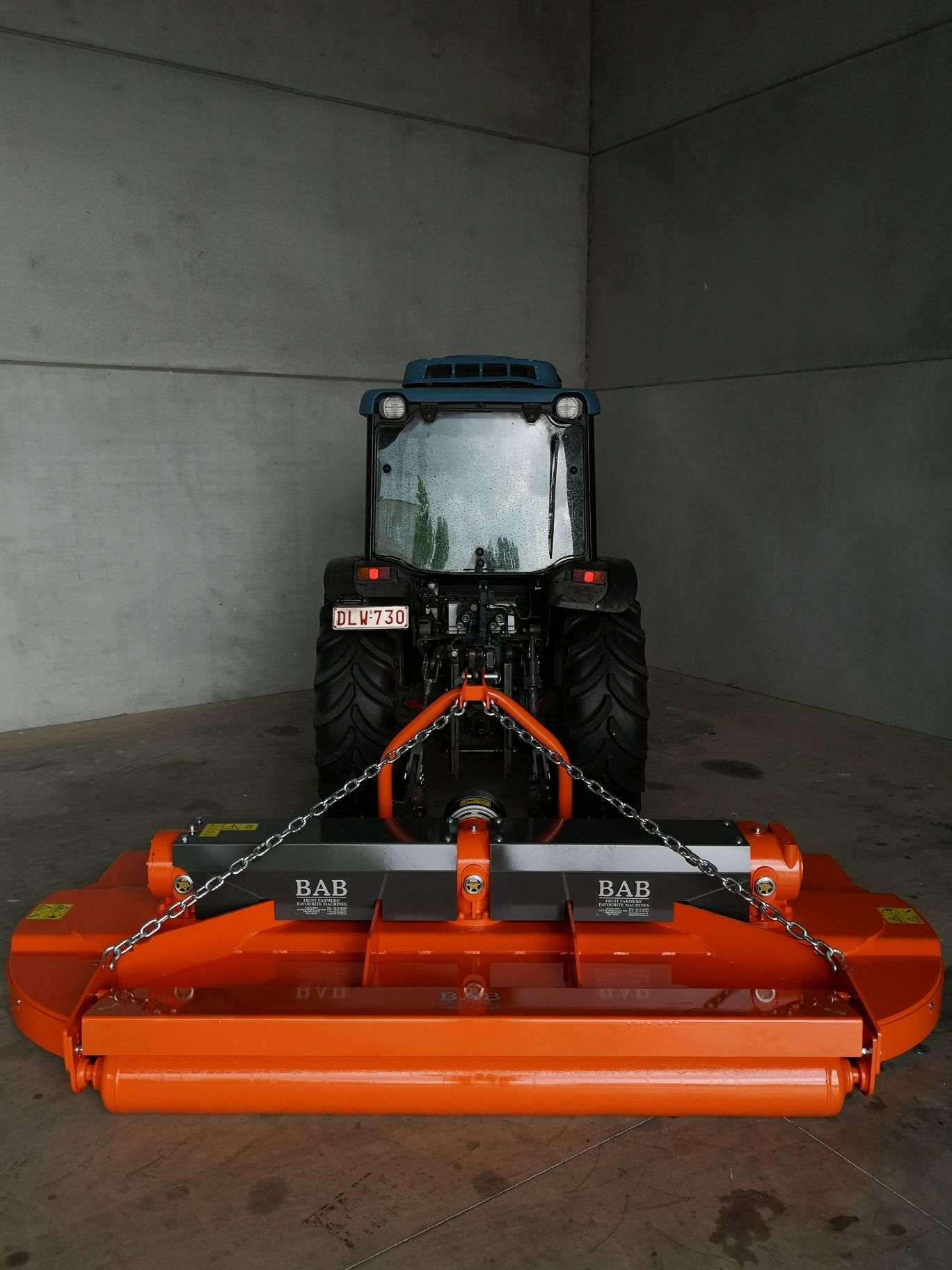

On the backside the cutter has a wide roller with ø 220 mm. This roller is equipped with a double bearing and a special dirt seal.
Standard machine
- low construction
- skids in front side
- rear roller ø 220 mm
- linkage cat II ø 25- 28 mm * fixe drive line
- 3 rotors , 3x left turning
- rotor with swinging blades * grass discharge on left side * height adjustable
- 750 – 1000 rpm
- pto drive shaft with clutch
Options
- metal rollers in front
- side top open
- frame 8 mm (+100 kg) instead of 6 mm
- Signalisation for road traffic left and right
| Articlenumber | Type | Cutting | Total width closed | Frame | Rotor | Blades | Weight | |
| cm | cm | mm | # | # | kg | |||
| 882-500-263 | R263 | 260 | 270 | 6 | 3 | 6 | ||
| 882-500-293 | R293 | 290 | 300 | 6 | 3 | 6 | 900 | |
| 882-500-323 | R323 | 320 | 330 | 6 | 3 | 6 | 1050 | |
| 882-500-353 | R353 | 350 | 360 | 6 | 3 | 6 |
