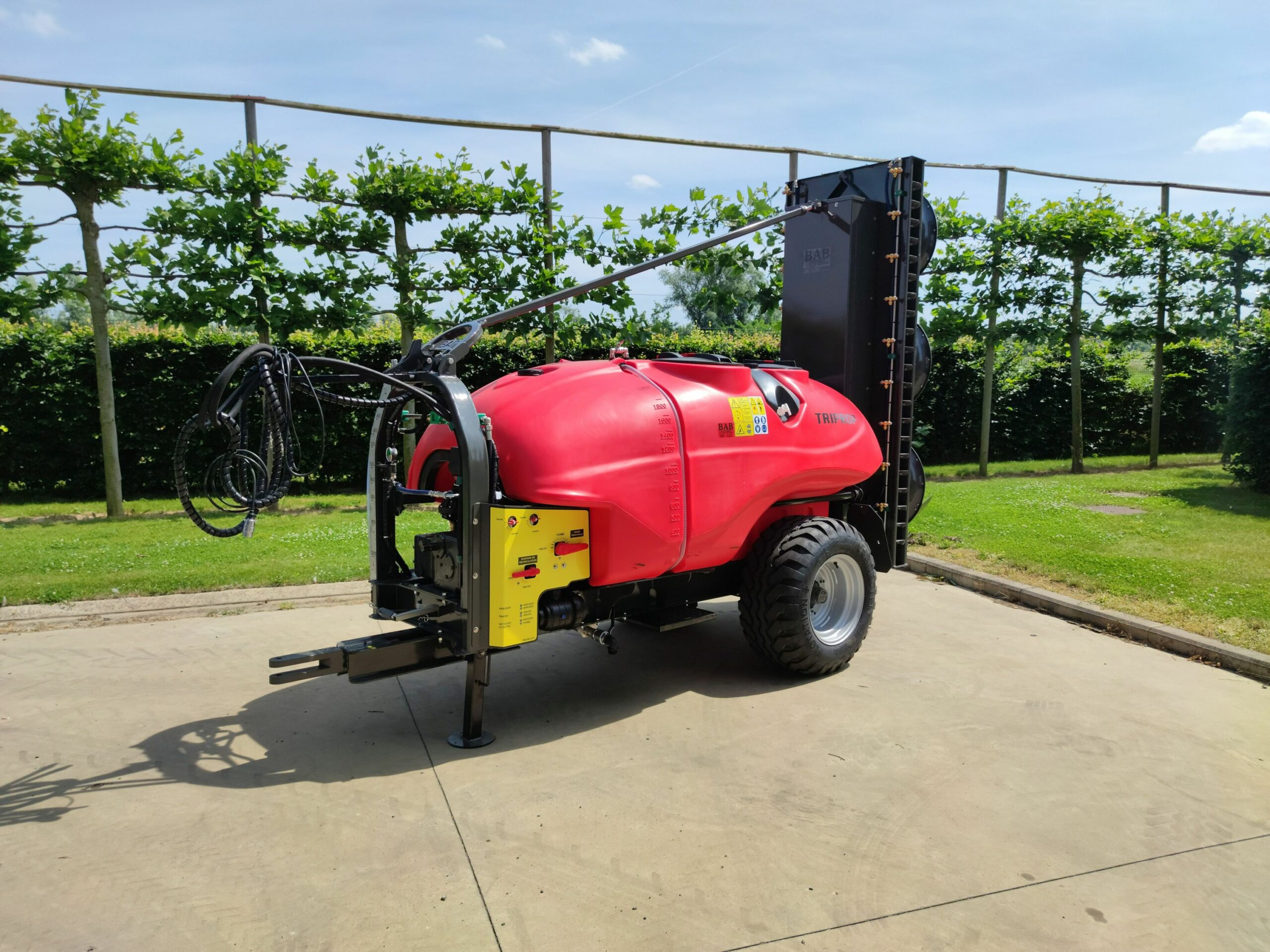

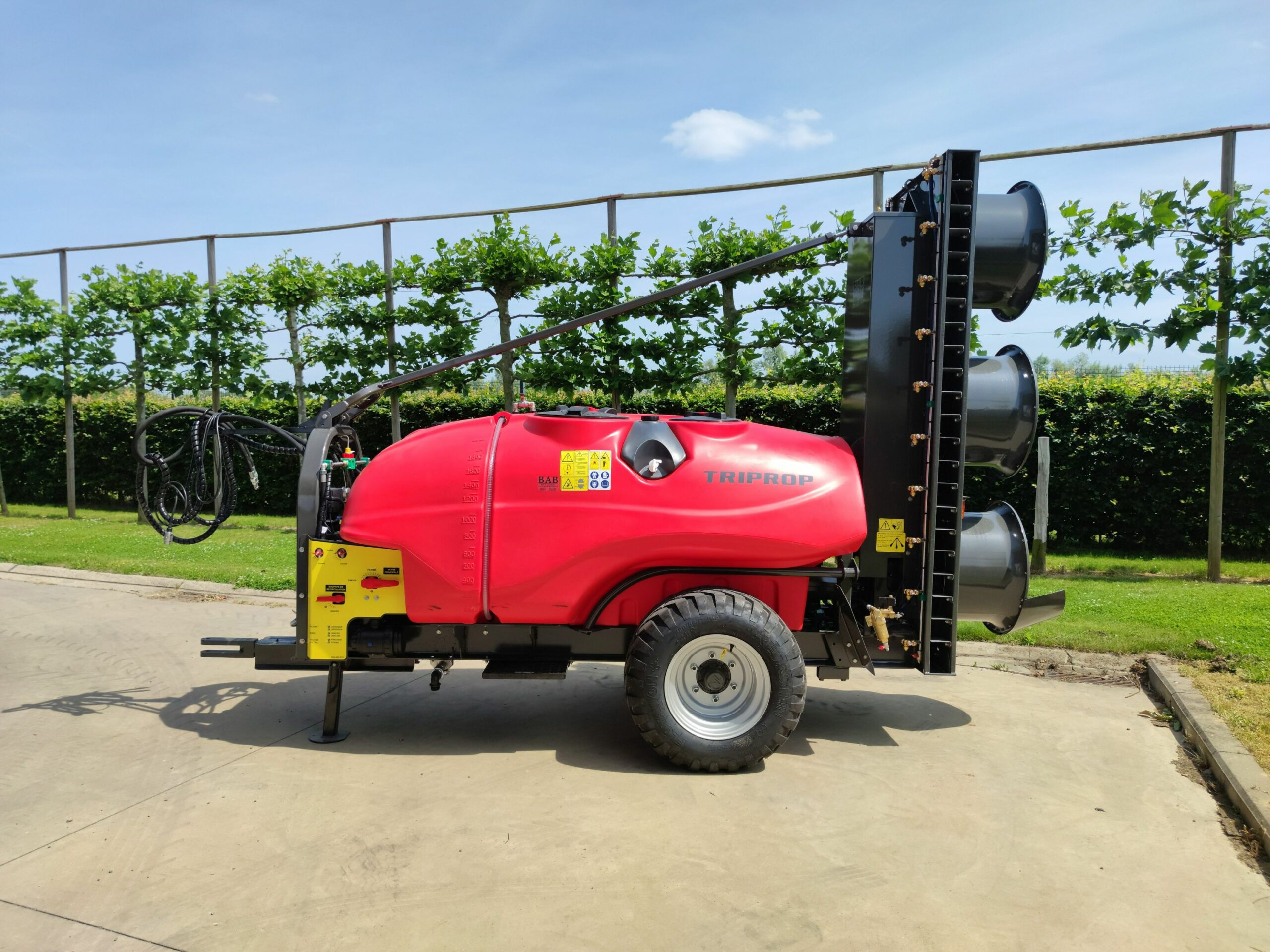

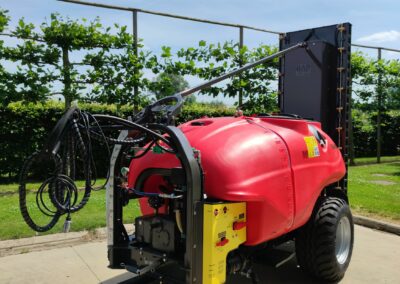

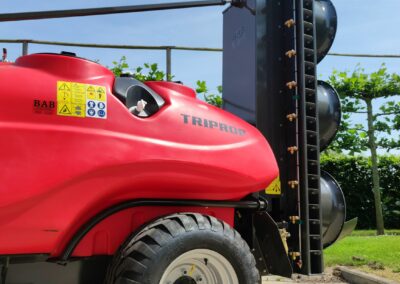

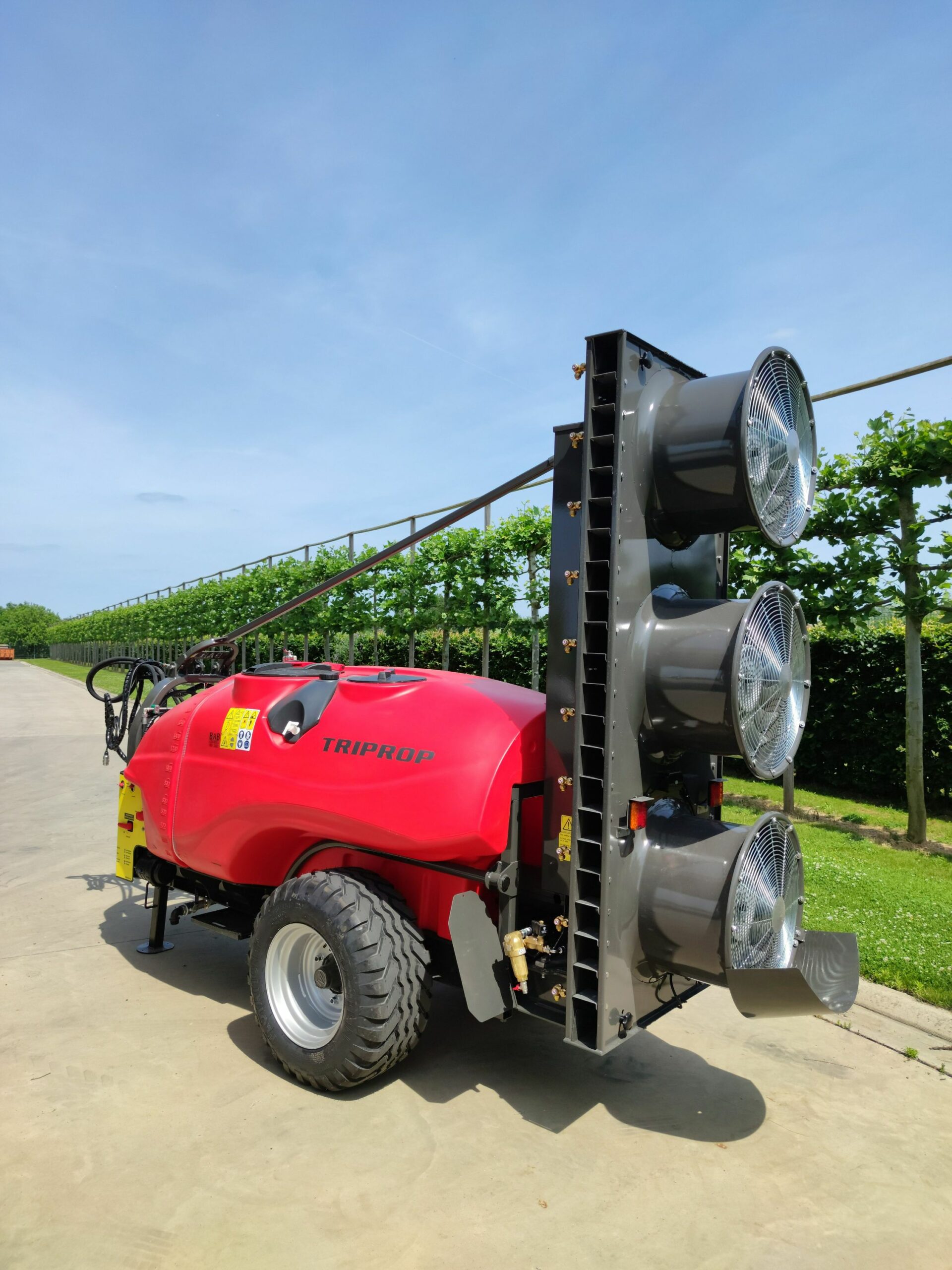

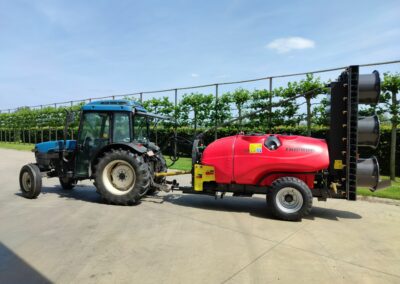

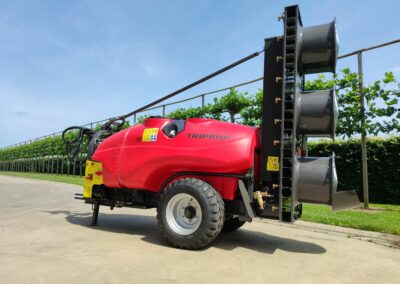

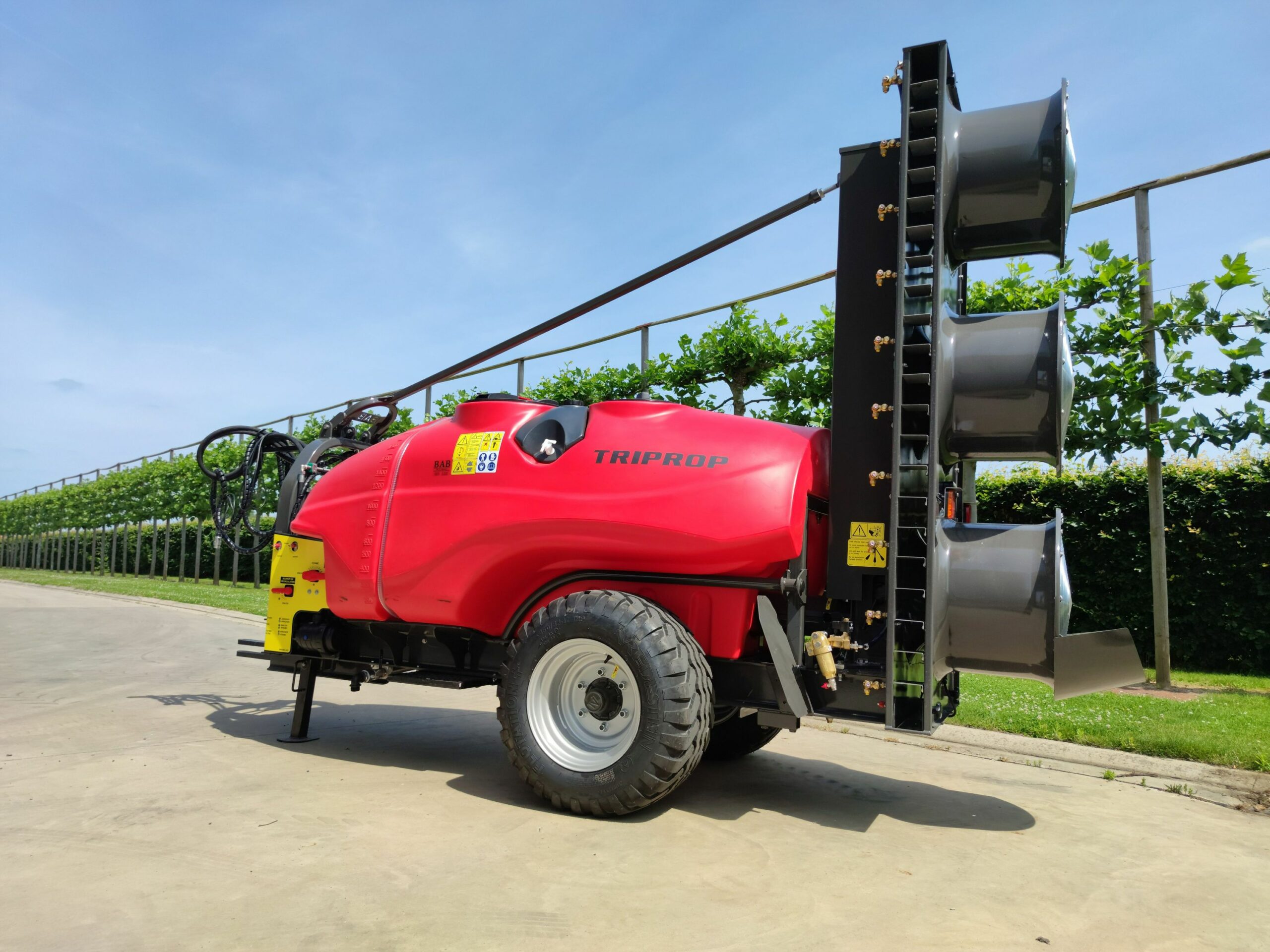

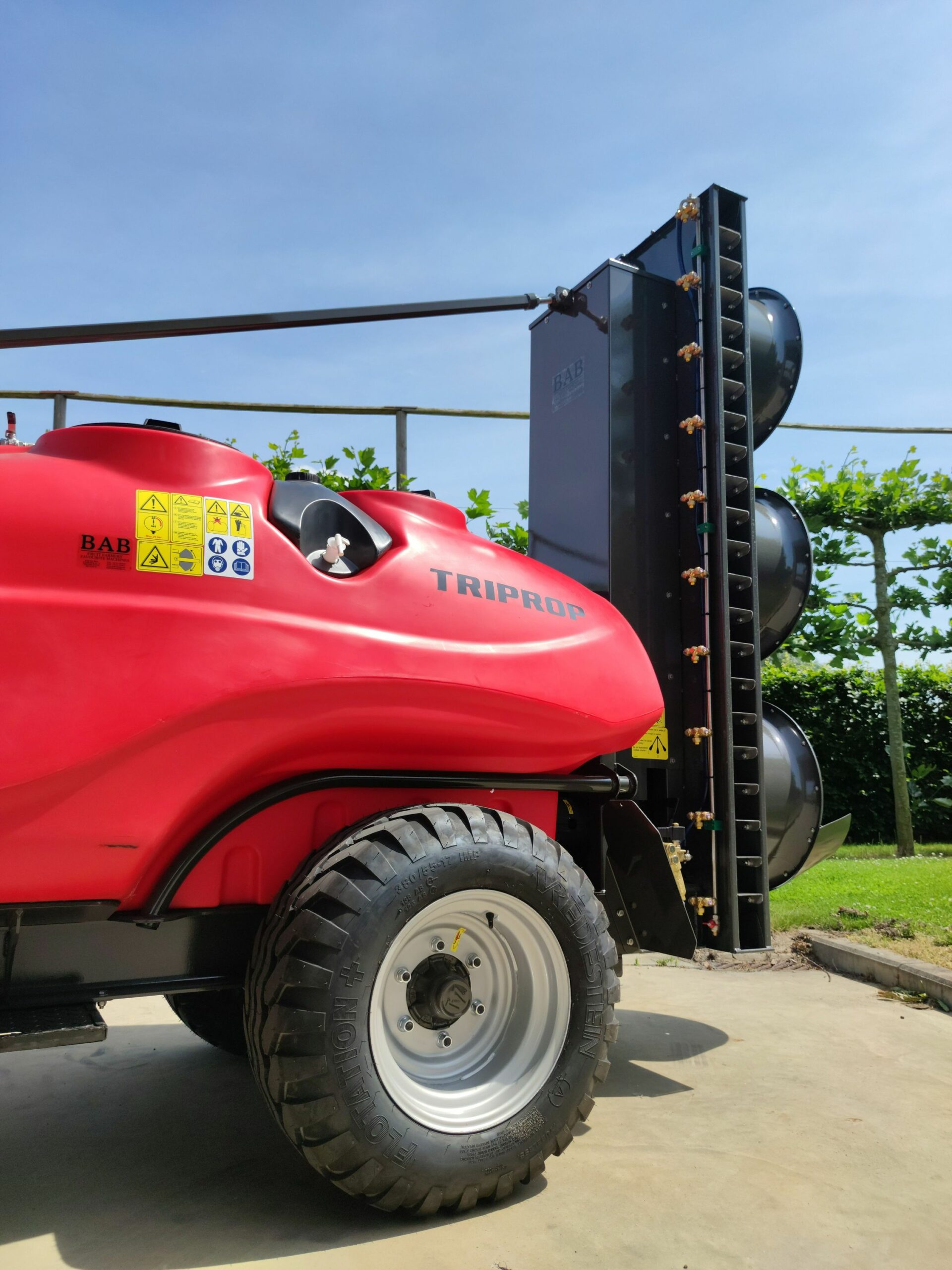

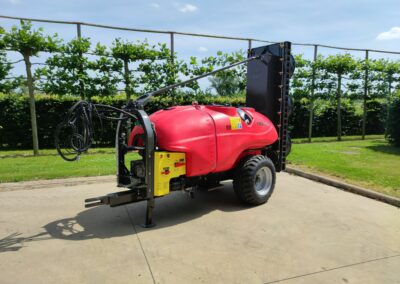

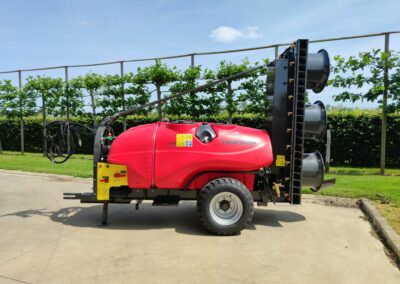

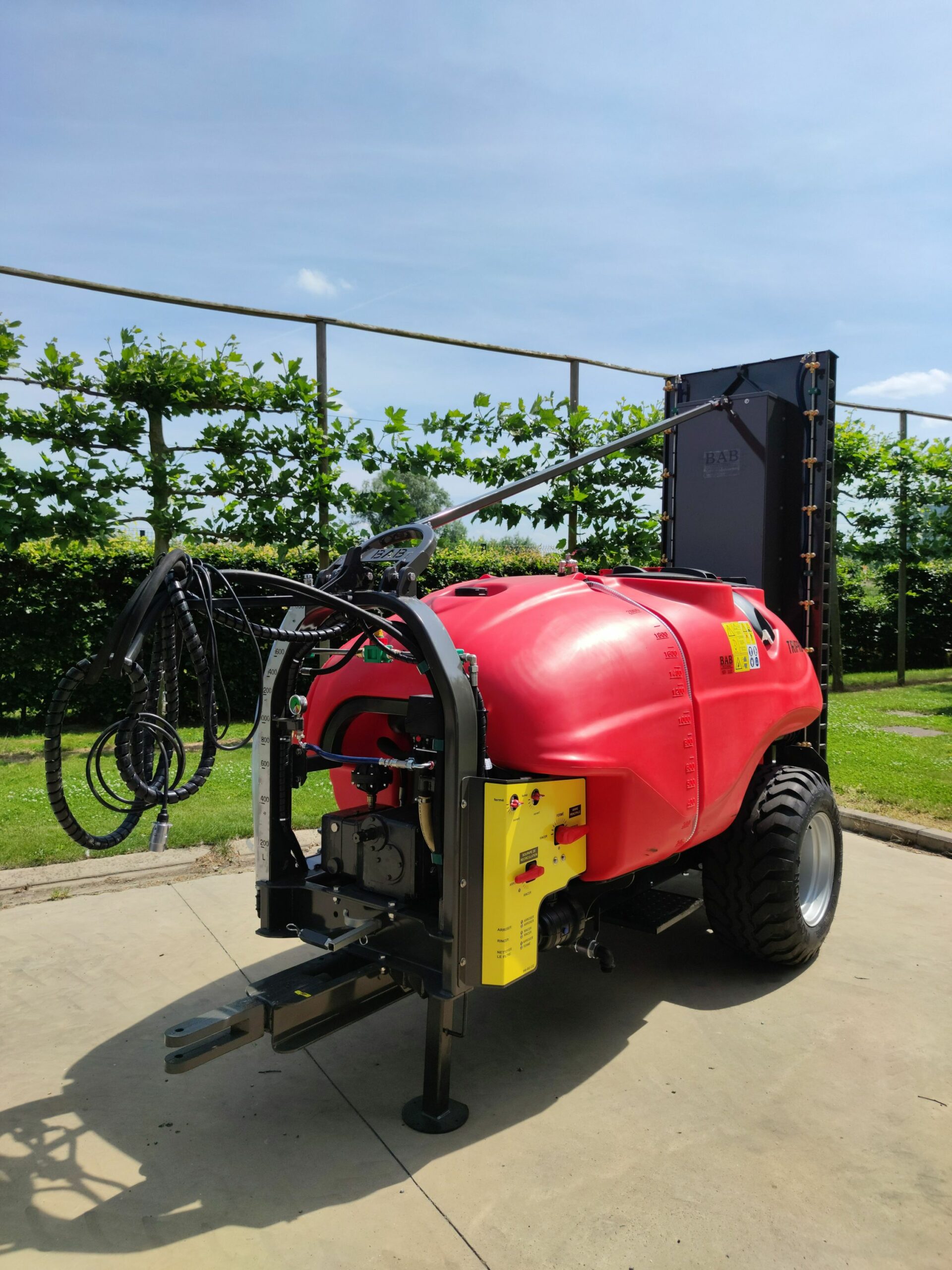

Triprop Sprayer
Standard machine
- Pump:
diaphragm pump 140 liter COMET - Mixing:
dust hydraulic mixer in basket
injector with venturi - Wheel axle:
single axle 60 mm with adjustable track - Wheels:
tires 300/80-15,3 10 ply on rim 6 bolts - Fans:

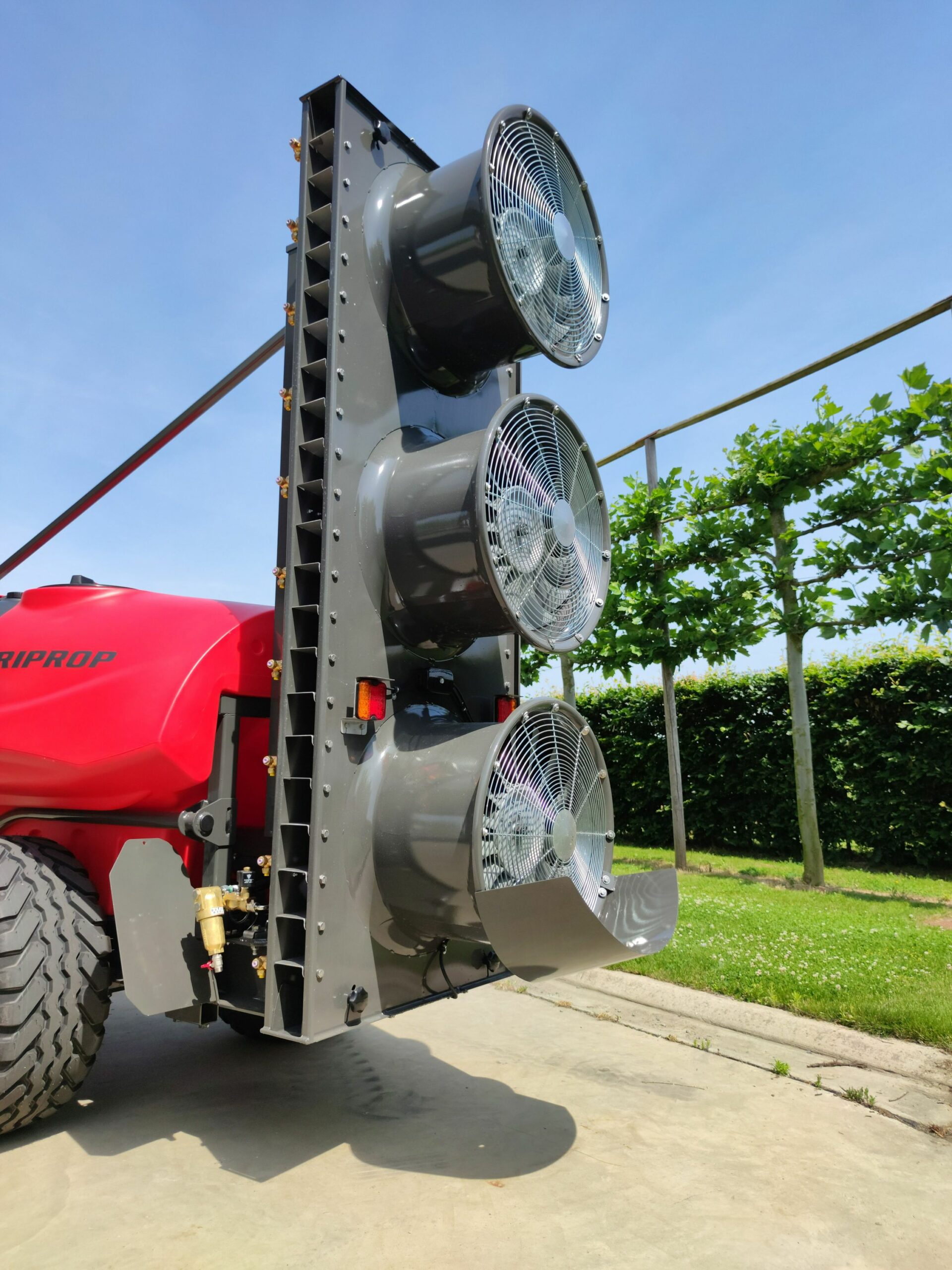

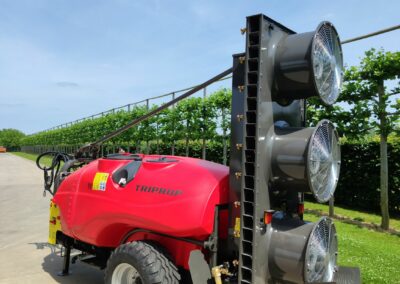

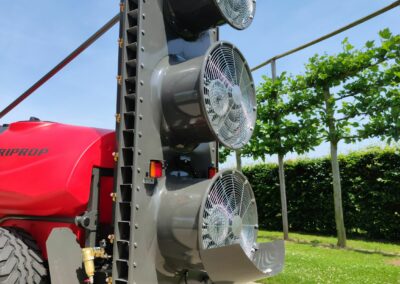

crossflow with 3x propellors ø 560 mm
2 speed gearboxes with idle overdrive
height 270 cm with 2x 9 double nozzle holders
brass double nozzle bodies with Albuz ATR nozzles - Filters:
1 suctionfilter, 50 mesh, easy to reach – adjusted to pump flow
2 high pressure filters, 50 or 80 mesh, in backside
- Control:
2 sections with 2 elektrovalves, 27 watt with general switch - Pres control:
manual - Pres gauge:
gauge 25 bar ø 100 mm class 1.0 - Tank:
polyethyleen or fibreglass tank from 1500 up to 2000 liter
clean watertank to flush pump
clean watertank for handwashing - PTO-shaft:
depending on drawbar:
– Weasler 2x double joint
– Bondioli single double joint - Drawbar:
straight drawbar with fork - General:
metallized frame
lights for road traffic
Options:
- Pump:
high-pressure, slow turning piston pump BAB 80 liter
brass diaphragmpump AR 135 litres - Mixing:
2nd pump (centifugal) for mixing in tank, hydr. Driven by tractor - Wheel axle:
double axle, fix under frame, with tires 10,0/75-15,3 14 ply
double axle, double swivel, with tires 10,0/75-15,3 14 ply
braked axle - Wheels:
380/55-17 12 ply flotation single axle
340/50-16 12 ply flotation double axle - Drawbar:
swivel hitch, heavy duty
ball coupling K80 - PTO-shaft:
Walterscheid instead of Weasler
WWZ 2380 double wide angle 80° - Nozzles:
triple nozzle holders
drift reducing nozzles
- Pres control:
elektrical pressure regulation valvee - Control:
4 sections instead of 2 with 2 additional electrovalves - Tower:
height 290 cm with 2x 9 nozzles bodies - Spraycomputer:
farmscan 74V1 - Controller:
jack-all - Tank:
2000 litre fibreglass
