Troy

The advanced platform

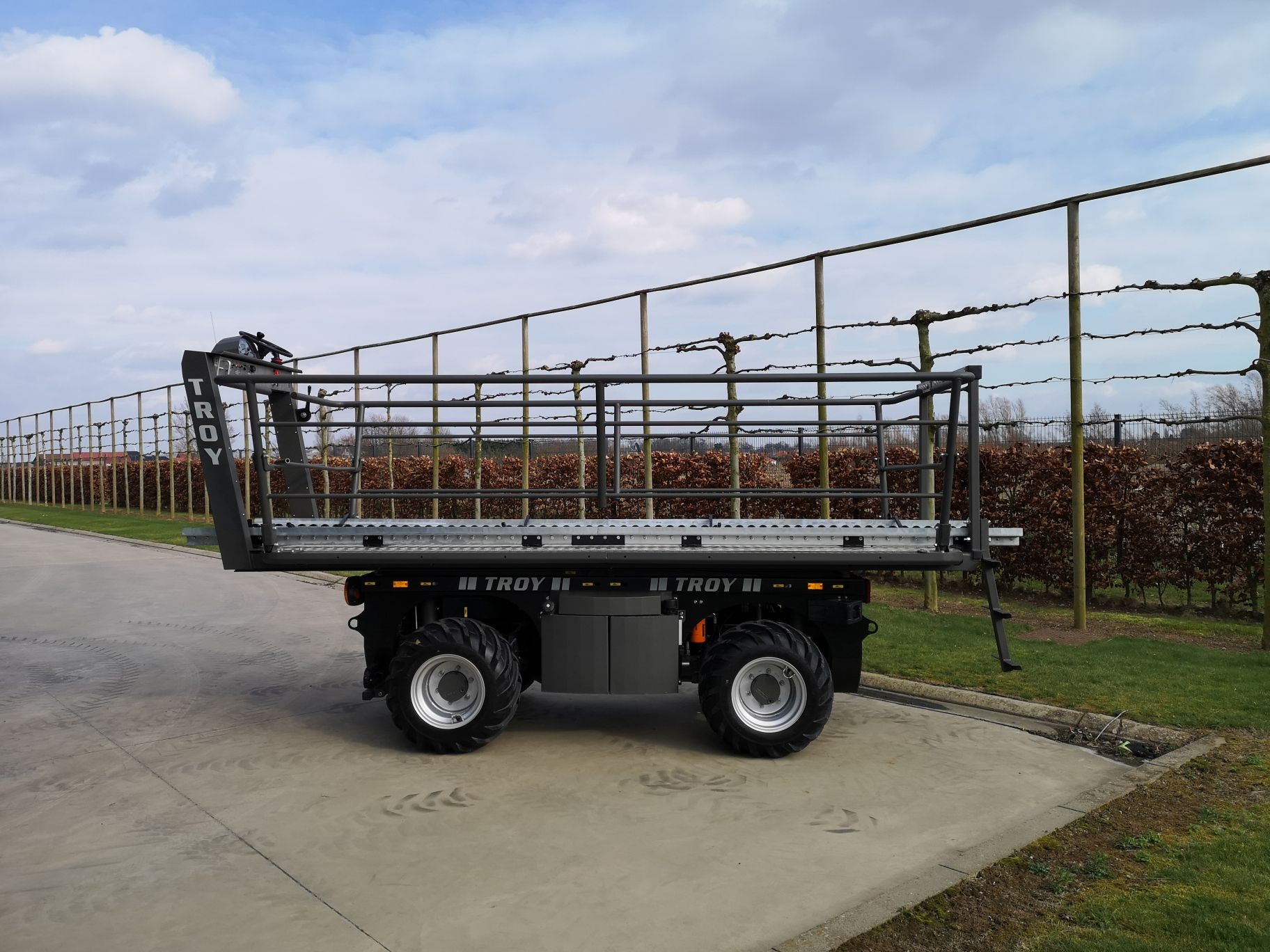

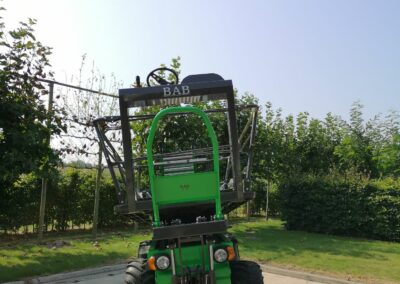

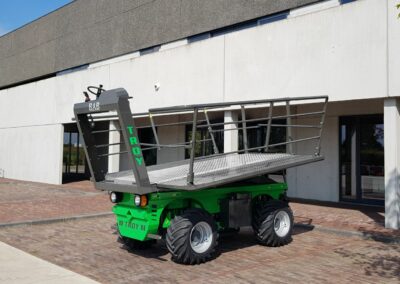

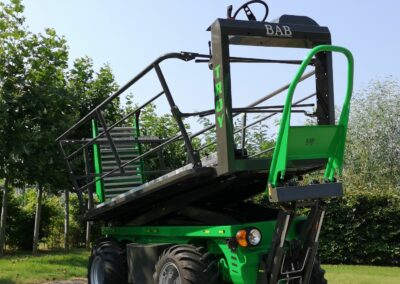

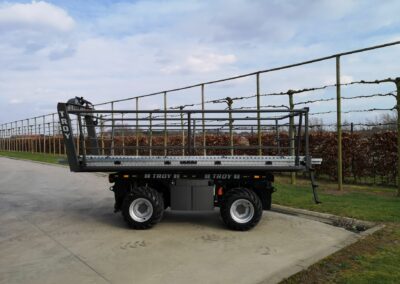

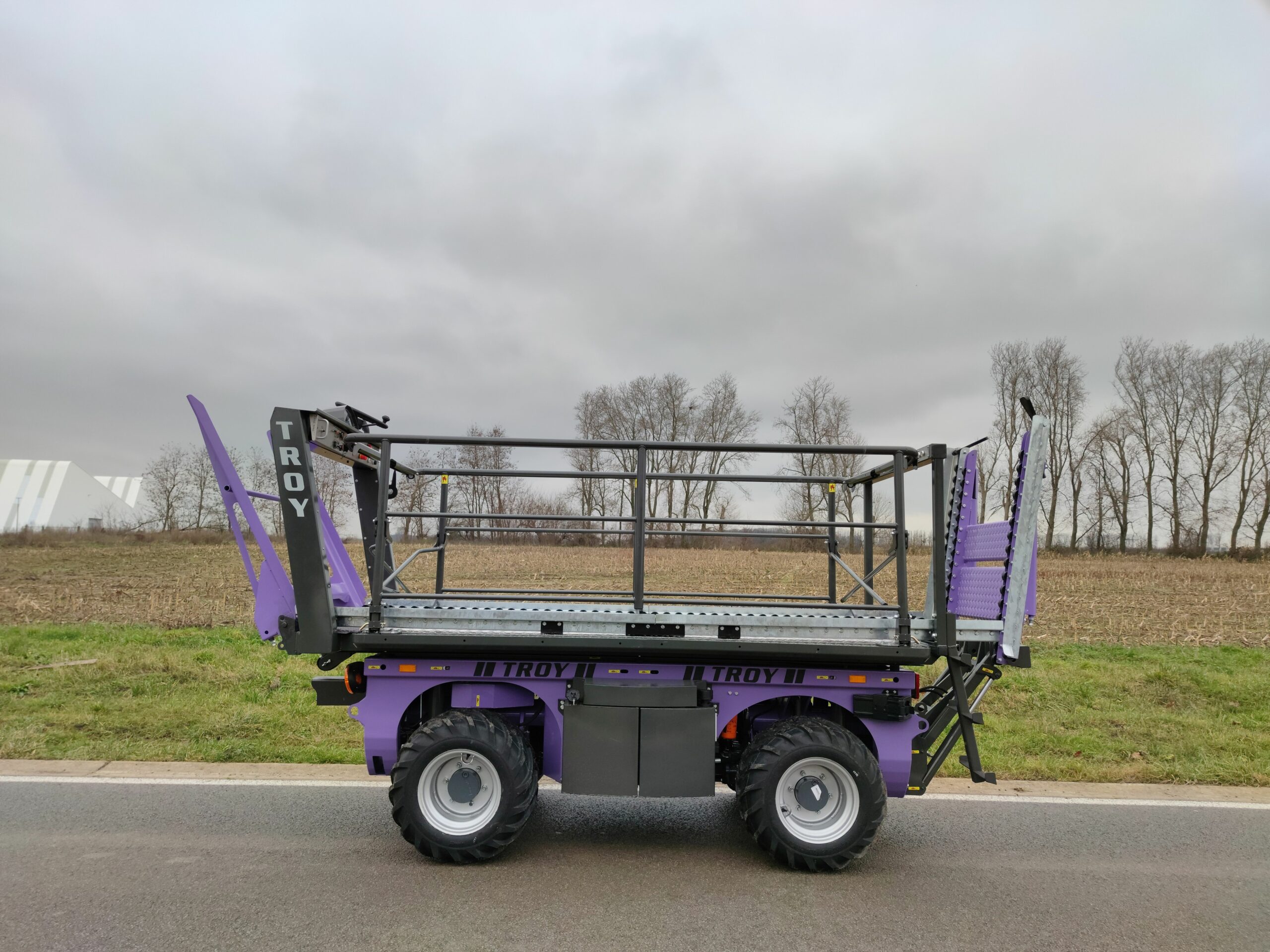

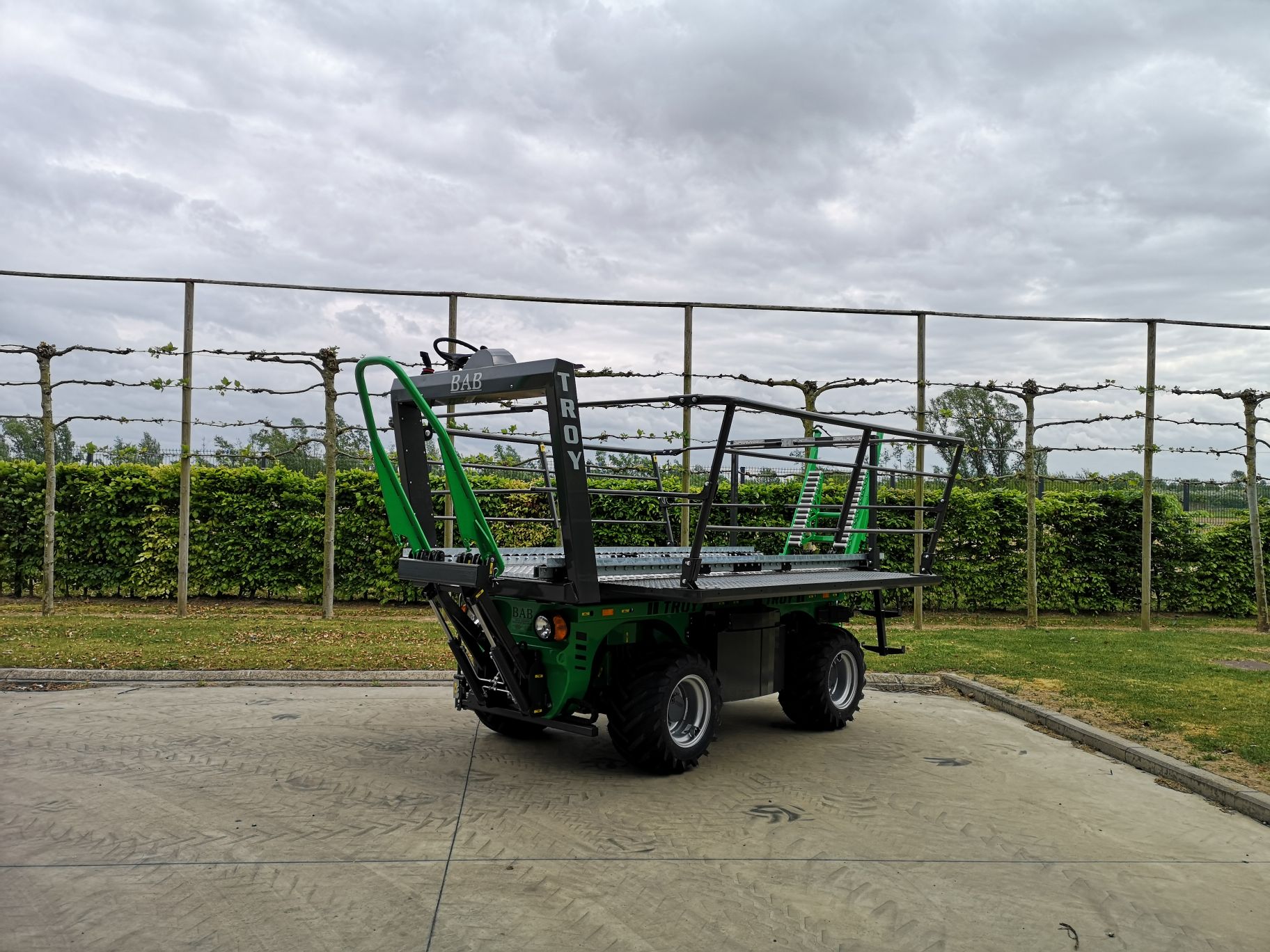

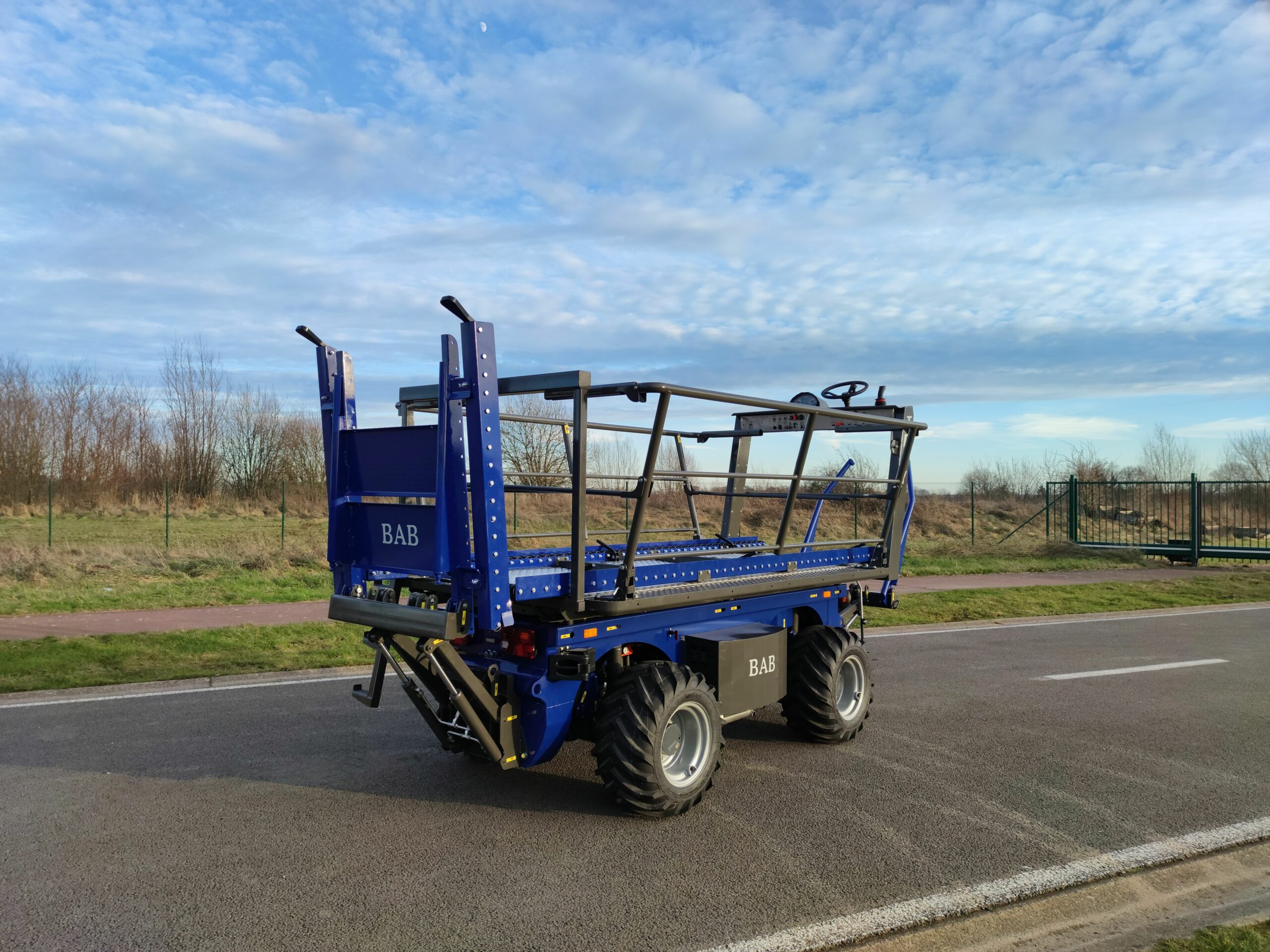

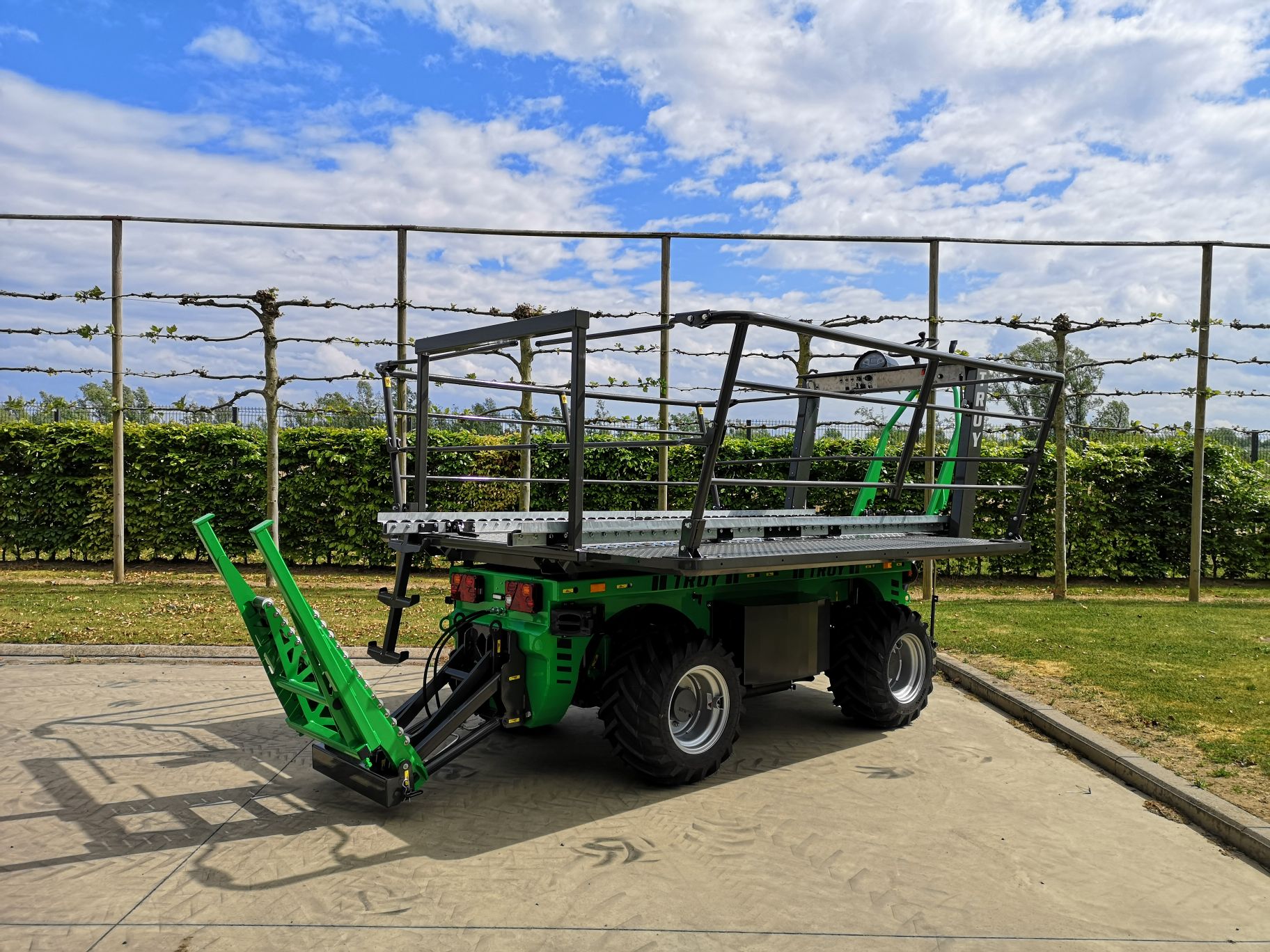

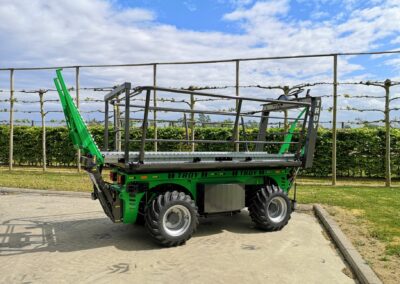

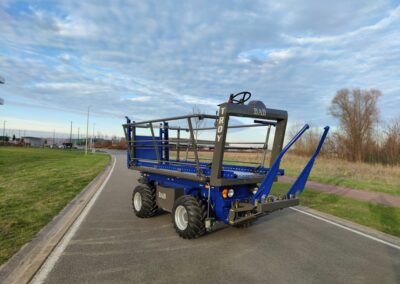

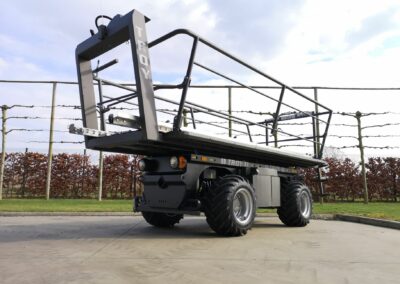

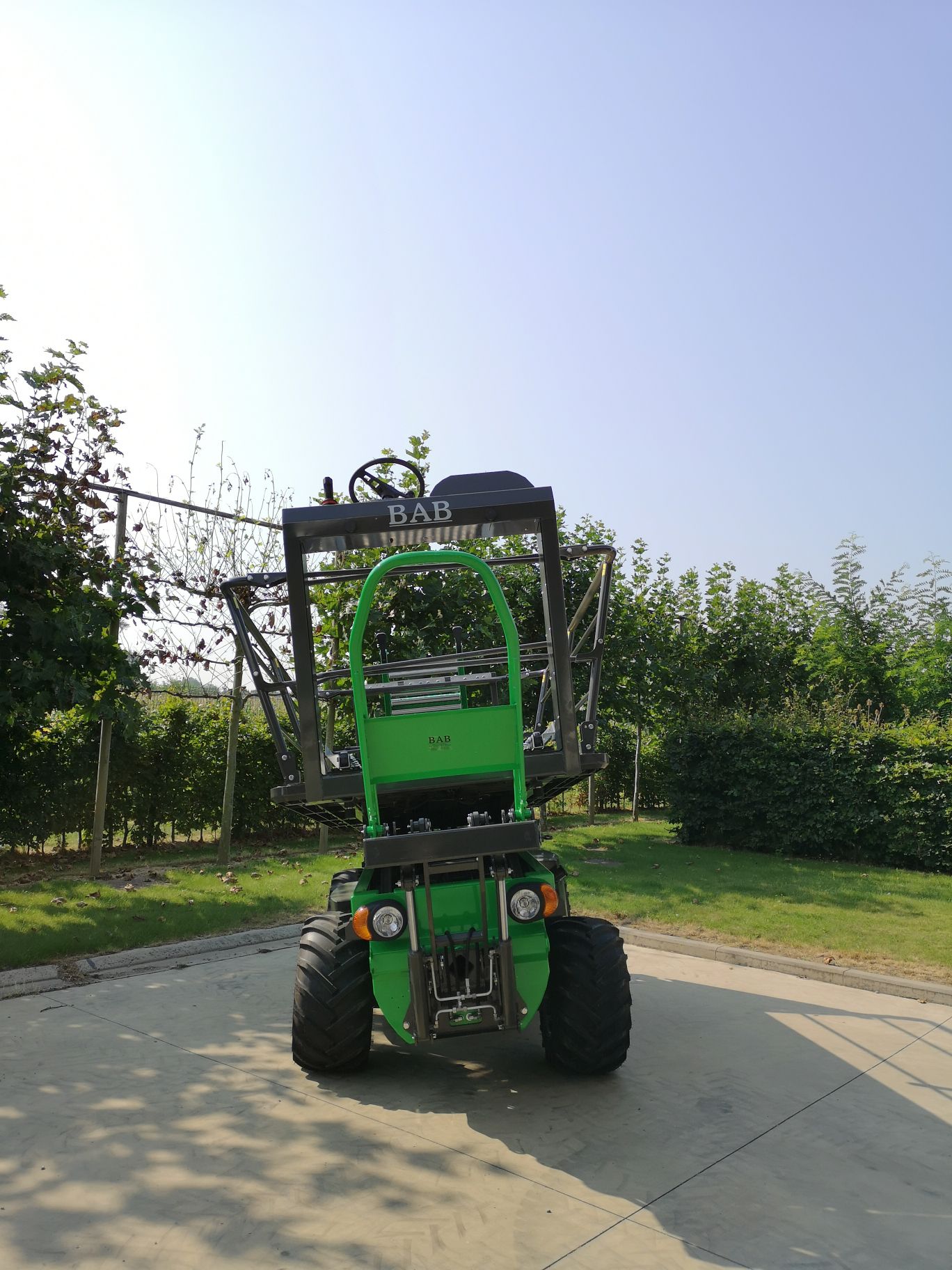

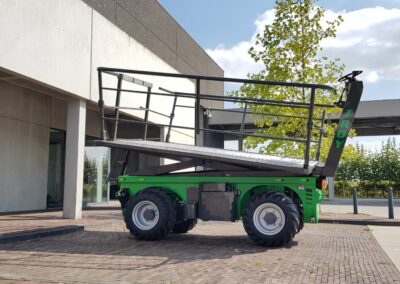

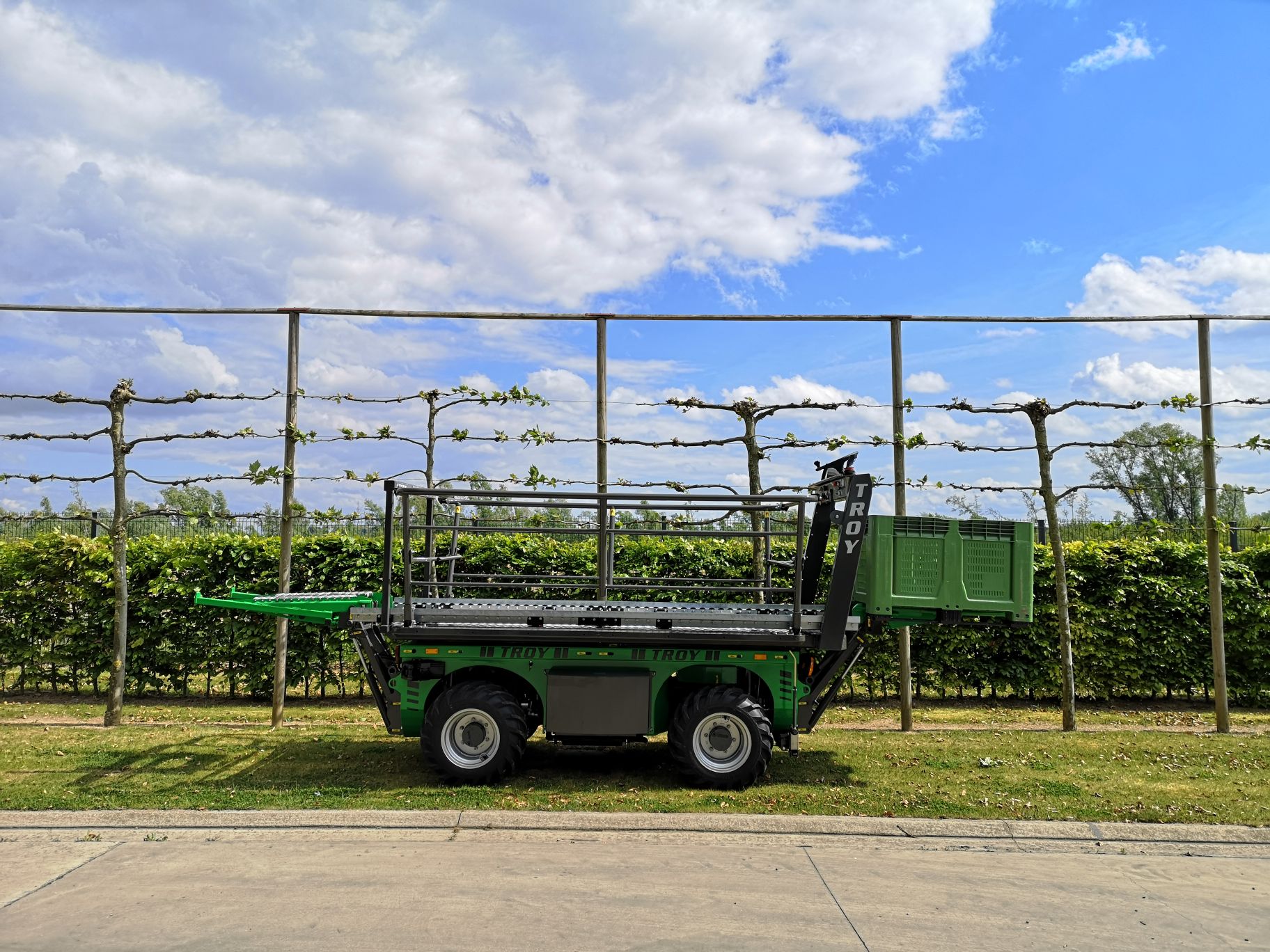

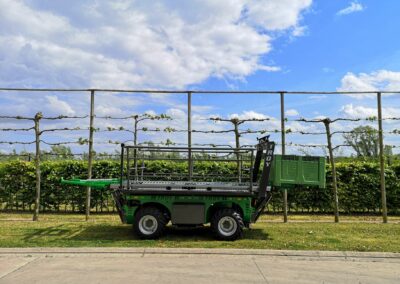

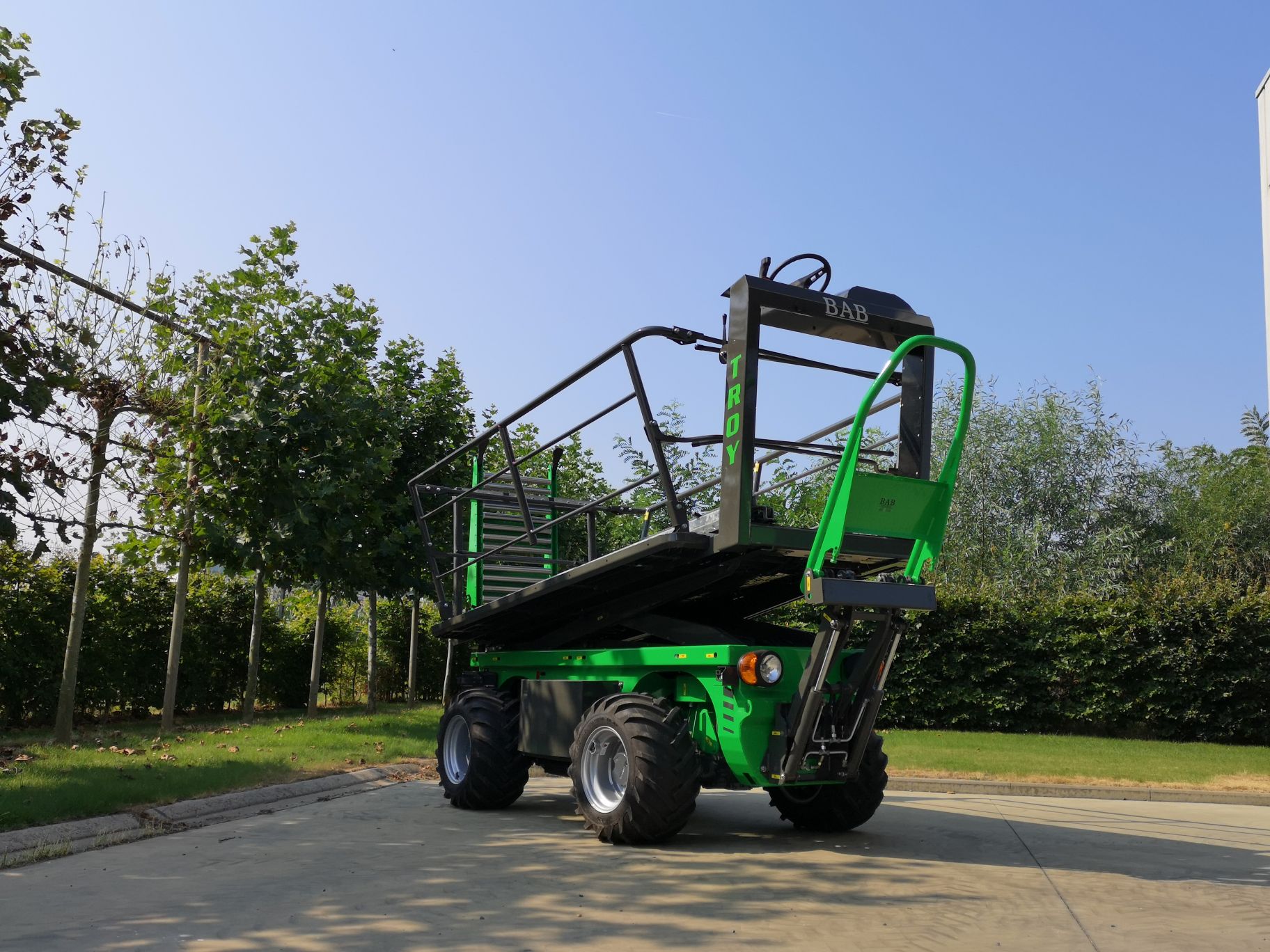

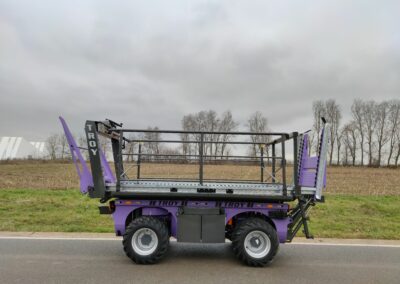

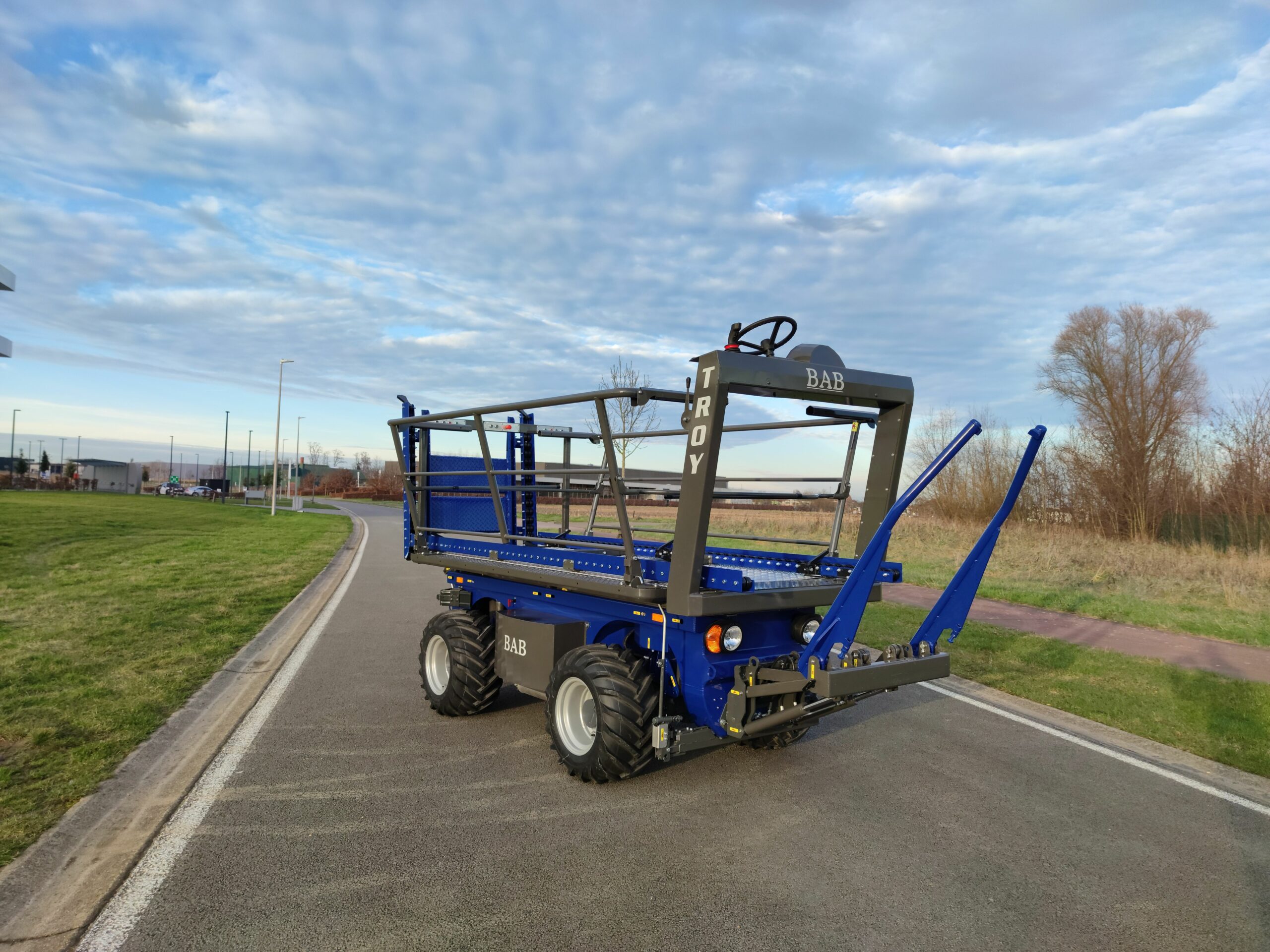

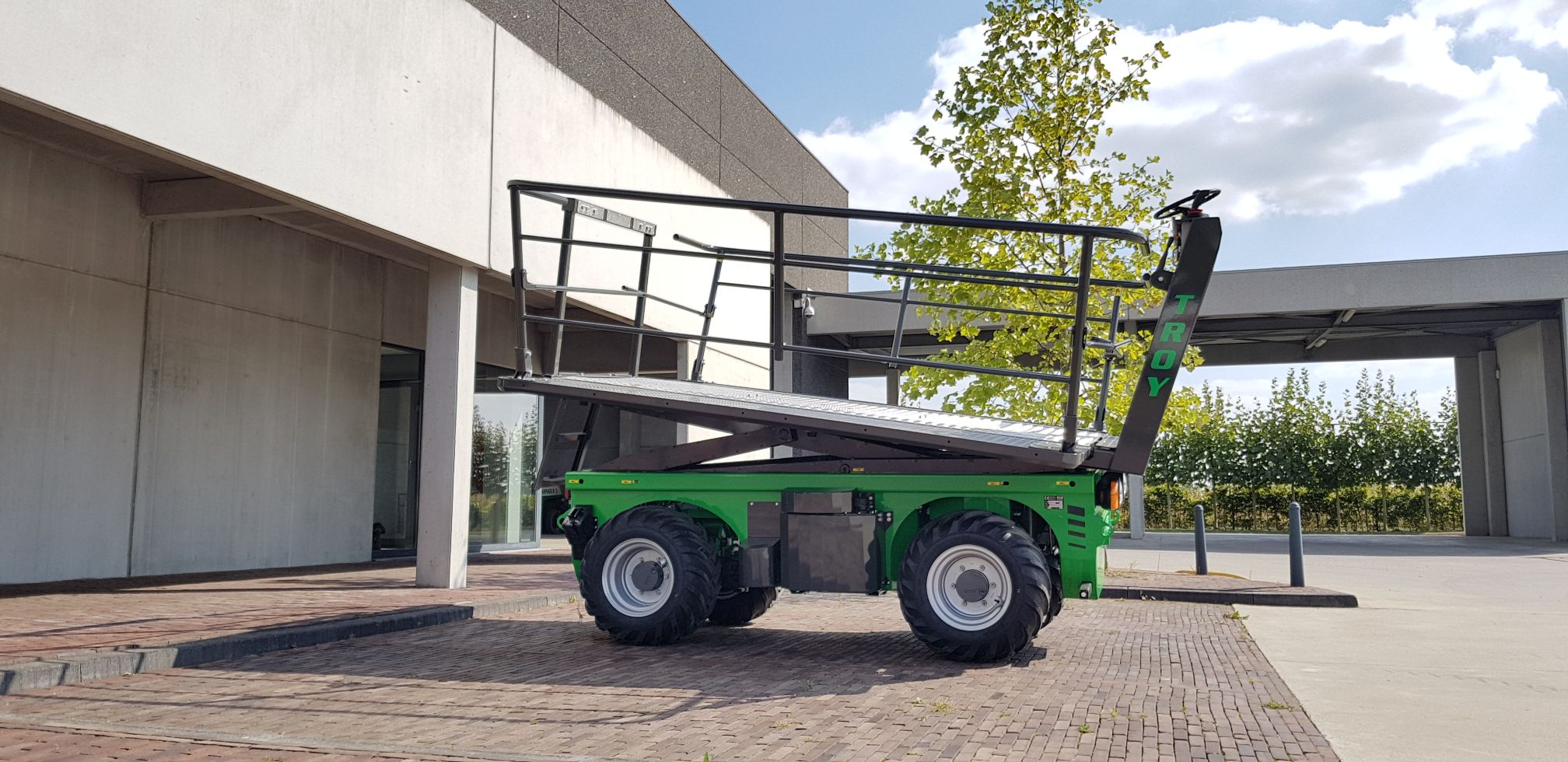

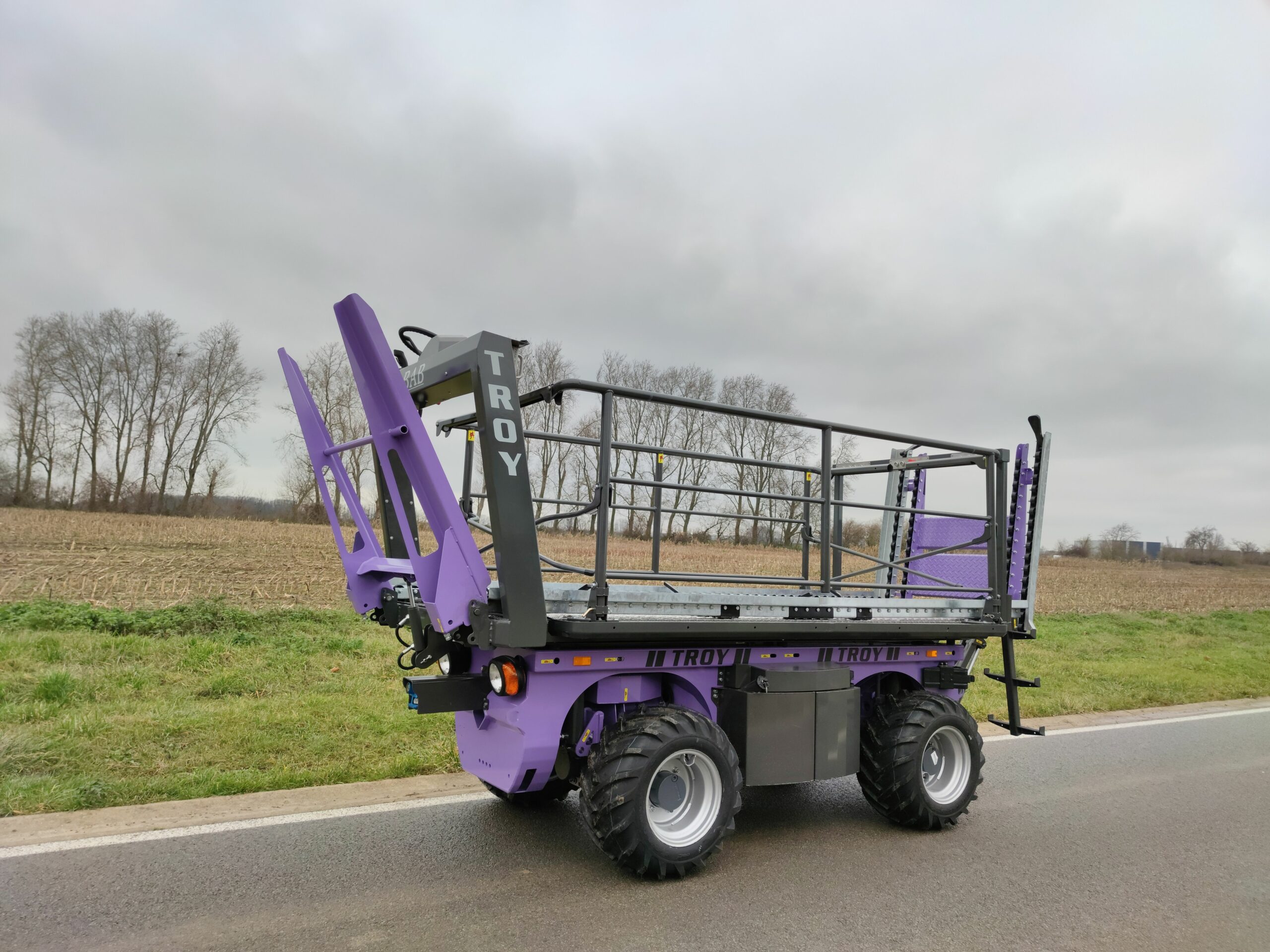

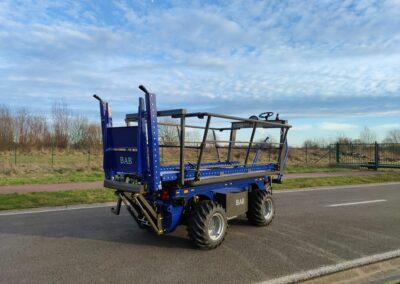

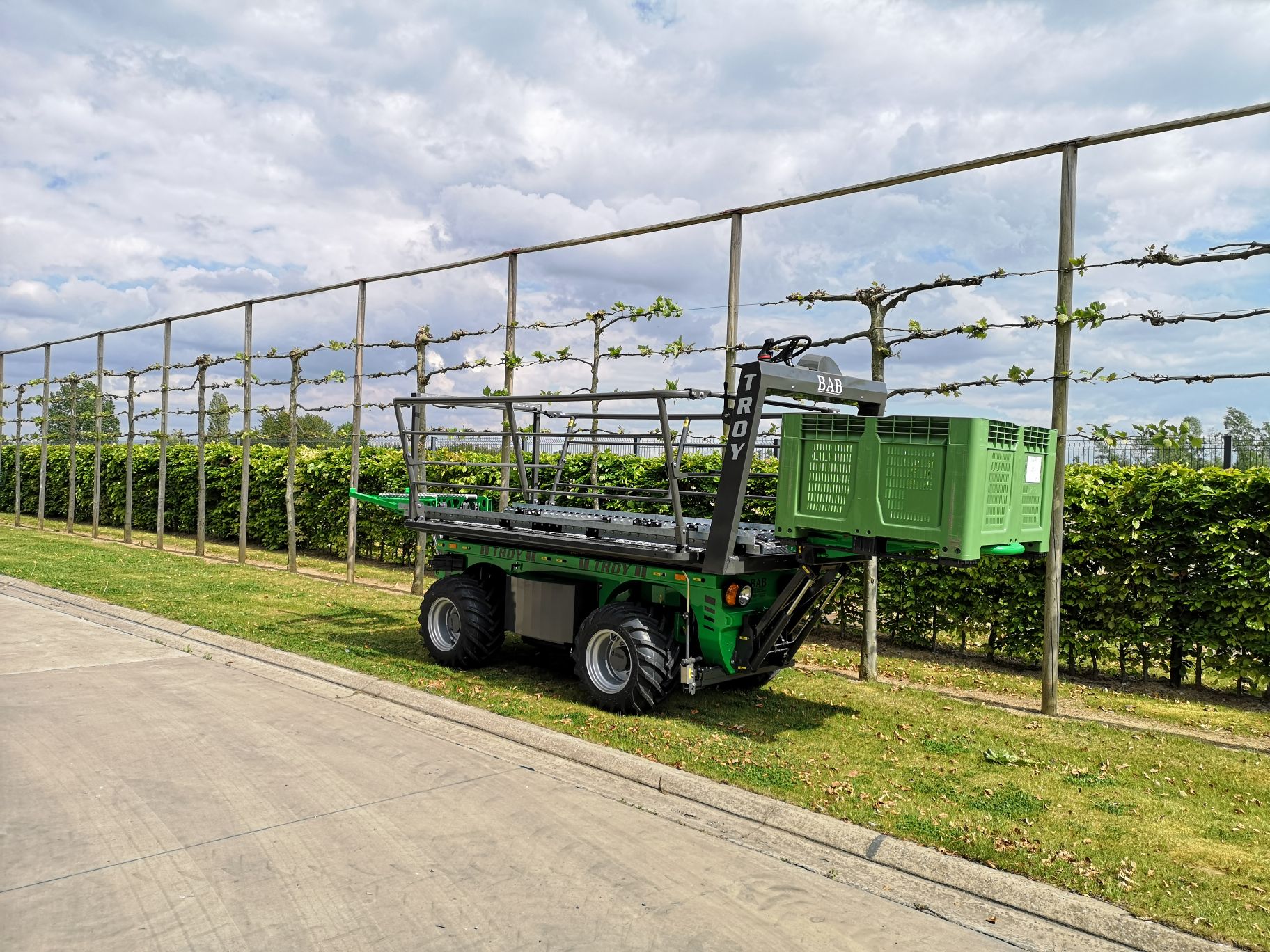

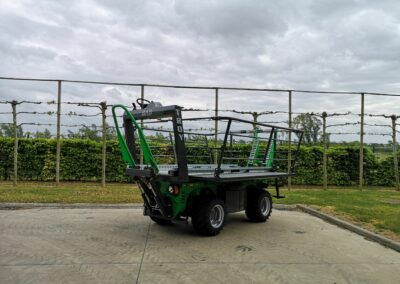

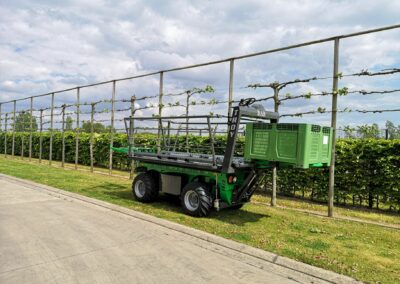

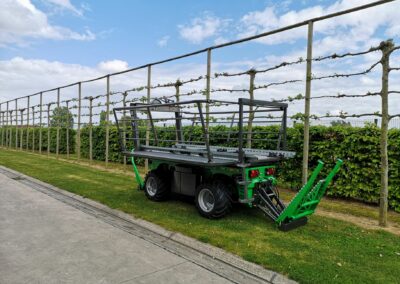

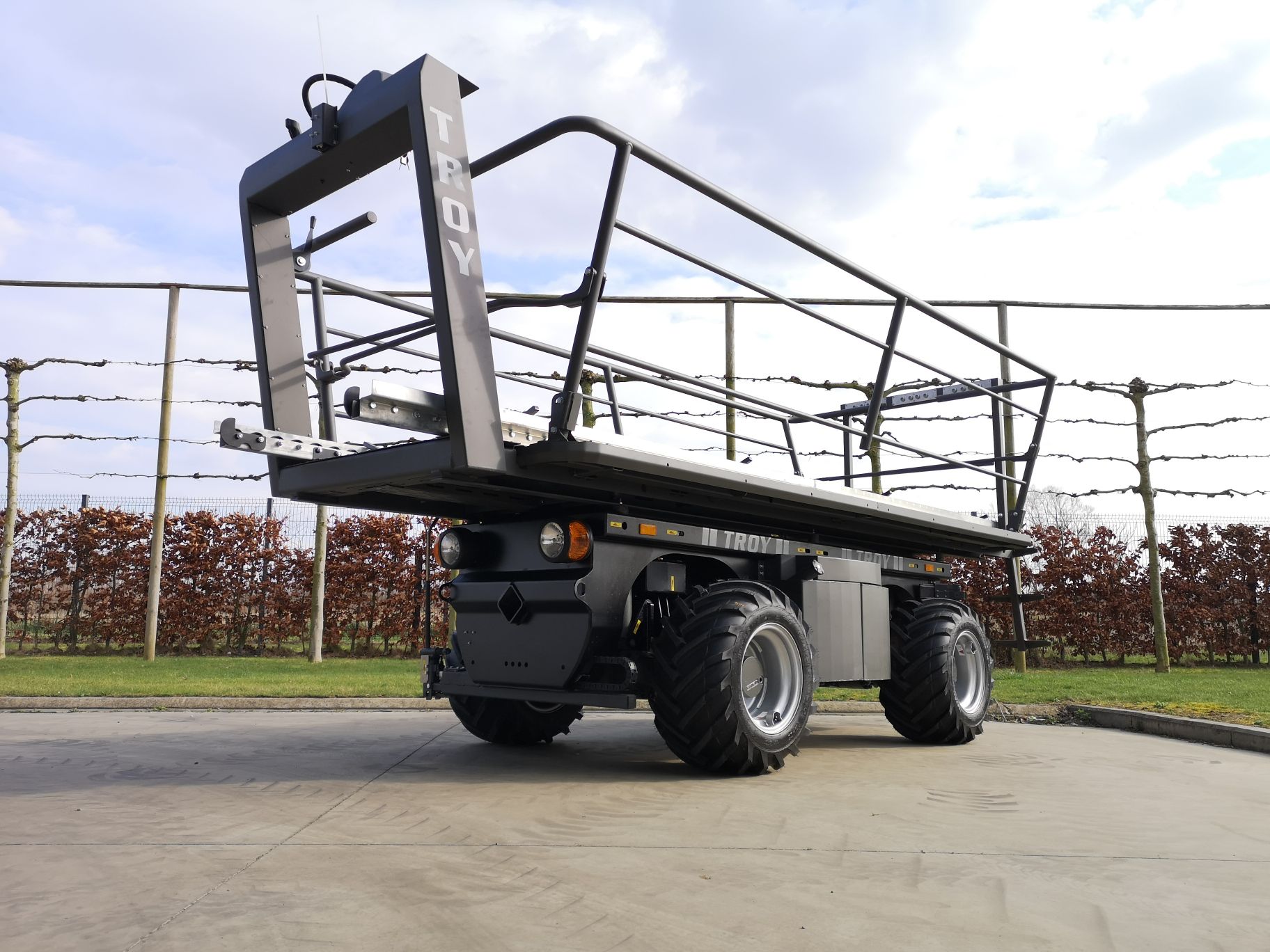

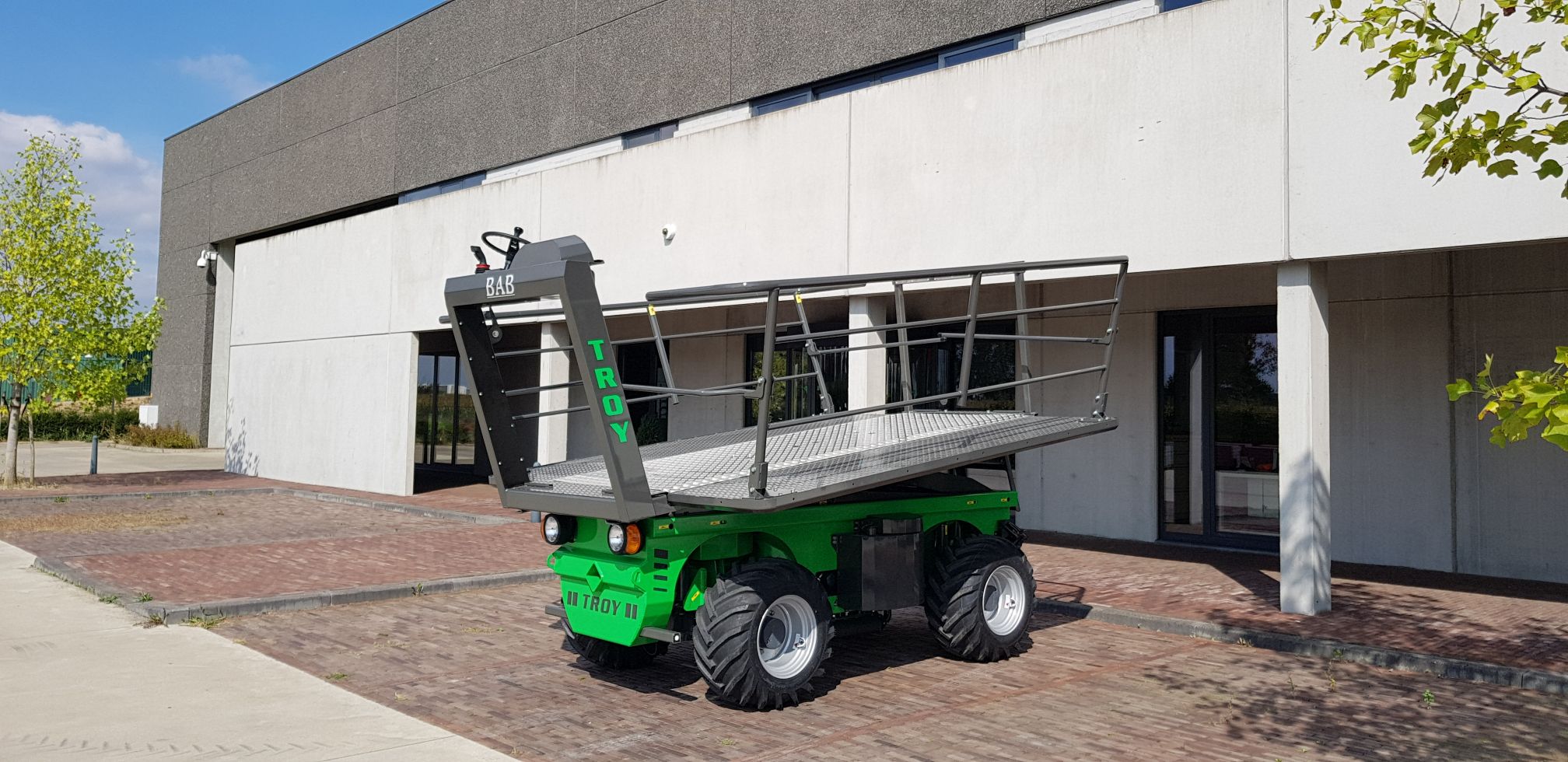

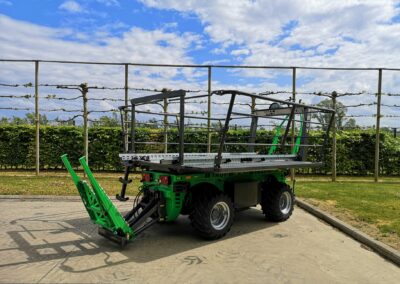

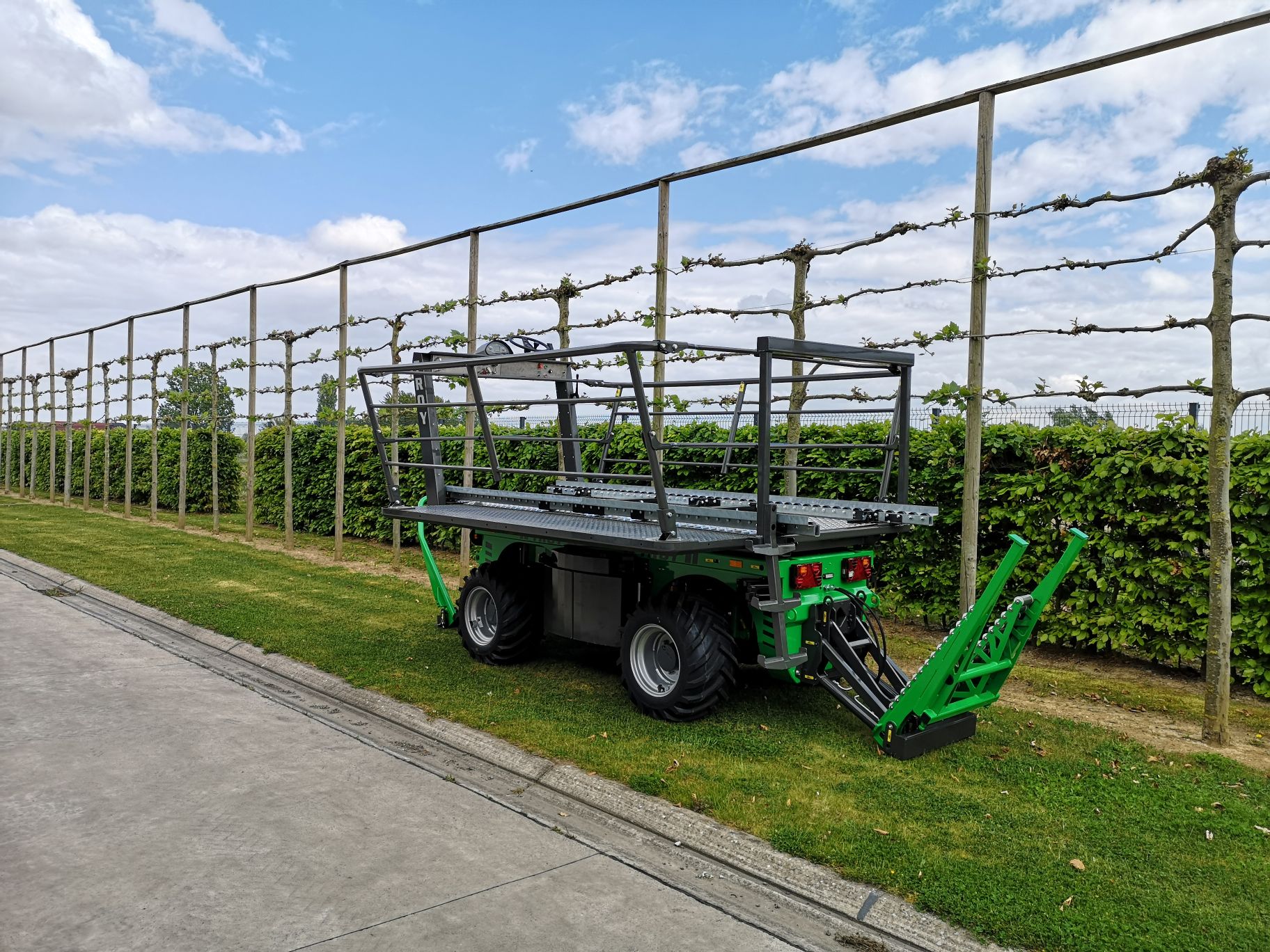

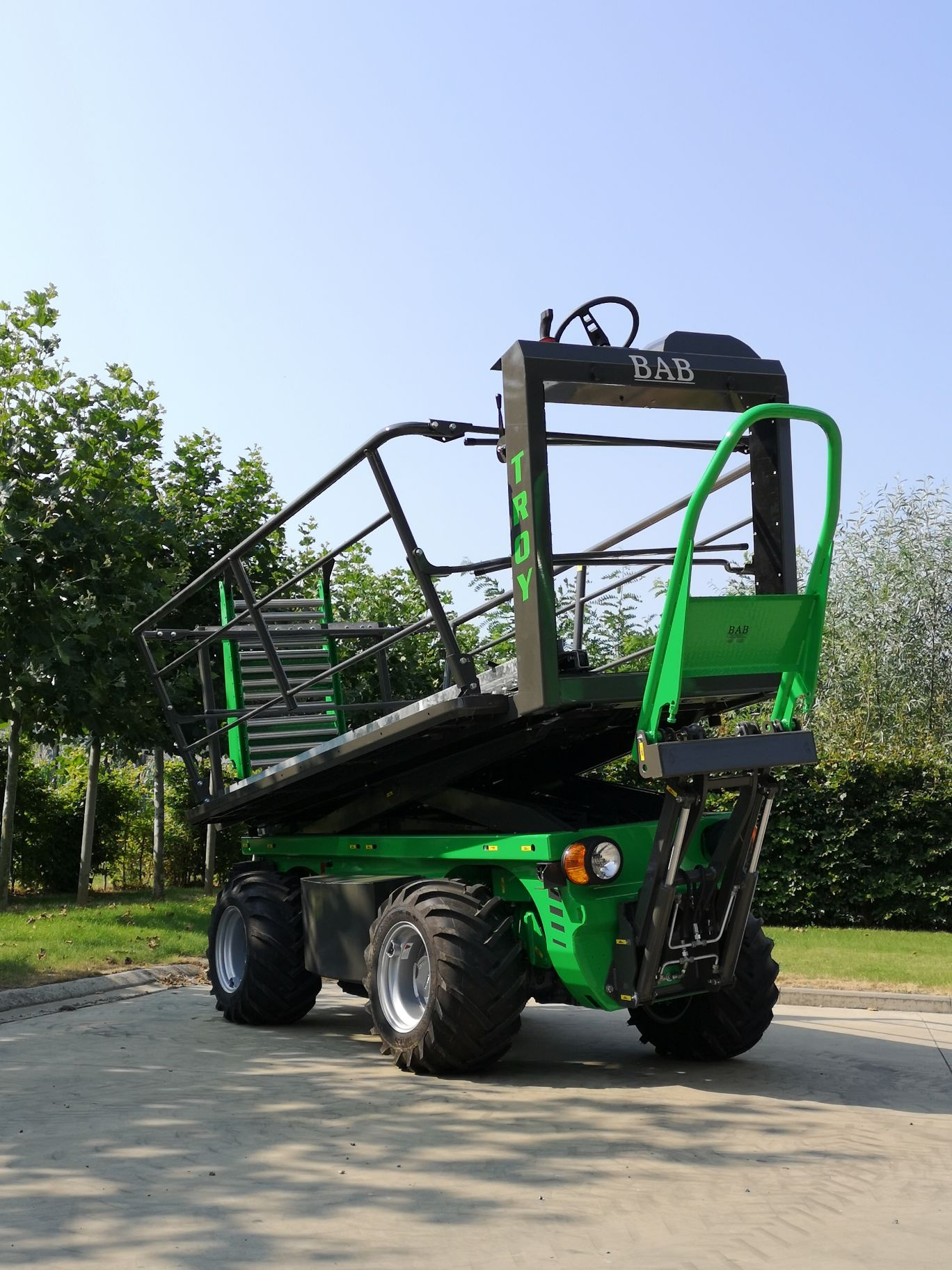

The Troy  is mobile elevating working platform , designed and manufactured by BAB.
This machine can be regarded als the little brother of the Hercules.
The design, in consultion with the user’s, is performed and using the latest, available techniques.

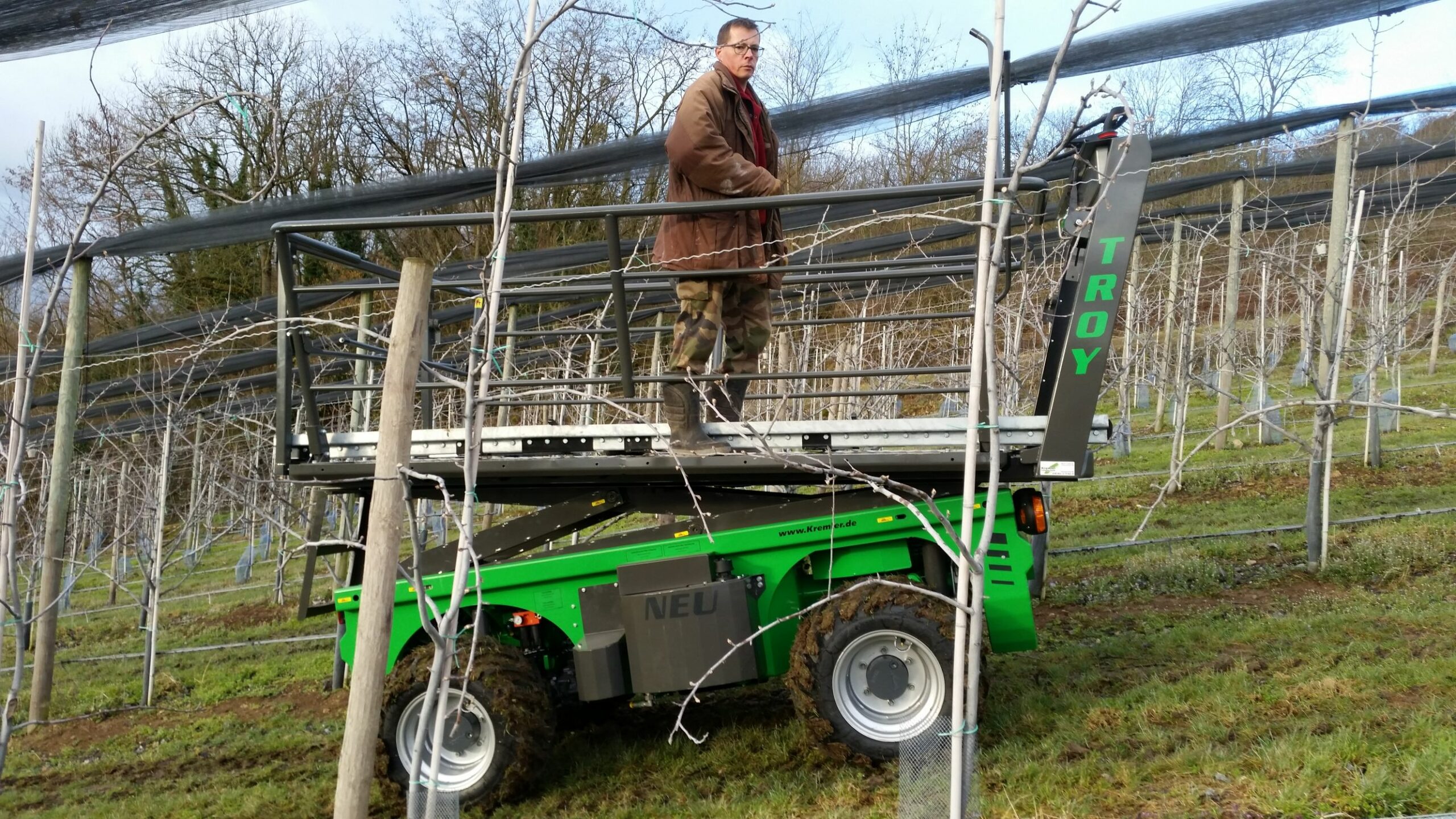

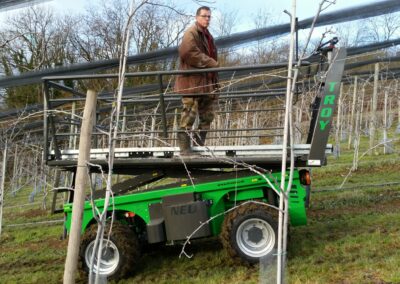

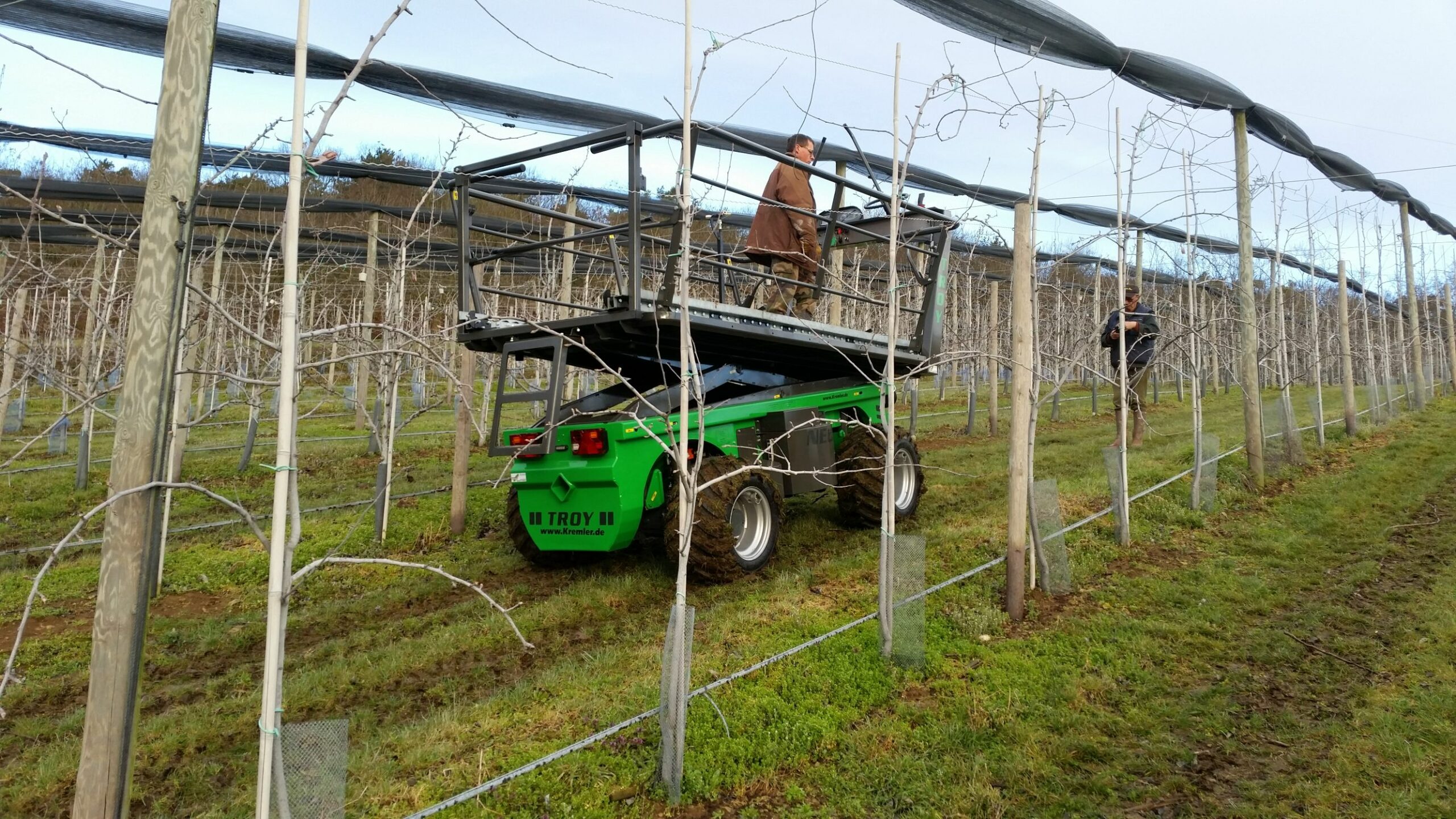

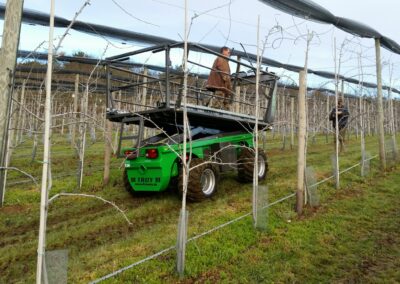

The Troy ensures maximum performance during harvesting, pruning and any type of work, which must be carried out in the orchard.

Standard machine

  • Engine:
    diesel engine Kubota 4 cylinder turbo 45 hp water-cooled
  • Fuel:
    diesel 45 liter fuel tank with level indicator
    primary filter with water separator , electrical feeding pump and final filter
  • Traction:
    permanent 4 x 4 traction: mechanical or hydraulic
  • Control:
    joystick with electric control and integrated dead man switch
  • Hydraulic system:
    drive hydraulics: Danfoss pump H1 45 max. flow 120 l / min – 300 bar and Danfoss piston motor H1 with 2 speeds
    work hydraulics: Hydac valve block for hydraulic operation and gear pump 8 cc or 11 cc, max. 180 bar
  • Driveline:
    heavy duty front and rear axle with planetary reduction on differential output
    front and rear axles connected with high speed PTO shaft
    front axle with limited slip integrated in differential
    2 – speed hydrostatic
  • Speed:
    low speed 0 to 7 km / h
    high speed 0 to 15 km / h, here there is only 2 wheel steering with automatic rear wheel alignment
    electric gear shift without neutral
  • Control:
    3 control modes:
    2 wheel steering with automatic rear wheel alignment
    4 wheel steering close turn
    4 wheel steering dog walk
    automatic alignment system integrated into the axles during
    4 wheel steering
    maximum steering angle of 38°
  • Parking brake:
    automatic negative brake with wet disc inboard of rear axle
  • Wheels:
    10.0 / 75 x 15.3 8 ply traction
  • Empty weight:
    2800 kg (without options)
  • Load capacity :
    1600 kg
  • Dimensions:

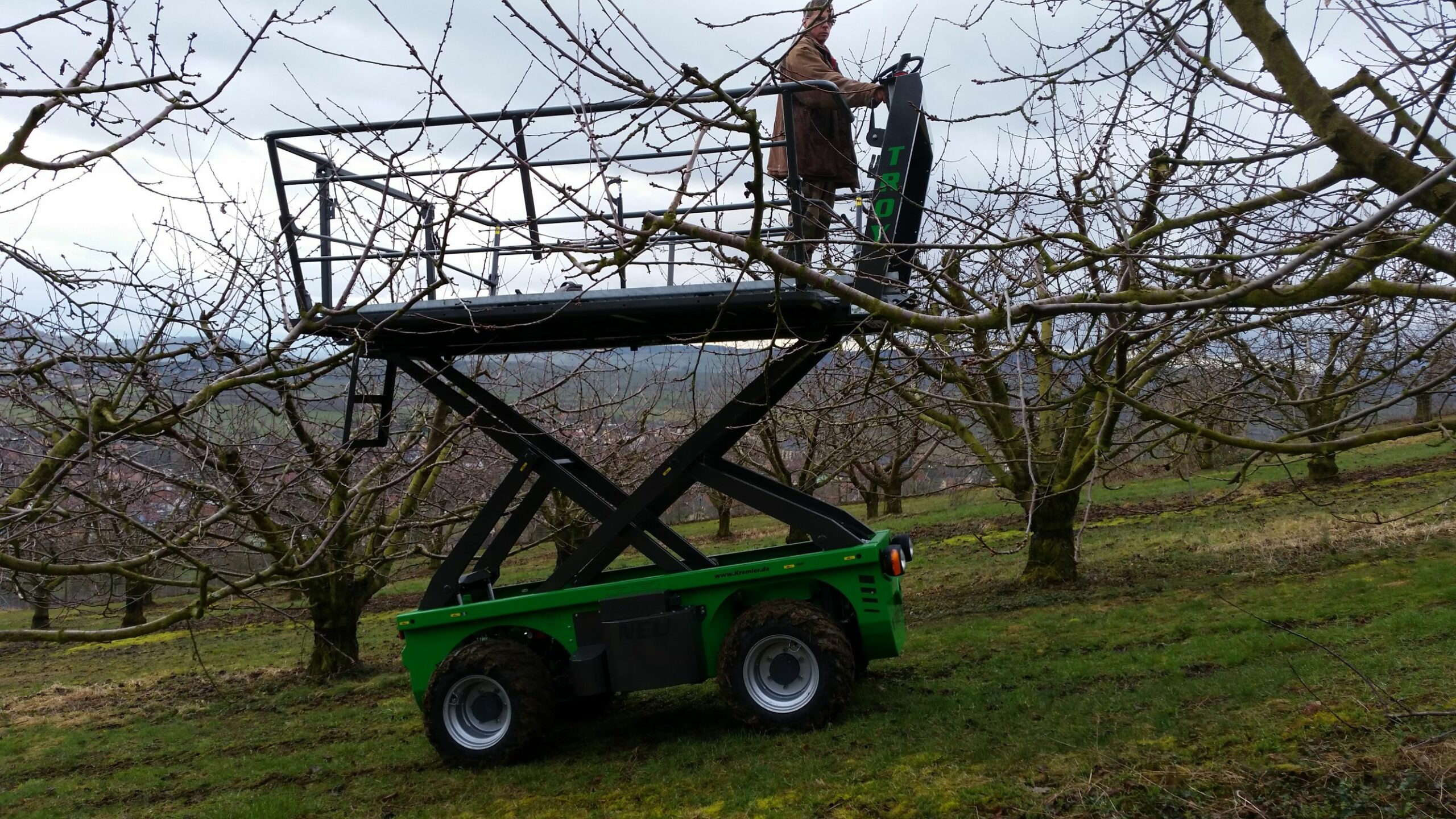

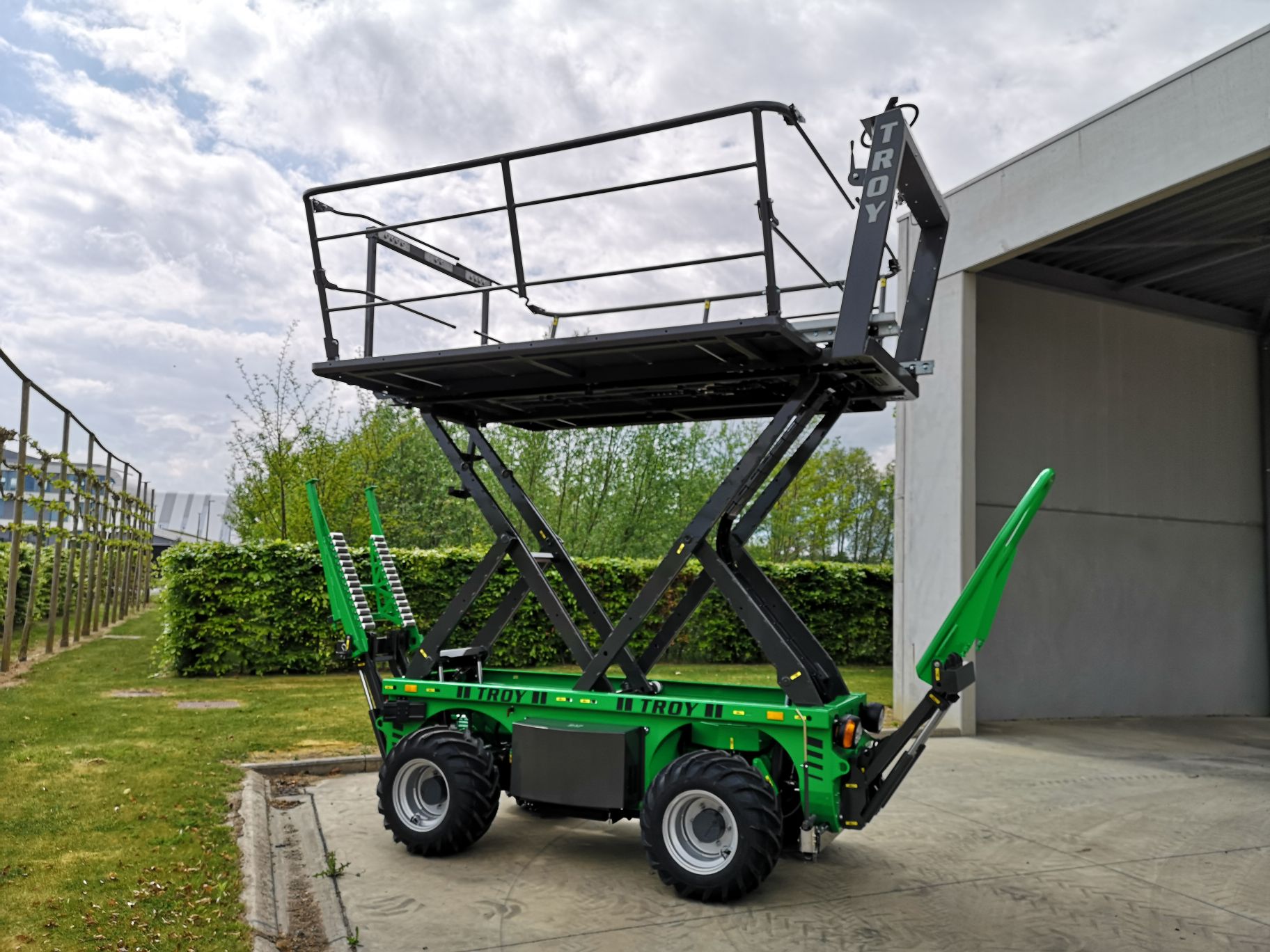

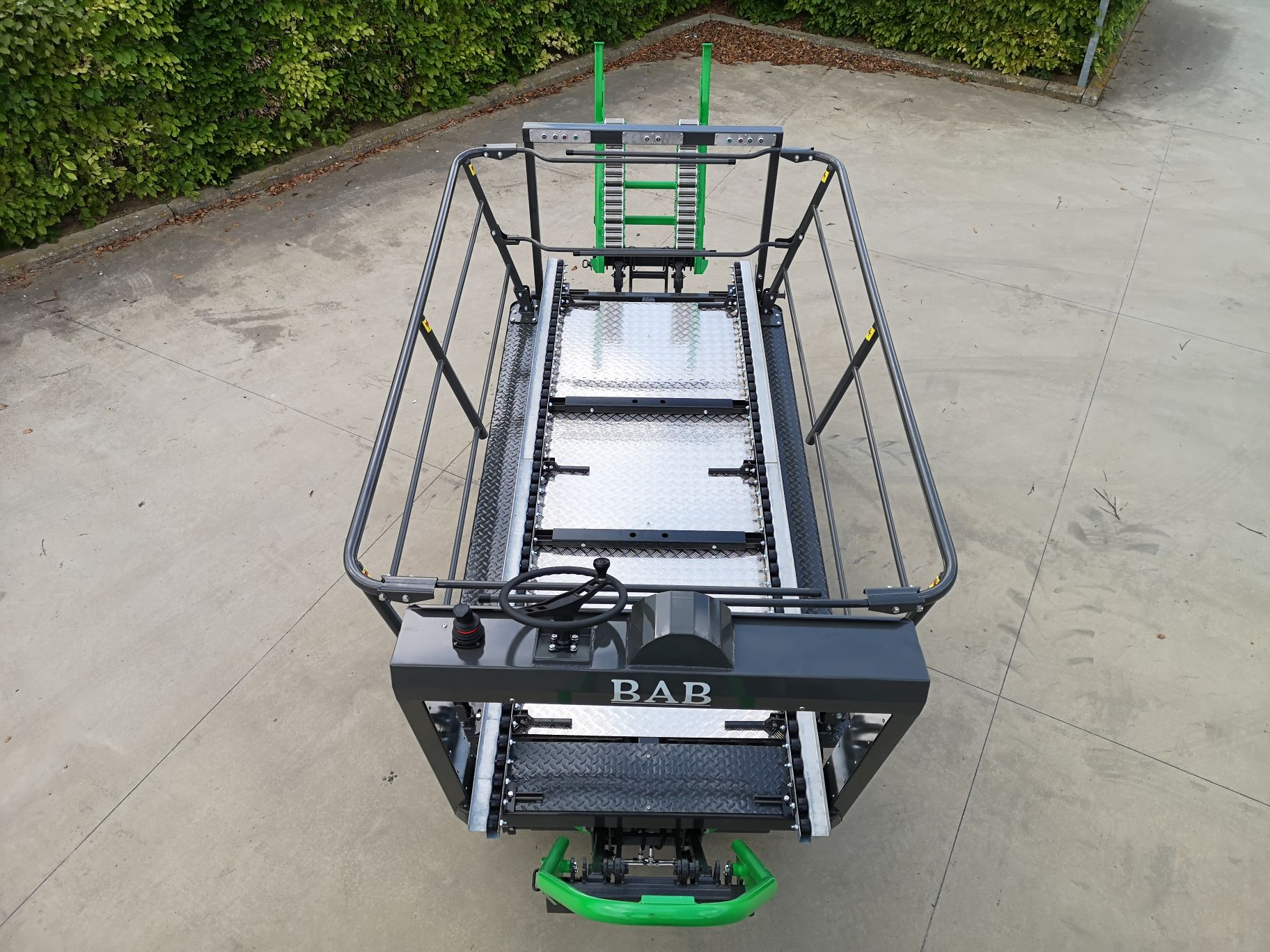

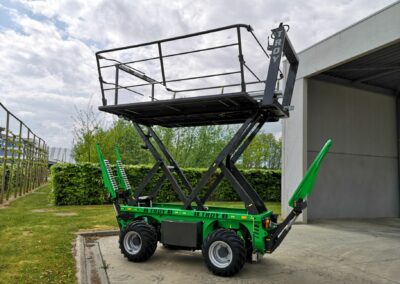

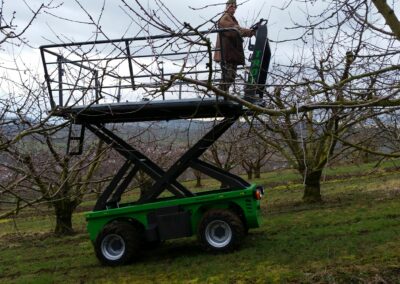

    platform: length of 4.2 meters and height adjustable up to 255 cm with double scissors
    width hydraulically adjustable from 1.6 to 2.6 meters
    machine: contact us for more information about this

Options:

  • Option 101:

    rollers for bins width ajustable for different sizes of bins
    can be easily built off after harvest
  • Option 115:

    wheels: 31×15,5-15 8 ply TR-07 Mitas
  • Option 111:

    wheels: 280/70-R16 BKT RT765 traction
    mounted on rim W8 x 16 with adjustable track
  • Option 132:

    air-compressor 550 liter with air-tank 25 liter , electrical engaged
    control unit for pressure setting and water separator
    4 removable air connections in the middle of the platform
  • Option 135:

    additional air-tank 50 liter
  • Option 140:

    table with 4x air connection for pruning with pressure gauge
    tool box

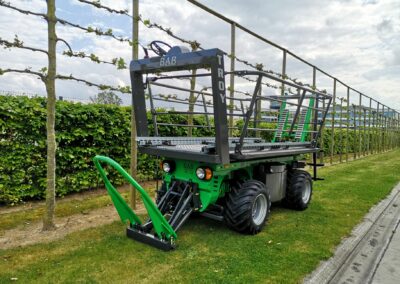

  • Option 150:

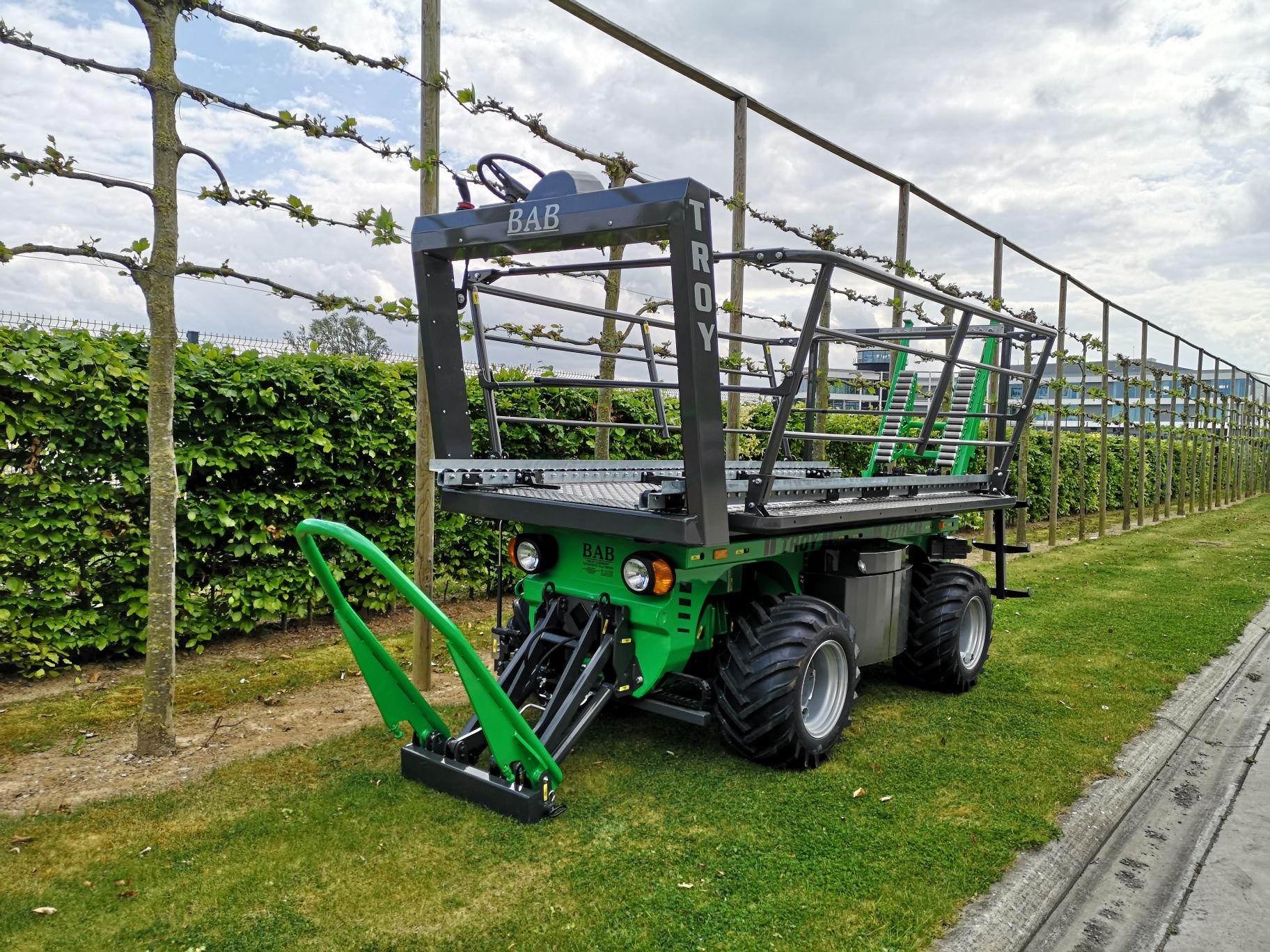

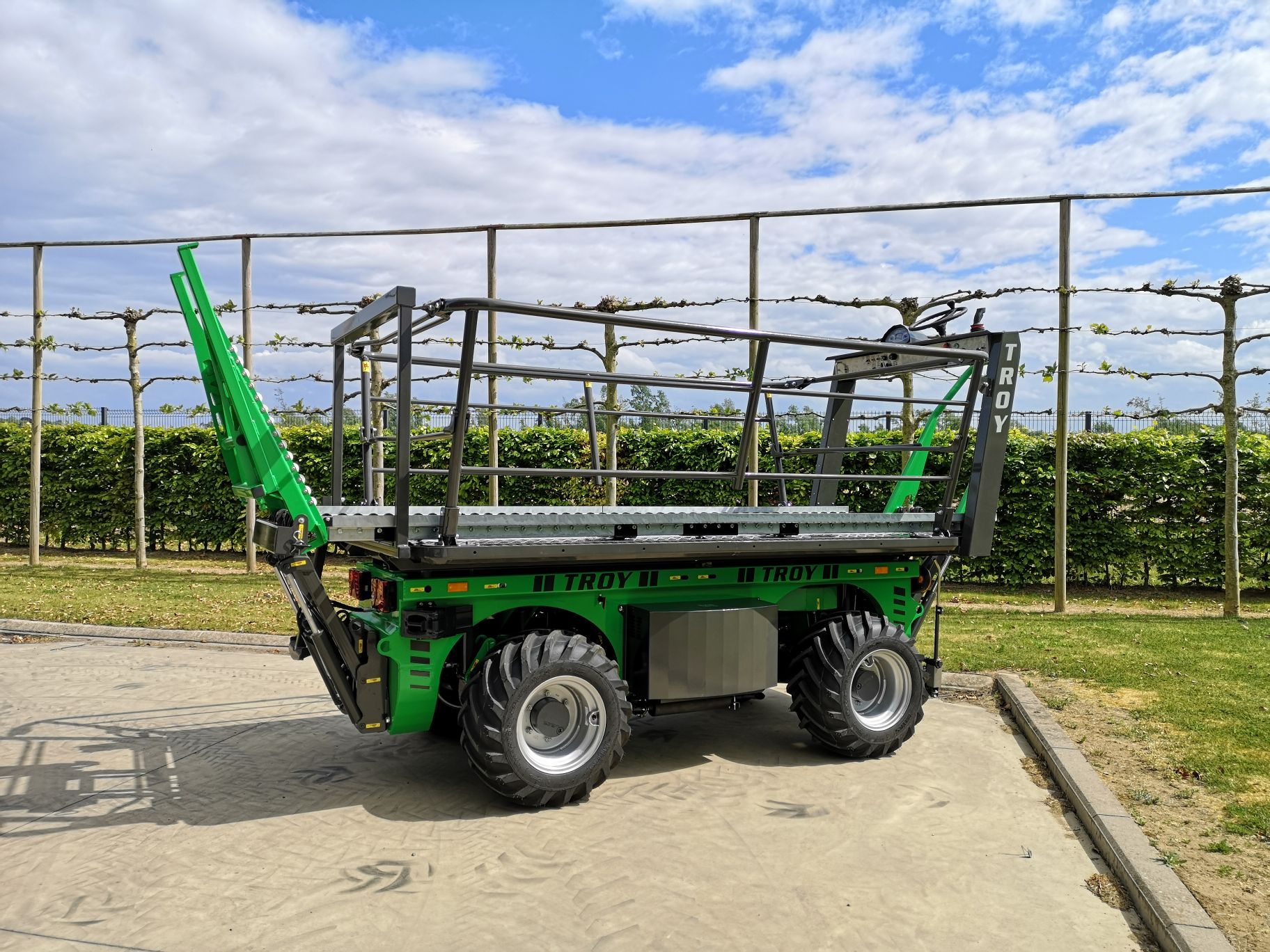

    front elevator
    adapted for bins
  • Option 230:

    Automatic levelling with slope sensor (roll and pitch)
  • Option 160:
    rear elevator (max load 600 kg)
    double rollers, outside row in width adjustable.
    control in the back off platform

  • Option 170:
    platform width from 180 (closed) to 340 cm (open)

  • Option 177:
    platform length + 1 meter total length 4 meter
    closed 1.6 meter – open 2.6 meter

  • Option 180:
    automatic steering with mechanical sensing arm.
    sensing arm in width adjustable with hydraulic cylinder.

  • Option 188 GO-TRACK:
    automatic steering with sensor Line assist.

  • Option 201:
    cruise control additional to auto steer.
    set speed will be remembered after changing of line.
    fine-tuning of speed with additional turning knob.
    start – stop function: machine can be stopped and restarted.
    digital read out of set speed in km/h

  • Option 220:
    levelling left -5° / right +5° ROLL

  • Option 225:
    levelling left -5° / right +5° PITCH
