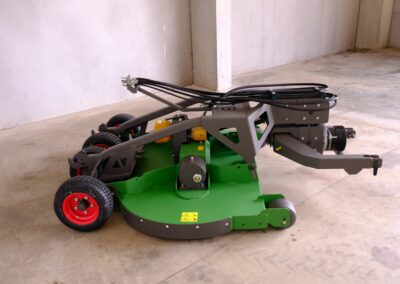

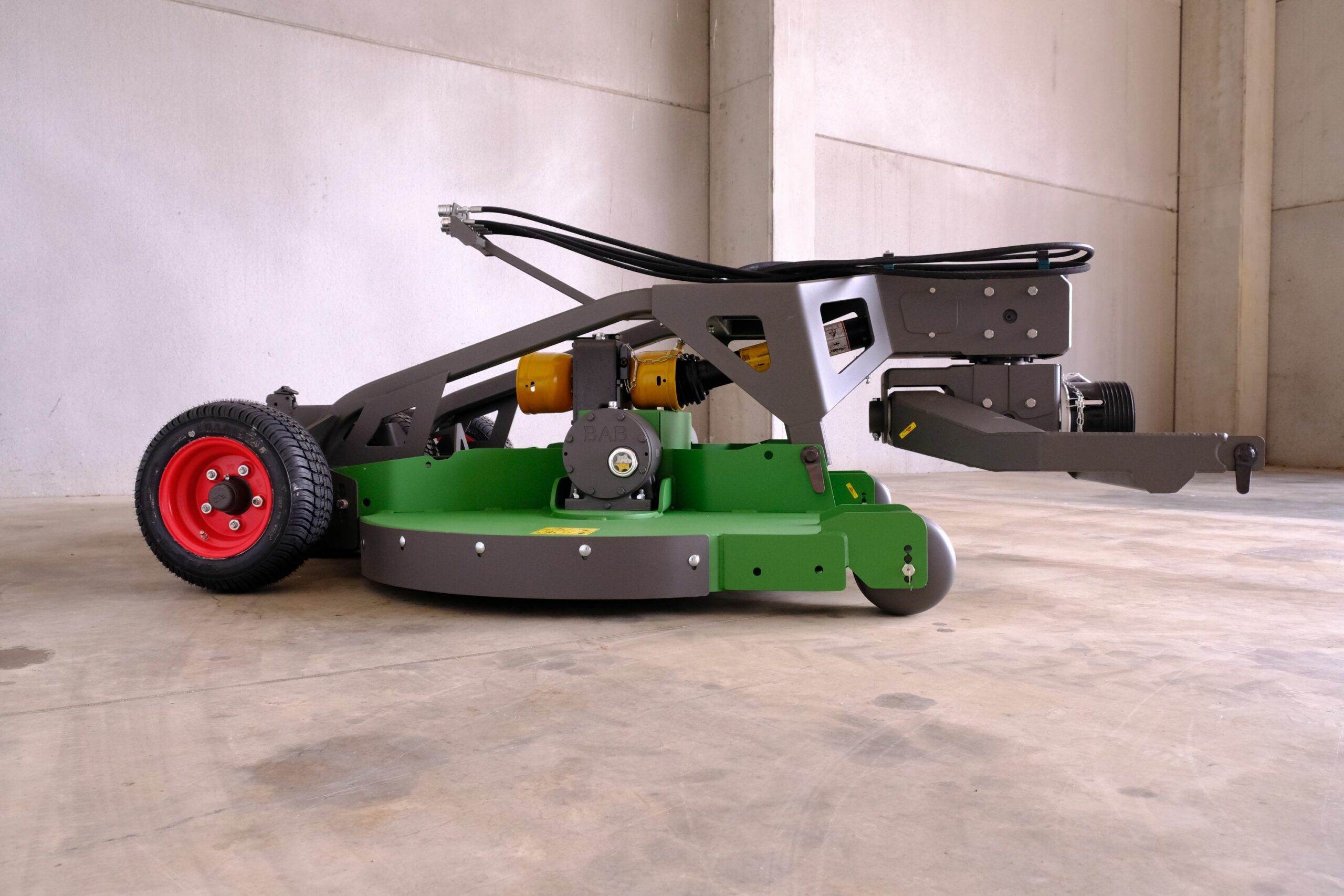

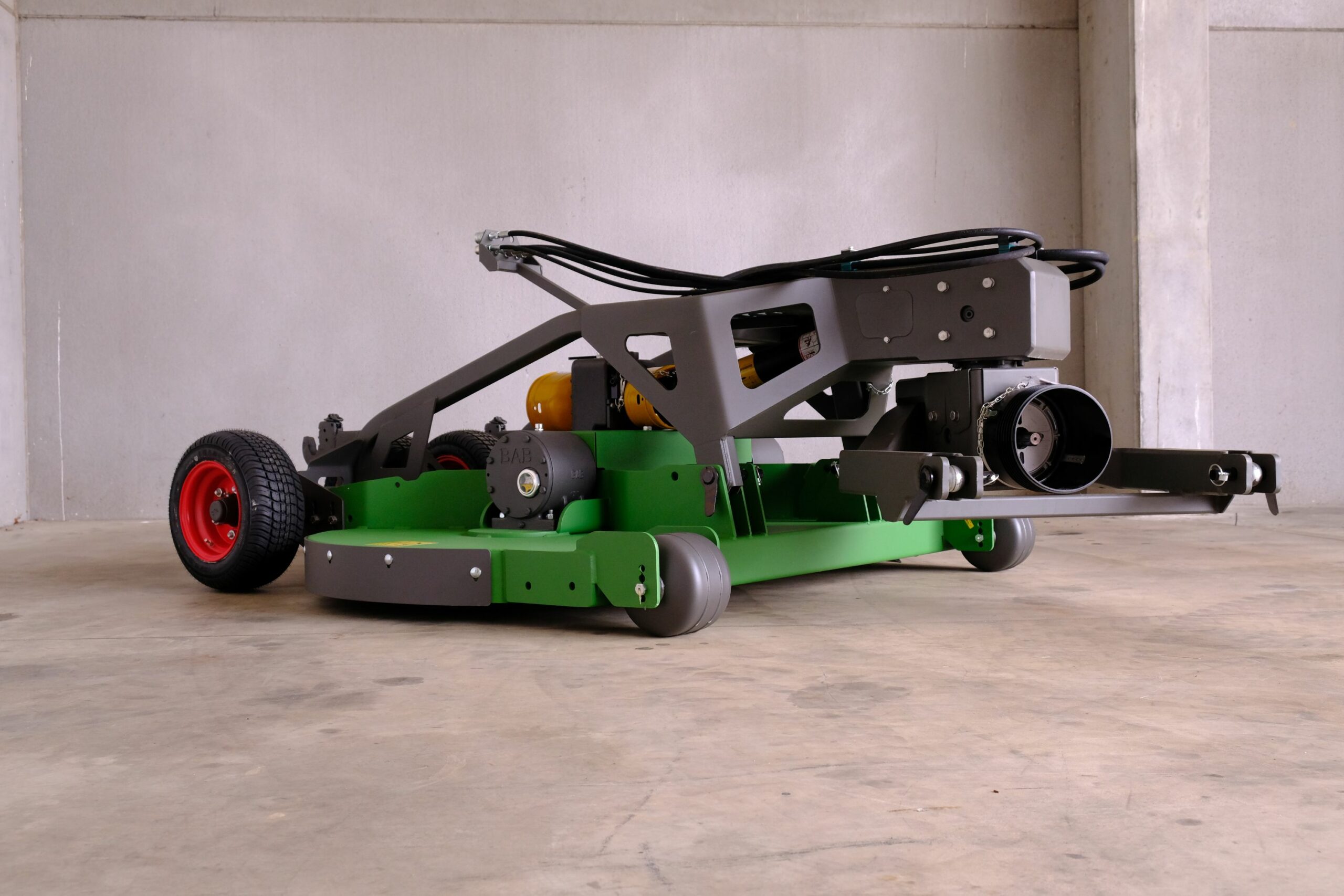

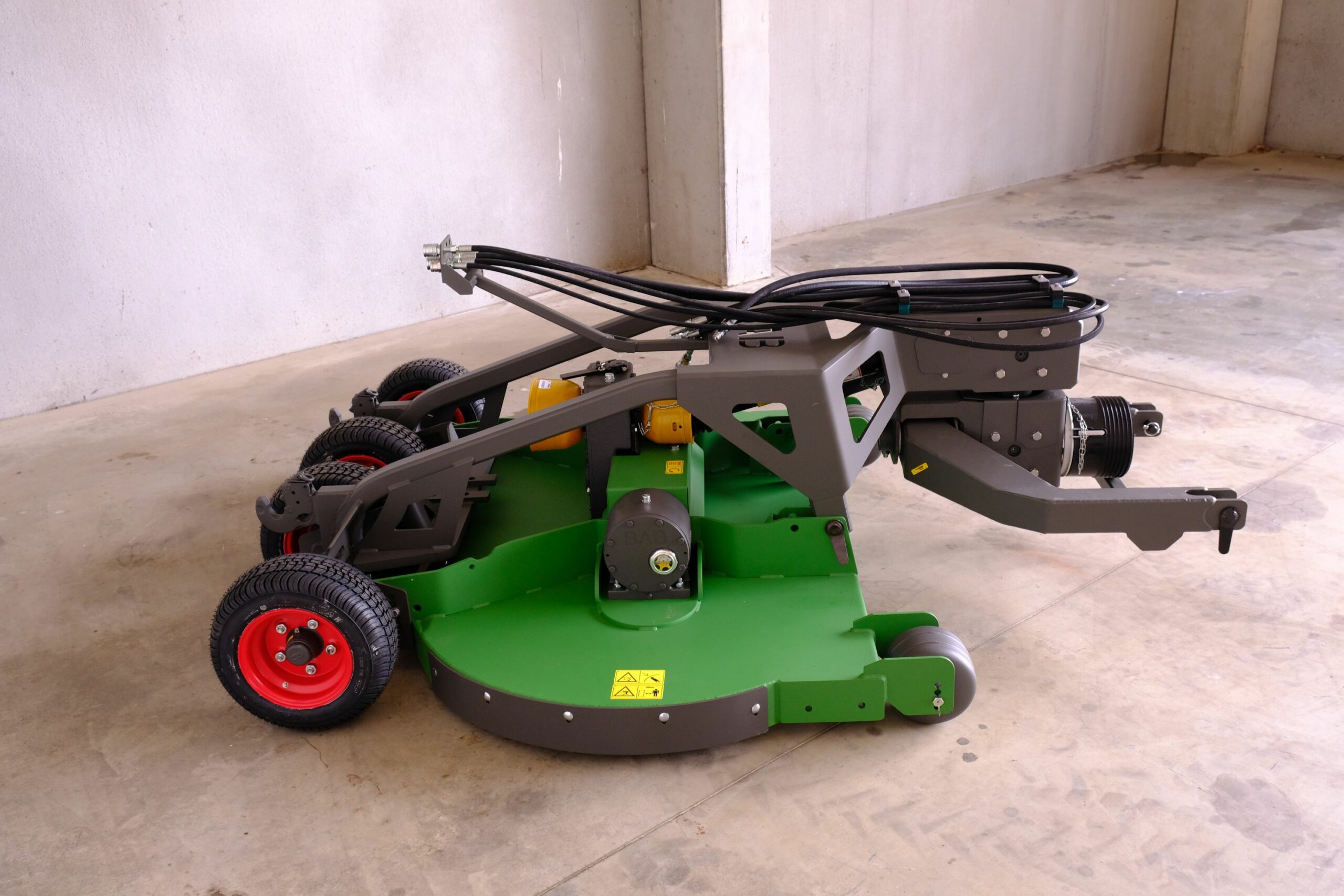

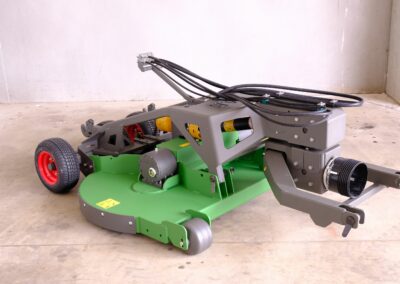

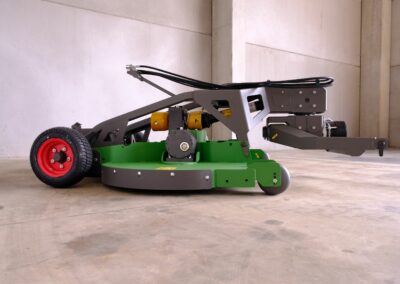

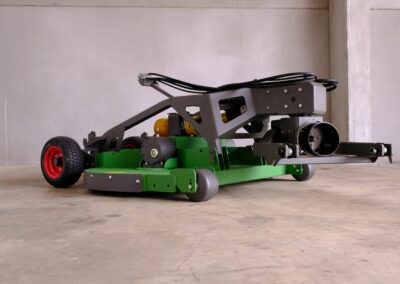

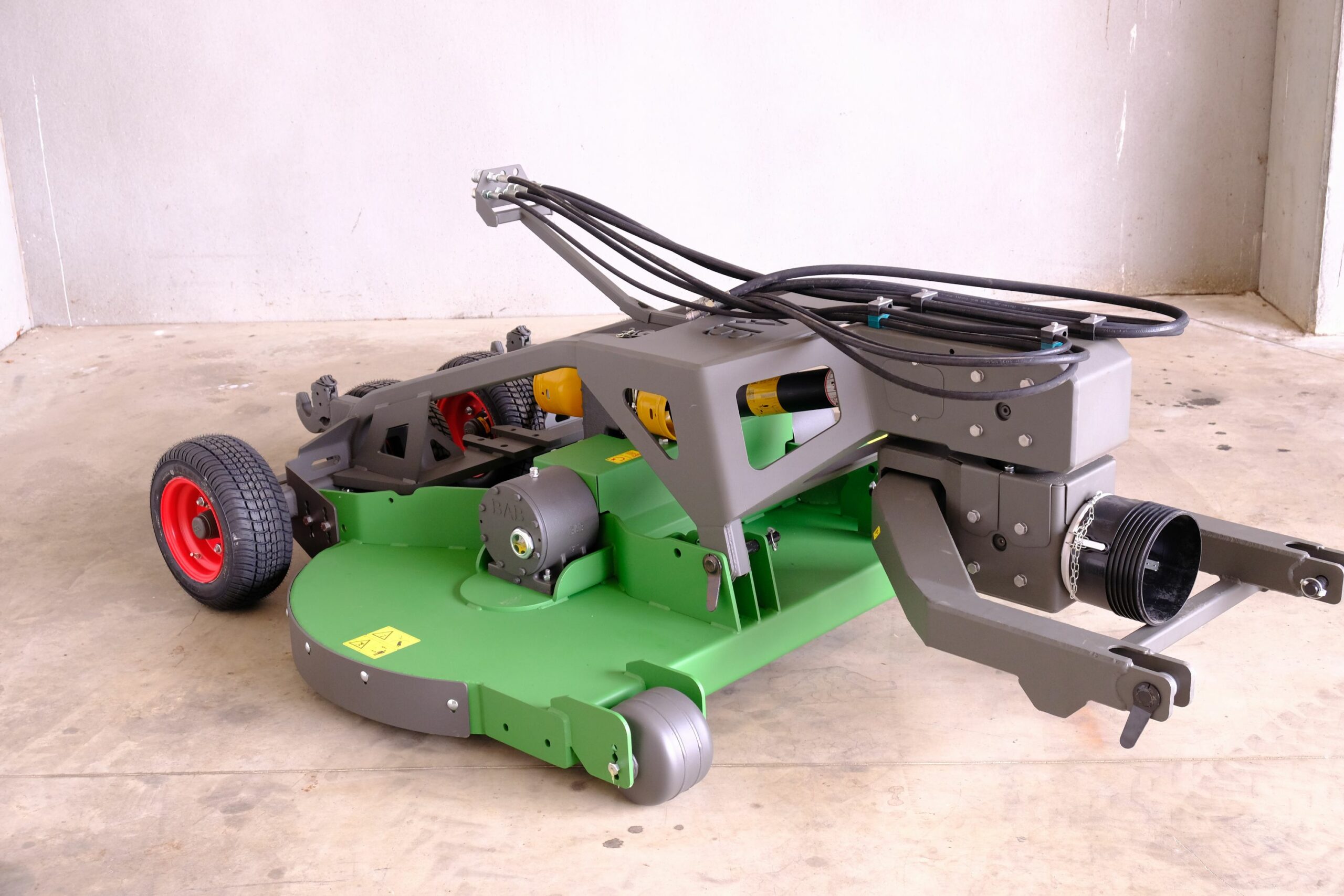

Mower SG Mow-spray trailed
The attachment of sprayer is done with a ball coupling K80 from Walterscheid.
This guarantees a stable connection between the sprayer and the mower.
Although the unit is quite long, it is practical to work with and also follows the tracks quite well.
Due to the stable construction, extra 4 wheels and the solid connection of the sprayer with the mower, this unit is very useful when driving on public roads, which is quite difficult with the classic mower-sprayer combinations.
Standard machine
- low construction
- hitch in lifting arms with double gearbox
- skids in front
- no roller in backside , replaced by 4x wheels 195/50B10
- wheels mounted on semi-axles with adjustable track
- direct drive , no V-belts
- 2 rotors with swinging blades
- discharges grass left and right
- height adjustable cutting height
- 540 rpm
- bal hitch K80 for attachment sprayer
- pto drive shaft with clutch
Options
- heavy duty metal front rollers(pair)
- removeable side plates for side discharge
- spray-mow gearbox and hitch
- height adjustable ø 220 roller in back
- Grass discharge in the middle
Articlenumber | Type | Cutting | Total | Frame | Rotor | Blades | Weight | |
cm | cm | mm | # | # | kg | |||
880-507-162 | SG162S | 160 | 170 | 5 | 2 | 4 | ||
880-507-182 | SG182S | 180 | 190 | 5 | 2 | 4 | ||
880-507-202 | SG202S | 200 | 210 | 5 | 2 | 4 | ||
880-507-222 | SG222S | 220 | 230 | 5 | 2 | 4 | ||
880-507-242 | SG242S | 240 | 250 | 5 | 2 | 4 |
