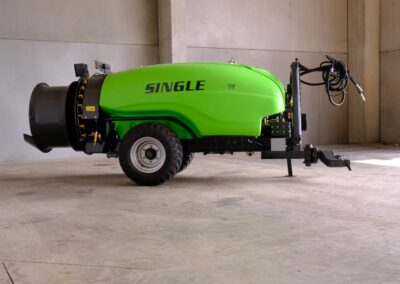

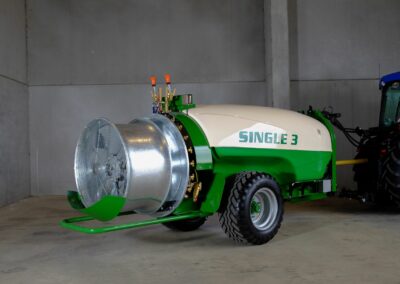

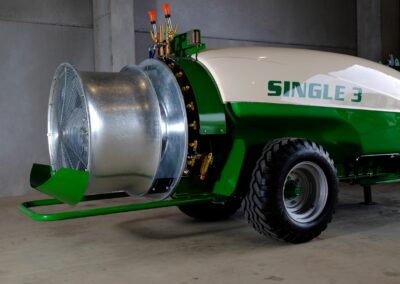

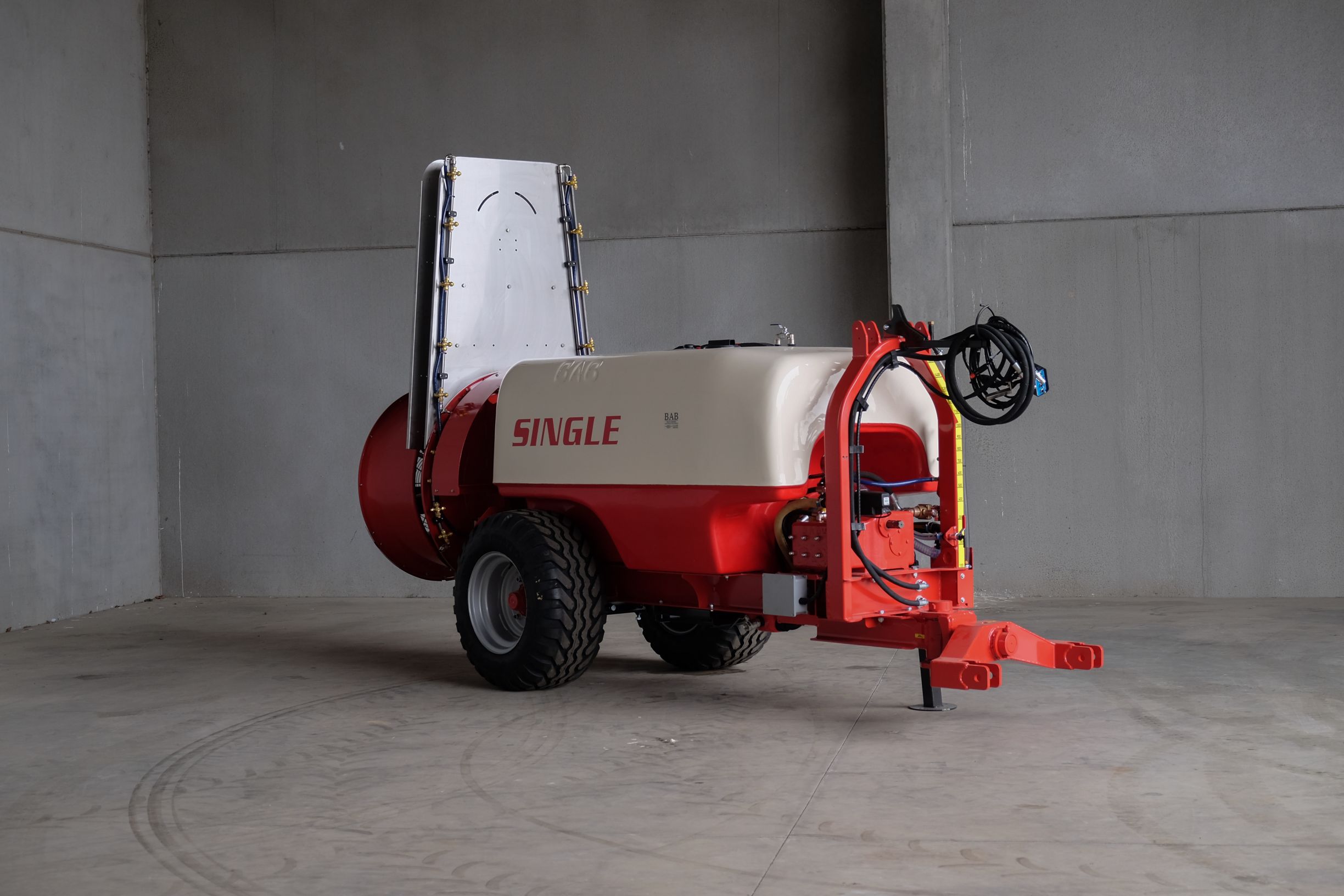

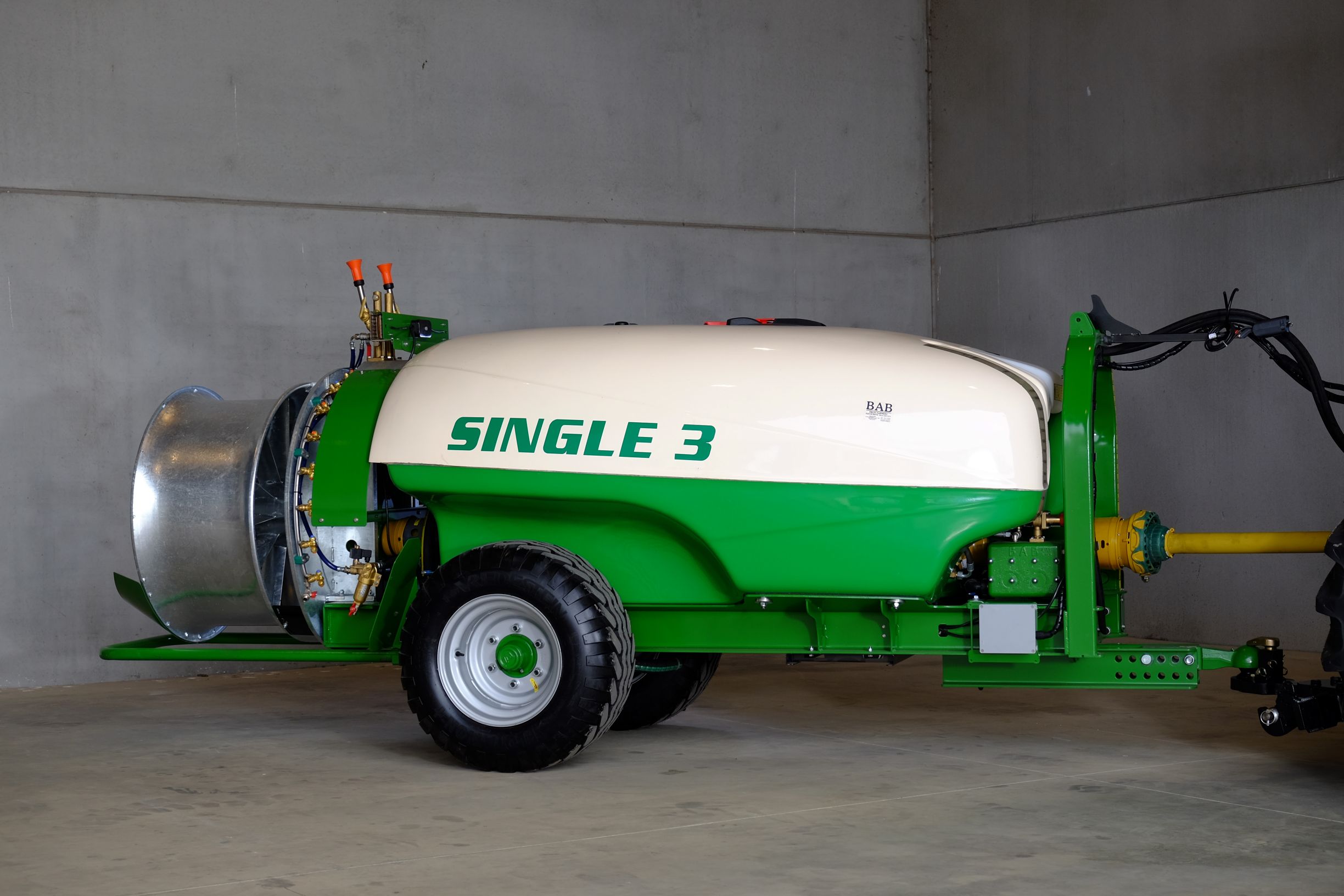

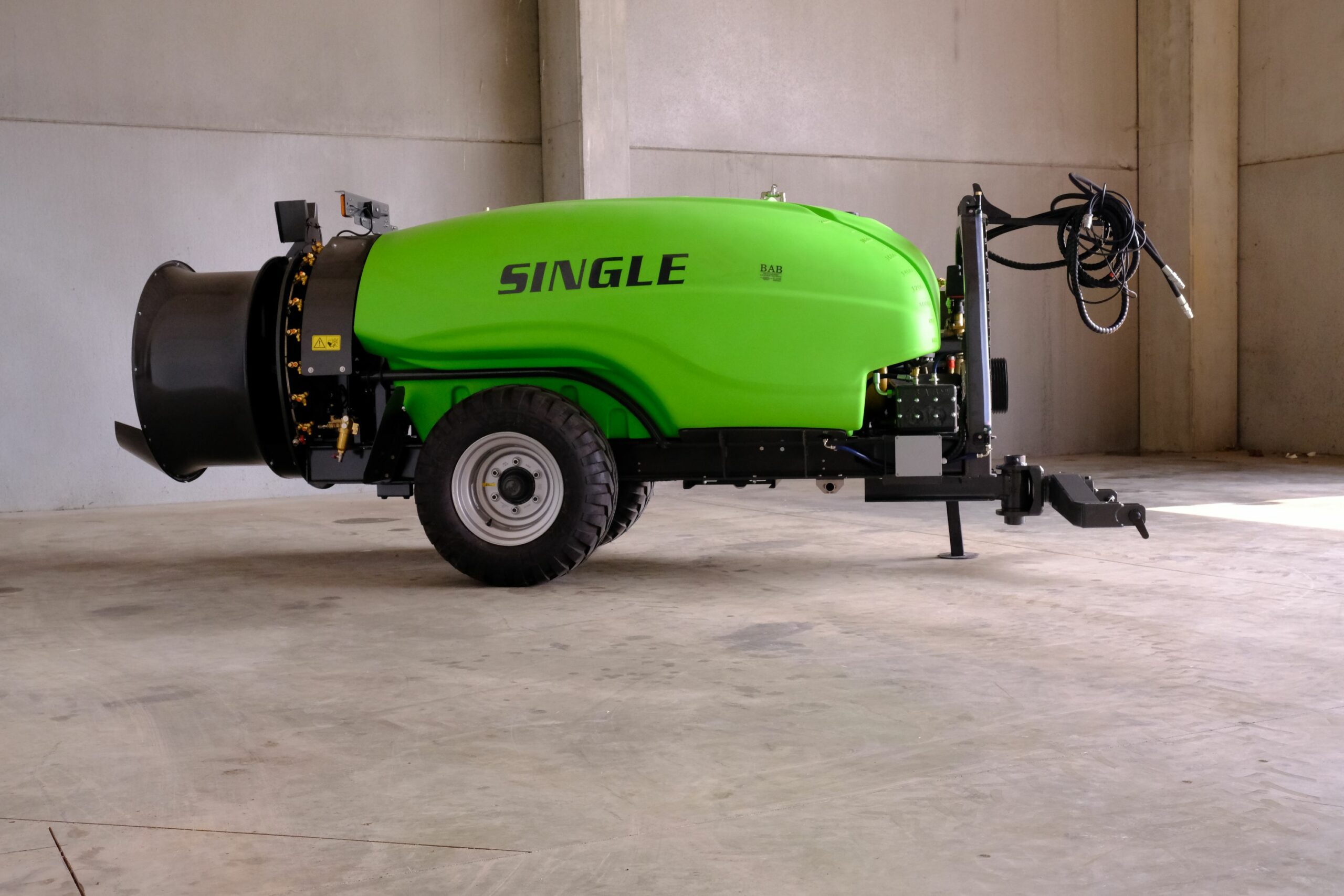

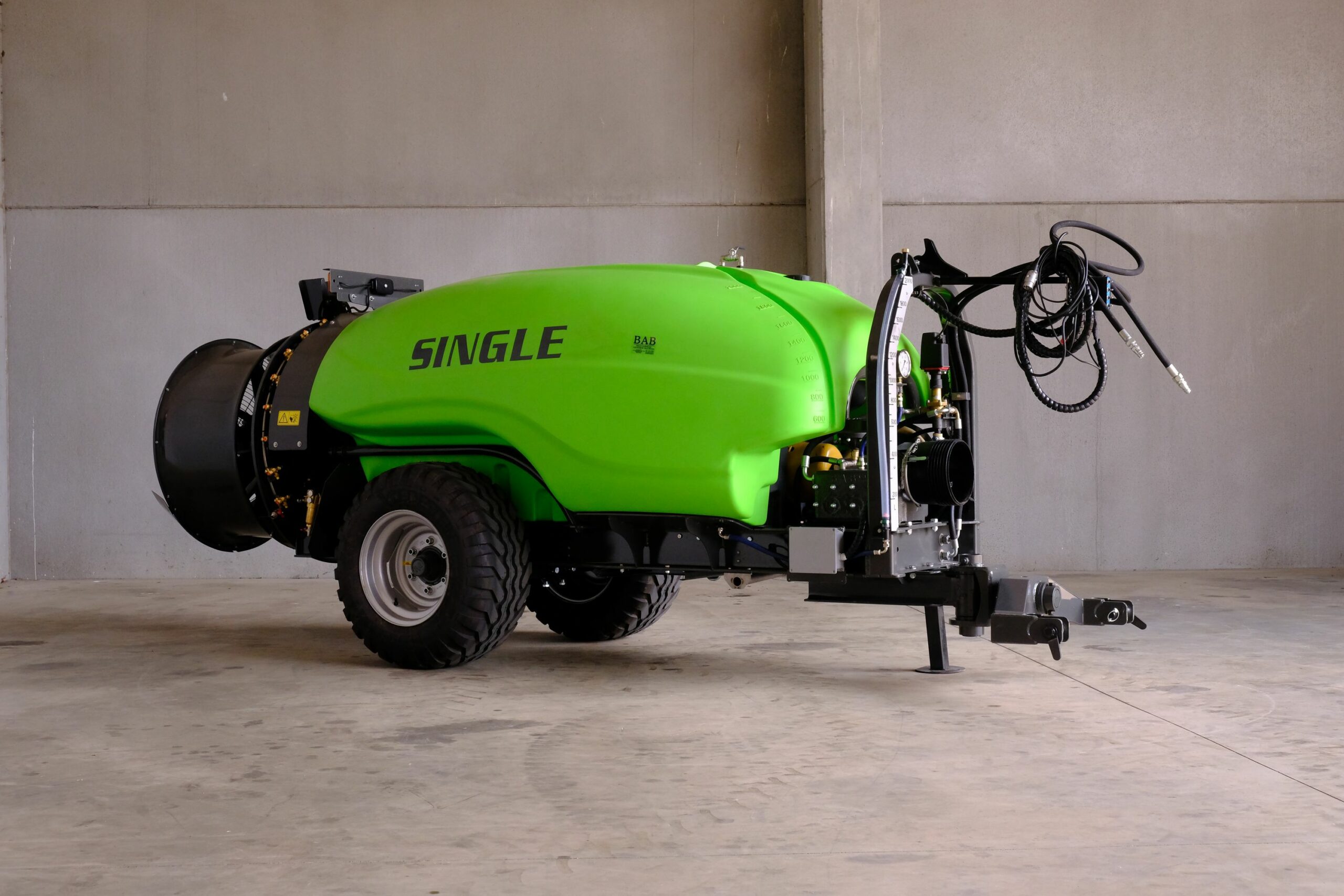

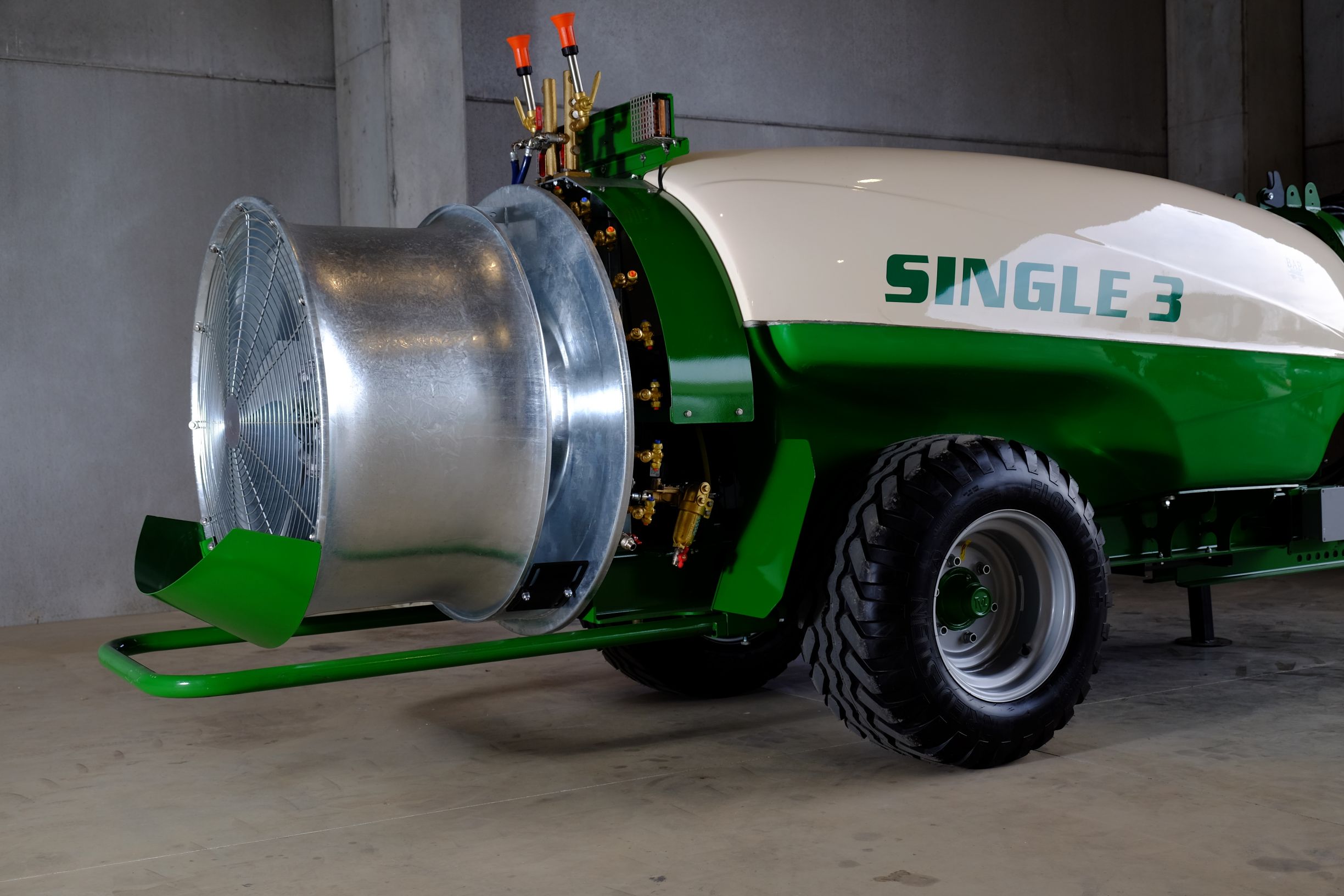

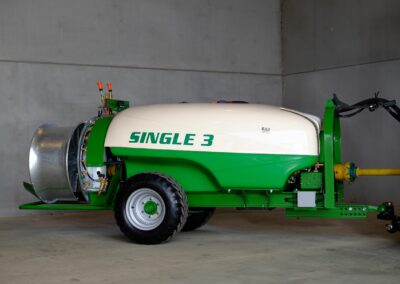

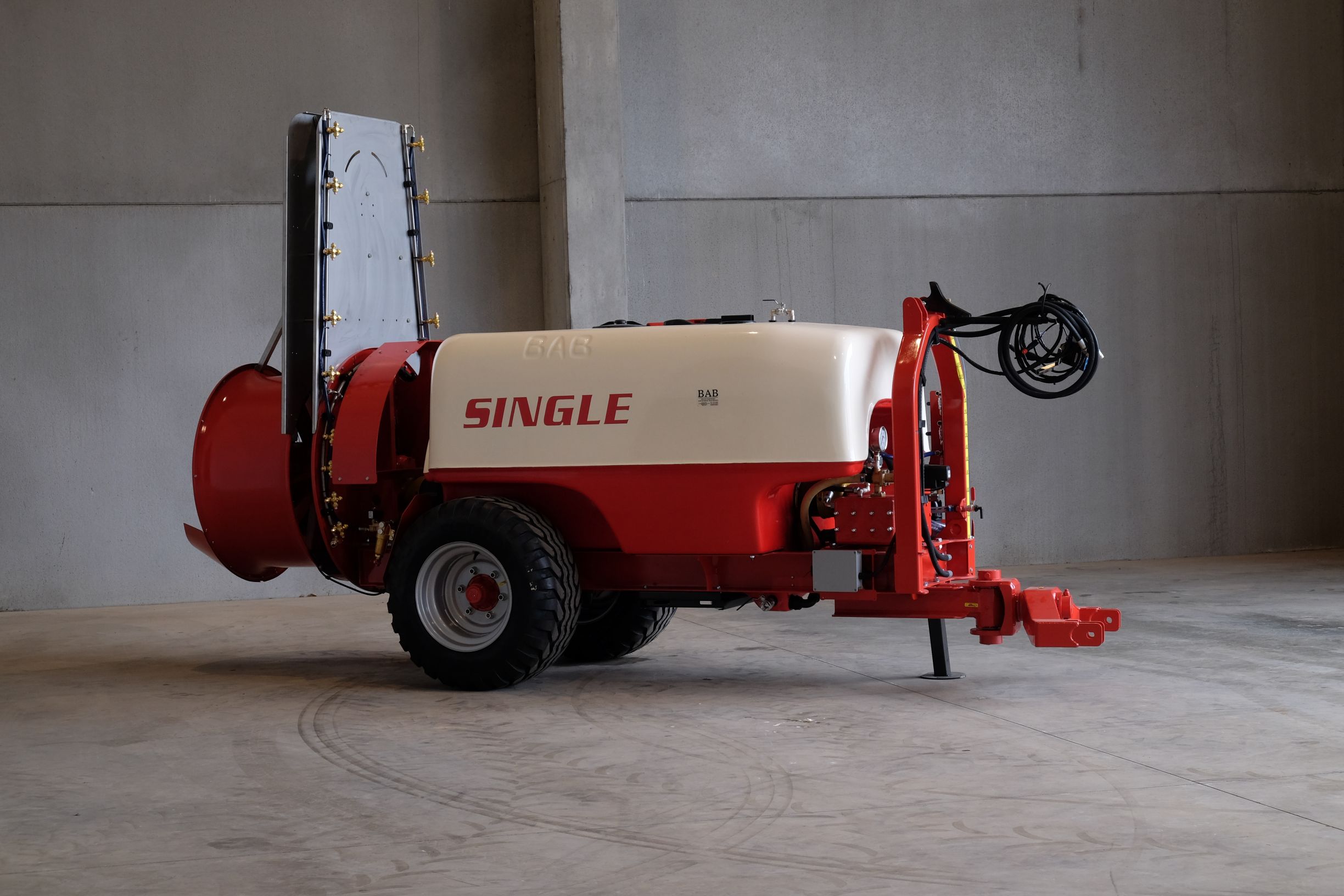

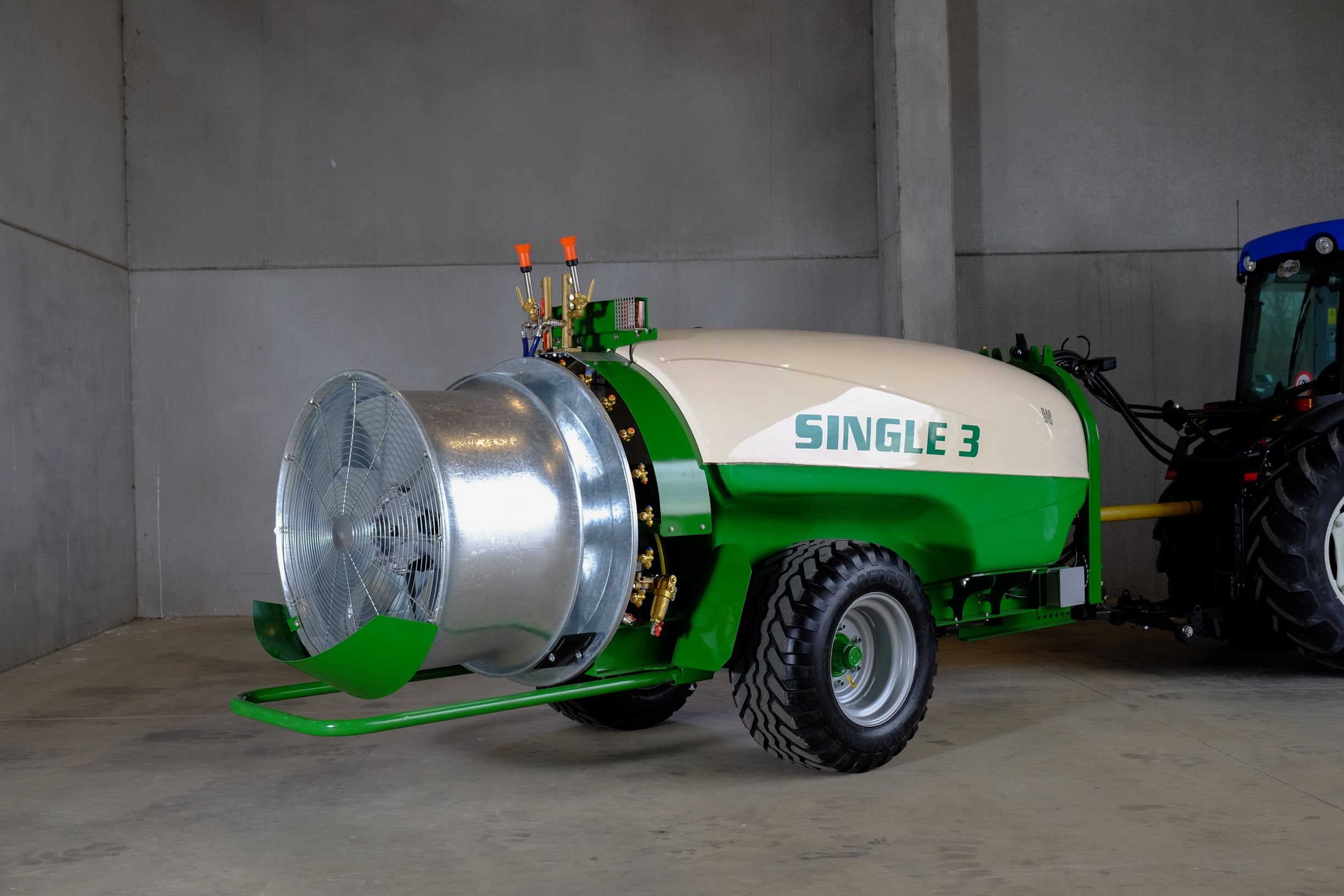

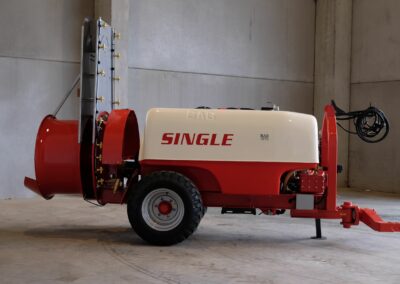

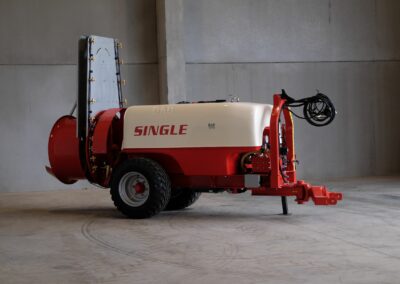

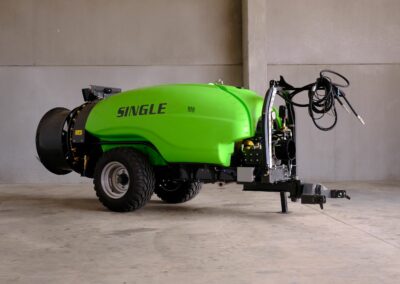

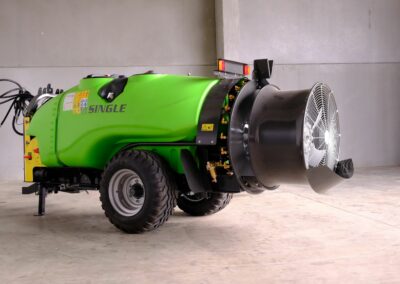

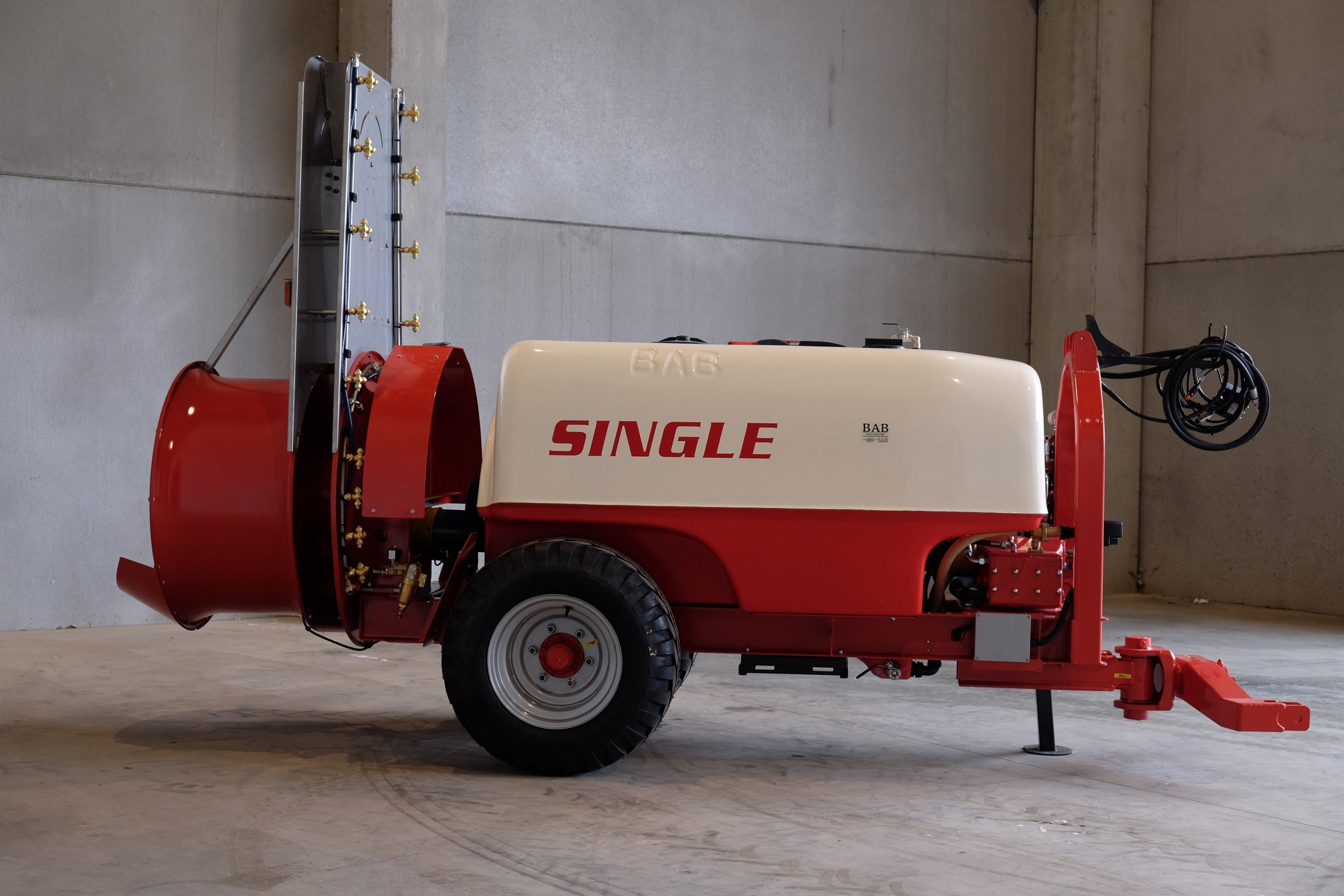

Single Sprayer
Standard machine
- Pump:
diaphragm pump 140 liter COMET - Mixing:
dust hydraulic mixer in basket
injector with venturi - Axle:
axle 60 mm with adjustable track - Wheels:
tyres 380/55-17 Flotation 12 ply - Fans:

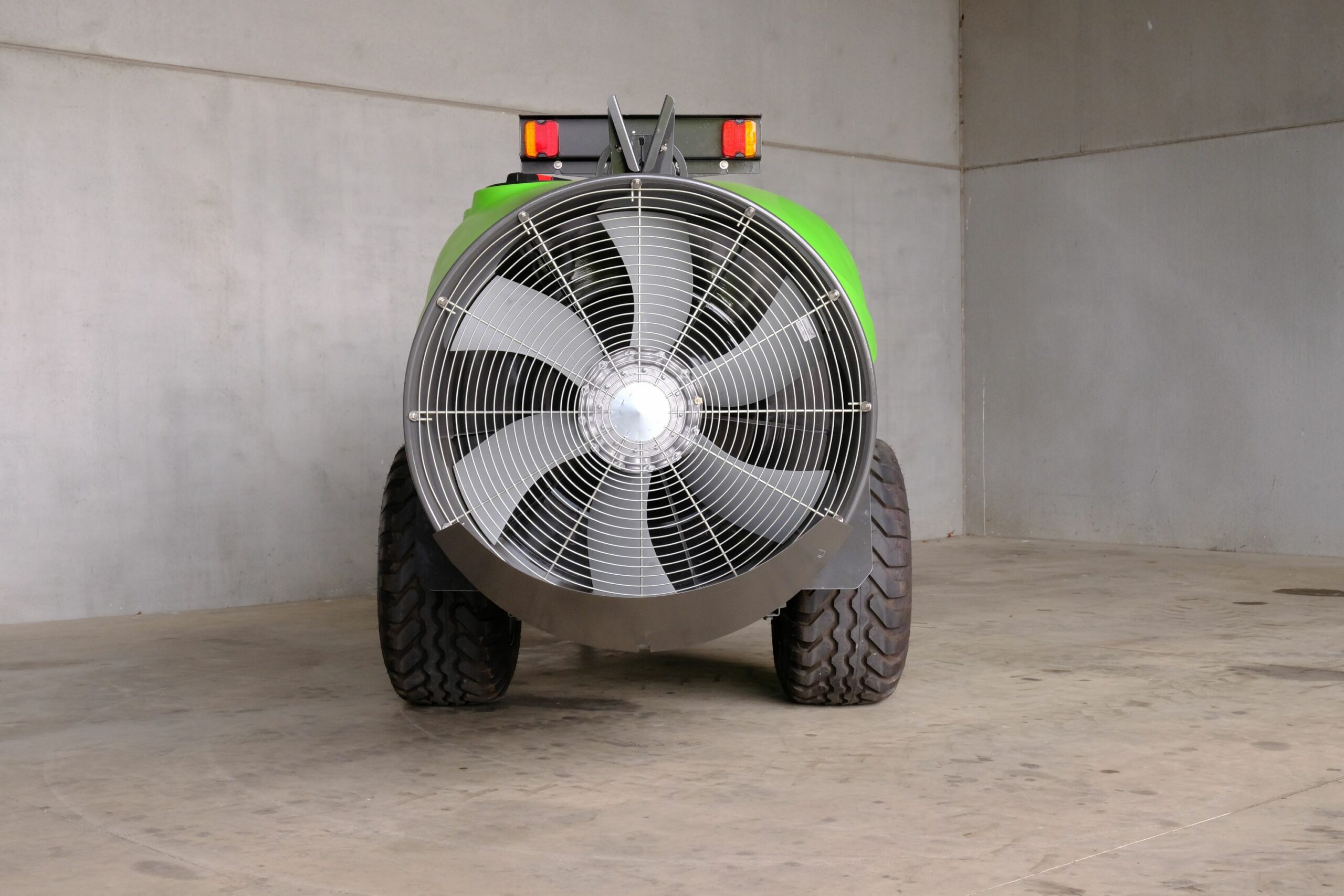

single ø 900 mm with A-frame
2 speed gearboxes with idle overdrive - Nozzles:
double brass double nozzle bodies with Albuz ATR nozzles - Filters:
1 suction filter, 50 mesh, easy to reach – adjusted to pump flow
2 high pressure filters, 50 or 80 mesh, in backside.
- Control:
2 sections with 2 elektrovalves, 27 watt with general switch - Pres control:
manual - Pres gauge:
gauge 25 bar ø 100 mm class 1.0 - Tank:
polyethyleen or fibreglass tank from 1500 up to 2000 liter
clean watertank to flush pump
clean watertank for handwashing - PTO-shaft:
depending on drawbar:
– Weasler 2x double joint
– Bondioli single double joint - Drawbar:
straight drawbar with fork - General:
metallized frame
lights for road traffic
Options:
- Pump:
high-pressure, slow turning piston pump BAB 80 liter
brass diaphragmpump AR 135 litres - Mixing:
2nd pump (centifugal) for mixing in tank, hydr. Driven by tractor - Wheel axle:
double axle, fix under frame, with tires 10,0/75-15,3 14 ply
double axle, double swivel, with tires 10,0/75-15,3 14 ply
braked axle - Wheels:
380/55-17 12 ply flotation single axle
340/50-16 12 ply flotation double axle - Drawbar:
swivel hitch, heavy duty - PTO-shaft:
Walterscheid instead of Weasler
WWZ 2380 double wide angle 80°
- Nozzles:
triple nozzle holders
drift reducing nozzles - Pres control:
elektrical pressure regulation valve - Fans:

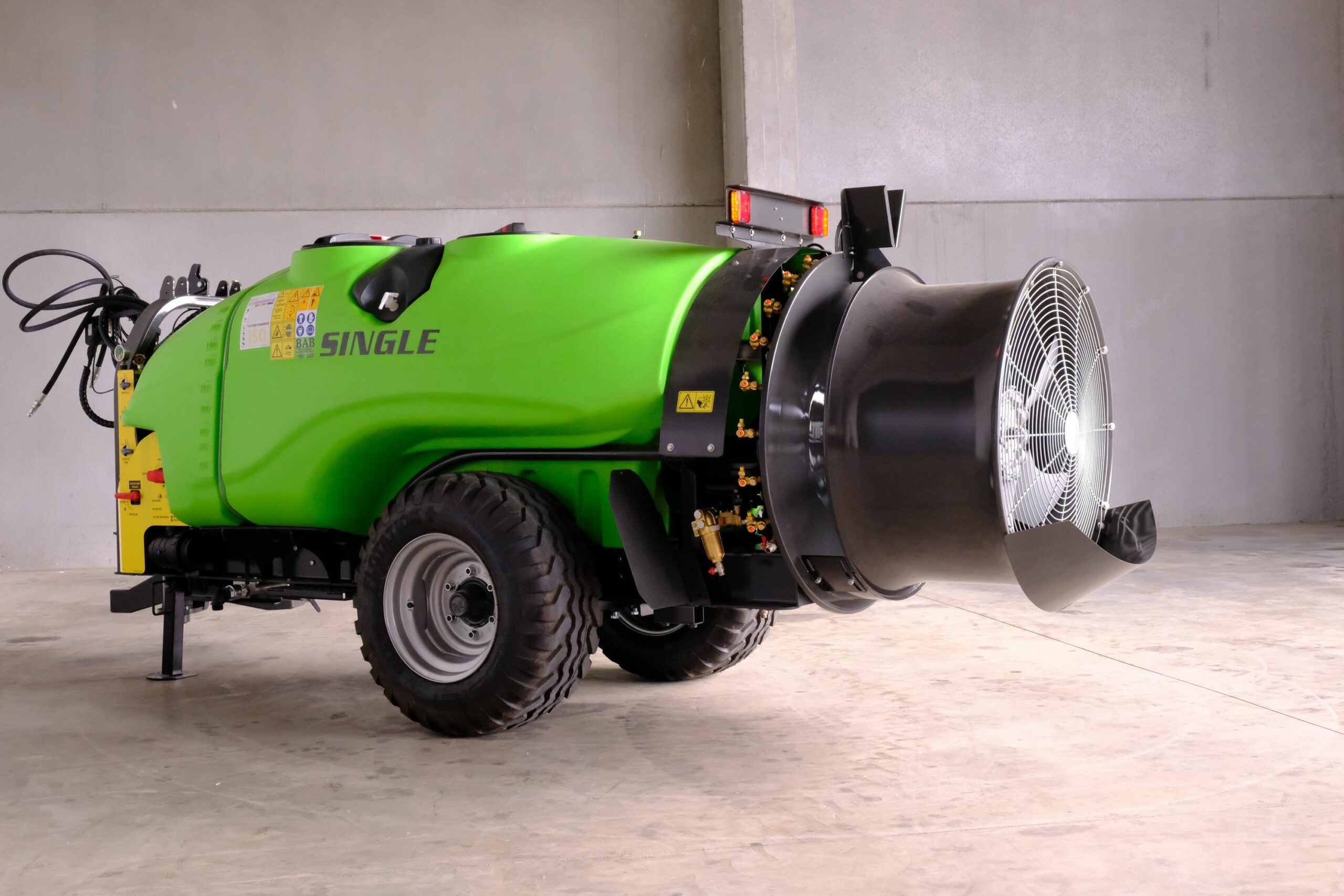

crossflow on housing ø 800 mm with 2x 9 nozzle
propellor ø 900 mm with 6 blades
A-frame on propellor ø 900 mm with 2x 9 adjustable nozzleholders - Spraycomputer:
farmscan 74V1 - Controller:
jack-all - Tank:
2000 litre fibreglass
